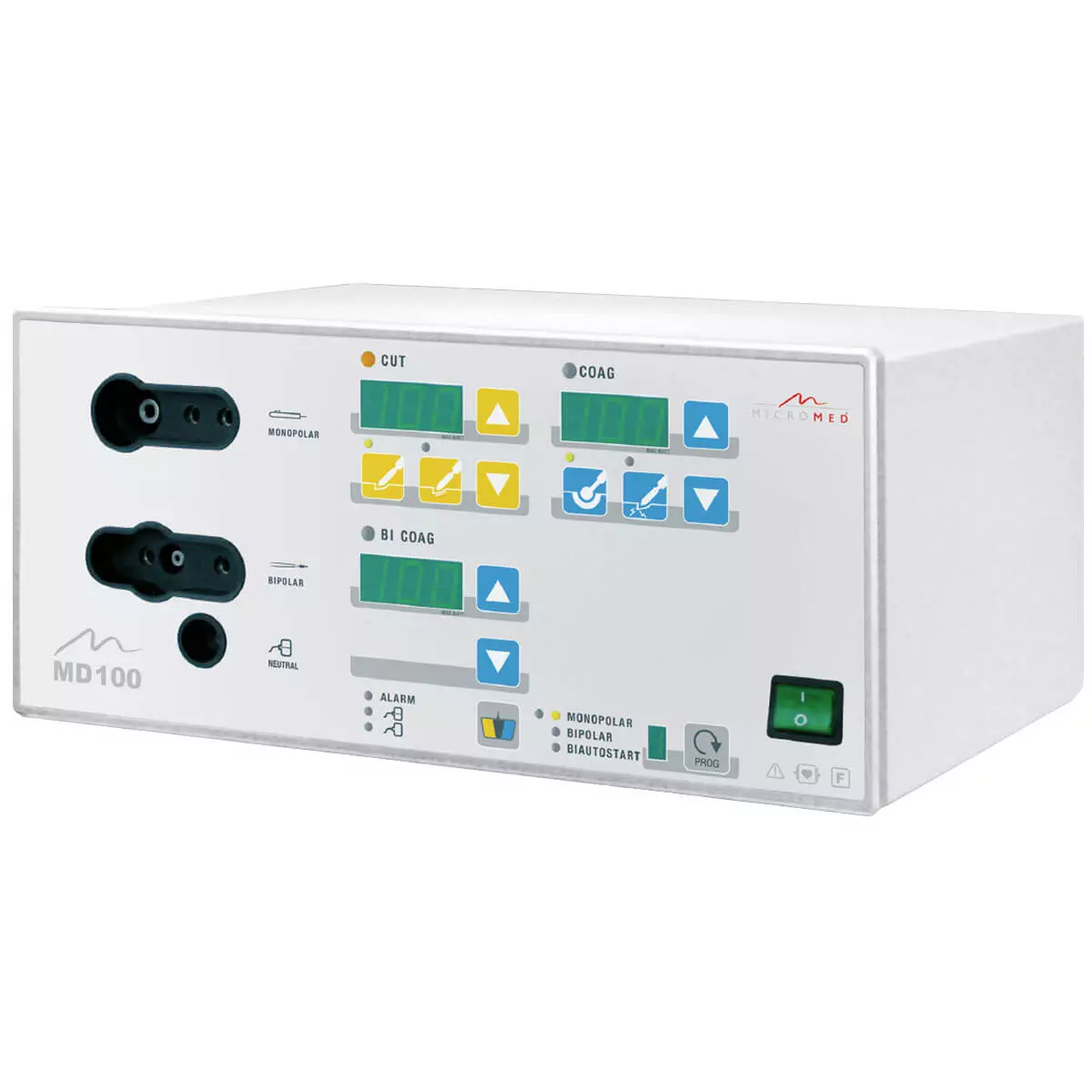

MICROMED MD 100 HF electrosurgical unit

The MICROMED MD 100 HF unit is a compact electrosurgical device with easy-to-use function buttons, offering simple and safe operation. The high-frequency surgical device automatically regulates the delivered power through continuous tissue measurements, adjusting the output according to need, all without exceeding the preset maximum output.

Product details

• Electrosurgical device with 100 watts output power
• For dental, dermatological, veterinary, and surgical use
• Power regulation in all modes, with 1-watt increments for micro applications (1–25 W)
• Automatically adjusts to different tissue impedances
• With bipolar coagulation function with auto-start function
• Two monopolar cutting and coagulation modes each: smooth cut, coagulating cut, soft coagulation, and force coagulation
• 9 profiles for personalized settings
• Neutral electrode monitoring with visual and acoustic signal

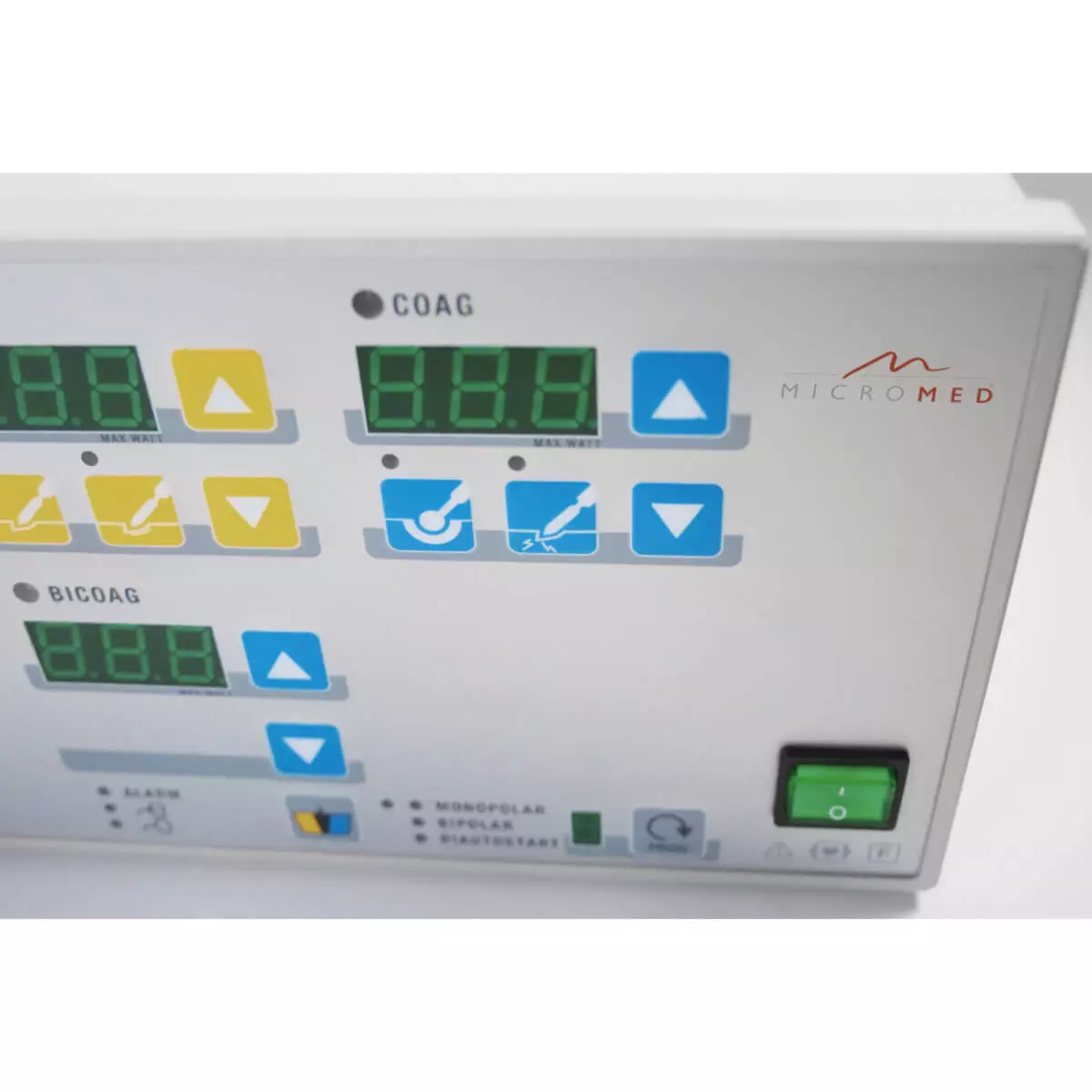

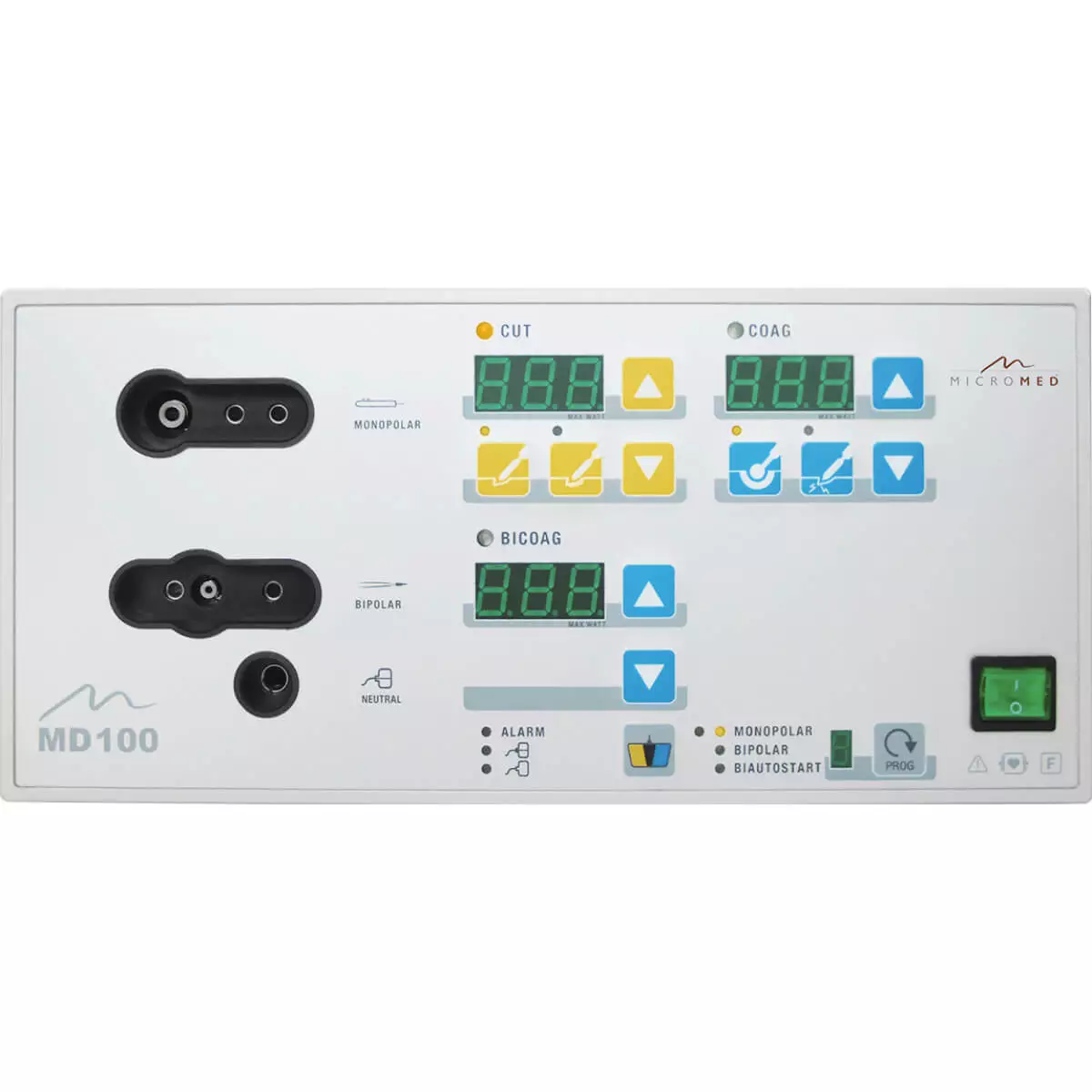

• Membrane buttons for functions and digital display
• Can be used all around the globe thanks to its power input from 100 to 260 volts

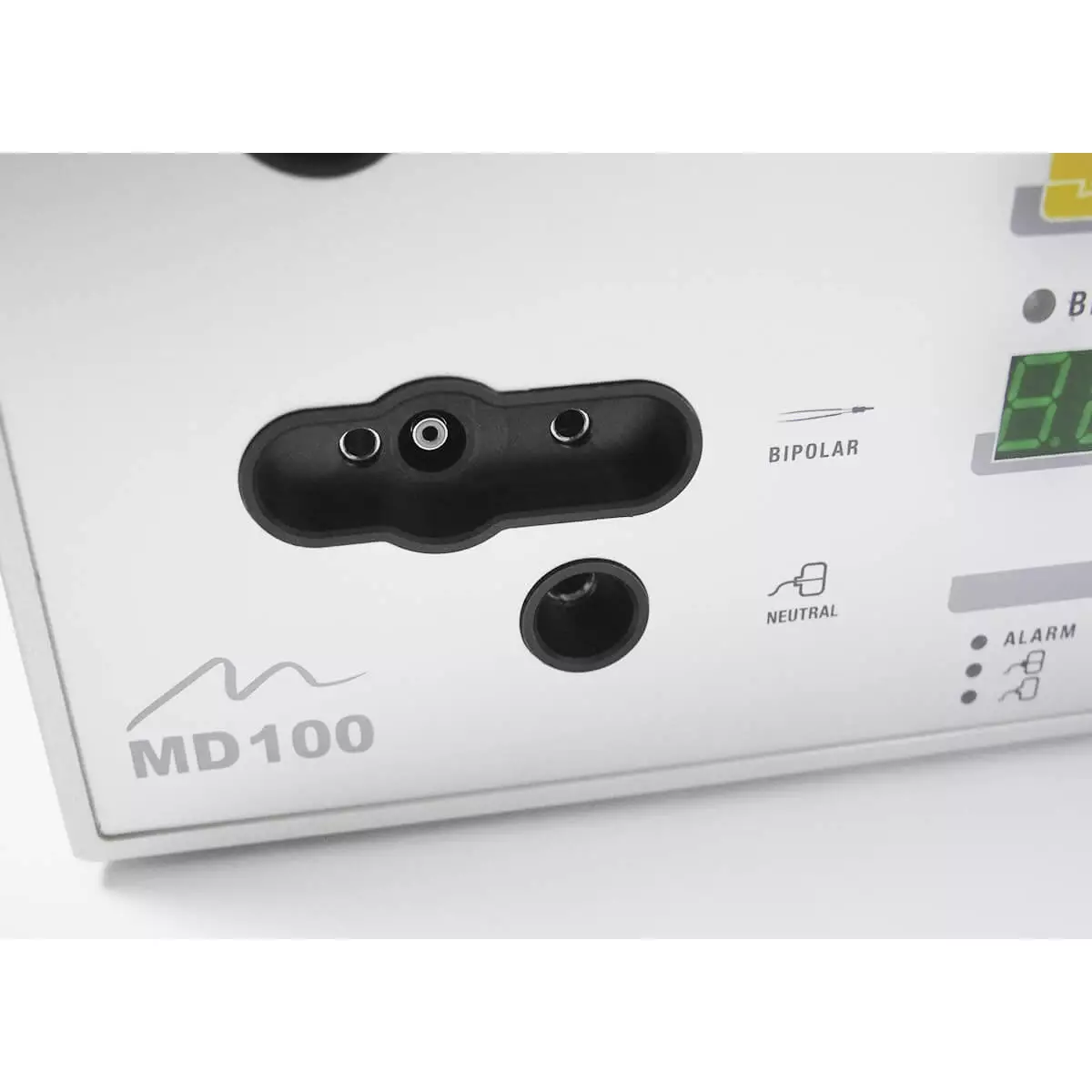

• Multifunction ports for standard, Aesculap, Berchtold, Martin, and MICROMED connectors
• Made in Germany
• Manufacturer warranty: 2 years
• Accessories such as instruments, neutral electrodes, handles, and footswitches available separately

Technical specifications

• Dimensions: L 31 x W 37 x H 14.5 cm
• Weight: 6.9 kg

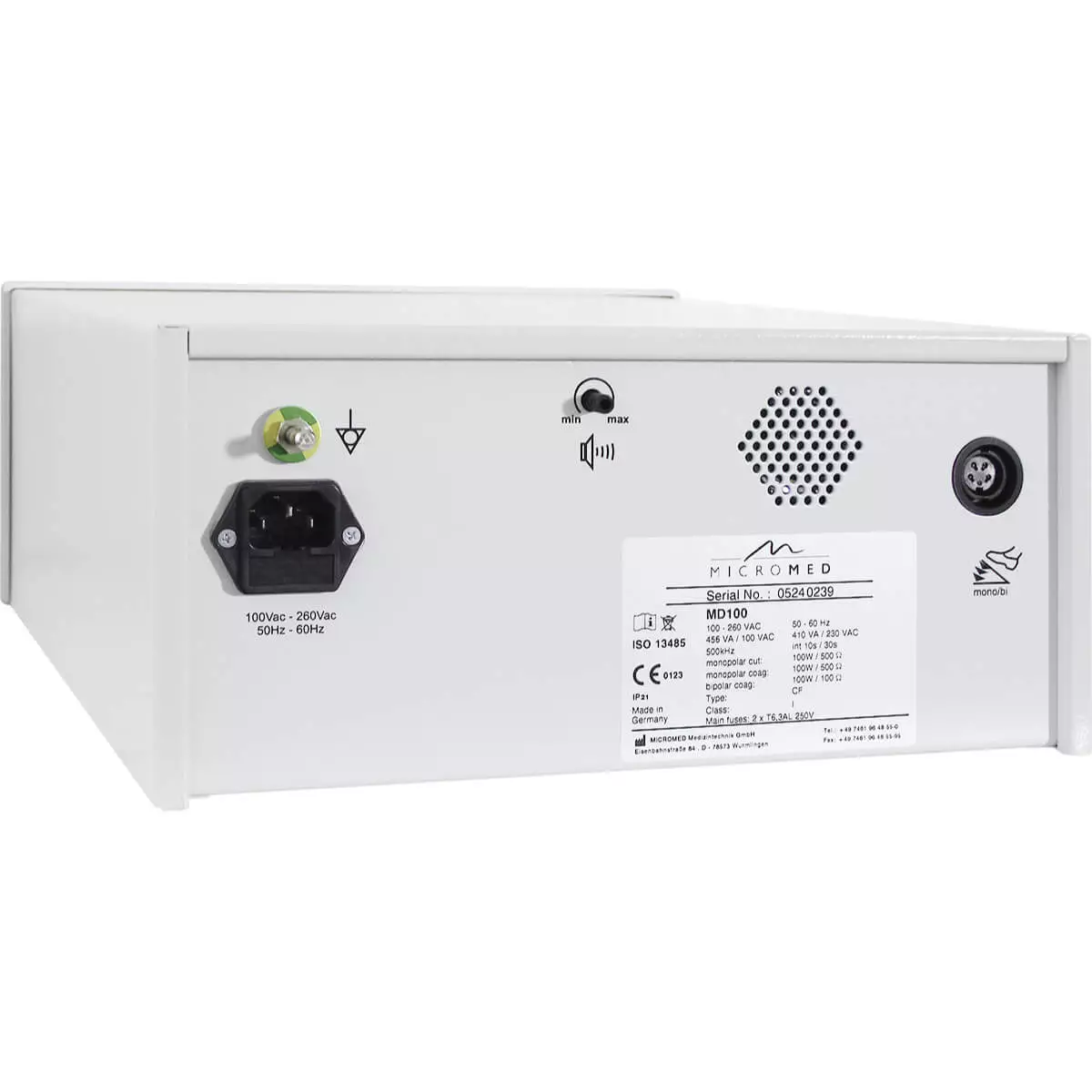

• Ports:
• 3-pin standard plug (monopolar instrument)
• 2-pin standard plug (bipolar instrument)
• Neutral electrode
• Footswitch
• Equipotential bonding
• Power cord
• Nominal frequency: 500 kHz
• Power consumption: 150 VA (at 230 V)
• Power consumption on standby: 12 W / 30 VA
• Monopolar modes:
• Cut 1 and 2: 100 watts, 500 Ω
• Coagulation 1: 100 watts, 100 Ω
• Coagulation 2: 100 watts, 500 Ω
• Bipolar mode:
• Coagulation: 100 watts, 100 Ω
• CF classification: IIb
• Protection class: I
• Power supply: 100–260 V, 50–60 Hz

Package contents

• 1 MICROMED MD 100 HF electrosurgical unit
• 1 power cable
• 1 user manual
• 1 device logbook

This product requires instruction in Germany in accordance with the German MPBetreibV regulation. Training via call is included in the price.
