MICROMED Dermatology instrument kit for MD 100 electrosurgical unit

The MD 100 dermatological instrument kit is suitable for the MICROMED electrosurgical unit MD 100. It includes a coordinated selection of accessories for dermatological applications in cutting and coagulation. The ergonomic handpiece of the MicroPen with dual button allows precise control of monopolar functions. The included fine electrode types – including ball, needle, and lancet shapes – are suitable for various dermatological indications. Single-use neutral electrodes are included for safe use in monopolar mode. A compact dual-pedal foot switch complements the set and supports intuitive operation during treatment. With its pre-configured composition, the kit is ready for immediate use and particularly suited for daily practice in dermatology.

Product details

• Compatible with the MICROMED electrosurgical unit MD 100
• Optimized for monopolar applications in dermatology
• Red handpiece with dual button for 1.6 mm electrodes for precise operation
• Fine-tuned HF electrodes for dermatological indications
• Incl. inward-angled bipolar forceps for skin tags and fibromas
• Incl. foot switch with two pedals for separate control
• MD class IIb
• Made in Germany

Technical specifications

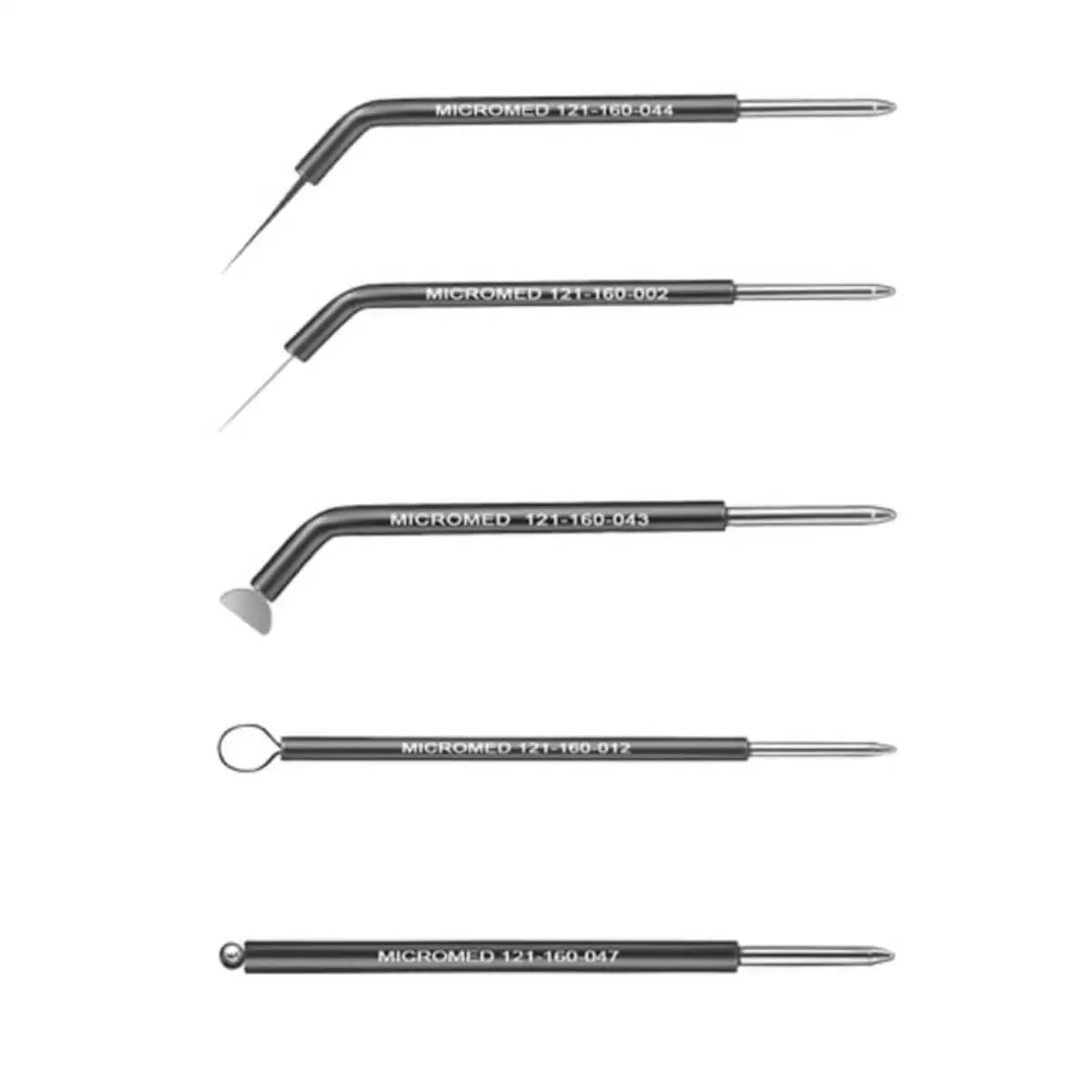

• HF electrode shapes:
• Ball: straight, Ø 2.0 mm, figure 47, shaft Ø 1.6 mm
• Needle: Ø 0.2 mm, figure 2, 45° angled, shaft Ø 1.6 mm
• Needle, insulated: figure 44, 45° angled, shaft Ø 1.6 mm
• Wire loop: straight, round Ø 5 mm, figure 12, shaft Ø 1.6 mm
• Half disc: Ø 5 mm, figure 43, 45° angled, shaft Ø 1.6 mm
• Bipolar forceps: inward-angled, 5 mm, length 130 mm

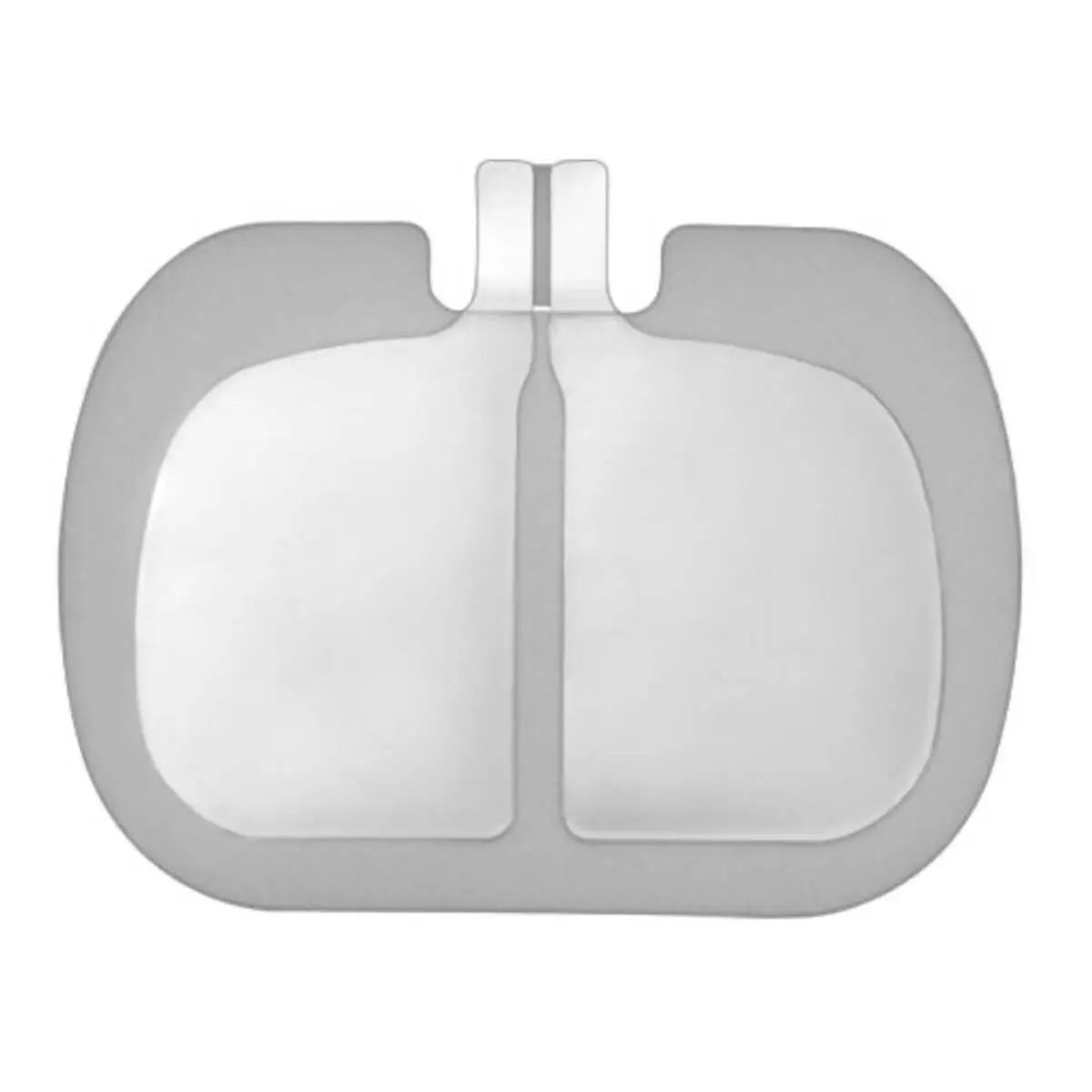

• Single-use neutral electrode: adult/child, two pads, > 5 kg, contact area 108 cm², box of 100

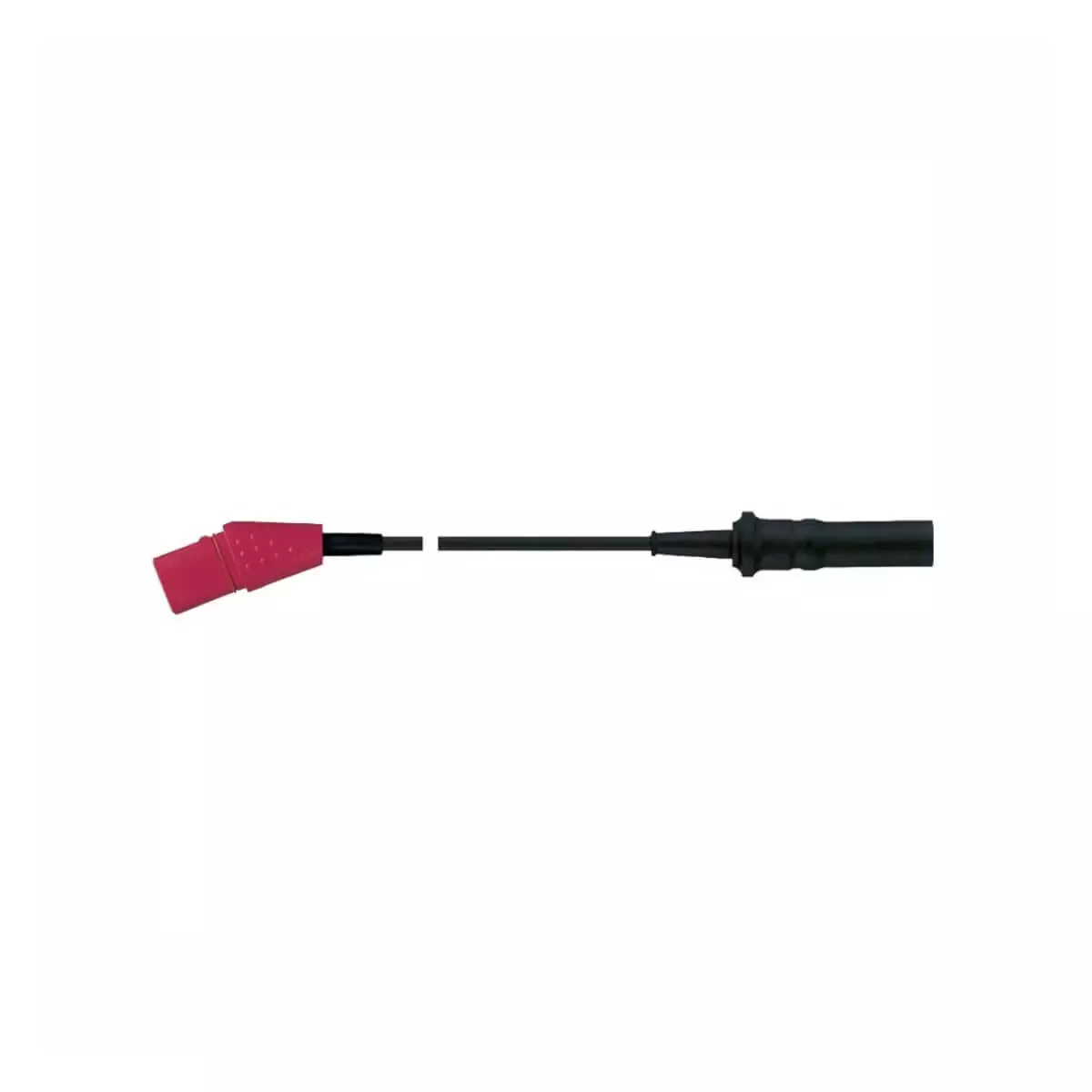

• Connection cable for MicroPen handpiece compatible with HF devices from MICROMED, Aesculap, KLS Martin, and Siemens

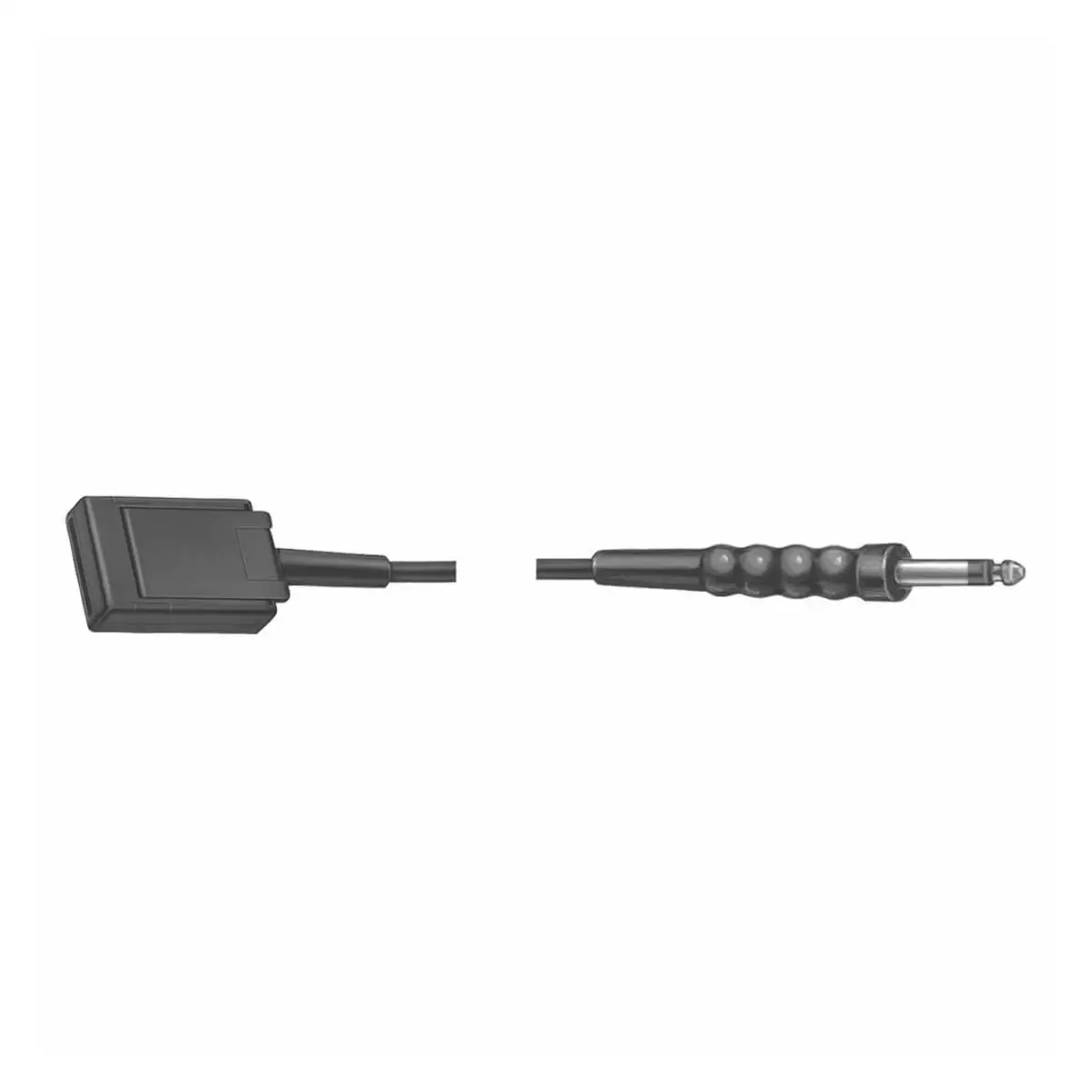

• Cable for single-use neutral electrodes compatible with MICROMED, Aesculap, Berchtold, Integra, and KLS Martin

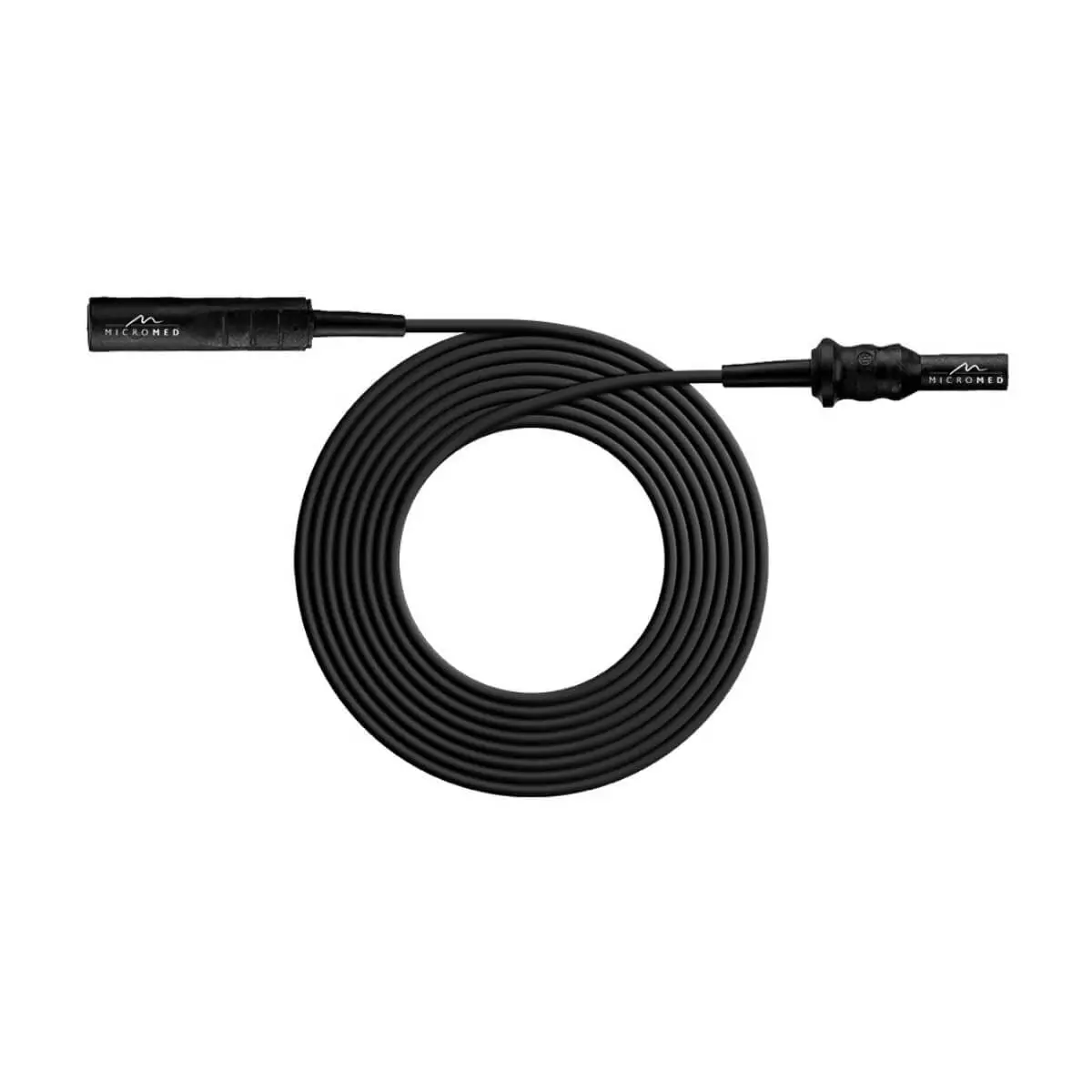

• Bipolar cable compatible with MICROMED, Aesculap, Berchtold, KLS Martin, Meyer Haake, Sutter, and Hüttinger
• All cable lengths: 3 m

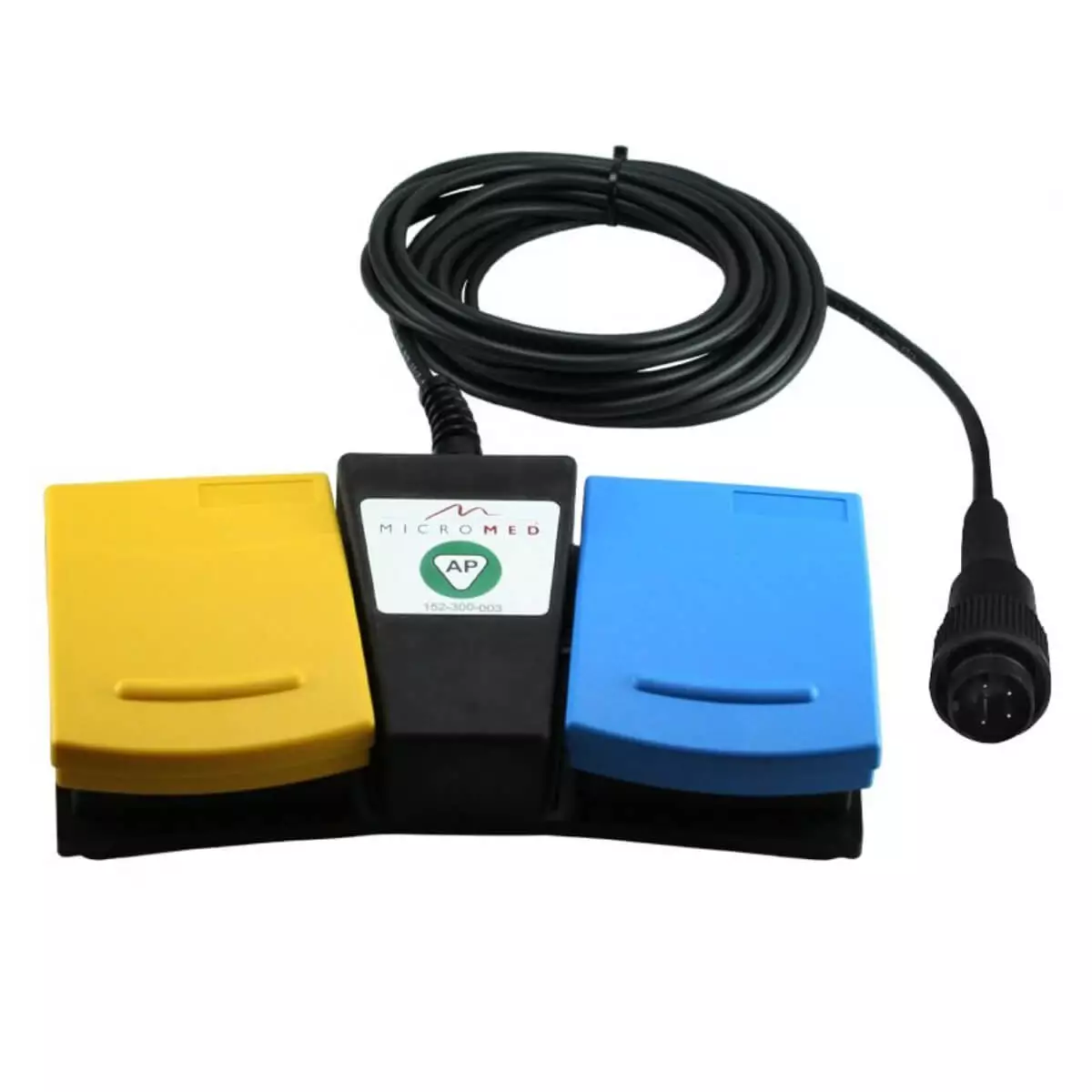

• Foot switch: dual-pedal, 4-pin plug, for MD100, MDV-touch-200 and MDV-touch-300

Package contents

• 1 MICROMED dermatology instrument kit for the MD 100 electrosurgical unit, consisting of:
• 1 MicroPen
• 1 connection cable for MicroPen
• 1 needle electrode
• 1 insulated needle electrode
• 1 wire loop electrode
• 1 half-disc electrode
• 1 ball electrode
• 100 single-use neutral electrodes
• 1 cable for single-use neutral electrodes
• 1 inward-angled bipolar forceps
• 1 connection cable for bipolar forceps
• 1 dual-pedal foot switch
