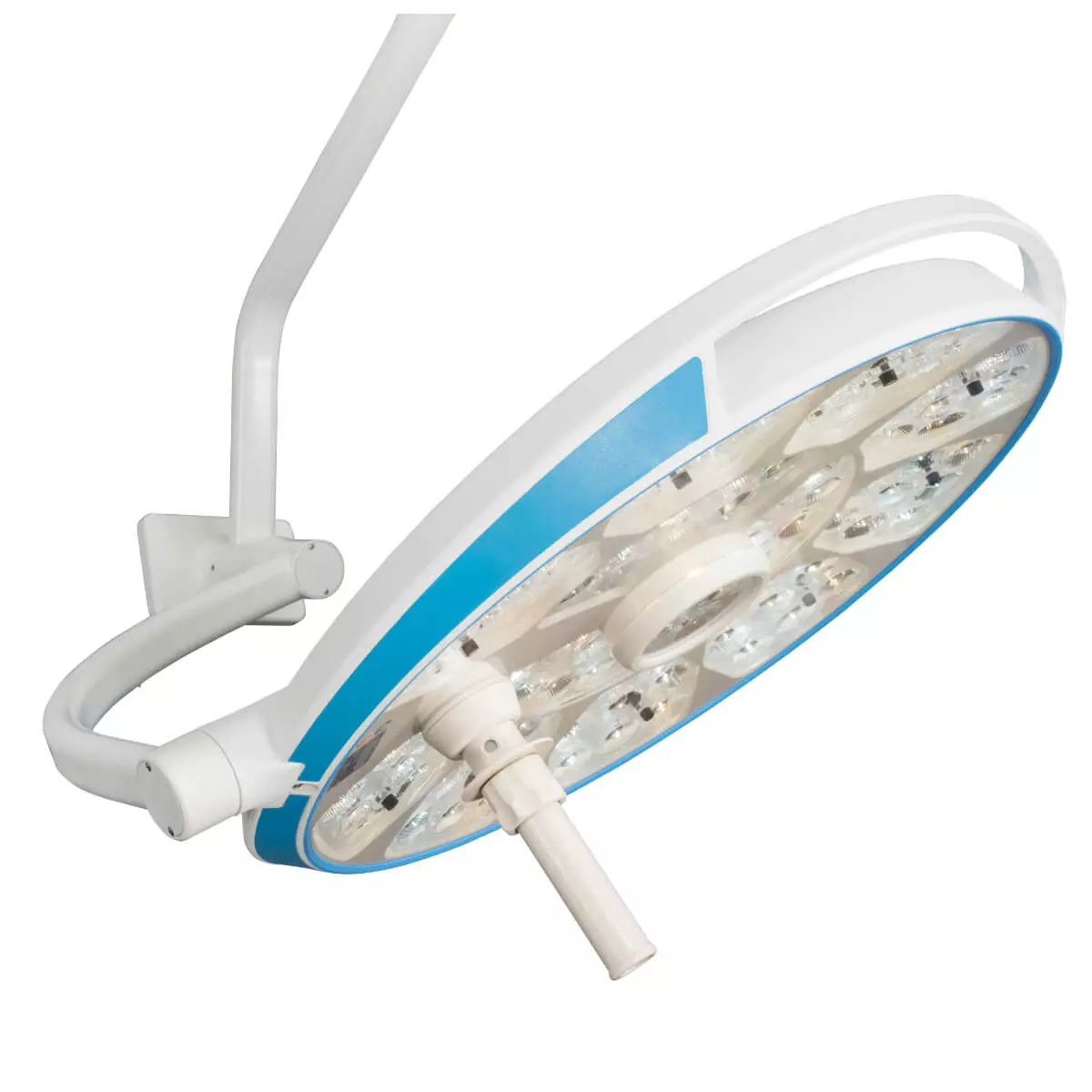

Dr. Mach Surgical light LED 8MC ceiling model

The LED 8MC from Dr. Mach is a modern surgical light with 99 powerful LEDs that achieve a total illuminance of 160,000 lux. The focusable light cone can be positioned precisely above the surgical area using the robust handle and its brightness and color temperature can be continuously adjusted - with switchable depth light. The surgical light was designed for mounting on the ceiling and offers an extended working range with a total distance of 70 to 160 cm thanks to the flexible support arm system. The efficient LED technology ensures minimal heat emission of maximum 0.5 °C. In addition, the Dr. Mach LED 8MC surgical light has an integrated endoscopy mode that specifically meets the requirements of minimally invasive surgery (MIS). The green light reduces disturbing reflections on medical monitors and prevents natural eye fatigue.

Don't forget to provide the ceiling height: Please enter the following details in the final order step under "Remarks and Feedback/Comment"—otherwise, the order cannot be processed: Ceiling height in mm (measured from the finished floor to the underside of the solid ceiling) Room height in mm (measured from the finished floor to the underside of the suspended ceiling) More information can be found in the PDF "Ceiling Height Specifications". Please note: The installation of Dr. Mach ceiling-mounted surgical lights requires the corresponding Dr. Mach TK 270 anchoring ring.

Product details

• Professional surgical lamp with powerful LED technology
• For fixed ceiling mounting
• Particularly high illuminance
• Dimmable for infinitely variable brightness control
• Electronic focusing for optimal illumination
• Integrated rotating ring for quick manual adjustment of color temperature, brightness and other functions
• Endoscopic mode with green light especially for minimally invasive surgery (MIS)
• Cone-shaped light field with individually adjustable size
• With switchable depth light
• Flexible support arm system with 2 joints
• Removable, sterilizable handle for precise alignment
• Minimal heat radiation of only 0.5 °C - even during prolonged operation

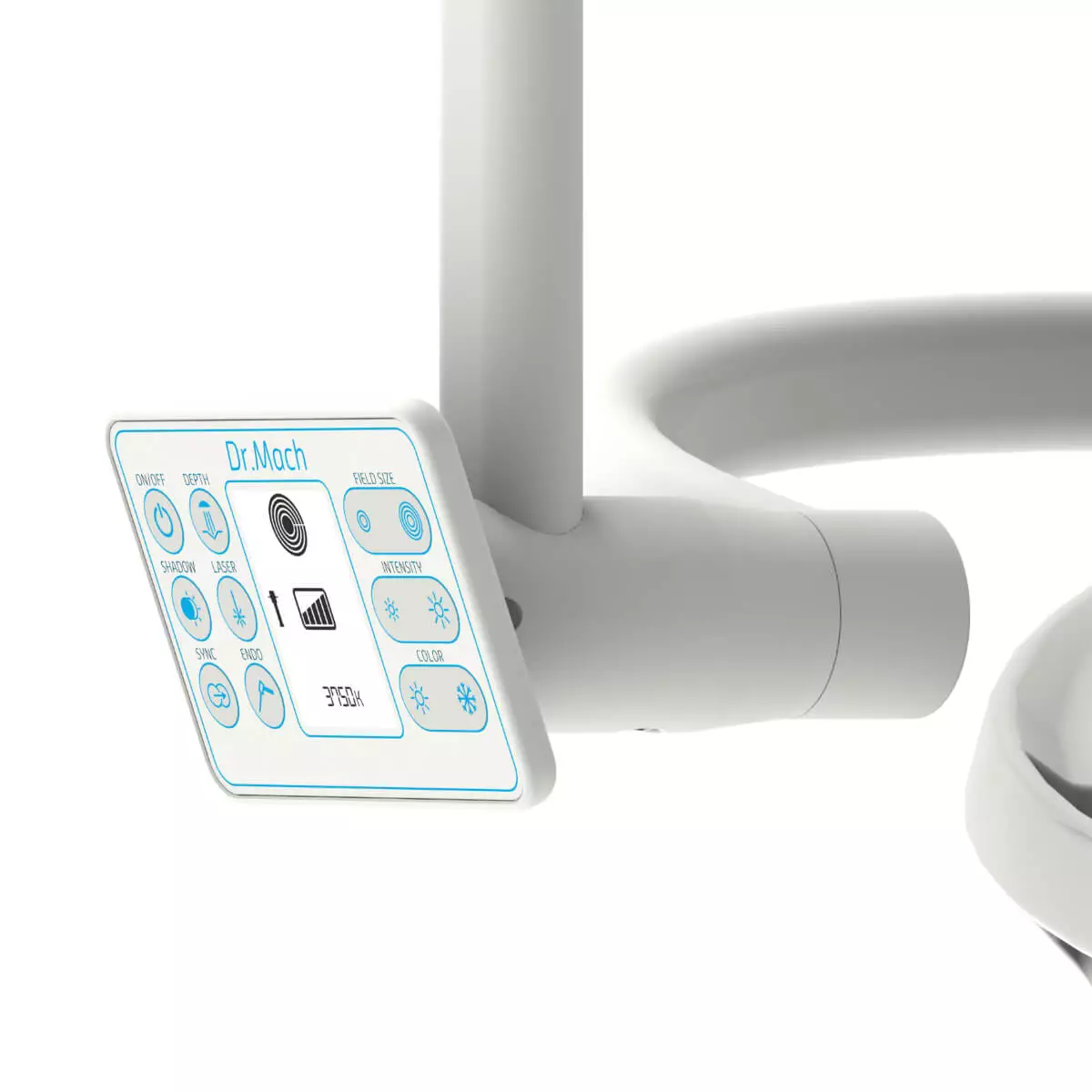

• Intuitive control panel with hygienic membrane keypad
• Durable workmanship in modern design
• Medical device according to Directive 93/42/EEC Annex IX
• Material housing: aluminum
• Diameter panel: 66 cm
• Weight: 18.5 kg (without support arm system)

Technical details

• Integrated on/off switch

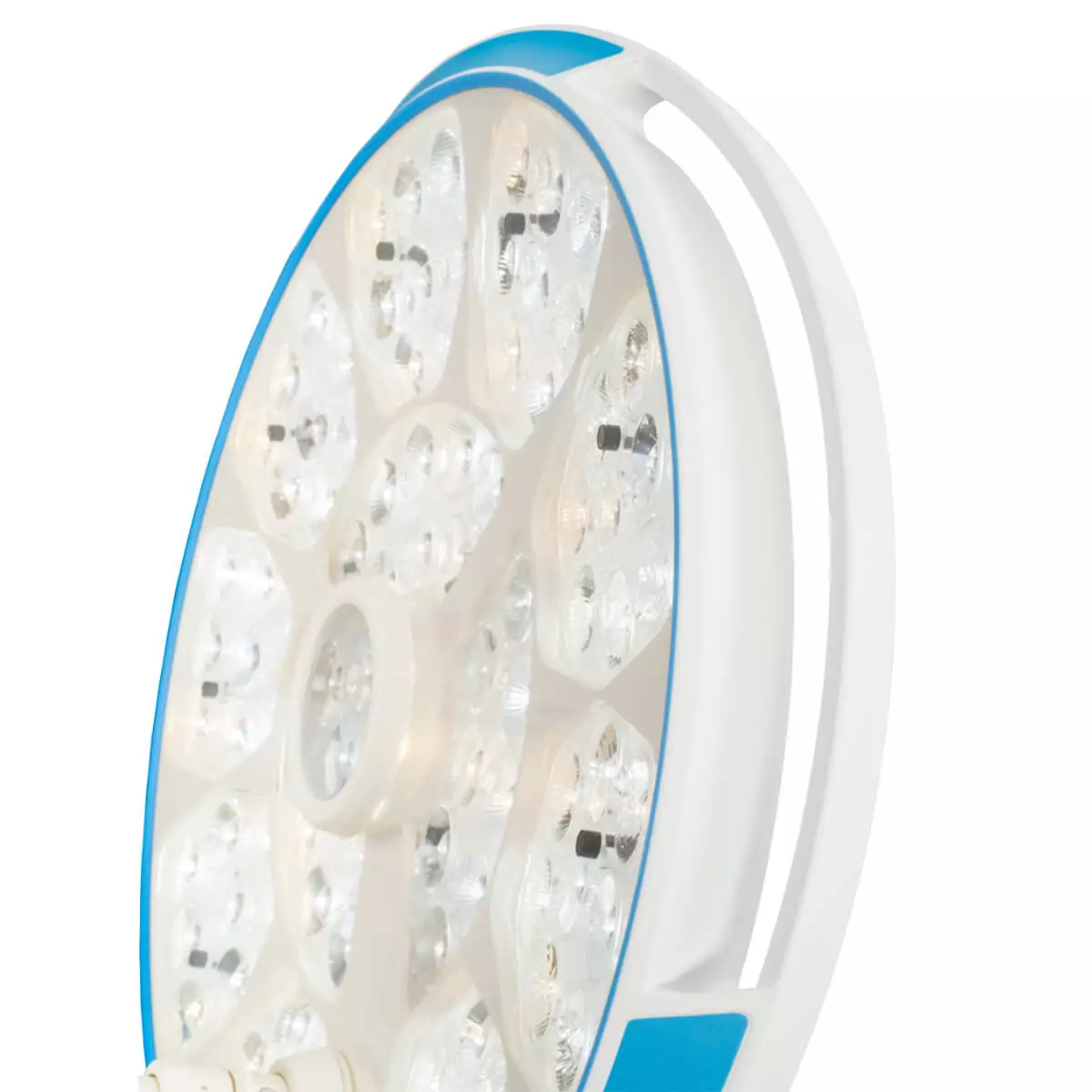

• Illuminant: 99 LEDs
• Brightness: up to 160,000 lux (1 m distance)
• Color temperature: 3,750; 4,000; 4,250; 4,500; 4,750 K
• Color rendering index: 98 (CRI/Ra)
• Dimming range: 5–100
• Light field size: ⌀ 19–30 (focusable)
• Working range: ↕ 70–160 cm
• Height adjustability: 118 cm
• Minimum room height: 290 cm
• Protection class: IP54 (illuminant) or IP20 (support system)
• Power consumption: 77 W
• Input voltage: 110–230 V (AC)
• Service life: ≥ 60,000 h per LED

Package contents

• 1 Dr. Mach surgical light LED 8MC ceiling model
