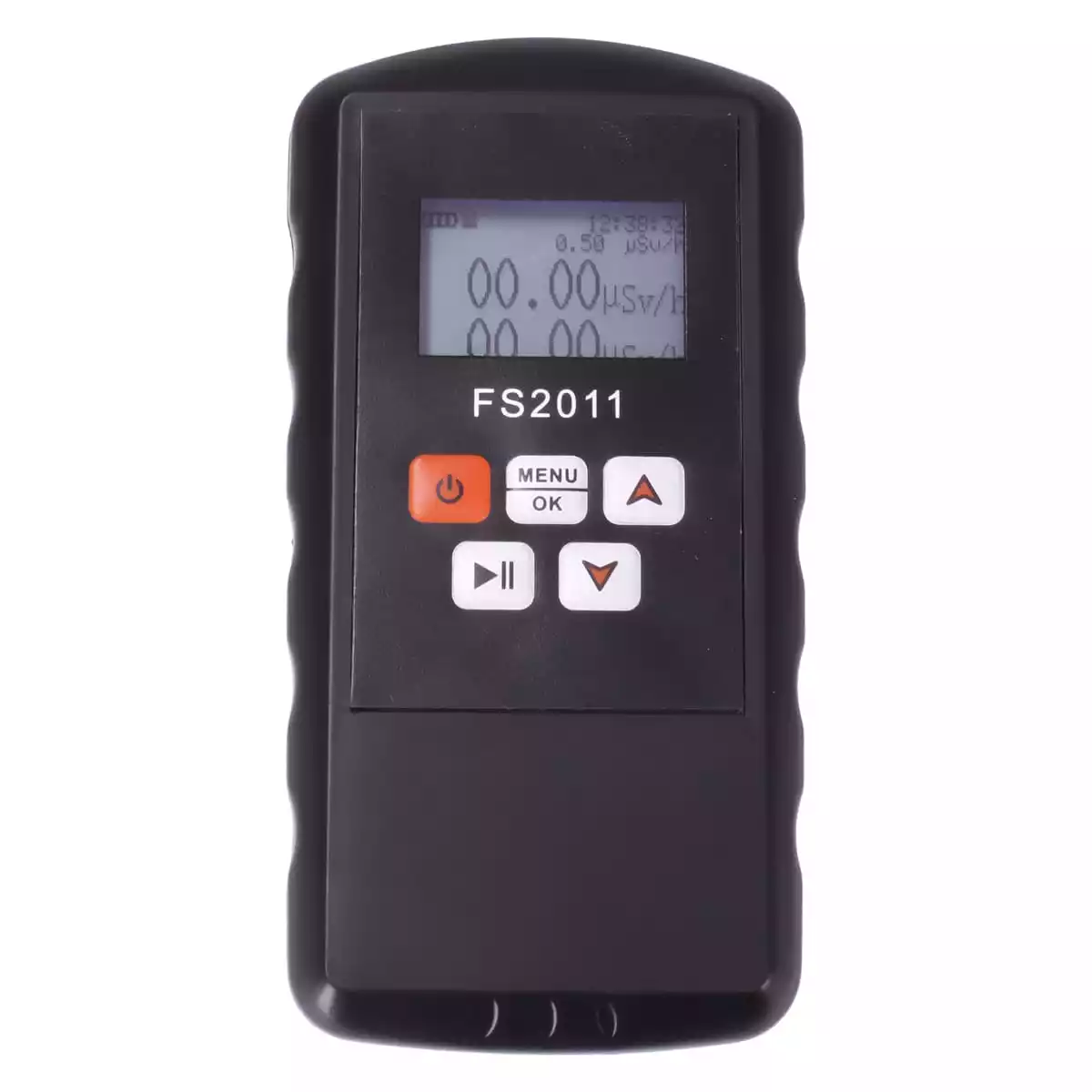

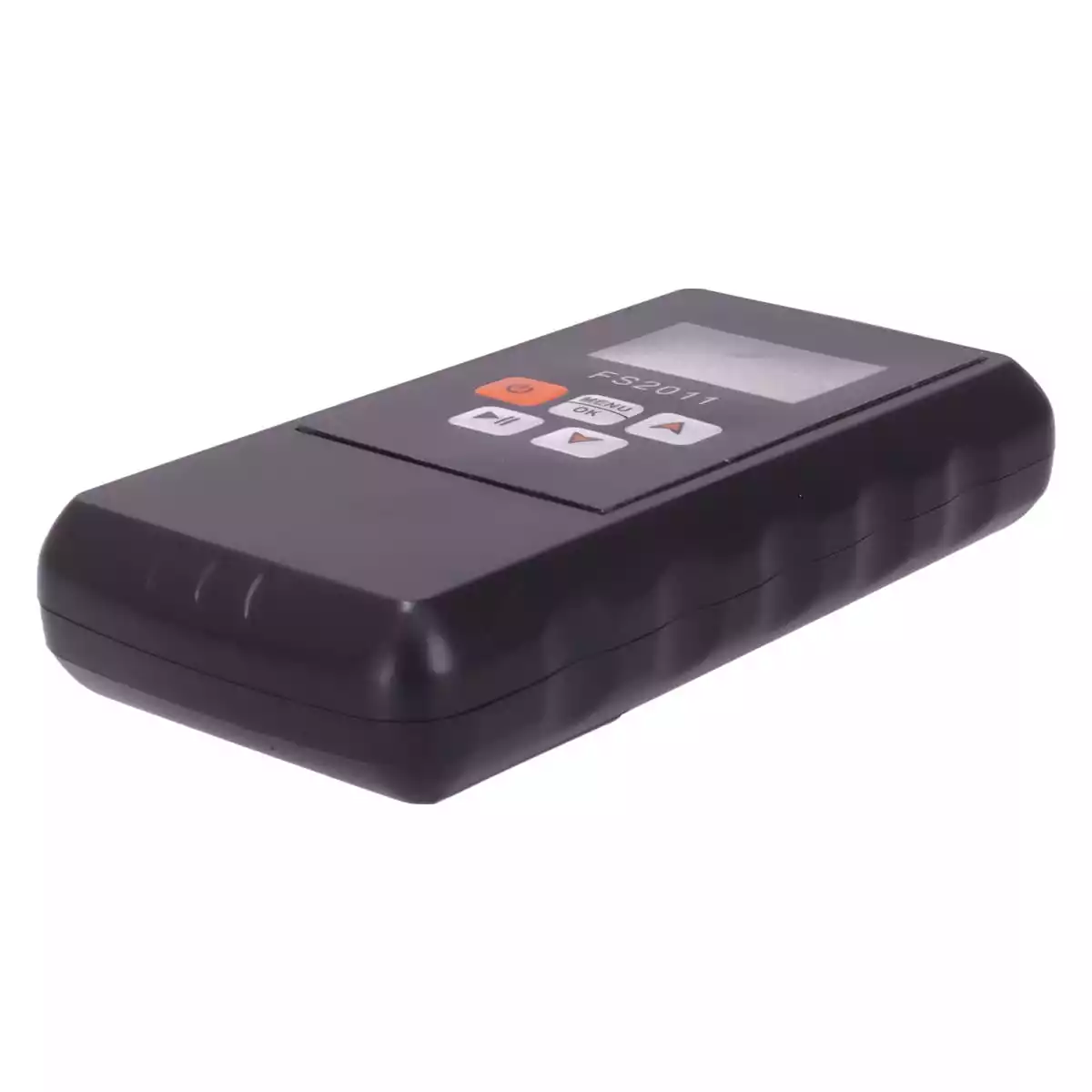

Dr. No Geiger counter radiation detector

This compact Geiger counter is a powerful radiation detection device for identifying beta (β), gamma (γ), and X-ray radiation. It is suitable for use in nuclear medicine, the steel and chemical industries, and environmental laboratories. The dosimeter offers a wide measurement range and includes multiple alarm thresholds. Measurement data and an average value are shown on the LCD display. A user-friendly interface with intuitive button symbols and multiple settings makes operation easy. Thanks to its low power consumption, the detector is ready for long-term use. Its portable design allows the device to be used anywhere with ease.

Product details

• For monitoring beta (β), gamma (γ), and X-ray radiation
• Fast response time and wide measurement range
• Simple operation and LCD display
• Displays dose rate and cumulative dose in mSv/h
• Stores date, time, and average values
• Multiple configuration options
• Portable and energy-efficient

Technical specifications

• Detector: high-sensitivity Geiger-Müller tube
• Dose rate: 0.01–1000 μSv/h (max.: 10 mSv/h)
• Energy range: 50 keV–1.5 MeV ≤ ± 30 % (e.g. 137 Cs at 1 mSv/h)
• Relative error margin: ≤ ± 15 % (137 Cs at 1 mSv/h)
• Sensitivity: 80 CPM/μSv/h (e.g. Co-60)
• Dose rate selectable: 0.5, 1.0, 1.5, 2.0, 2.5, 5.0, 10.0, 50.0, 100.0 μSv/h
• Measurement display: Dose rate shown per second; alarm response time < 5 seconds
• Operating temperature: -10 ºC to 45 ºC
• Power source: 2 AA batteries or rechargeable batteries

Package contents

• 1 Geiger counter radiation detector
