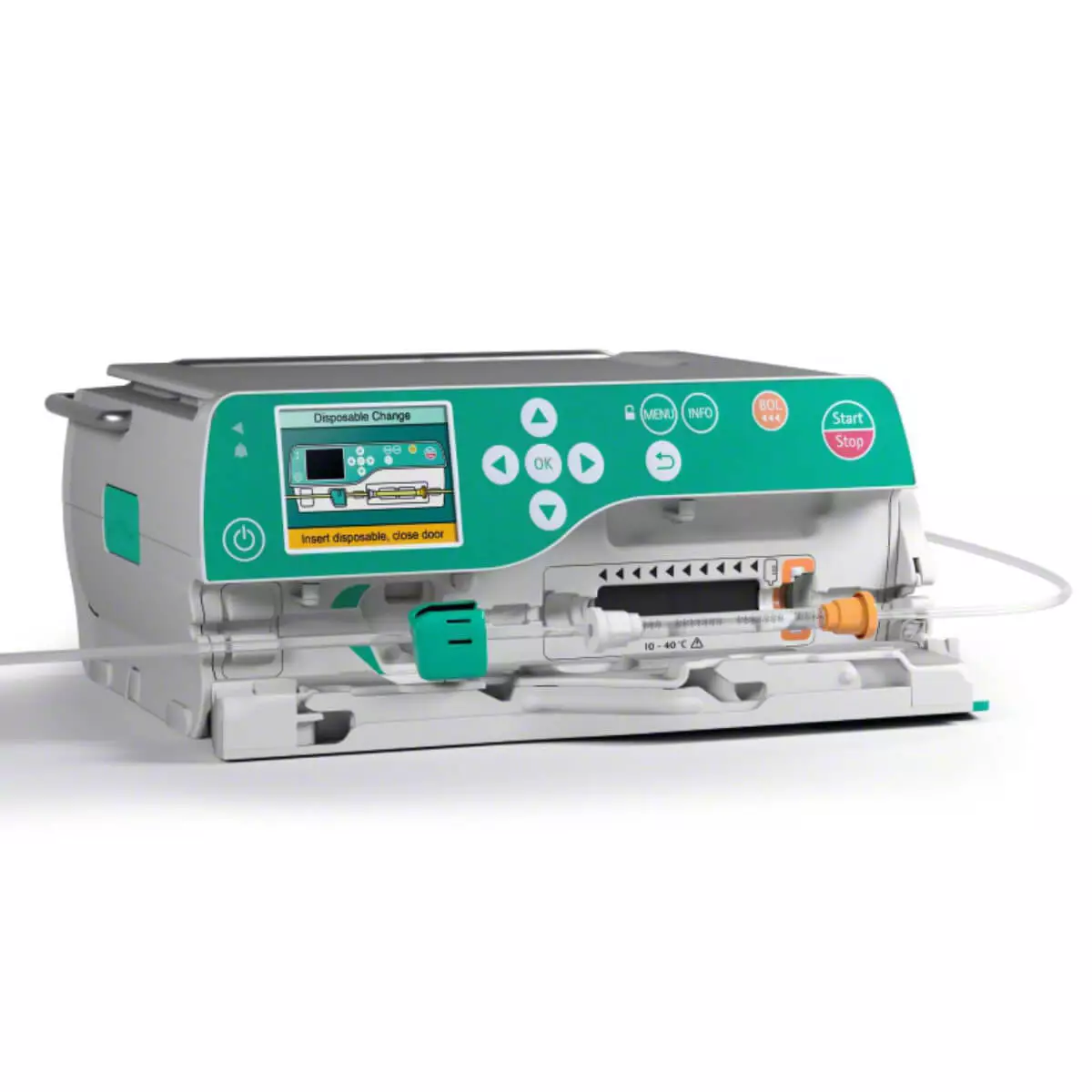

B. Braun Infusomat compact plus infusion pump

The B. Braun Infusomat compact plus volumetric infusion pump is a compact device for intermittent and continuous administration of solutions and medications in infusion therapy, as well as for parenteral and enteral nutrition. Its large color display with intuitive menu navigation along with its graphical guide for inserting the color-coded infusion line ensure high patient and user safety. The long-lasting integrated battery and rotatable pole clamp enable mobile use across wards and in emergency services.

Product details

• Infusion pump with reliable free-flow protection
• Easy line change thanks to coordinated color coding on pump and accessories
• With integrable drug library for up to 3,000 medications and 15 medication categories

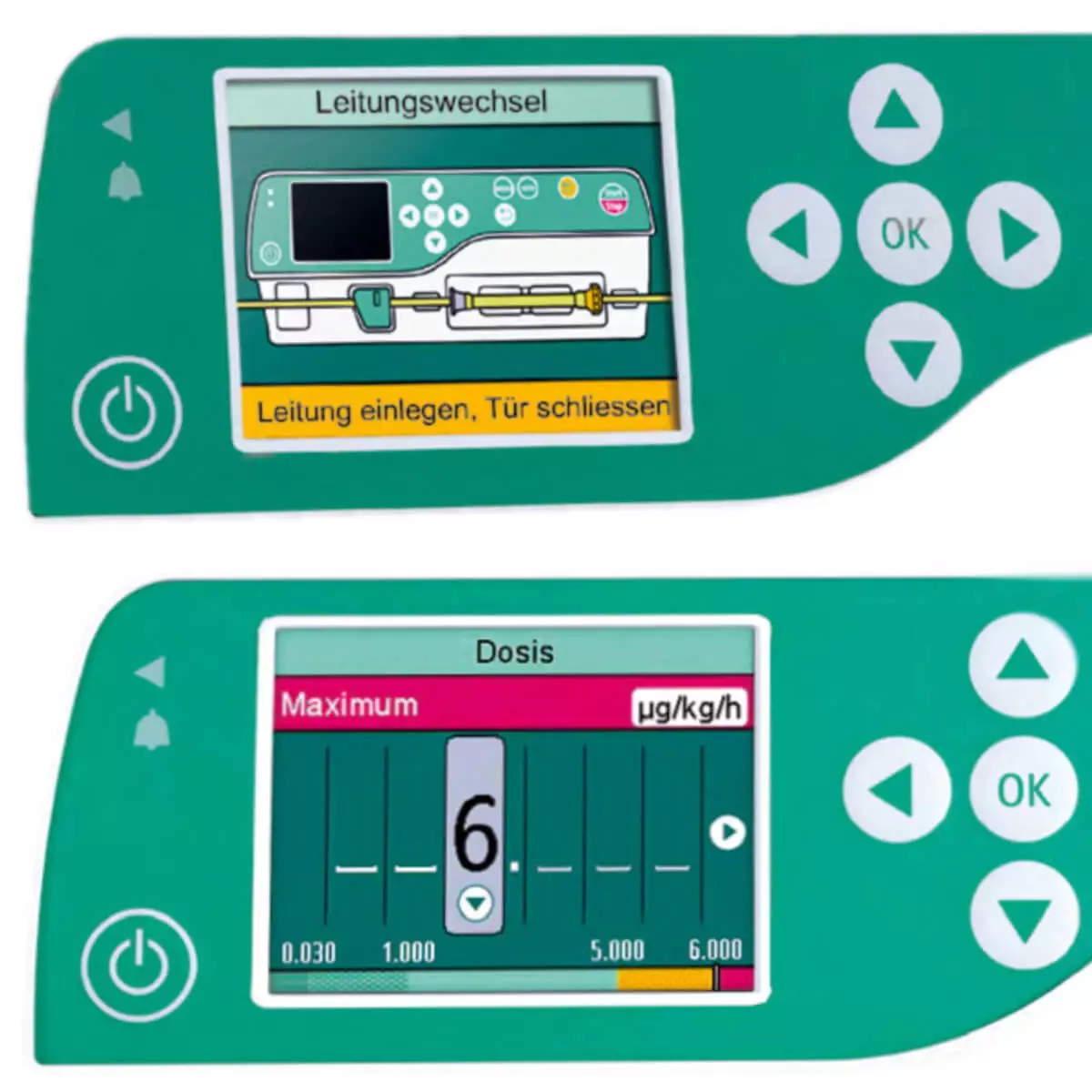

• Guided line insertion via graphic menu navigation
• Wide range of Infusomat^plus lines to support various types of therapy
• With integrated carrying handle and power adapter

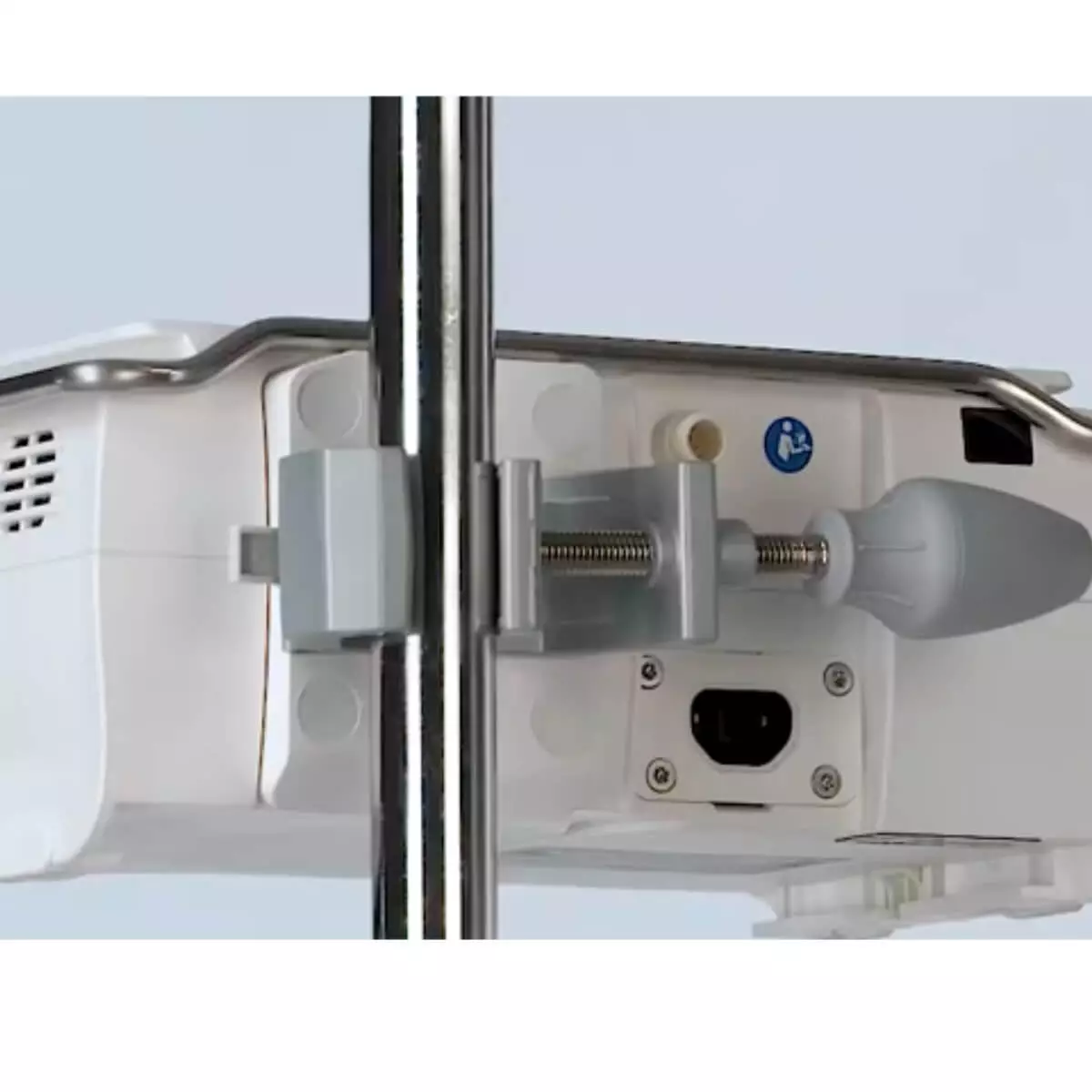

• Incl. firmly integrated pole clamp for vertical pole systems (diameter 16–40 mm) and horizontal standard rails
• Can be used as a standalone pump or up to 3 compact plus pumps stacked via tongue-and-groove connection
• Also compatible with the Station compact^plus organization system
• Complies with EN 1789 and DIN EN 60601-1-12 standards for use in emergency services
• Dimensions: W 229 x H 98 x D 220 mm
• Weight: approx. 1.9 kg

Technical details

• Approved single-use articles:
• B. Braun Infusomatplus lines
• Display:
• 2.4” TFT color display
• 240 x 320 pixels
• 262K colors
• Viewing angle: 80°
• Flow rate range: 0.1–1,200 ml/h
• Bolus rate: 1–1,200 ml/h
• Flow rate accuracy: +/- 5 % over 96 hours
• Power supply: Li-ion battery, power cable, and mains connection via Station compactplus, 100–240 V AC, 50–60 Hz, optional 12 V interface cable
• Operating time: approx. 6 h at 25 ml/h
• Charging time: approx. 3 hours
• Protection class: IP34 (drip water protected from all directions)

Package contents

• 1 B. Braun Infusomat compact plus infusion pump
• User manual

This product requires mandatory instruction according to German MPBetreibV. The instruction is not included in the price.

A paid instruction by the manufacturer is available upon request. Please contact us for more information.
