CARDISIO Cardisio AI-based 3D ECG

The Cardisio 3D ECG by CARDISIO enables a cardisiography to be performed in just a few minutes. This method combines a proven 12-lead resting ECG with vectorcardiography and artificial intelligence to visualize the heart’s electrical activity in three dimensions for early detection or exclusion of heart conditions.

• As easy to use as a standard ECG
• Clinically proven sensitivity of over 90 %
• Short measurement time of just 5 minutes
• Instant results
• Non-invasive and cost-effective
• Cost-effective thanks to flexible subscription

Product details

• Complete cardisiography kit for 1 month of use*
• Includes professional onboarding by the manufacturer
• Automatic ECG analysis and extended leads V7–V9 and Vr3–Vr6 (in accordance with ESC guidelines)
• AI-based detection of ischemia and heart failure markers
• Convenient operation via the Cardisio Cloud (web service) on PC or tablet
• Cardisio Cloud is a class I medical device
• *Please note: The cardisiograph as well as the included Cardisio Cloud software can be used via a supscription model. The price includes 1 month of use starting from the moment the device is unlocked by the manufacturer. Any subscription extension as well as cancellation is managed through a contract with the manufacturer.

AI-powered heart check for 3D cardiac electrical activity analysis

The Cardisio 3D vector ECG system is designed for use in general and cardiology practices. As an advanced development of vectorcardiography, it delivers reliable interpretations through artificial intelligence. The Cardisio algorithm enables more accurate early detection of ischemia, better evaluation of conduction disorders, in-depth rhythm analysis, and a more comprehensive view of the heart in just one measurement thanks to additional leads.

Cardisio is suitable for:

• Evaluating cardiac health in cases of undefined symptoms such as shortness of breath, fatigue, or back pain, or before anesthesia
• Routine medical check-ups or preventive screenings, e.g. before sports events, long-distance travel, or after a COVID-19 infection
• Suspected structural heart disease, arrhythmias, or CAD/ischemia

Simple to use:
A mobile device is required to connect the Cardisio data collector using the free app, as well as a personal PC (Windows 10 or higher) with Wi-Fi access to log in to the Cardisio Cloud web service.
The included 5-lead cable is applied to the patient in a way similar to a conventional ECG.
The measurement is performed while the patient is at rest and can be monitored live on the user’s PC.

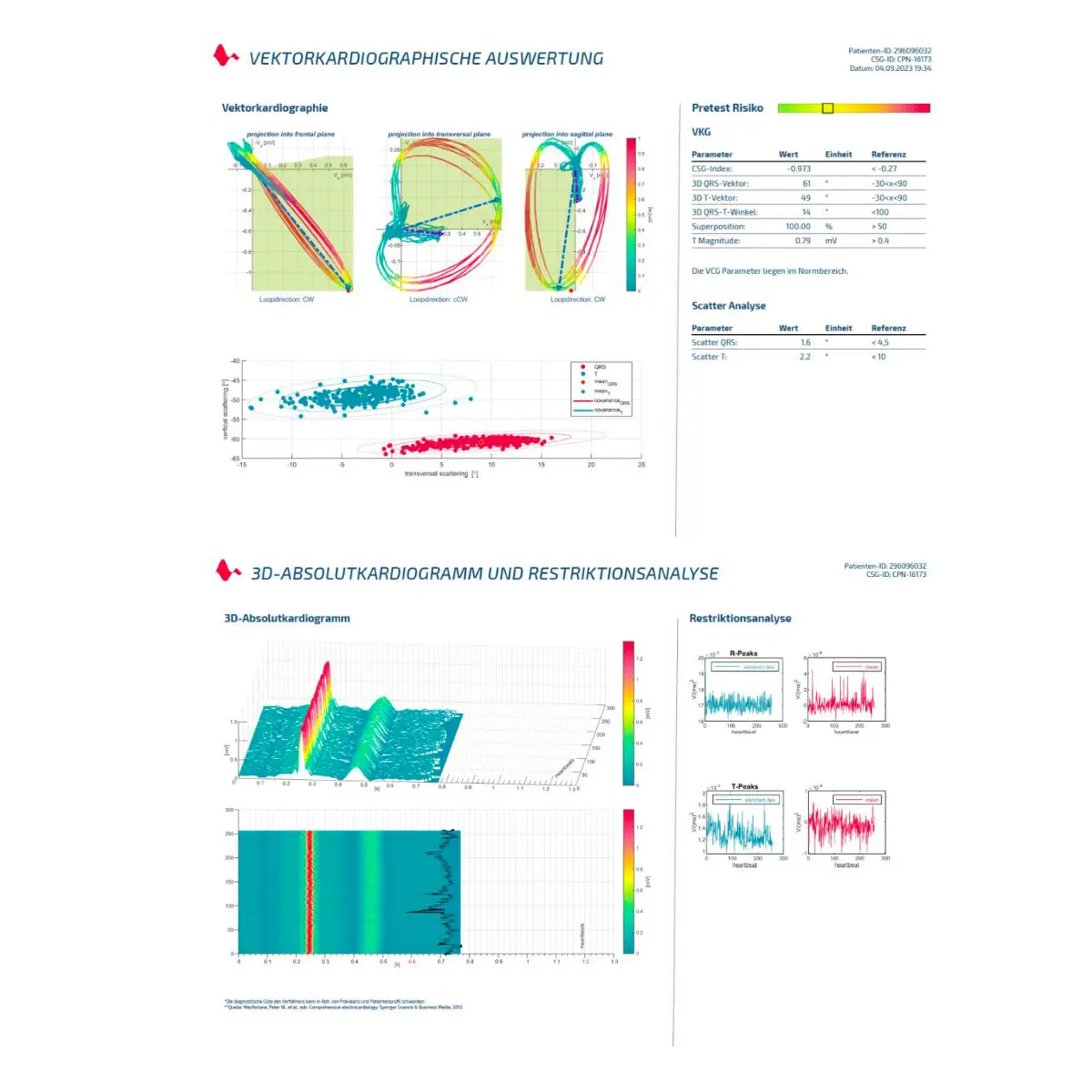

All data is transferred to the Cardisio server and processed using AI within five minutes to generate a report.

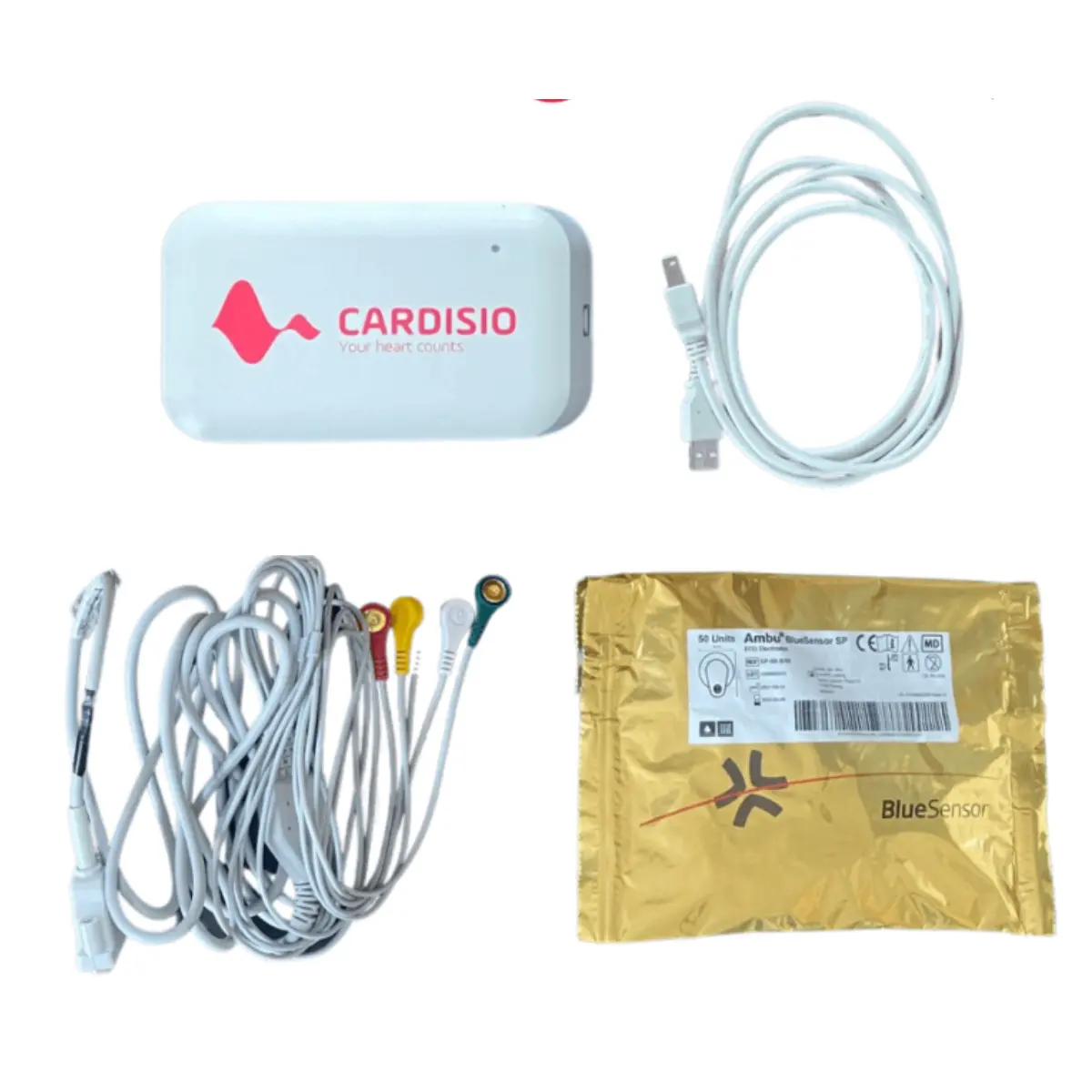

Package contents

• 1-month usage license for the CARDISIO AI-based 3D ECG, including:
  • 1 cardisiograph (data collector)
  • 1 ECG cable
  • 1 power block, incl. USB-C cable (2 m)
  • 1 pack of 20 single-use electrodes
  • Access to the Cardisio web service for 1 month
  • Use of the Cardisio app for 1 month
  • Initial onboarding session by the manufacturer

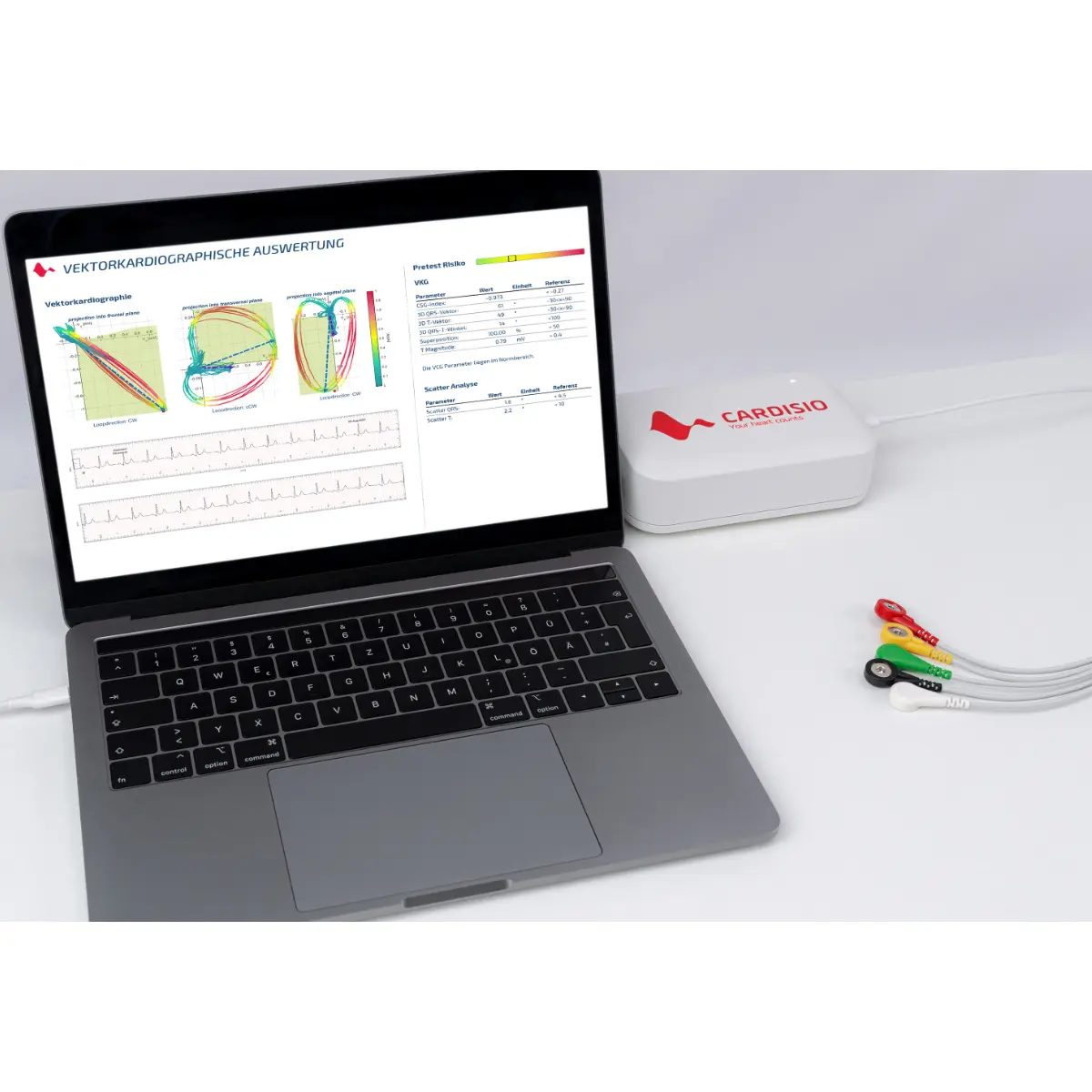

The laptop and tablet shown are not included.

Specifications

• Languages:
  • User interface: English
  • Reports: German, English, Spanish, French, or Russian (individual setting through the manufacturer)
•  Dimensions:
  • Cardisiograph (L × W × H): 152 × 93 × 46.5 mm
  • ECG cable length: 2.9 m
  • USB-C cable length: 200 cm
• Manufacturer warranty: unlimited (via monthly license fee)
• Device type: ECG with AI-based vectorcardiography
• Leads: I, II, III, aVR, aVL, aVF, V1–V9, V3r–V6r
• Lead method: Cardisiography (CSG)
• Automatic ECG interpretation: AI-based
• User interface: app, web-based cloud
• Data export formats: PDF
• Digital application: yes
• Digital use via: free app, web-based cloud
• Compatible devices: any with web browser access
• Display: external device
• Connectivity: USB-C
• Mobile use: yes
• Electrode type: adhesive electrodes with push-button connectors
• Number of electrodes: 5
• Recording duration: 4 min (+ analysis time: 5–10 min); QuickCheck: 45 sec + 1–2 min analysis
• Charging time: none (no internal battery)
• Power supply: 230 V, 50/60 Hz
• Power source: USB-C power cable
• Barcode scanner incl.: no
• Printer incl.: no
• Software incl.: yes
• Training required: yes
• Made in: Germany
• Medical device class: I
