Roche CoaguChek INRange Analyzing Device with Bag

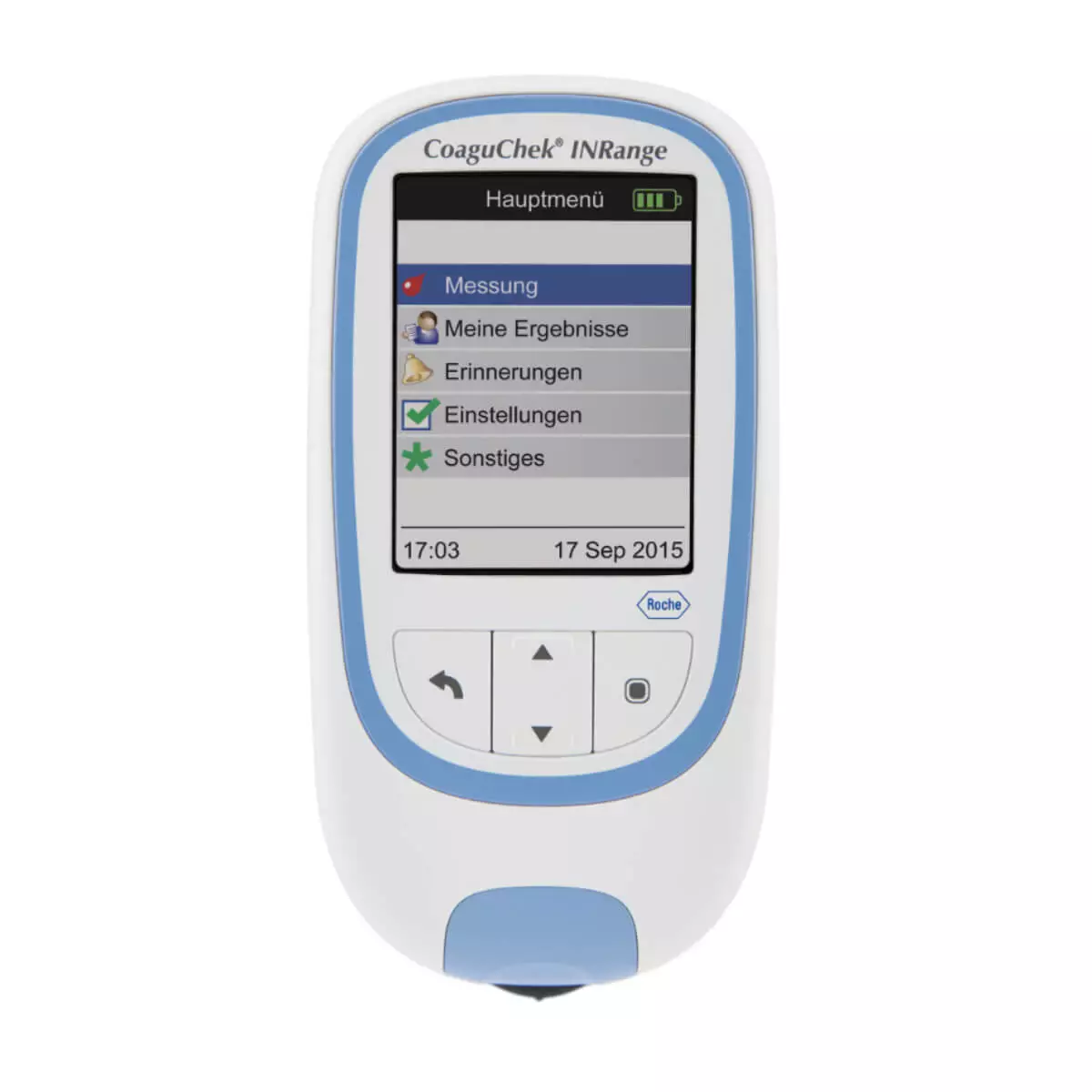

Roche’s CoaguChek INRange analyzing device is a coagulometer for measuring prothrombin times. It allows patients to quickly and easily measure and document their own coagulation values. After receiving appropriate training from a professional, patients can do this on their own and adjust their medication correspondingly. All they will need for performing a test is a small blood sample from the fingertip.

The CoaguChek INRange coagulometer features intuitive menu navigation and a large internal memory with various reminder features. Measured values can also be saved together with date, time and comments and transferred to a PC via USB or Bluetooth. The stored values can then be discussed with the doctor every three months.

Please note: The CoaguChek INRange is only approved for patient’s self-tests.

Product details

• CoaguChek INRange coagulatometer with case
• Electrochemical measurement of prothrombin time after activating blood coagulation with recombinant human tissue factor
• Ideally suited for reliable coagulation self-testing; as reliable as laboratory results
• More safety, independence and improved quality of life for your patients
• Very easy to use
• Therapy progress at a glance: Visualization with graphs and reports
• Adjustable coagulation units: INR, % Quick, Sec
• Adjustable target range for coagulation values
• Color coding of coagulation values
• Green: normal range
• Yellow: below normal
• Blue: above normal
• Integrated control functions (electrical components and functions, strip temperature, test strip shelf life and other information)
• Reminder features (test reminder, medication reminder, appointment reminder, other reminders)
• Easy cleaning and disinfection (e.g. with disinfectant wipes)
• Test parameters: TP
• Sample material: Capillary whole blood or anticoagulant-free venous whole blood
• Sample volume: 8 µl
• Size (device): L 14.5 x W 7.5 x H 3 cm
• Weight (device): 135 g (without batteries)

Test results in only 4 steps thanks to the CoaguChek INRange and its bag

The CoaguCheck INRange coagulometer’s bag contains all the important tools a patient will need for self-testing at home. In addition to the appropriate test strips, the bag also contains a lancing device and lancets. The application is simple and can be carried out in 4 steps:

• Step 1: Insert the test strip into the coagulometer.
• Step 2:After the device has warmed up, use the CoaguChek XS Softclix lancing device to obtain a small drop of blood from the fingertip
• Step 3:Apply the drop to the test strip within 15 seconds.
• Step 4:Read measured coagulation value after about one minute.

Technical details

• Measuring range:
• % Quick: 120 % to 5
• SEC: 9.6 to 96
• INR: 0.8 to 8.0
• Data transmission: USB type B, Bluetooth
• Auto power off after 2 minutes
• Adjustable signal volume
• Temperature range +15 °C to +32 °C
• Relative humidity: 10 to 85 % (without condensation)
• Permissible altitude: 4,300 m
• Storage space: 400 measurement results with date and time
• Interfaces: USB type B, Bluetooth
• Battery operation: 4 x 1.5 V alkaline manganese batteries, type AAA (LR03): Battery charge lasts for approx. 60 measurements
• Protection class III
• Available in different languages: German, English, French, Dutch, Spanish, Portuguese

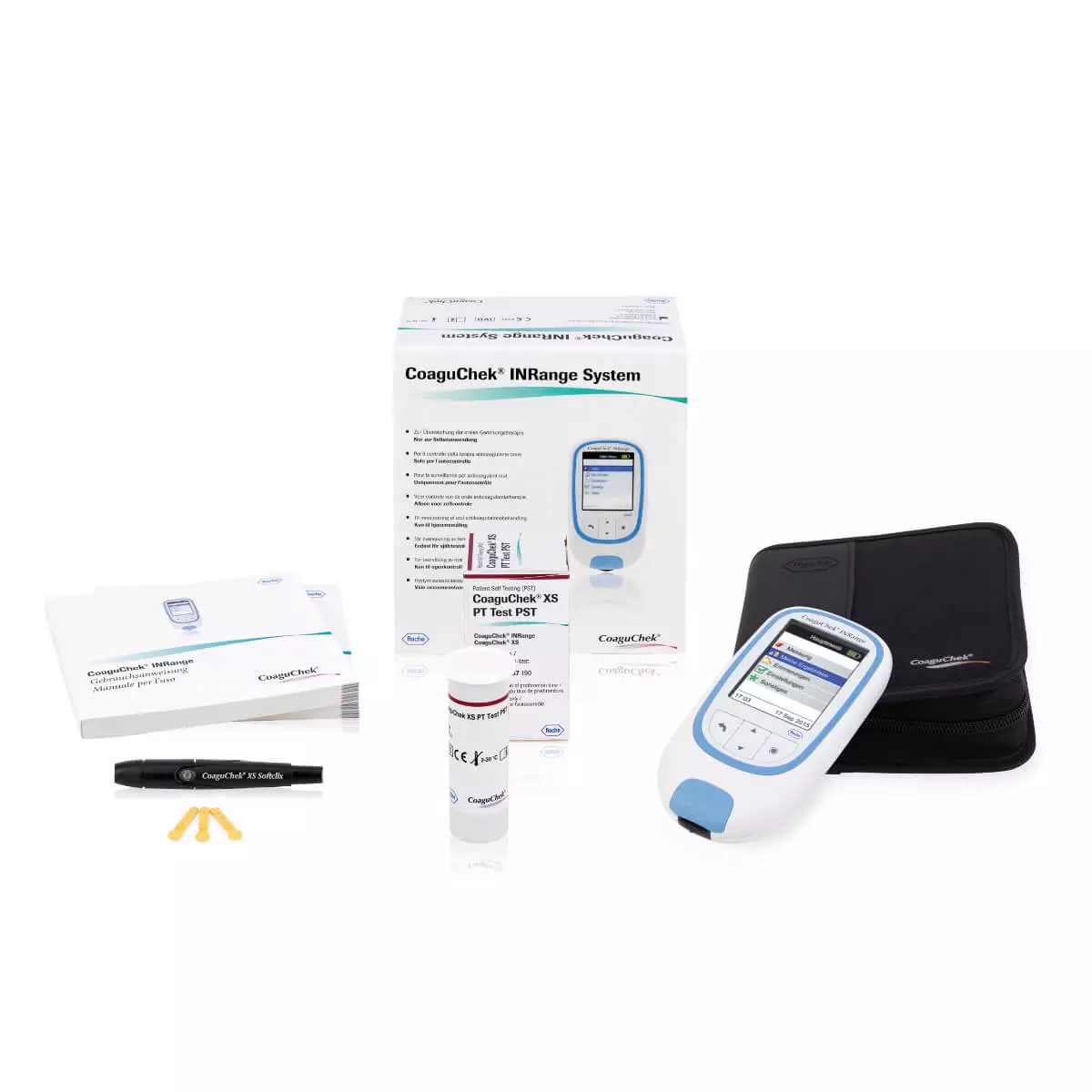

Delivery contents

• 1 CoaguChek INRange analyzinh device
• 1 bag

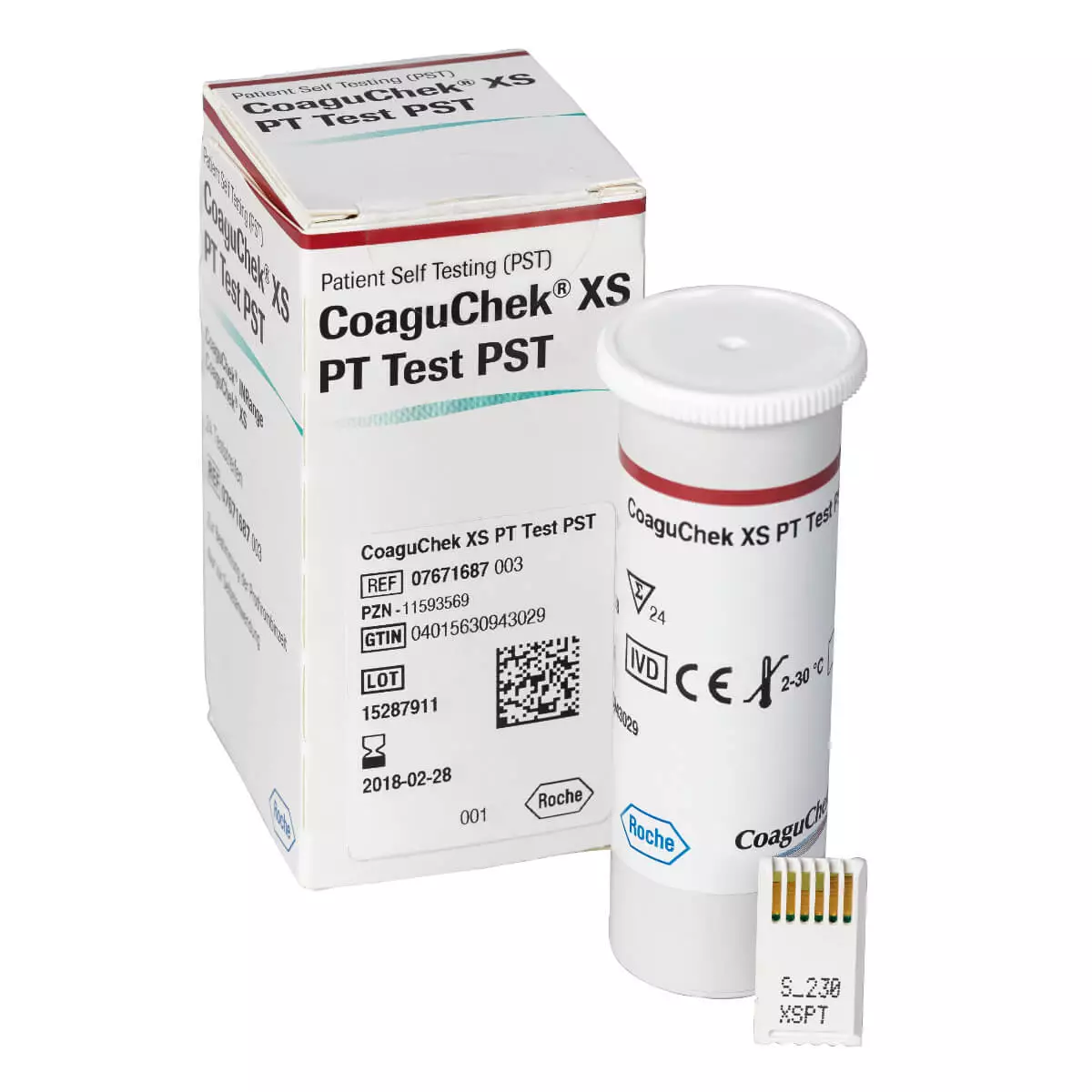

• 6 CoaguChek XS PT Test PST test strips
• 1 CoaguChek XS Softclix lancing device
• 20 CoaguChek Softclix lancets
• 4 alkaline batteries 1.5V type AAA
• 1 instruction manual
