Weinmann ACCUVAC Lite suction device

The ACCUVAC Lite suction device from Weinmann provides a reliable solution for effectively clearing the airways in emergency situations, whether in the oral and pharyngeal area or for endotracheal and bronchial applications. With a suction capacity of 26 l/min and a continuously adjustable vacuum regulator, the device ensures precise suctioning. A powerful battery allows for an operating time of up to 40 minutes – and with the included power supply, the device is always ready for use. The ACCUVAC Lite is available in a version with or without an equipment bag, making it suitable for both emergency medical services and clinical applications.

Product details

• Portable suction device for emergency services
• Continuously adjustable vacuum regulation via rotary control
• Easy-to-read manometer
• Suitable for use on adults, children, and infants
• Also suitable for evacuating vacuum splints and mattresses
• Durable and stable housing
• Easy-to-clean and disinfect gray plastic components:
• Removable without tools
• Suitable for immersion disinfection and machine processing in a washer-disinfector (max. 95 °C)
• Hygienic disposable canister system:
• Suction hose with fingertip control, Serres suction bag, and white angled connector are single-use items
• Vacuum hose suitable for immersion disinfection
• Secretion canister and gray angled connector suitable for immersion and thermal disinfection (95 °C) as well as steam sterilization (121 °C)
• Optional with accessory bag including matching battery compartment cover
• Incl. charging cable (100–240 V) and disposable canister system for Serres disposable suction bags (disposable bags not included)
• Available in different configurations

Technical specifications

• Dimensions: L 37 x H 27.7 x D 14.6 cm
• Weight: approx. 5.25 kg
• Operating temperature: -5 to +50°C
• Protection rating: IP34D
• Shock and vibration resistance: EN 1789; RTCA DO-160G; EN 10079-1
• Power supply: 12 to 15 V or 100 to 240 V / 50 to 60 Hz
• Suction capacity at device inlet: approx. 26 l/min
• Vacuum setting: continuously adjustable vacuum regulator, -0.1 to -0.8 bar
• Classification according to ISO 10079-1: high vacuum/high flow
• Canister system volume: 1,000 ml
• Battery: lead-acid, Panasonic LC-R123R4PG 12 V; 3.4 Ah (1.15 kg)
• Battery runtime: 40 min

PAckage contents

• 1 Weinmann ACCUVAC Lite suction device with disposable container system
• 1 Serres disposable secretion canister (1,000 ml)
• 1 power supply and charger (100–240 V)

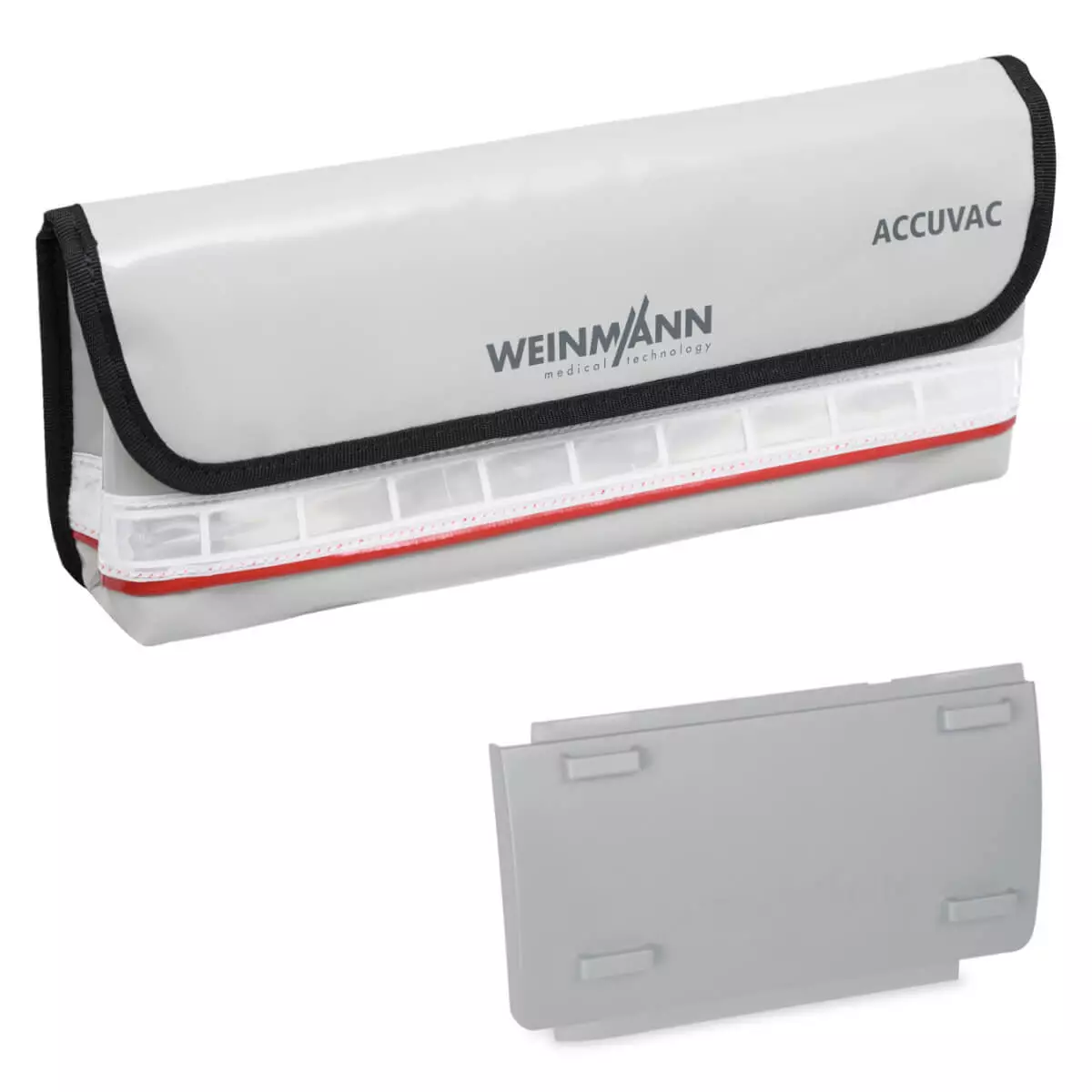

• 1 equipment bag
• 1 battery compartment cover for equipment bag
• Instructions for use
