Syringe Pumps

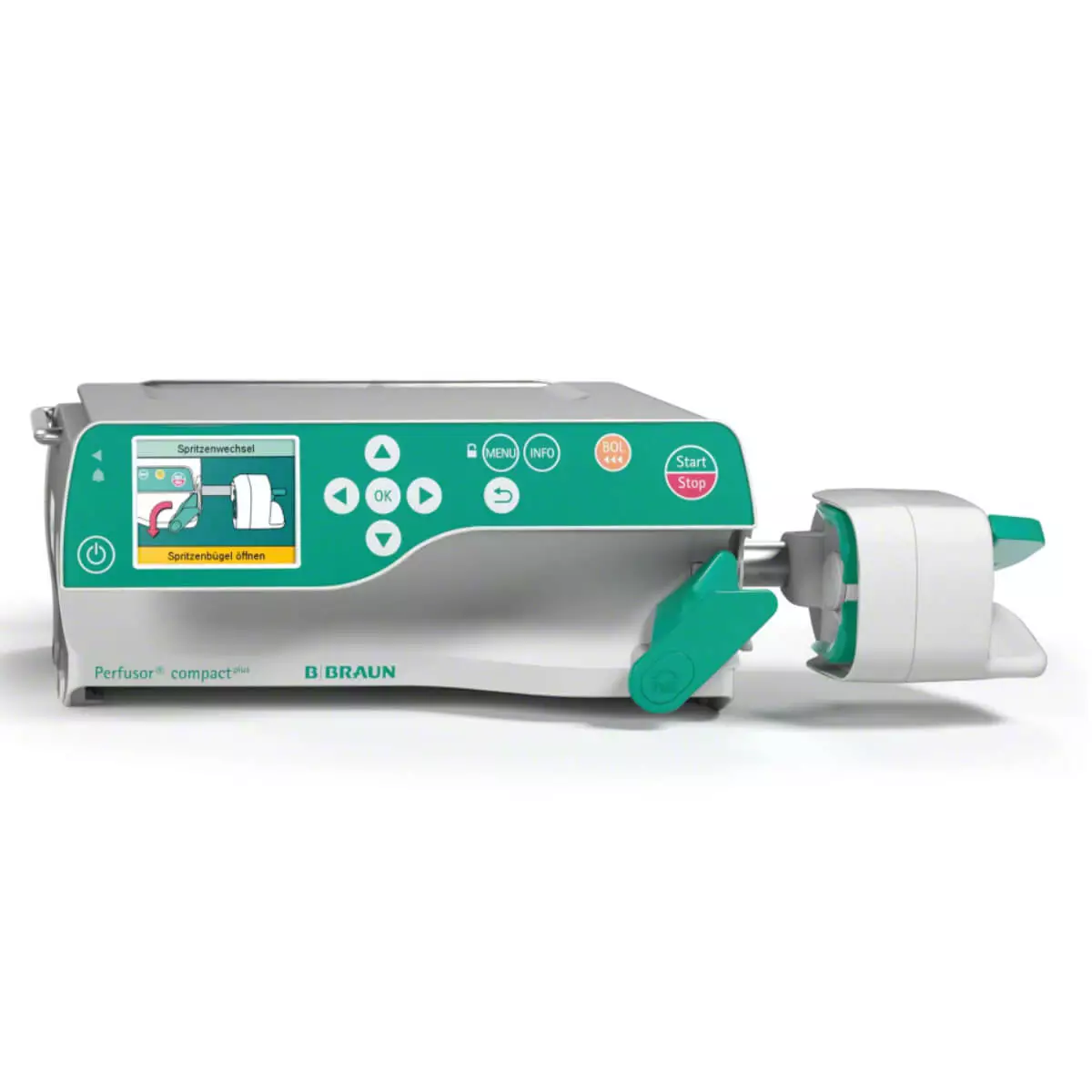

B. Braun’s Perfusor compactplus syringe pump is a robust pump for modern infusion therapy. The guided navigation with pictograms on the large color display ensures error-free operation and shortens training time. The portable device has a long runtime thanks to its powerful lithium-ion battery, making it suitable for both clinical and emergency medical services. The Perfusor compact plus can operate with a variety of syringe types and sizes ranging from 2 to 60 ml. Product details Infusion syringe pump with semi-automatic drive Three different bolus deliveries: Manual bolus Bolus with volume preselection Bolus with volume and time preselection Guided syringe insertion with graphically supported menu navigation With integrated drug database with up to 3,000 drugs and 15 drug categories Usable as a single pump or up to three compact plus pumps stacked via dovetail connection Also usable in the compact plus system Compact device with carrying handle Meets the requirements of EN 1789 and DIN EN 60601-1-12 standards for emergency medical service use Dimensions: 290 x 98 x 220 mm Weight: approx. 2.3 kg Technical details Approved single-use items: B. Braun Original Perfusor syringes, B. Braun Omnifix BD, Terumo, Injectomat syringes Syringe sizes: 2/3, 5, 10, 20, 30, 50/60 ml Display: 2.4" TFT color display 240 x 320 pixels 262K colors 80° viewing angle Rate range: 0.01–999.9 ml/h (with 50/60 ml syringe) Bolus delivery: delivery rate 1–1,800 ml/h Delivery rate accuracy: ± 2% in accordance with IEC/EN 60601-2-24 Power supply: Li-ion battery Runtime: approx. 10 hours at 5 ml/h with 50 ml syringe Charging time: approx. 3 hours Protection class: IP34 (drip-proof from all directions) Package contents 1 B. Braun Perfusor compact plus syringe pump Instruction manual
