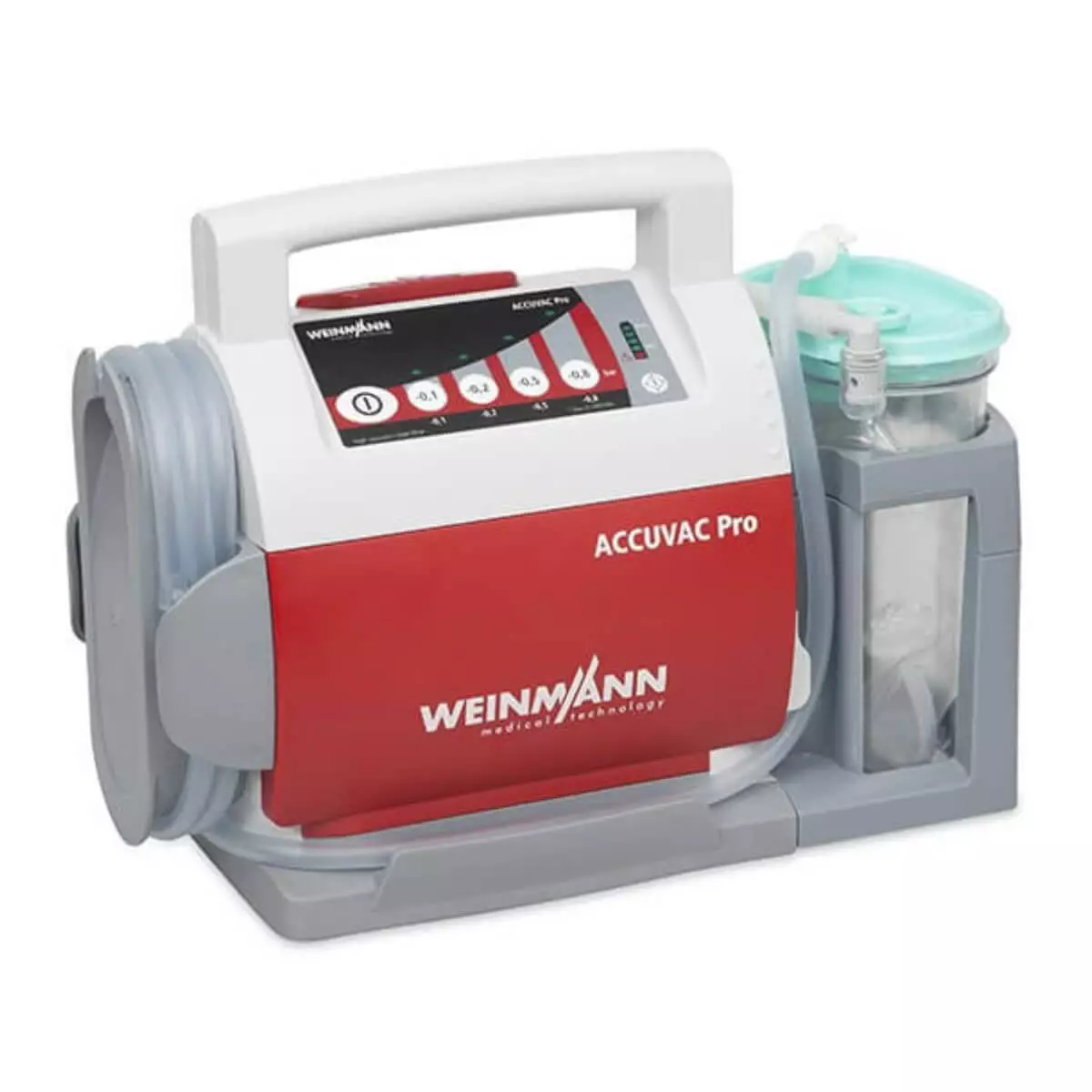

Weinmann ACCUVAC Pro suction device

The ACCUVAC Pro portable suction pump from Weinmann is a compact device featuring 4 buttons for predefined suction levels and LED indicators. ACCUVAC Pro is a robust solution for suctioning blood, secretions, and food particles from the oral cavity, pharynx, and bronchial system during emergency interventions, including outdoor use. The high suction capacity of 34 l/min allows the device to be used for up to 1 hour thanks to its powerful lithium-ion battery. A button for automatic function checks, tool-free battery replacement, and an integrated hose holder facilitate professional emergency use. The device is equipped with a disposable canister system that ensures easy and hygienic secretion disposal.

Product details

• Mobile suction device for emergency and rescue operations
• Four vacuum levels selectable at the touch of a button
• Intuitive control panel with LED display
• Automatic function check for system integrity, leakage, and battery, with visual and acoustic feedback
• Suitable for adults, children, and infants
• Approved for vacuum splint and mattress evacuation
• Powerful lithium-ion battery for 60 minutes of operation with tool-free replacement
• Automatic stop when the secretion bag is full
• Durable and stable housing
• Gray plastic components are easy to clean and disinfect:
• Removable without tools
• Suitable for immersion disinfection and machine processing in a washer-disinfector (max. 95 °C)
• Hygienic disposable canister system:
• Suction hose with fingertip control, Serres suction bag, and white angled connector are single-use items
• Vacuum hose suitable for immersion disinfection
• Secretion canister and gray angled connector suitable for immersion and thermal disinfection (95 °C) as well as steam sterilization (121 °C)
• Optional with an accessory bag, incl. a matching battery compartment cover
• Incl. charging cable (100–240 V) and disposable canister system for Serres disposable suction bags (disposable bags not included)
• Available in different configurations

Technical specifications

• Dimensions: L 37 x H 27.7 x D 14.6 cm
• Weight: approx. 4.3 kg
• Operating temperature: -5 to +50°C
• Protection rating: IP34D
• Shock and vibration resistance: EN 1789; RTCA DO-160G; EN 10079-1
• Power supply: 12 to 15 V or 100 to 240 V / 50 to 60 Hz
• Suction capacity at device inlet (without canister system): approx. 34 l/min
• Vacuum setting: 4-level regulator (-0.1/0.2/0.5/0.8 bar)
• Classification according to ISO 10079-1: High vacuum/high flow
• Canister system volume: 1,000 ml
• Battery: Li-Ion 4IMR 19/66-2, 14.8 V; 4.3 Ah (0.4 kg)
• Battery runtime: 60 min

Weinmann ACCUVAC Pro with disposable canister system

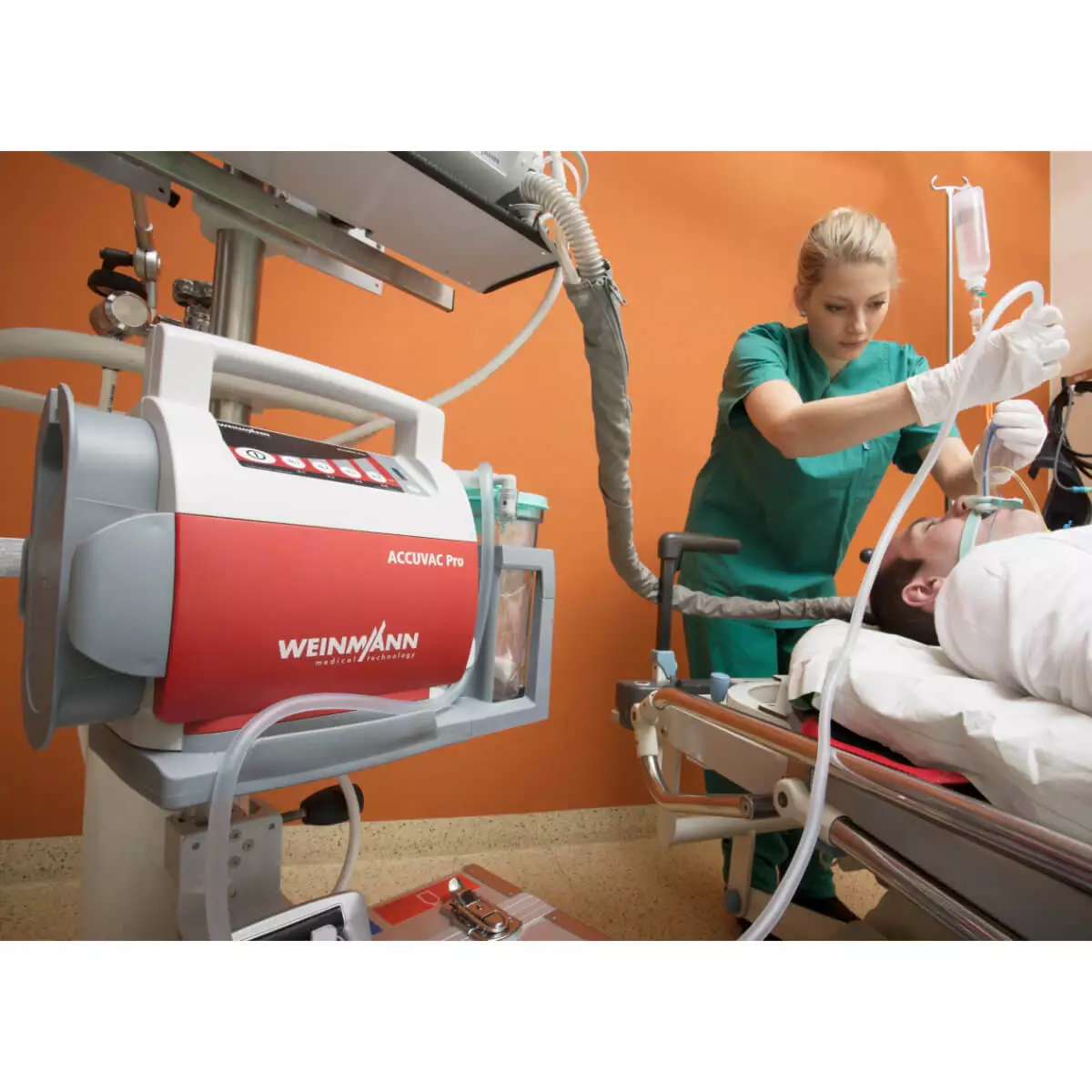

The ACCUVAC Pro is a mobile suction device designed for emergency medical services. It provides rapid airway clearance in patients by suctioning the oral and pharyngeal areas or performing endotracheal suctioning. The high suction power of the electric suction pump and its user-friendly design enable efficient and fast patient treatment in emergency situations.

This compact, portable suction device can be used both inside and outside emergency vehicles. The function check is semi-automated, taking less than a minute, and provides both visual and acoustic feedback to the user. No tools are required for battery replacement, canister system changes, or disassembly before hygienic cleaning. The integrated hose guide and storage ensure that the suction hose is always within reach while remaining securely stowed. The notch on the top of the hose storage area allows the suction catheter to be temporarily fixed during use to prevent contamination.

Emergency medical services can use the ACCUVAC Pro portable suction device for airway suctioning in adults, children, and infants. Four predefined suction levels enable precise adjustment of the suction pump’s performance. With a vacuum range of up to -0.8 bar and a suction capacity of 34 l/min, the ACCUVAC Pro is powerful enough for all applications. Its wide operating temperature range (-5 °C to +50 °C) and long battery life of 60 minutes make it ideal for emergency medical services, disaster response, and military use.

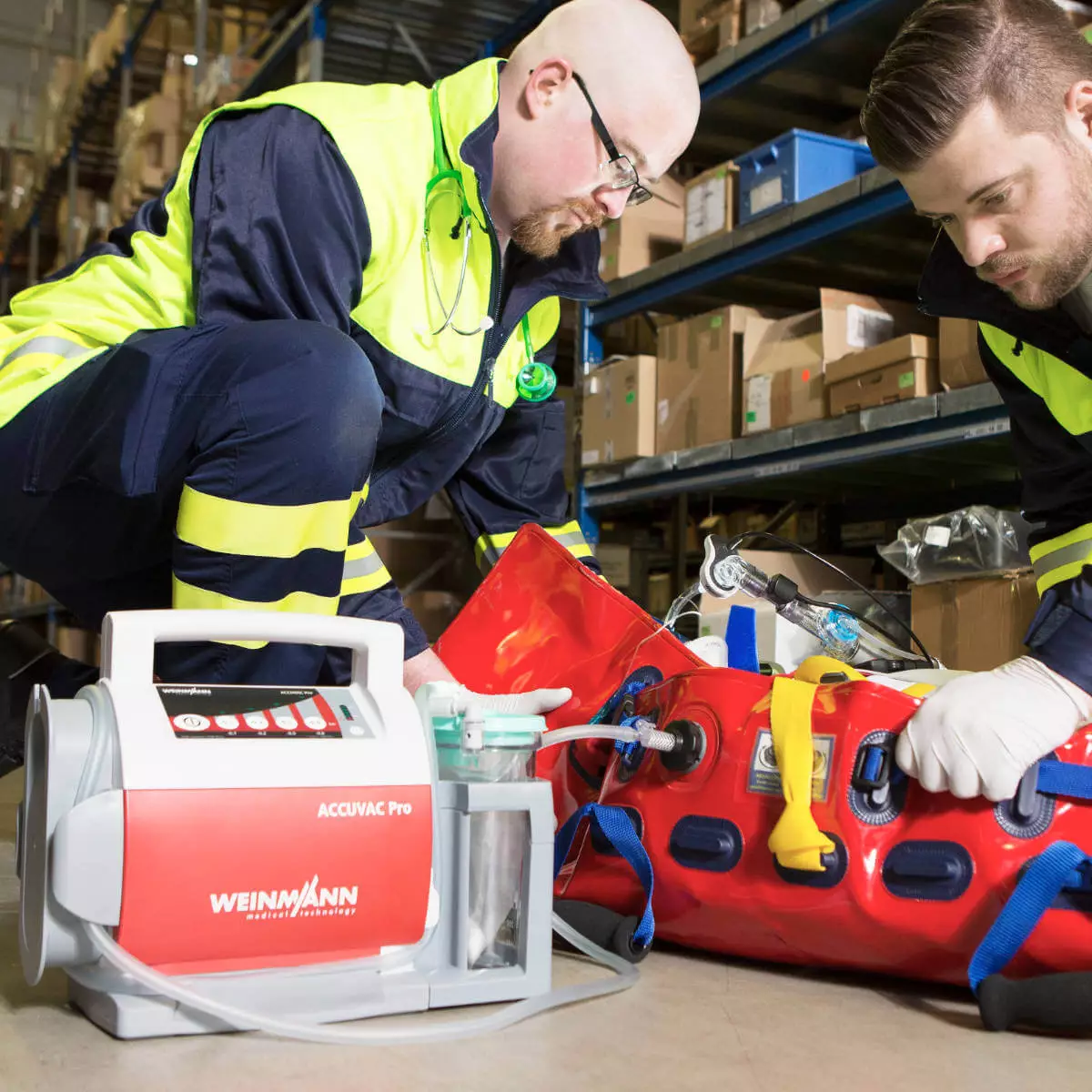

In addition to airway suctioning, the electric suction pump can also be used to evacuate vacuum splints and mattresses. Even during extended operation, the high-performance lithium-ion battery ensures reliable power supply. The shock-resistant material of the canister system, hose storage, and device base makes the suction device resistant to impacts from the sides and below. For operation, disposable suction bags with an integrated bacterial filter and disposable suction hoses are required.

The portable ACCUVAC Pro suction pump from Weinmann is a compact unit with 4 buttons for predefined suction levels and LED indicators. ACCUVAC Pro offers a robust solution for suctioning blood, secretions, and food particles from the mouth, pharynx, and bronchial system during all emergency operations, including outdoor use. The high suction capacity of 34 l/min can be utilized for up to 1 hour thanks to the powerful lithium-ion battery. A button for automatic function check, tool-free battery replacement, and the integrated hose holder make professional rescue operations easier. The device features a disposable container system that enables simple and hygienic disposal of secretions.

Package contents

• 1 Weinmann ACCUVAC Pro suction device with disposable container system
• 1 disposable secretion canister Serres with vacuum hose (1,000 ml)
• 1 disposable suction hose with fingertip
• 1 power supply and charger (100–240 V)
• Instructions for use

The Serres disposable suction bag shown is not included.
