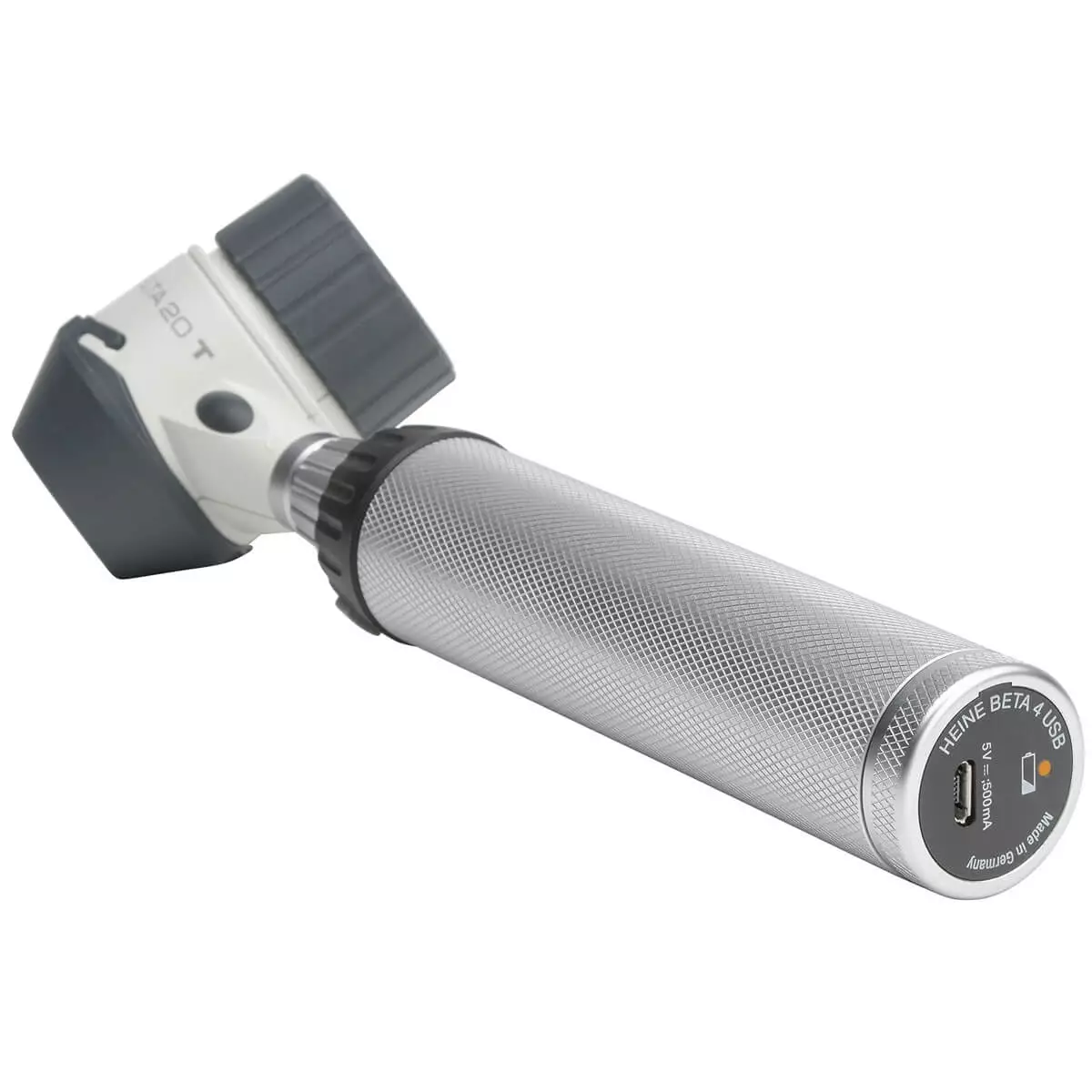

HEINE Optotechnik HEINE DELTA 20T Dermatoscope
With achromatic optical system
€1,586.70*
Available now | Delivery between 20/05/2026 – 23/05/2026
Others also liked
Version: With graduation
HEINE DELTA 20T Dermatoscope by HEINE Optotechnik
The HEINE DELTA 20T dermatoscope will allow you to examine skin lesions thanks to its precise optical system and LEDHQ illumination. You will also be able to switch between polarized and non-polarized lighting by simply pressing a button, a feature that will facilitate the diagnosis process.
Product details
- Extremely sharp images thanks to HEINE’s achromatic optical system
- LEDHQ with high color fidelity
- Toggle function: switch easily between polarized and non-polarized illumination
- Individual focus adjustment
- 10x magnification
- Contact lens with scale and bayonet mount

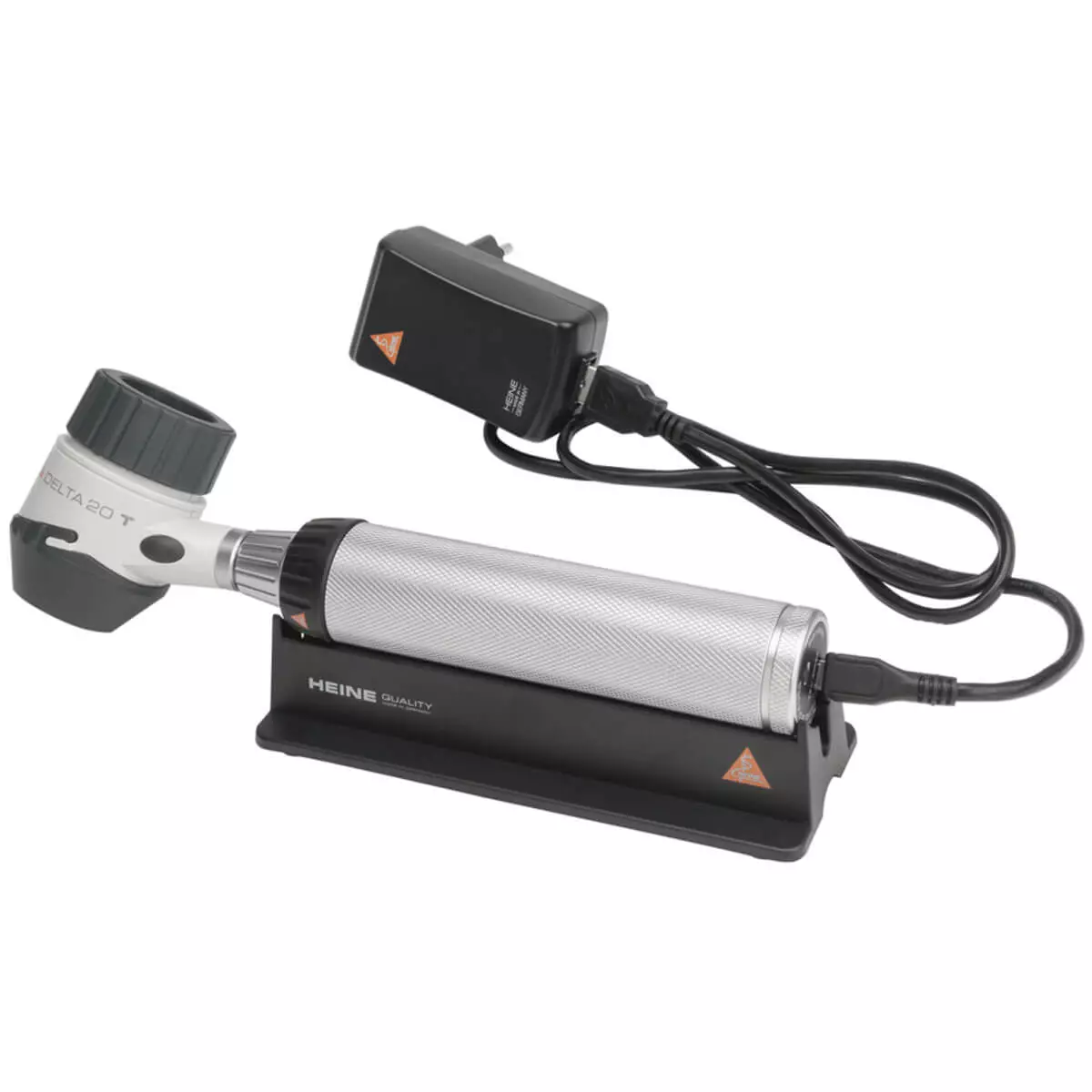

- With BETA4 USB charging handle and charging table
- Rechargeable battery with Li-ion technology: no memory effect
- 5 years of warranty: For more information, visit HEINE Optotechnik's guarantee conditions
Product specifications
The HEINE DELTA 20T dermatoscope features a high-quality achromatic optical system and delivers sharp, high-resolution skin lesions’ images. This sophisticated diagnostic instrument will allow for both nonpolarized dermoscopies (with skin contact and immersion fluid) and polarized dermoscopies (with no contact and polarized illumination). The dermatoscope allows for a between 10 and 16x magnification.
The toggle function will allow you to switch between polarized and non-polarized lighting by simply pressing a button: you will not have to change the contact plate! Quickly switching between these modes, a procedure called “bling test”, facilitates an early detection of crystalline structures or milia.
The low-maintenance LED Illumination of the DELTA 20T dermatoscope head provide great Coloring Rendering Index (CRI) and illuminates the examination area uniformly. The charging handle with Li-on technology ensurer that your diagnostic instrument is always ready to use. The battery ban be recharged at any time no matter the charge status, something that will not cause any capacity loss.
Technical details
- Dermatoscope
- Magnification: Between 10x and 16x
- Diopter compensation: -6/+6 dpt.
- Autoclavable contact lens: 23 mm with scale
- Charging handle:
- 1 3.5 V BETA4 USB charging handle.
- With medically approved plug-in power supply
Package contents
- 1 HEINE DELTA 20T dermatoscope
- 1 USB charging cable with plug-in power supply
- 1 tray
Specifications
| Casing color | Silver |
|---|---|
| Casing material | metal |
| Contact disc | yes |
| Digital use possible with | DSLR camera |
| Dimmability | yes |
| Lamp lifespan | 50,000 h |
| Polarization | yes |
| Power source | Li-ion battery |
| Switchable warm/cold light | no |
| Zoom | 10–16x |
| Digital upgrade | adapter required, optional |
| Medical device (EU 2017/745) | Class I |
| Made in | Germany |
| Manufacturer warranty | 5 years |
Product identification
| Product number | 101386.0 |
|---|---|
| Manufacturer name | HEINE Optotechnik |
| Manufacturer item no. | K-010.28.388 |
| EAN | 4053755194056 |
4 reviews
Nico
28 February 2022
Preis-Leistungsverhältnis stimmt. Das Dermatoskop gehört nun in die Praxis
Anna
1 March 2021
Gute Qualität und fairer Preis
Michael
14 August 2020
Die Verarbeitung wirkt im Gegensatz zur Konkurrenz besser und hochwertiger, kaufe ich wieder.
Anna
9 July 2020
Hält was es verspricht und hat eine auffällig gute Verarbeitung
Accessories
Adapter for contact dermatoscopy with or without graduation
Version: With graduation
Attachment for easy examination of hard-to-reach skin areas
Compatible with BETA, K, and DELTA heads with 3.5 V
Version: BETA4 NT rechargeable handle for LED and 3.5 V XHL heads
The HEINE NT 4 table charger combines modern technic with high quality. Use it to charge HEINE BETA4 NT rechargeable handles while also keeping them upright. It can also be used for battery handles. You will need to use a reduction to charge BETA4 SLIM NT handles (sold separately). The compact charger has a quick charge function which does so in under 2 hours. You will also be able to charge 2 handles independently at the same time. Product details Stable standing storage for HEINE instrument handles Use it on BETA 4 NT rechargeable handles Also compatible with BETA 4 SLIM NT rechargeable handles (reduction set needed) Separate charging sockets for simultaneous charging Charging always possible, no matter the charge level No memory effect With charge status display No overload risk Maintenance-free Includes adapter for BETA4 NT handle, standard F.O. 4 NT and F.O. 4 SHORT NT Laryngoscop handle Dimensions: W 14,2 x H 6,1 x D 6.6 mm Weight: 235 g 5 years of warranty: For more information, visit HEINE Optotechnik's guarantee conditions Technical details Fast charging in 2 hours Automatic shut-down Power supply: 100 - 240 V / 50 - 60 Hz Delivery contents 1 HEINE NT 4 table charger with two separate pockets 1 adapter for BETA4 NT handle, standard F.O. 4 NT and F.O. 4 SHORT NT Laryngoscop handle The shown instruments are not included in the delivery contents.
