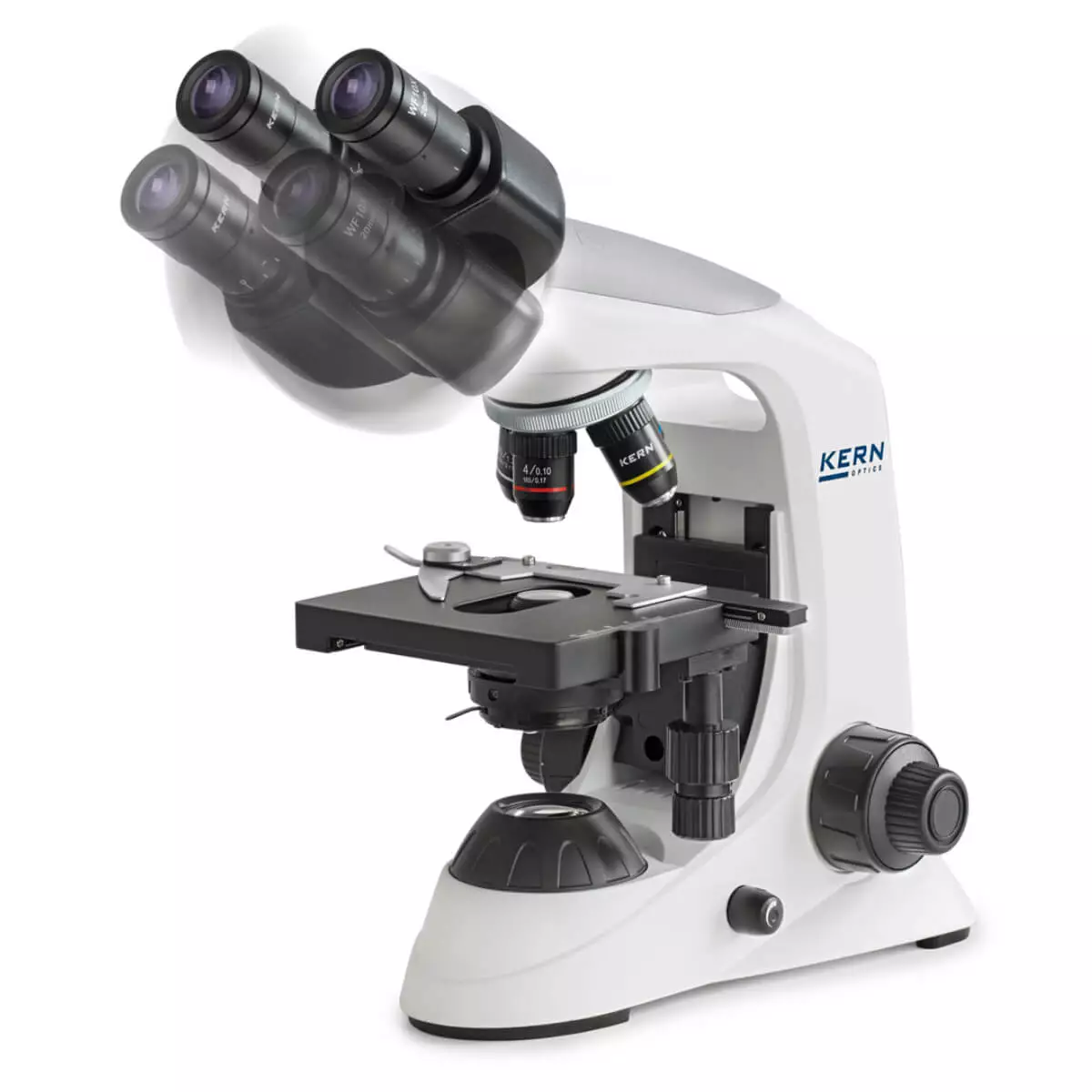

KERN OBE 132 Transmitted light microscope

The OBE 132 from KERN is an all-round microscope for laboratory, training and school. The dynamic design is complemented by robust workmanship and optimized ergonomics. Translucent, thin specimens such as stained cells, parasites and plant tissue are optimally displayed thanks to the high-quality optics with Abbe condenser and the bright, dimmable LED illumination. The butterfly tube provides the ideal viewing angle. On the back of the microscope is a storage compartment for the power cord as well as an integrated USB port that can be used to connect the instrument to a power bank for external power supply.

Product details

• Transmitted light microscope for high-contrast, simple preparations
• Binocular design as a versatile laboratory aid
• Field of application in medical practice, hematology, sediments, education
• Abbe condenser for light focusing and bundling
• With Finity optics
• Ball bearing mounted 4-position objective turret
• Mechanical stage for 1 slide
• Coaxial coarse and fine drive on both sides with scale (2 μm)
• USB port for mobile use with a power bank
• Storage compartment on the back for stowing the power cable
• Incl. dust cover and eyecups
• Dimensions: W 360 × D 150 × H 320 mm
• Weight: 4.6 kg

Technical Details

• Objectives:
• 4 x / 0.10 / working distance 18.6 mm
• 10 x / 0.25 / working distance 6.5 mm
• 40 x / 0.65 (spring loaded) / working distance 0.47 mm
• 100 x / 1.25 (oil) (spring loaded) / working distance 0.07 mm
• Objective lenses: Finite Optics (DIN)
• Optical system: Condenser Abbe N. A. 1.25 (with aperture diaphragm and numerical aperture)
• Illumination: 3 W LED (transmitted light, continuously dimmable)
• Siedentopf: Butterfly 30° inclined, pupil distance 48-75 mm
• Eyepieces: High-widefield, 10x magnification, Ø 18 mm
• Dioptric compensation: one-sided
• Object stage: W 125 × D 115 mm, path 50 × 70 mm

Scope of delivery

• 1 KERN OBE 132 transmitted light microscope binocular
• 2 eyecups
• 1 dust cover
• 1 power supply unit (EURO)
• Instruction manual (multilingual)
