KERN OBE 134 Transmitted light microscope trinocular

The KERN OBE 134 trinocular microscope is suitable for medical practices, science and education. The high-quality transmitted light microscope provides excellent images for translucent, thin and high-contrast tissues and cells. The high-quality optics with achromatic objectives and the continuously dimmable LED illumination ensure a wide range of applications. The height-adjustable ABBE condenser with aperture diaphragm ensures optimal light focusing. The microscope is also available as a digital complete solution with matching C-mount camera or high-resolution tablet camera as a set. This also makes it ideal for measurements, counting, documentation, archiving and image processing in the laboratory and education.

Product details

• Transmitted light microscope for high-contrast specimens
• Trinocular design with connection tube for camera
• Field of application in education, hematology, sediments, medical practices
• 4-fold revolving nosepiece
• Mechanical stage for 1 slide
• Incl. dust cover and eyecups
• Dimensions (microscope OBE 134): W 360 × D 150 × H 320 mm
• Weight (microscope OBE 134): 4.488 kg
• Optionally with tablet or C-mount camera (incl. adapter)

Microscope set with camera

The trinocular OBE 134 is also available in a set with an adapted C-mount camera for sharp images or a tablet camera for direct viewing of liveimages. A C-mount adapter is included for connecting the ODC 825 camera to the third tube.

Microscope camera ODC 825

For high-resolution color images, the microscope is available together with a handy microscope camera. In studies and training as well as in medical or scientific work, digital images can be recorded as still images or video. The small ocular camera has a particularly high frame rate and stable image performance. The data can be stored on a PC via the USB interface and edited using the Microsocope VIS Basic camera software included in the set. The set is supplied with a USB cable (length: 2 m), various eyepiece adapters and an object micrometer for calibrating the software.

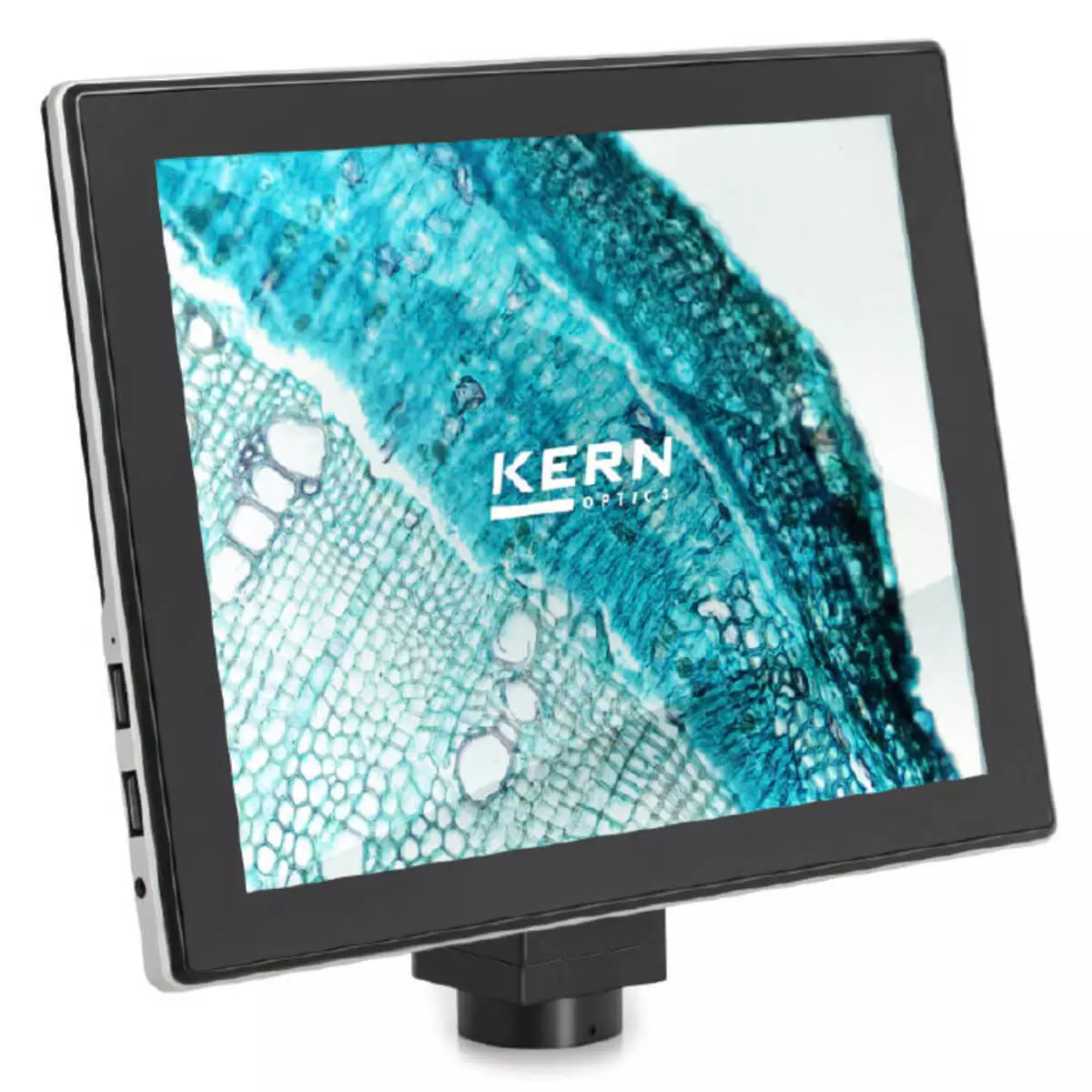

Tablet Camera ODC 241

This camera is a 2-in-1 combination of an Android tablet with a 5 MP camera. The large LCD display with touch function is easy to operate. During presentations or in training, the display of samples on the microscope can be seen live. It is also easy to create images and videos for documentation. The pre-installed software enables automatic white balance and contrast compensation. For simple measurements, the camera model offers distance, area and angle measurements as well as a manual counting function. Integrated interfaces provide a variety of additional functions, such as data storage on USB stick or SD card, connection of a USB mouse, transmission of the live image to an external screen via HDMI, and transmission of stored data to external receivers via WLAN.

Technical details

Microscope OBE 134

• Objective lenses:
  - 4 x / 0.10 / working distance 18.6 mm
  - 10 x / 0.25 / working distance 6.5 mm
  - 40 x / 0.65 (spring loaded) / working distance 0.47 mm
  - 100 x / 1.25 (oil) (spring loaded)/ working distance 0.07 mm
• Objective lenses: DIN achromatic (finite optics)
• Optical system: Abbe condenser 1.25 (numerical with aperture diaphragm)
• Illumination: 3 W LED (transmitted light)
• Siedentopf: Butterfly 30° inclined, 360° rotatable
• Eyepieces: High widefield, 10x magnification, Ø 18 mm
• Dioptric compensation: one-sided

Microscope camera ODC 825

• Dimensions: W 80 x H 80 x D 45 mm
• Resolution: 5,1 MP
• Frame rate: 6,8-55 fps
• Sensor: CMOS 1/2,5"
• Supported operating system: Windows XP, Vista, 7, 8, 8.1, 10
• Interface: USB 2.0
• USB cable (length: 2 m)
• Incl. camera software (CD): KERN OXM 901 Microsocope VIS Basic (German, English, Spanish, Italian, French)

Tablet camera ODC 241

• Dimensions: W 238 x H 206 x D 51 mm
• Display: 9.7" LCD touch screen (2048 x 1536 pixels)
• Resolution: 5 MP
• Frame rate: 15-30 fps
• Sensor: CMOS 1/2.5
• CPU: Quad Core Cortex-A17; 1.8 GHz
• Supported operating system: Android
• Interface: WIFI, USB 2.0, HDMI, SD
• Incl. camera software (CD): KERN OXM 901 Microsocope VIS Basic (German, English, Spanish, Italian, French)

Scope of delivery

OBE 134 Microscope

• 1 KERN OBE 134 transmitted light microscope trinocular
• 1 Power supply unit (Euro)
• 2 eyecups
• 1 dust cover
• 1 multilingual instruction manual

Set with ODC 825 camera

• 1 KERN OBE 134 transmitted light microscope trinocular
• 1 power supply (Euro)
• 2 eyecups
• 1 dust cover
• 1 KERN ODC 825 microscope camera
• 1 C-Mount adapter
• 1 CD with KERN software OXM 901
• 1 USB cable
• 1 Object micrometer
• 1 Multilingual user manual

Set with ODC 241 Tablet camera

• 1 KERN OBE 134 transmitted light microscope trinocular
• 1 Power supply (Euro)
• 2 eyecups
• 1 dust cover
• 1 ODC 241 Tablet Camera
• 1 C-Mount adapter
• 1 preinstalled KERN software OXM 901
• 1 power supply unit camera
• 1 object micrometer
• 1 multilingual operating manual
