KERN OBL 156 Phase contrast microscope trinocular

The phase contrast microscope of the OBL-15 series is especially suitable for very translucent, thin and low-contrast preparations such as living mammalian cells, bacteria and tissue. Direct imaging of cells with low inherent contrast is possible using the phase contrast technique - without staining the structures beforehand. A height-focusable and fixed-precenter phase contrast condenser with aperture diaphragm as well as the field diaphragm allow simplified Köhler illumination and thus powerful phase contrast imaging of the specimen. Two objective lenses in Infinity E-Plan grind can focus sharply at infinity and are part of the high-quality equipment, as are the two phase contrast objectives, a continuously dimmable LED illumination and colored filters. For recordings and demonstrations in the medical and scientific fields, the trinocular microscope can be equipped with an optional camera via a corresponding C-mount adapter (not included).

Product details

• Trinocular transmitted light microscope with phase contrast technology
• Especially for very translucent, low-contrast specimens
• Applications in hematology, urology, gynecology, dermatology, pathology, microbiology and parasitology, immunology, sewage treatment plants, oncology, entomology, veterinary, water analysis

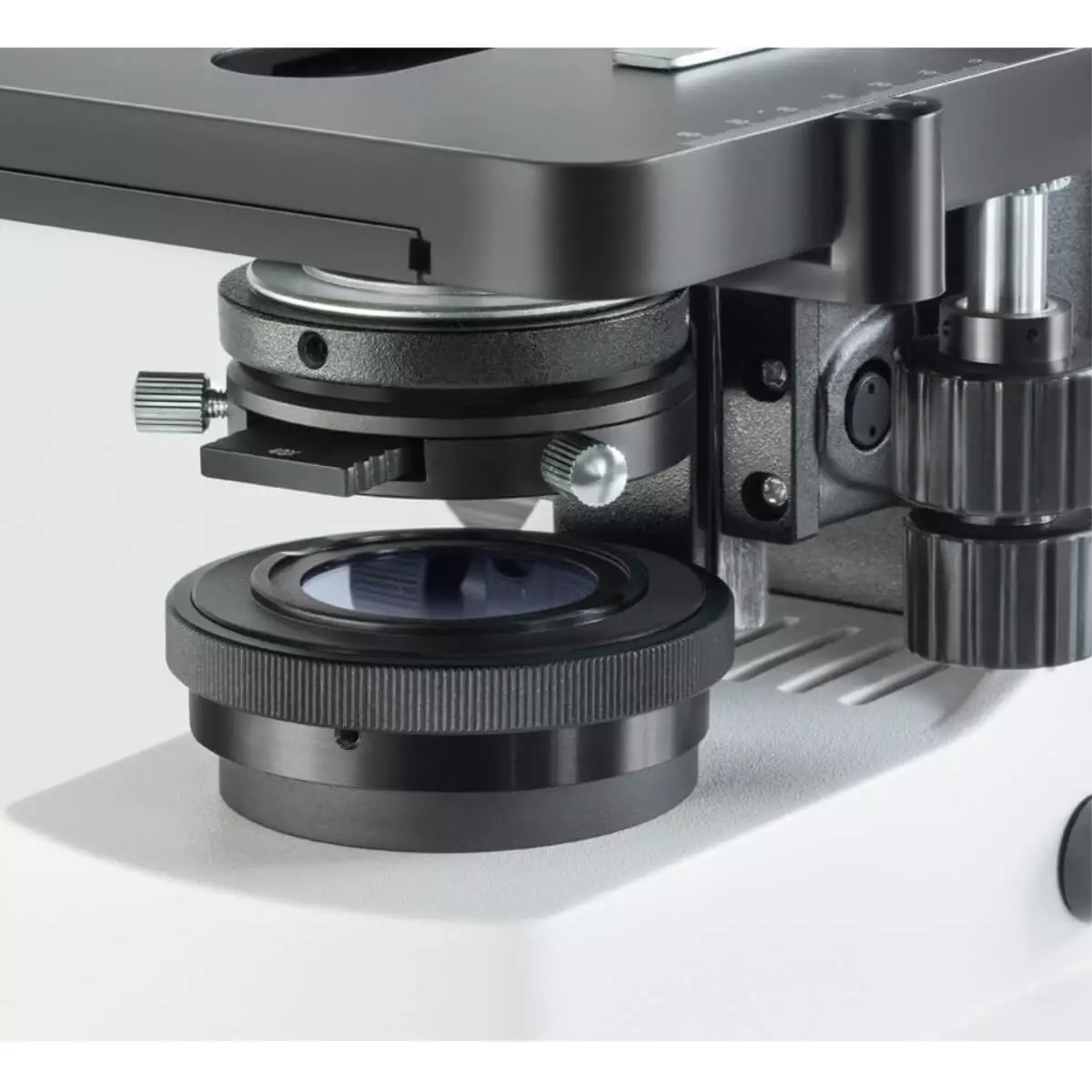

• Fixed-precentered and focusable ABBE condenser for brightfield and phase contrast
• Mechanical stage for 2 slides
• Coaxial coarse and fine drive on both sides with scale (2 μm)

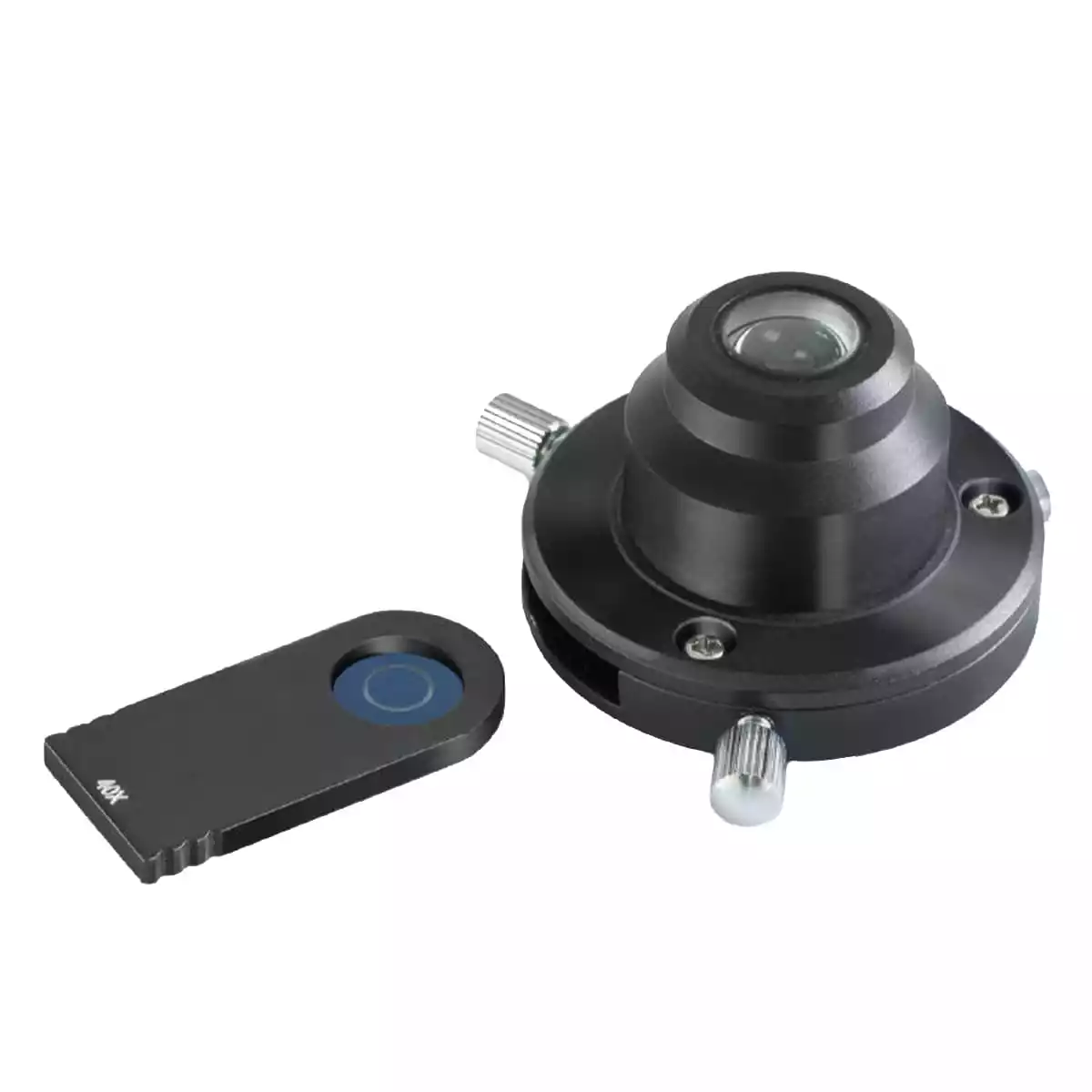

• Incl. phase contrast condenser, PH slider, green filter, dust cover and eyecups
• Dimensions: W 395 mm x D 200 x H 380 mm
• Weight: 6.7 kg

Technical details

• Infinity E-Plan lenses (infinity corrected):
  - 4x / 0.10 / working distance 12.1 mm
  - 100x / 1.25 (oil) (spring loaded) / working distance 0.19 mm
• Phase contrast units:
  - Infinity PH plan objective 10 x and 40 x
  - PH slider 10 x and 40 x
  - Centering eyepiece
• Optical system: PH condenser Abbe (numerical aperture) 1.25 pre-centered, for brightfield and phase contrast
• Illumination: 3 W LED (transmitted light)

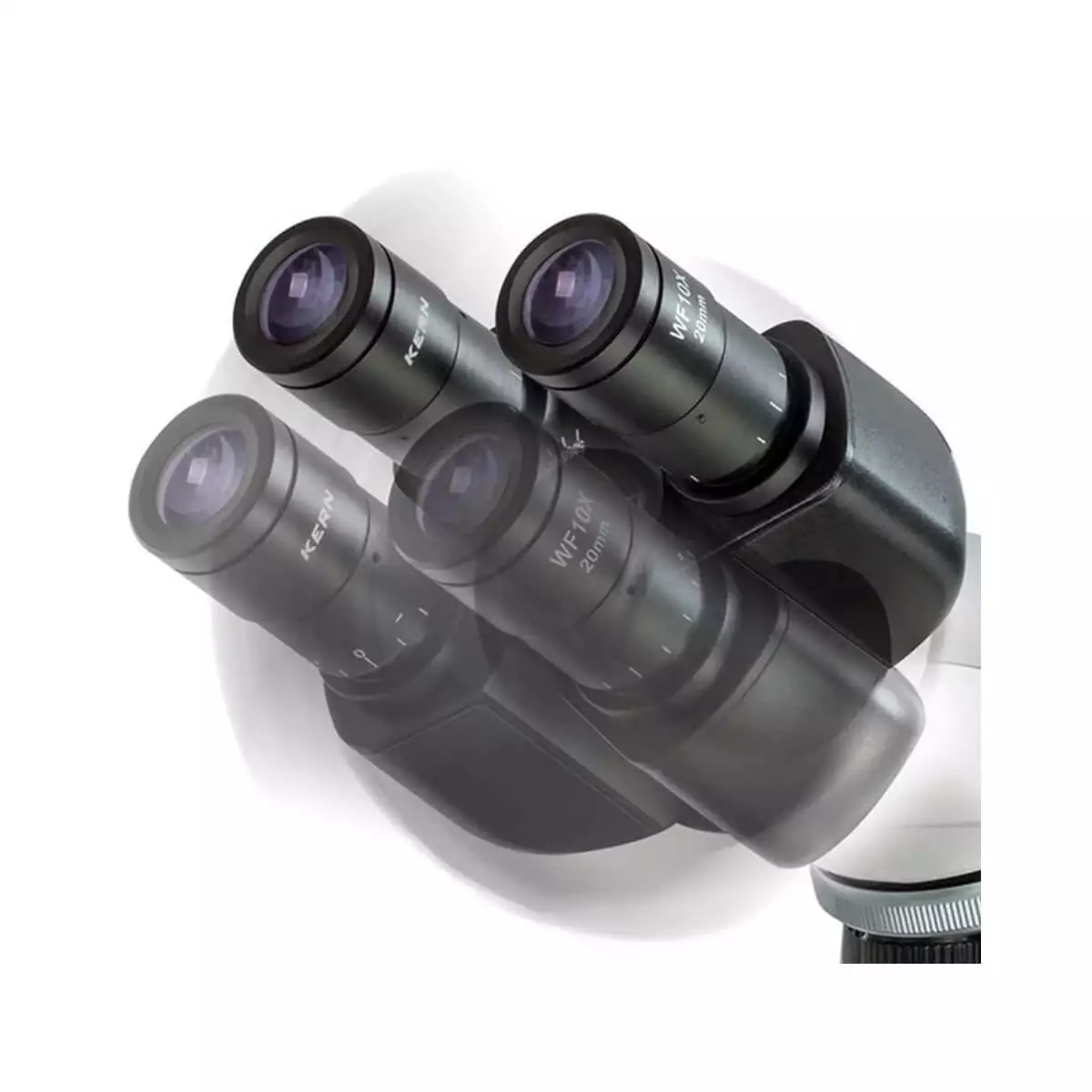

• Siedentopf: Butterfly 30° inclined, 360° rotatable
• Eyepieces: High widefield, 10x magnification, Ø 20 mm
• Dioptric compensation: one-sided
• Color filters: blue (built-in), green

Scope of delivery

• 1 KERN OBL 156 phase contrast microscope trinocular
• 1 power supply unit
• 2 eyecups
• 1 dust cover
• 1 phase contrast condenser
• 1 PH slider
• 1 instruction manual
