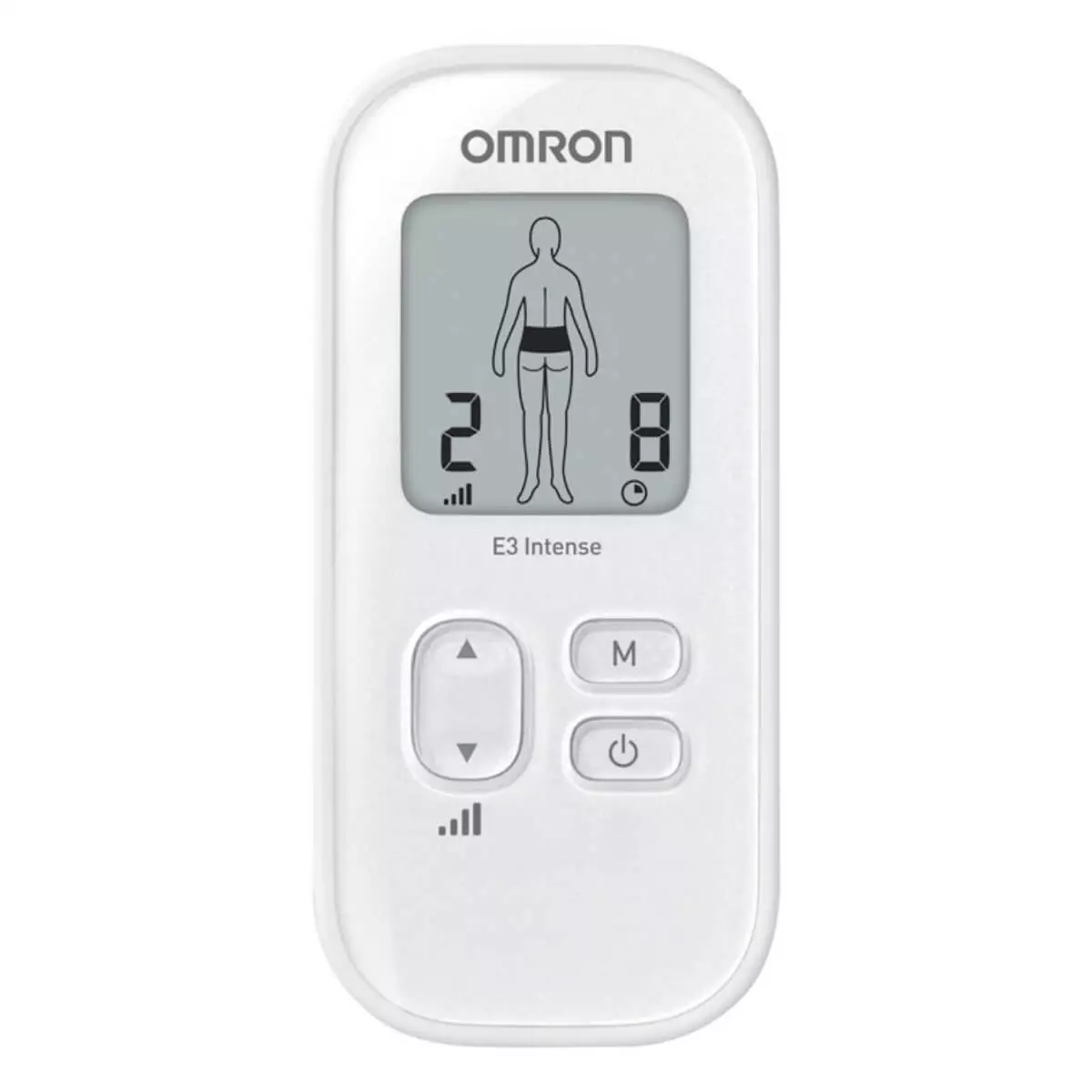

OMRON E3 Intense pain therapy device

The OMRON E3 Intense is a portable pain therapy device for the treatment of muscle and joint pain as well as stiffness and numbness in the back, arms, legs, shoulders and feet. Thanks to its TENS (transcutaneous electrical nerve stimulation) technology, it enables non-invasive pain therapy without medication through electrical nerve stimulation. The OMRON E3 Intense has 6 preset programs for the back, shoulders, joints and muscles, and also has 3 massage modes and 15 intensity levels. Thanks to its compact design, the electronic pain therapy device can be used from home, at work or for traveling by plane or train.

Product details

• Pain therapy device for non-invasive treatment without medication
• For the reduction and relief of muscle and joint pain as well as stiffness and numbness in the back, arms, legs, shoulders and feet
• TENS technology with 3-fold effect
• Portable: Compact design for use at home, in the office or on the go
• 6 preset programsfor back, shoulders, arms, legs, soles of feet and joints
• 3 massage modes: tapping, kneading, rubbing
• Fast programs with application time of only 15 minutes
• Intuitive and user-friendly
• With large display for viewing programs and remaining treatment time
• Can be used in combination with other pain treatments or medications
• Includes washable pads for up to 150 applications
• Dimensions: L 25 x W 52 x H 112 mm
• Weight: approx. 100 g (incl. batteries)

The 3-fold effect of TENS technology

The TENS technology behind the OMRON E3 Intense pain therapy device is clinically proven and widely used by physiotherapists and pain specialists. It is particularly impressive because of its 3-fold effect: it blocks the transmission of pain information, releases endorphins for stimulation and improves blood circulation. For this purpose, electrical impulses comparable to natural bio-current (body current) are released, which stimulate the body's own pain relief mechanism and thus effectively alleviate pain symptoms.

Technical details

• Power control: 15 intensity levels
• Operating temperature: 10 to 40 °C
• Humidity: 30 to 80 % relative humidity
• Air pressure: 700 to 1060 hPa
• Power source: DC 3 V (2 AAA alkaline/ or manganese batteries)
• Frequency: approx 1 to 238 Hz
• PULSE duration: 150 μs
• Maximum output voltage: 70 V (at 500 Ω load)

Scope of delivery

• 1 OMRON E3 Intense pain therapy device
• 1 electrode cable
• 1 pad holder
• 1 set of long life pads
• 1 battery set for trial operation
• 1 belt clip
• 1 pouch
• 1 instruction manual
