KERN Personal scale MPN 200K-1HM

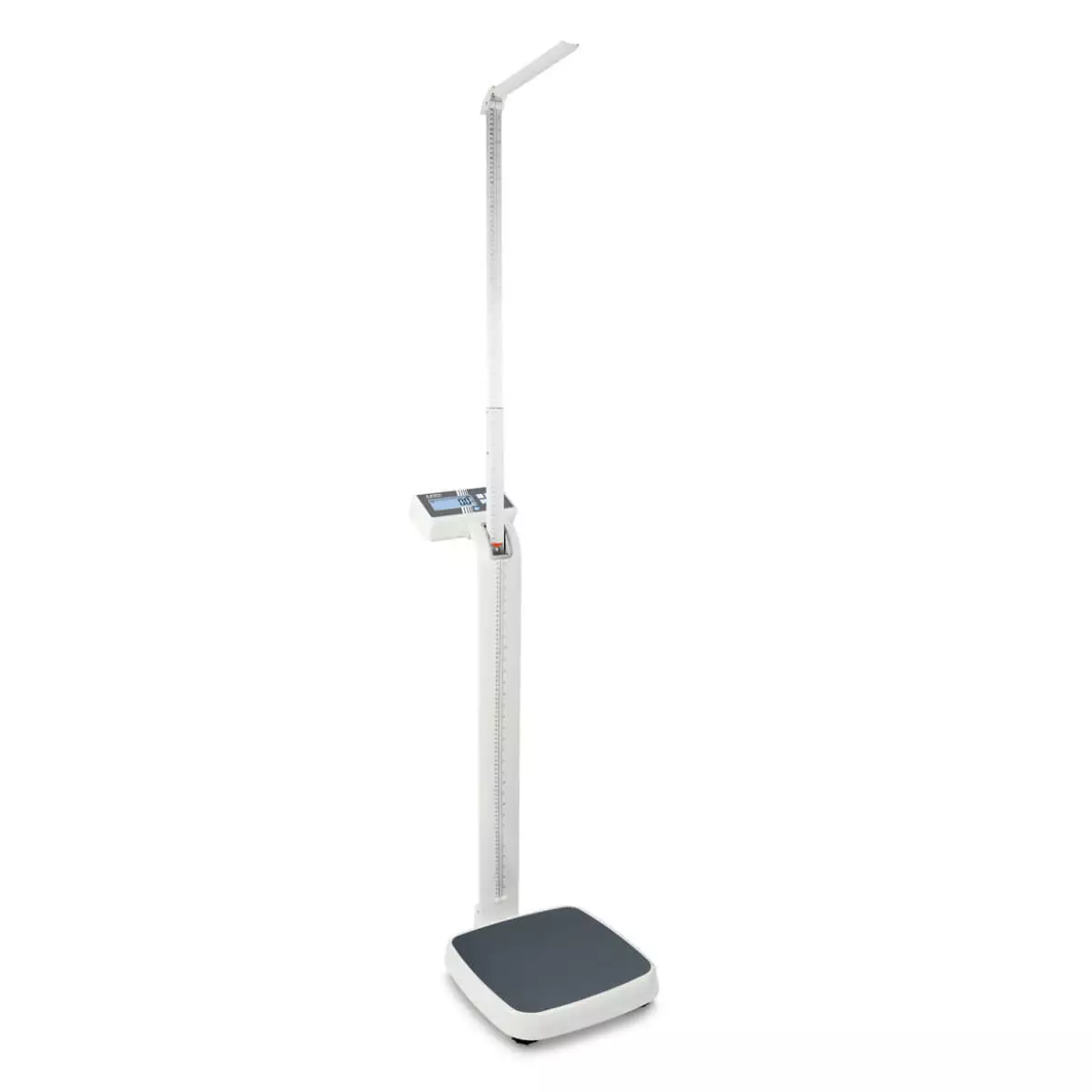

The KERN MPN 200K-1HM personal scale is an integration-capable column scale for wireless transmission of weighing data to EMR or EHR systems. It features a capacity of up to 250 kg and an accuracy of 0.1 kg. It is easy to operate and the automatic power-off function saves battery power. In addition, it is sturdily built with a stable platform and a sleek and attractive design. The personal scale has an integrated height measuring rod in the stand. This allows you to measure your height and thus determine your body mass index (BMI) even more accurately.

Product details

• Personal scale for patients up to 250 kg

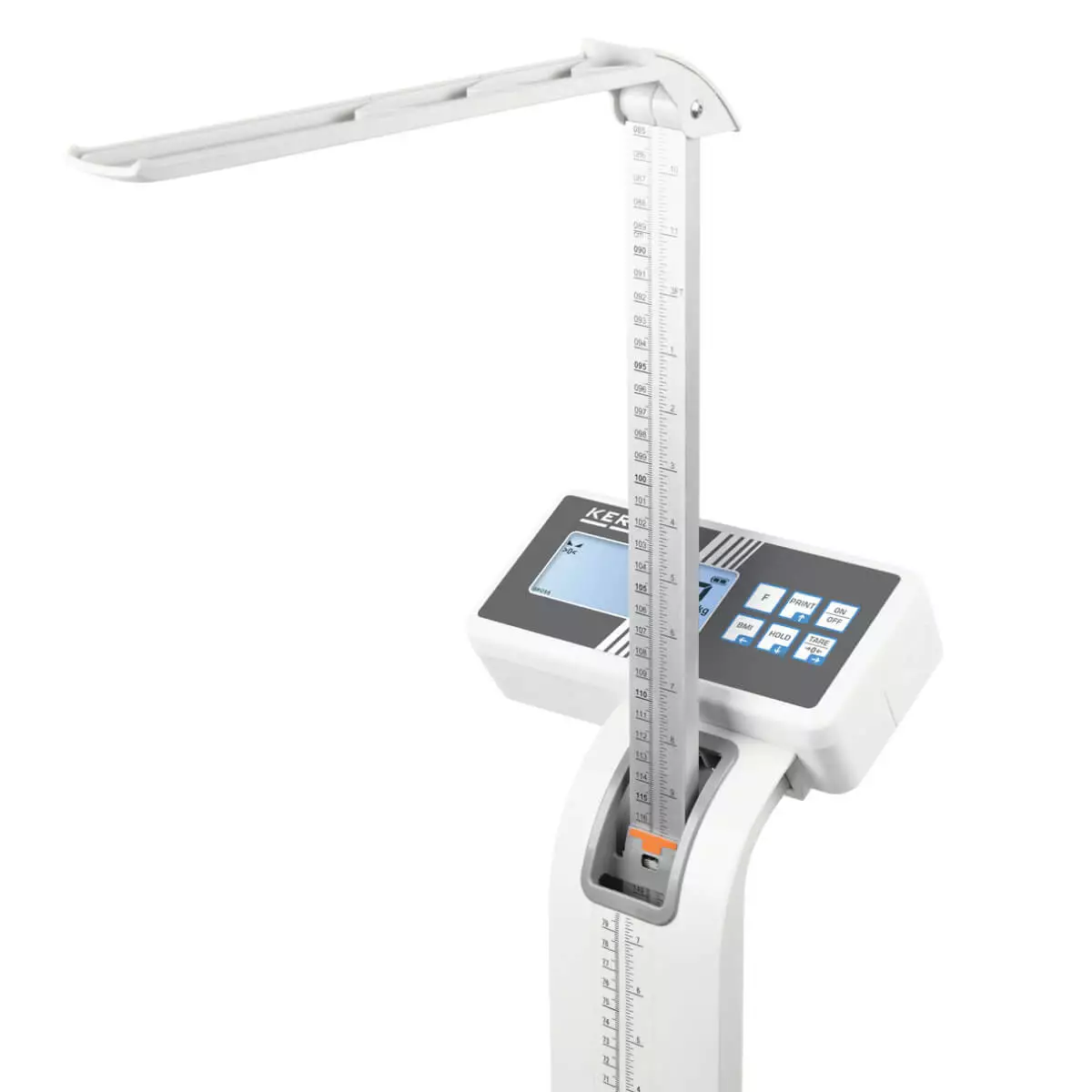

• With integrated height measuring rod in the stand
• Robust design for daily use in professional environment
• With WLAN interface and KERN Universal Port
• Ideal for:
• Hospitals
• Clinics
• Medical practices
• Weighing in the adipose range up to 250 kg

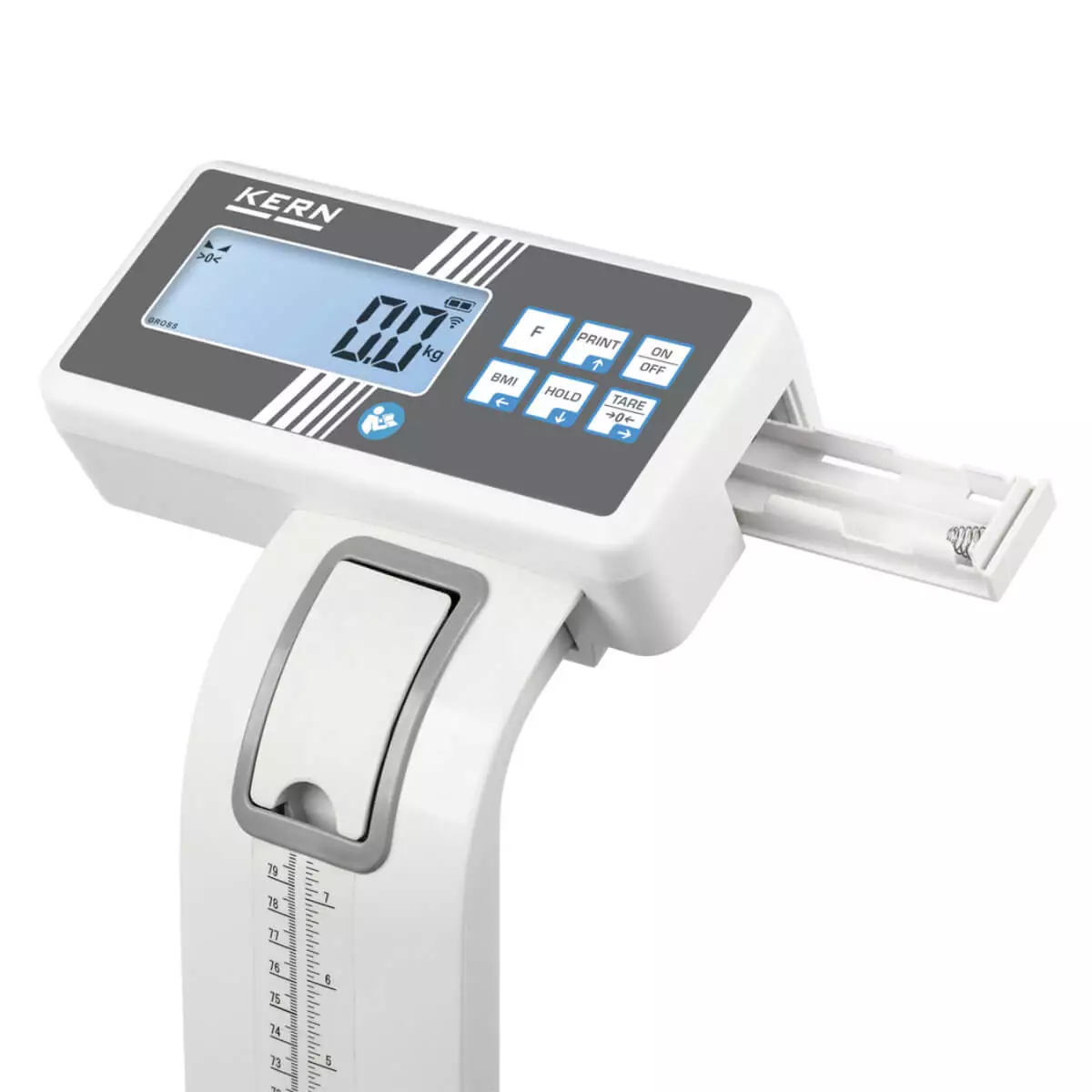

• Large LCD display
• Hygienic and easy to clean
• Safe and slip-free standing due to height-adjustable rubber feet
• Large tread surface with non-slip and abrasion-resistant surface for optimal stability
• Calibrated class III for Germany
• Material (housing): ABS plastic
• Material (weighing plate): Steel, painted
• Material (platform): Cast aluminum, plastic
• Material (load cells): Aluminum
• Dimensions (weighing platform): W 36.5 x 36 x 8 cm
• Dimensions (total): W 36.5 x D 57 x 213.4 cm
• Weight: 11,5 kg

Practical additional functions of the KERN personal scale MPN 200K-1HM

For precise measurement results during weighing and as a support in everyday laboratory work, the scale has various additional functions.

The hold function determines a stable weight value for restless patients by averaging, which is "frozen" for some time. This gives healthcare professionals enough time to turn their attention to the patient and then read off the weight value in peace.

Thanks to the integrated auto-off function, the scale switches itself off after a short time. This saves the additional effort of deactivating the scale manually and is power-saving.

With the BMI function, medical professionals can determine the weight status of patients and distinguish between underweight, normal weight and overweight.

Thanks to the fine display, the readability [d] can be increased by 1 digit for 5 s by pressing a key.

By using the mother-child function, the weight of the parent, which was previously determined by weighing, is set to zero simply by pressing a button. Subsequently, both the parent and the child can be weighed together. The child's weight is now shown directly on the display, which is particularly convenient for small children.

With the WLAN interface, weight values can be transferred directly to the digital patient record to avoid documentation or transmission errors. The KERN Universal Port allows easy connection to external devices such as networks, PCs, smartphones, tablets, laptops, printers and other devices. Control commands and data input can be sent to the scale via the connected devices.

Technical details

• Functions: Hold, BMI, fine display, mother-child (pre-tare)
• Weighing system: strain gauge
• Weighing range: max. 250 kg
• Measuring unit: kg
• Measuring accuracy: 0,1 kg
• Interface: WLAN, KERN Universal Port
• Operating time: 48 hours (backlight off), 24 hours (backlight on)
• Power supply: 6 1.5 V AA batteries (not included)

Scope of delivery

• 1 KERN personal scale MPN 200K-1HM
• 1 power supply unit
• 1 protective cover
• 1 instruction manual
