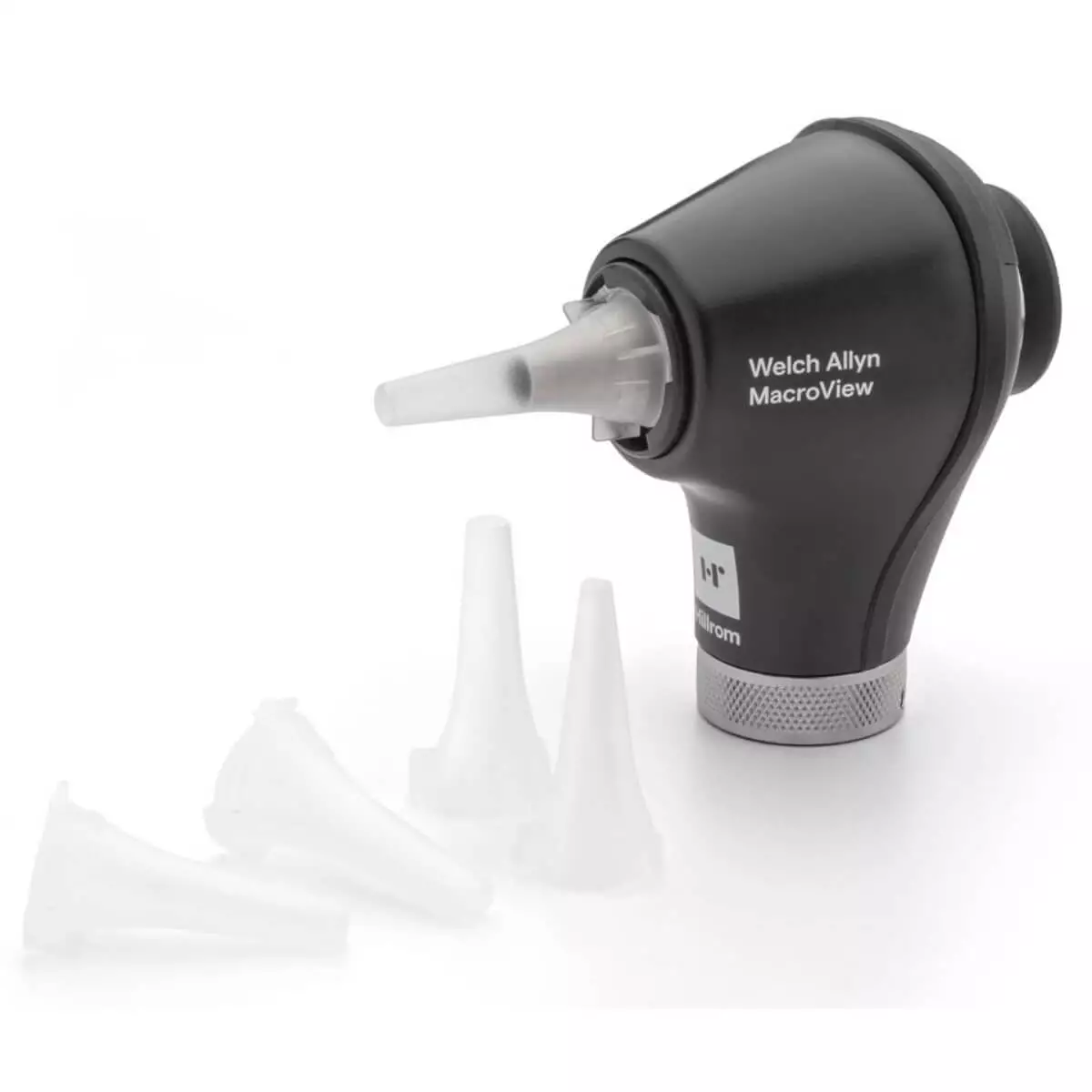

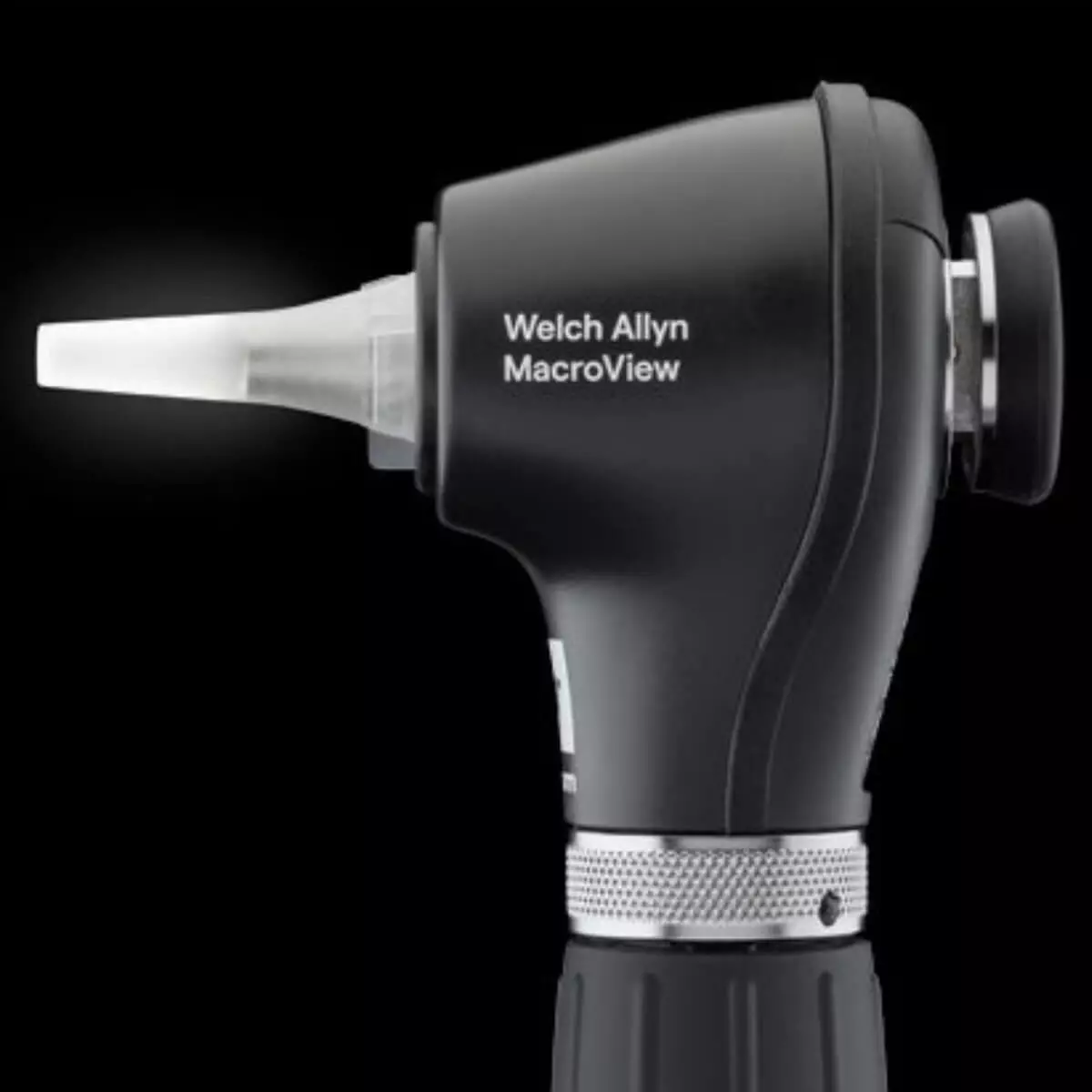

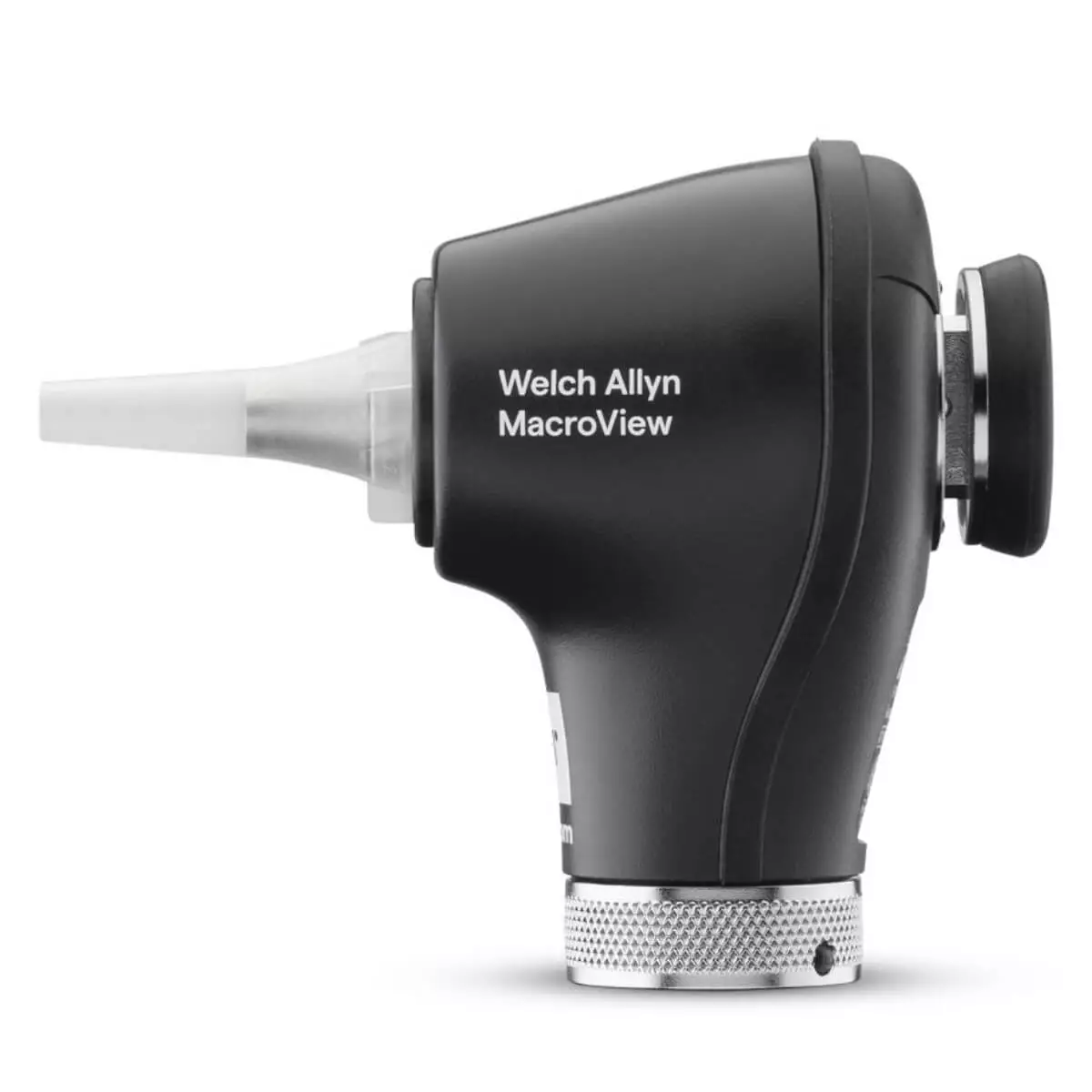

Welch Allyn MacroView Plus otoscope head with iExaminer

The Welch Allyn MacroView Plus otoscope head features a wide-angle lens for an expanded field of view and larger images. The device can be used comfortably with regular eyeglasses, as manual focusing is no longer required.

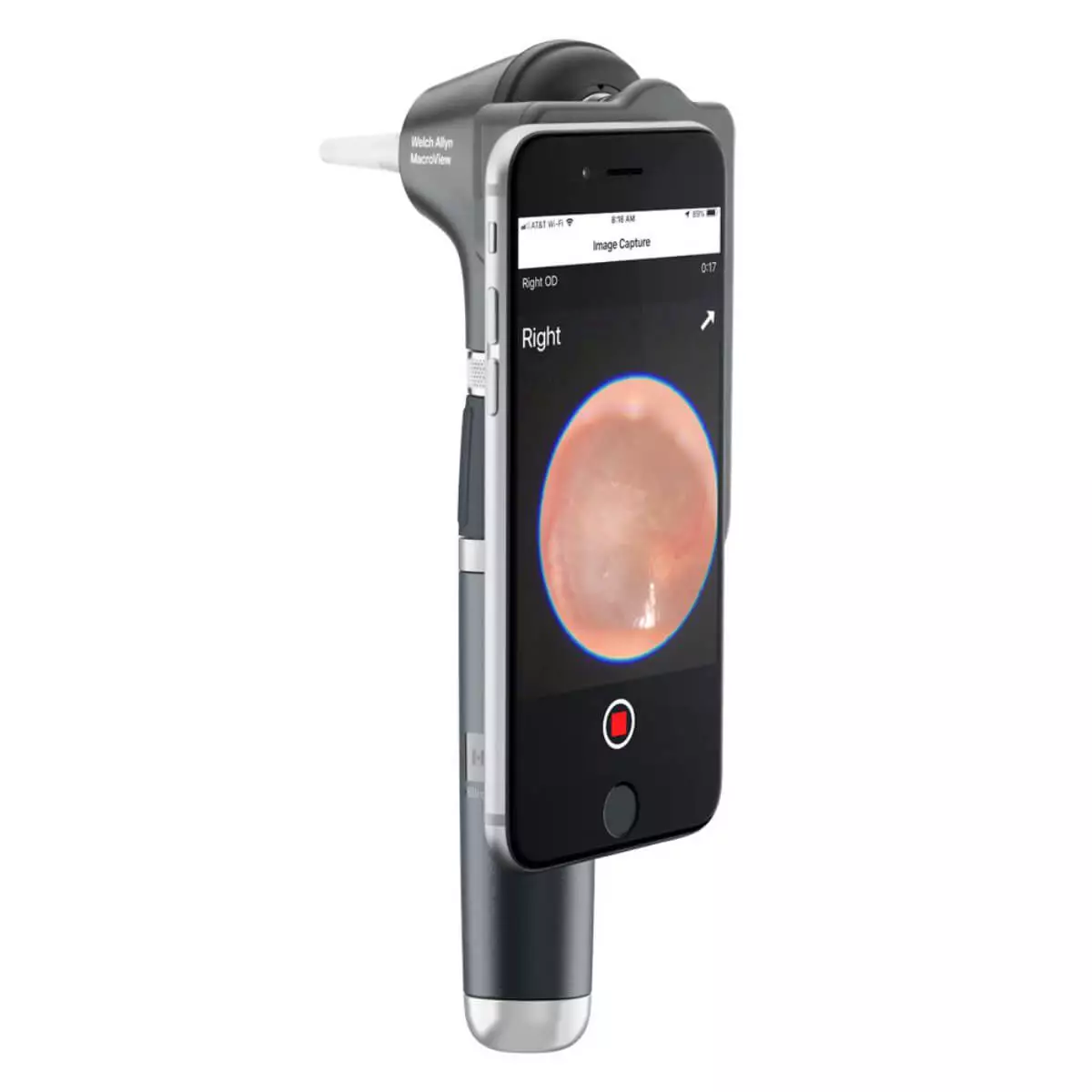

With the iExaminer system, it can be converted into a digital otoscope. The free iExaminer Pro app is available for iOS and Android and allows, among other functions, the selection of the best images from a 30-second examination recording.

Product details

• Otoscope head with wide-angle optics compatible with all Welch Allyn 3.5 V handles
• MacroView technology for a field of view up to 3 times larger than a standard otoscope
• Focus-free design with extended depth of field
• With iExaminer kit for digital imaging using a smartphone:
• Store and share examination images in the iExaminer Pro app
• Facilitates patient communication through meaningful images
• Easy attachment of the smartphone to the otoscope
• Clip-on holder for mobile devices with a rigid case
• Usable in vertical or horizontal orientation
• Long-lasting SureColor LED ring light guide for uniform illumination
• Soft eyepiece cushion
• With insufflation port for pneumatic testing
• With light-transmitting LumiView disposable ear specula (accessory), up to 8 times brighter views than with a black ear tip
• Compatible with lithium-ion diagnostic instrument handle (719-3)

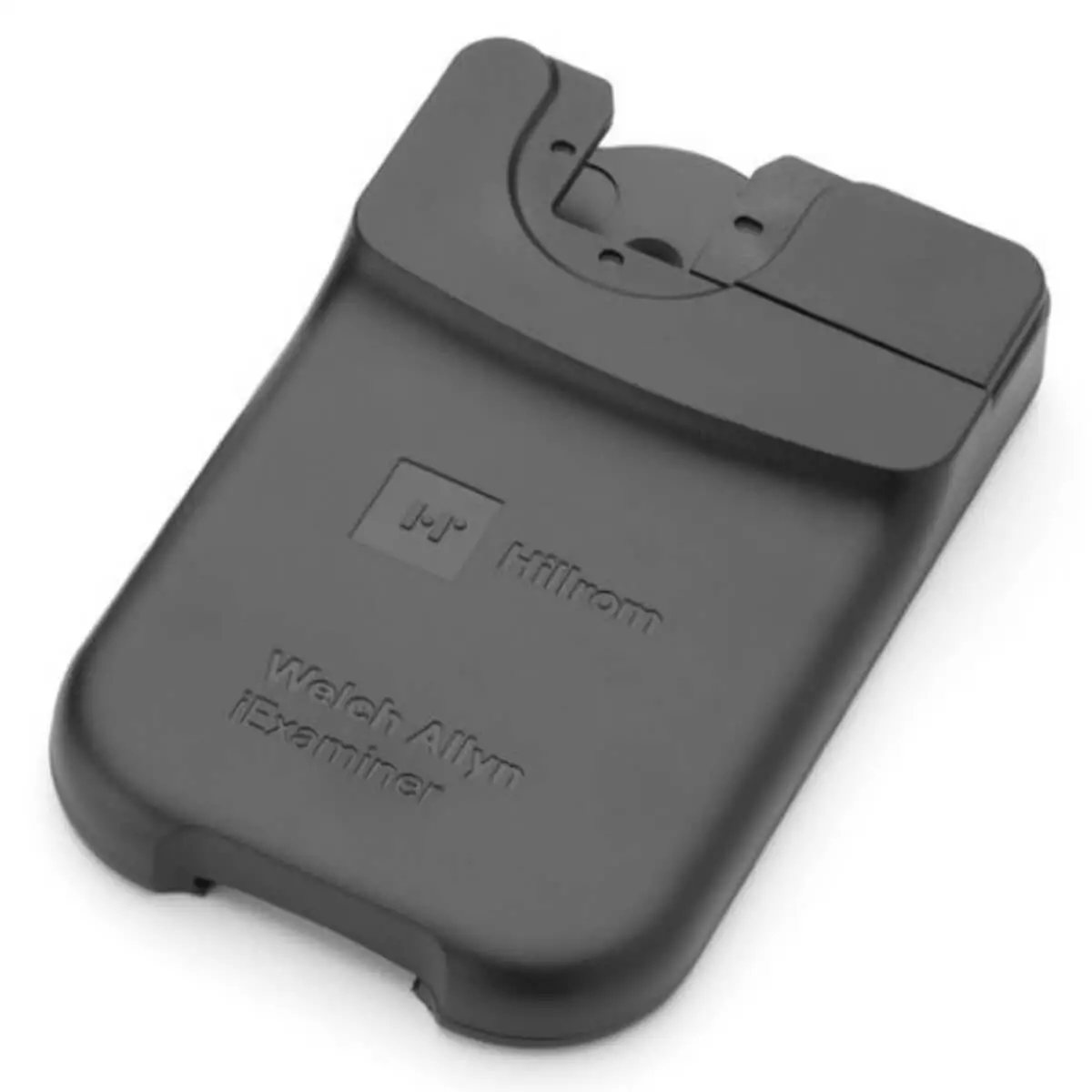

• Includes iExaminer SmartBracket adapter and clips

How to use the iExaminer Pro system

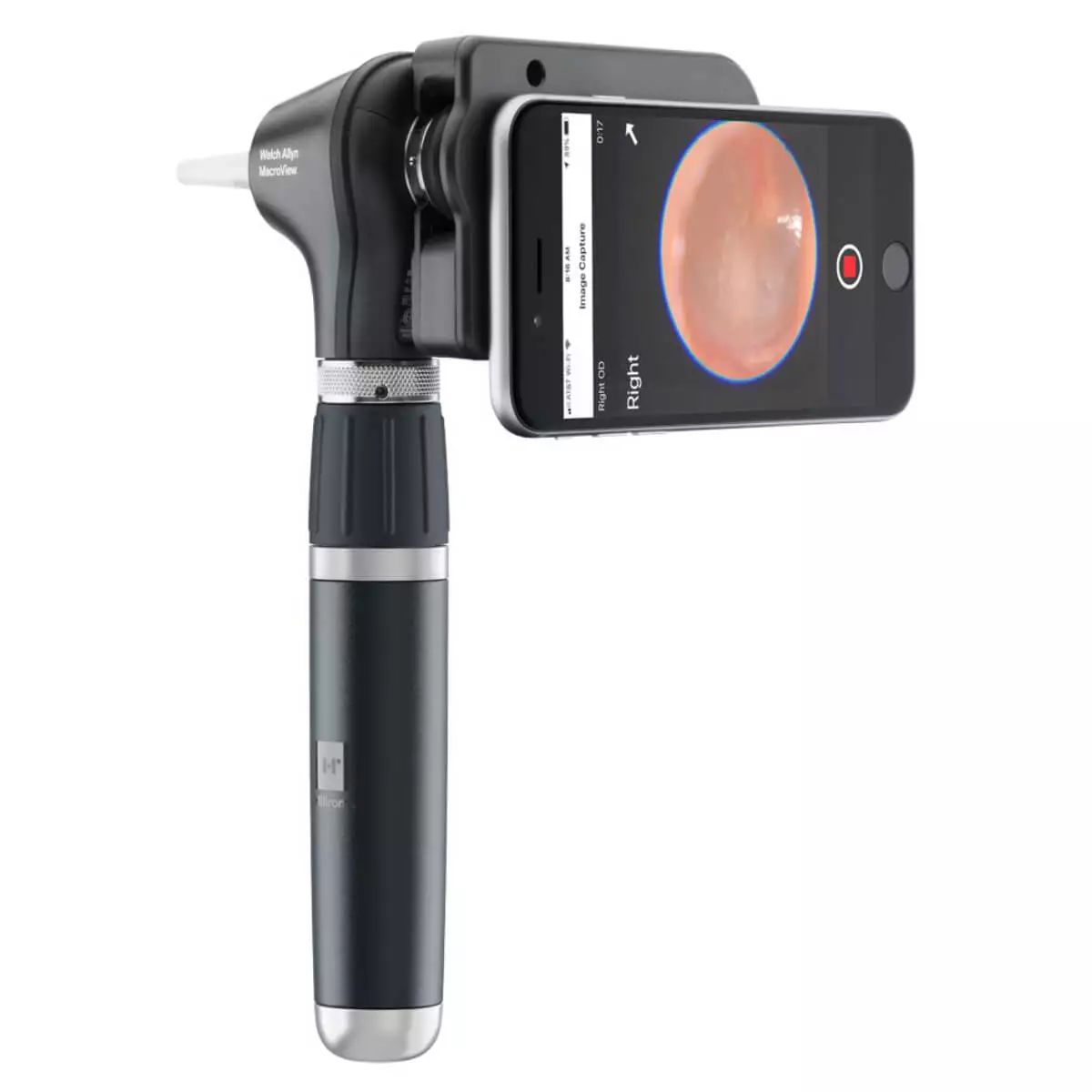

The iExaminer Pro system can be combined with the latest Welch Allyn devices MacroView Plus and PanOptic Plus. Using the free iExaminer Pro app on a personal smartphone makes transitioning from optical examination to digital image capture particularly easy. The SmartBracket is attached to the camera of a compatible smartphone and mounted on the instrument head.

Technical details

• Dimensions: H 7 x W 4.5 x D 5.5 cm
• Weight: 115 g
• Magnification: approx. 5x
• Illuminance: 5,200 lux
• Color rendering index (CRI): 95
• Color temperature: 3,400–4,500 K
• Field of view: approx. 7 mm (at 15 mm)
• Voltage: 3.5 V
• Compatibility (iExaminer Pro app):
• Software version 4.0.x for iOS 11 or later
• Software version 3.1.x for Android 7.0 or later
• Requirements for using the iExaminer system:
• Size (smartphone + case): <165 mm long, <85 mm (3.3 in) wide, <13 mm (0.5 in) thick
• Weight (smartphone + case): <280 g
• Camera resolution: at least 8 MP
• Display: ≥101 mm (4.0 in)
• Hardware: ≥500 MB internal memory
• Software: support for JPEG images

Package contents

• 1 Welch Allyn MacroView Plus otoscope head
• 1 iExaminer SmartBracket adapter
• 2 SmartBracket clips

The smartphone, the handle, and the ear specula shown are not included.
