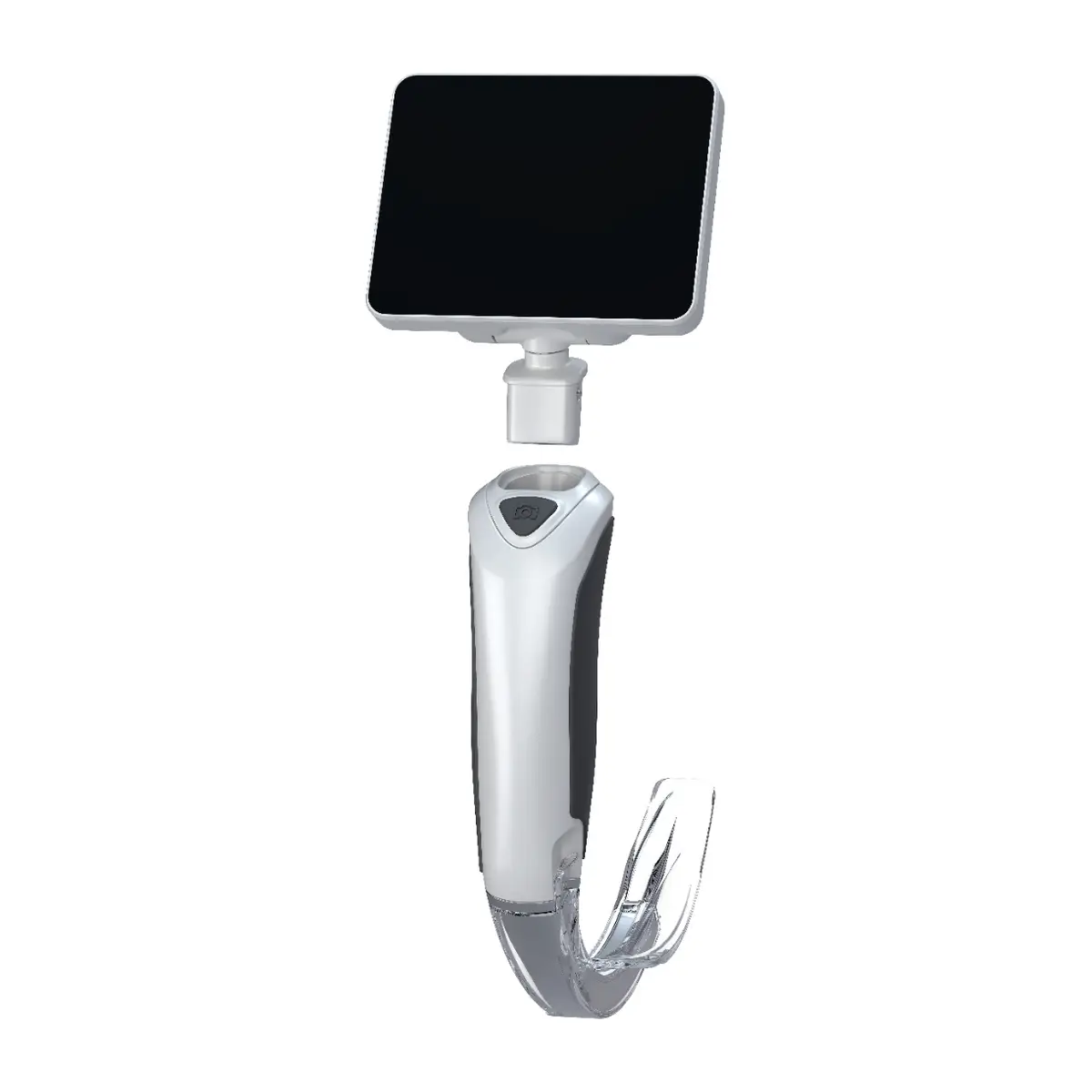

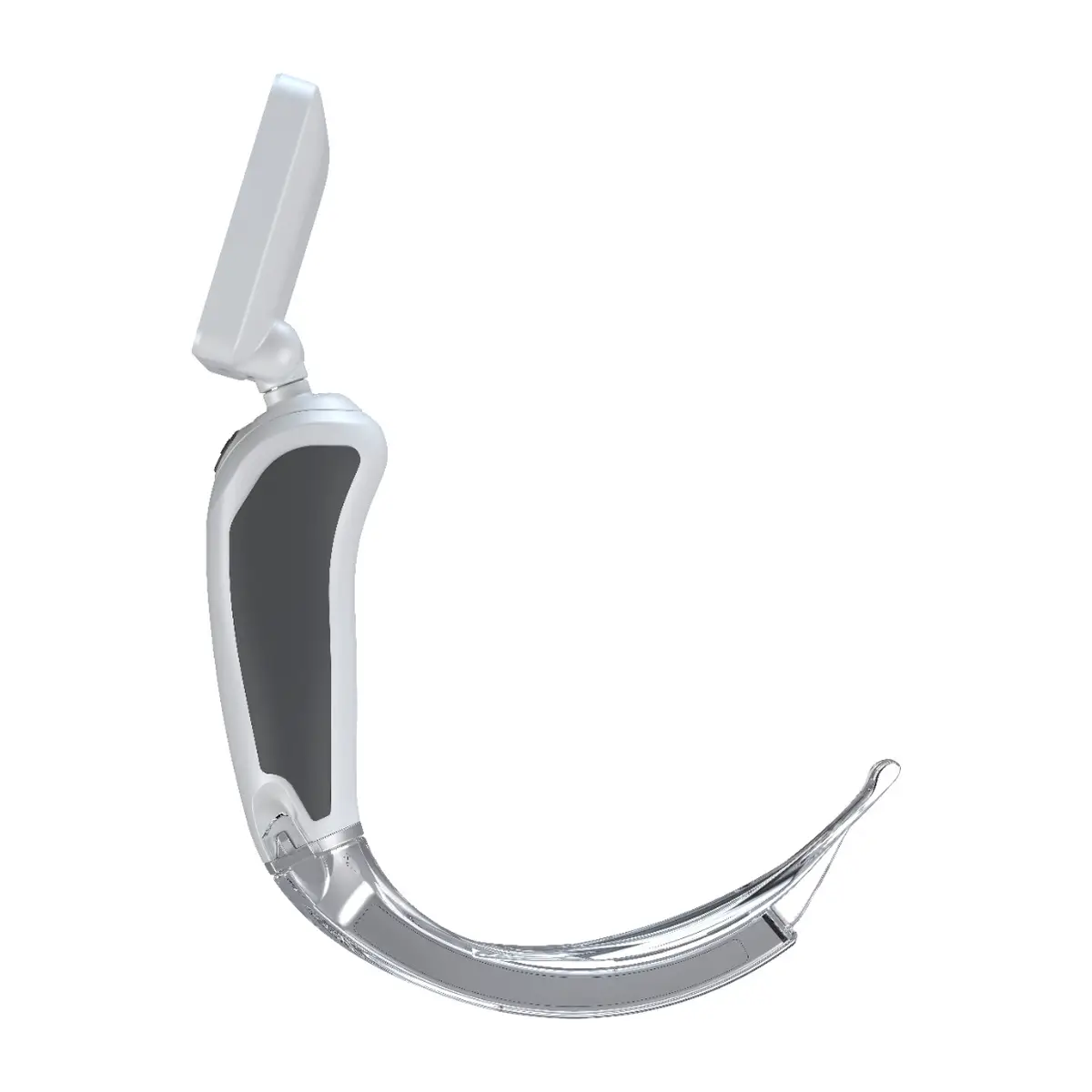

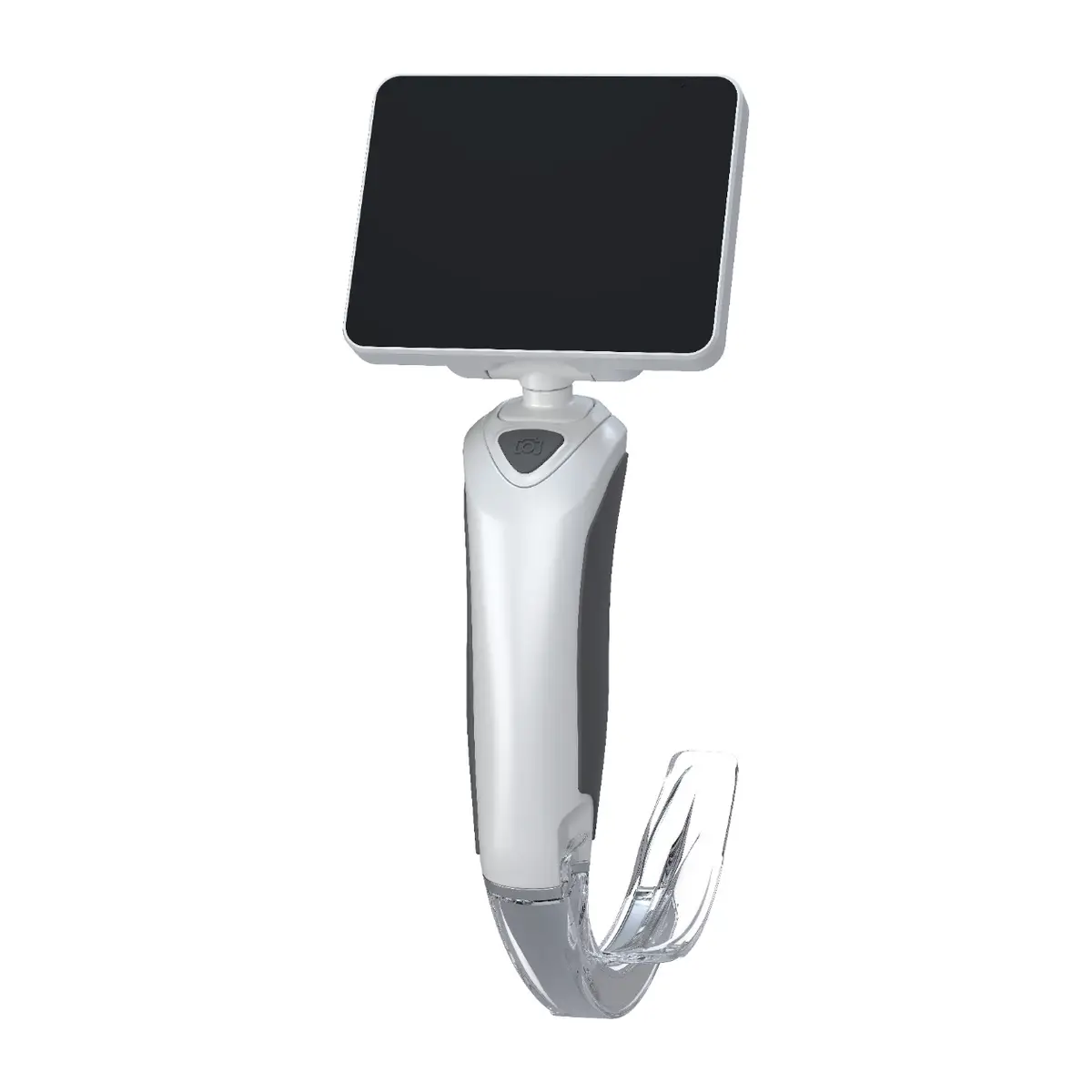

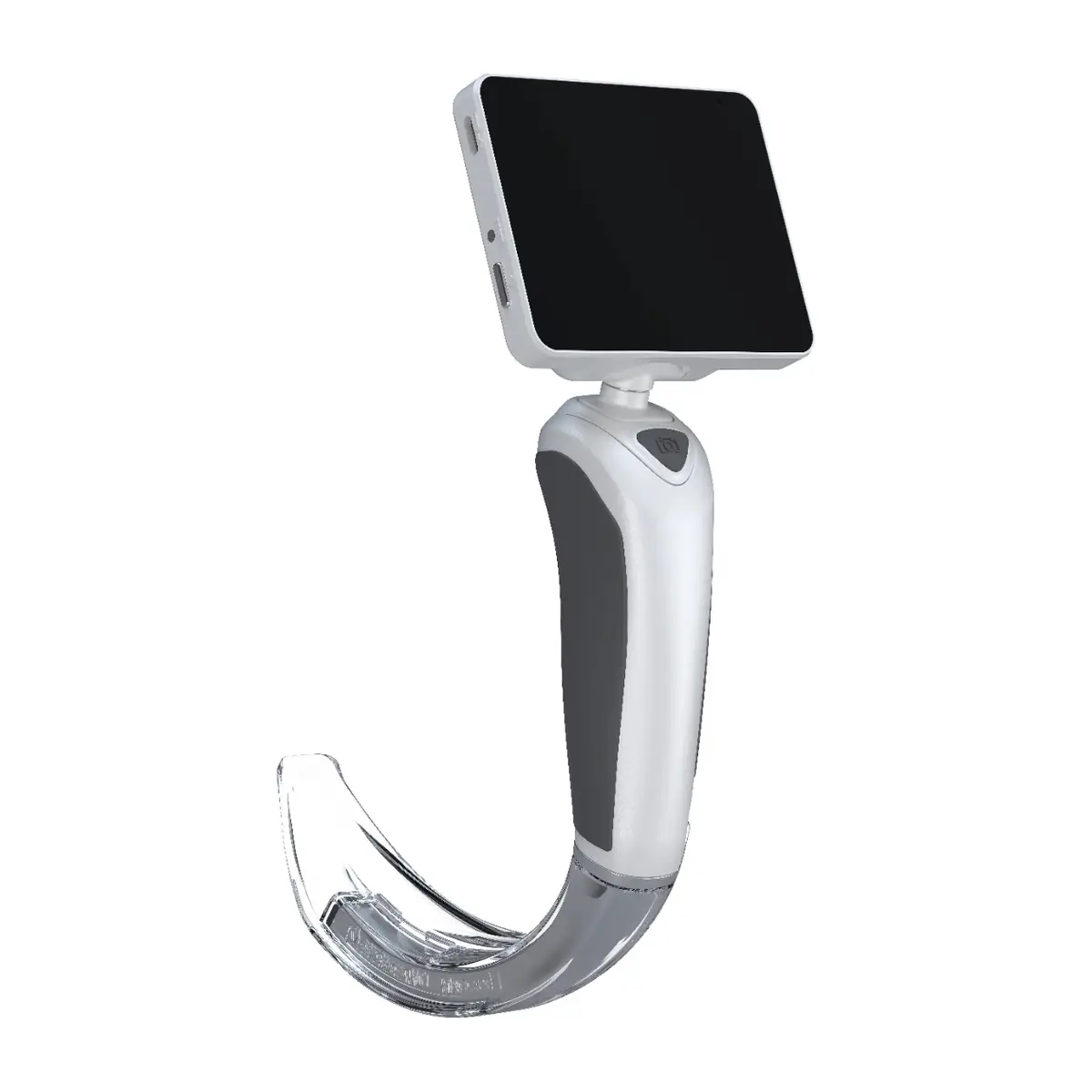

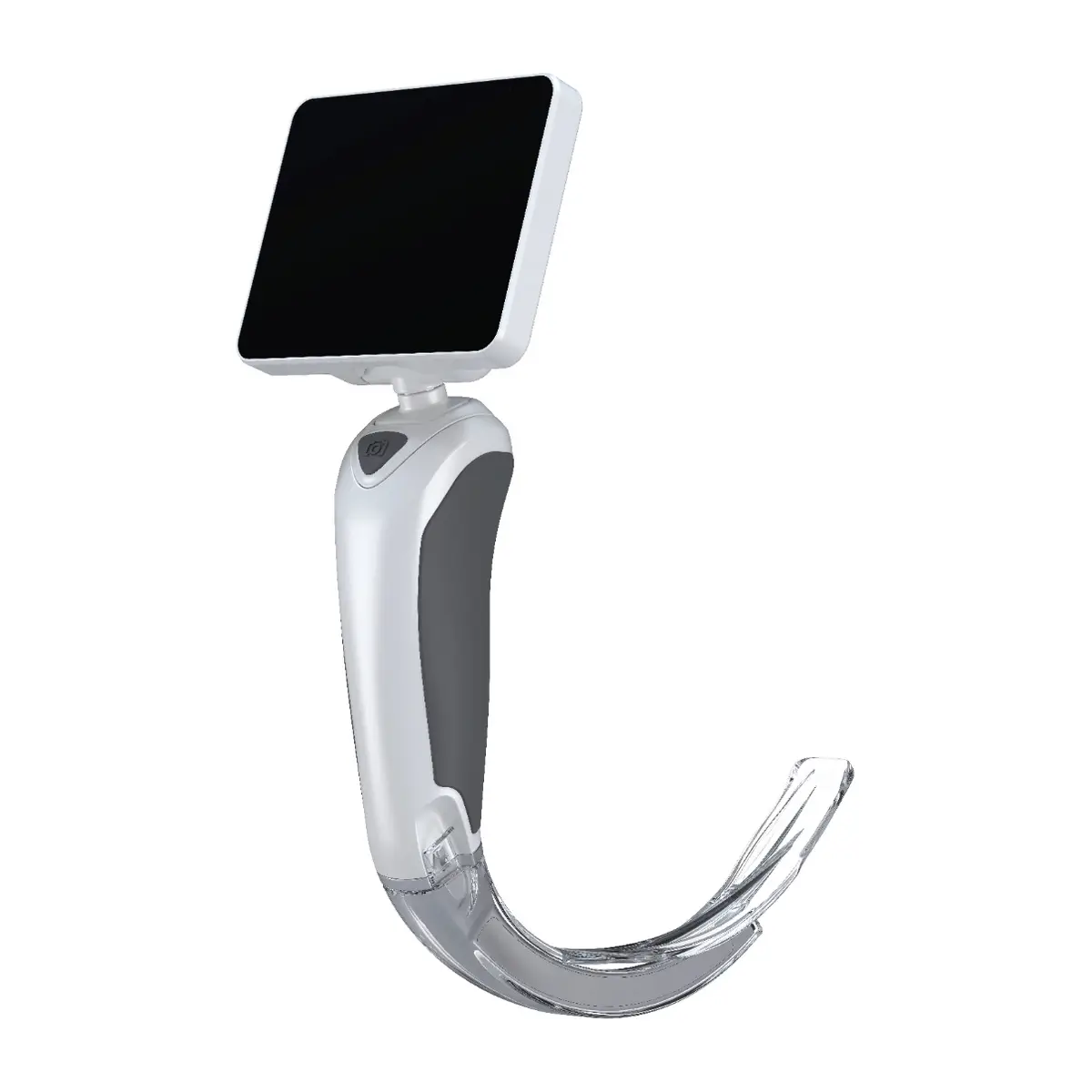

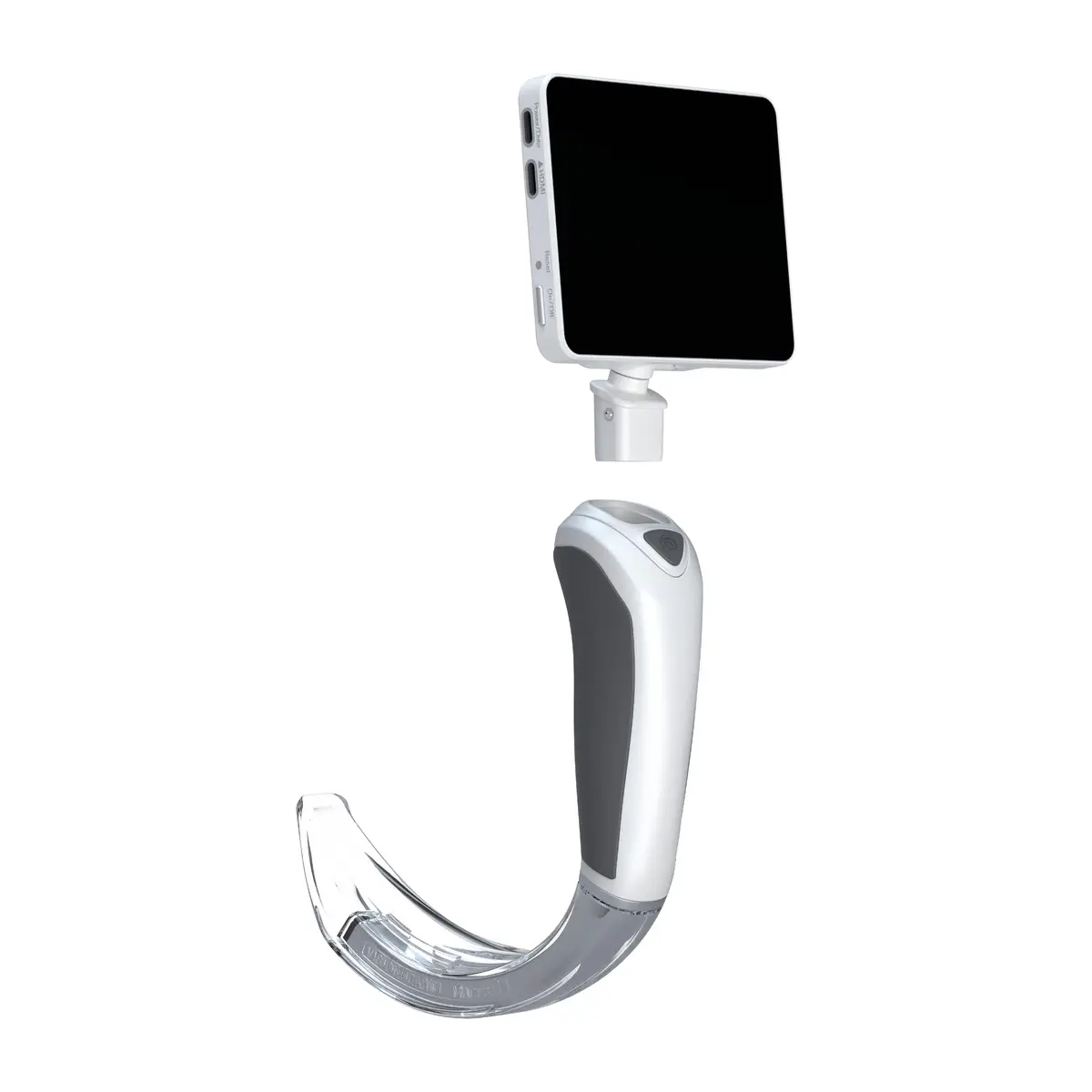

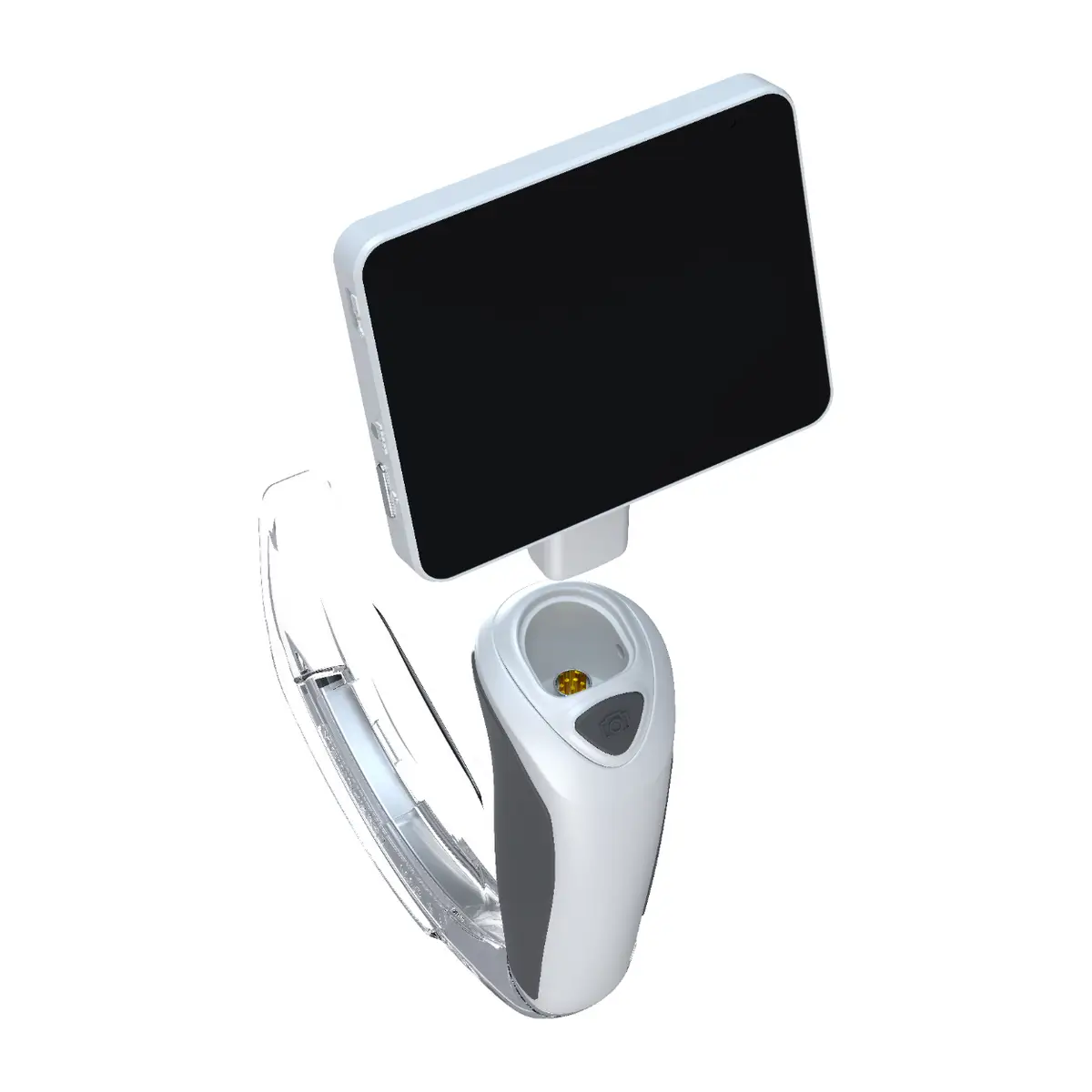

VisionHEART VX30 videolaryngoscope

The VisionHEARTVX-30 videolaryngoscope combines clear visualization with controlled tube guidance and high flexibility during intubation. A particular advantage is the preformed guiding channel of the disposable blades: it directs the tube precisely through the camera’s field of view and thus supports controlled tube guidance. The ergonomic handle is designed for left- and right-handed users, while the centrally aligned monitor provides a good overview during procedures. Images and videos can be saved directly to the integrated memory card for the documentation of intubation. For mobile use, the VX-30 also offers a rechargeable battery with up to 180 minutes operating time. Thanks to protection class IP67, the fully sealed system is protected against dust and temporary immersion and is designed for the demands of everyday medical use.

Product details

• Videolaryngoscope to assist with endotracheal intubation
• For the clinical and preclinical use
• Also suitable for intraoral examinations and treatments
• Compact 3-inch LCD monitor
• HD camera with a resolution of 1280 x 720 px
• Image and video recording for documentation possible directly on the device
• With HDMI interface for training purposes
• Wide blade range for different patient groups and difficult airways available separately
• Ergonomic handle for left- and right-handed users

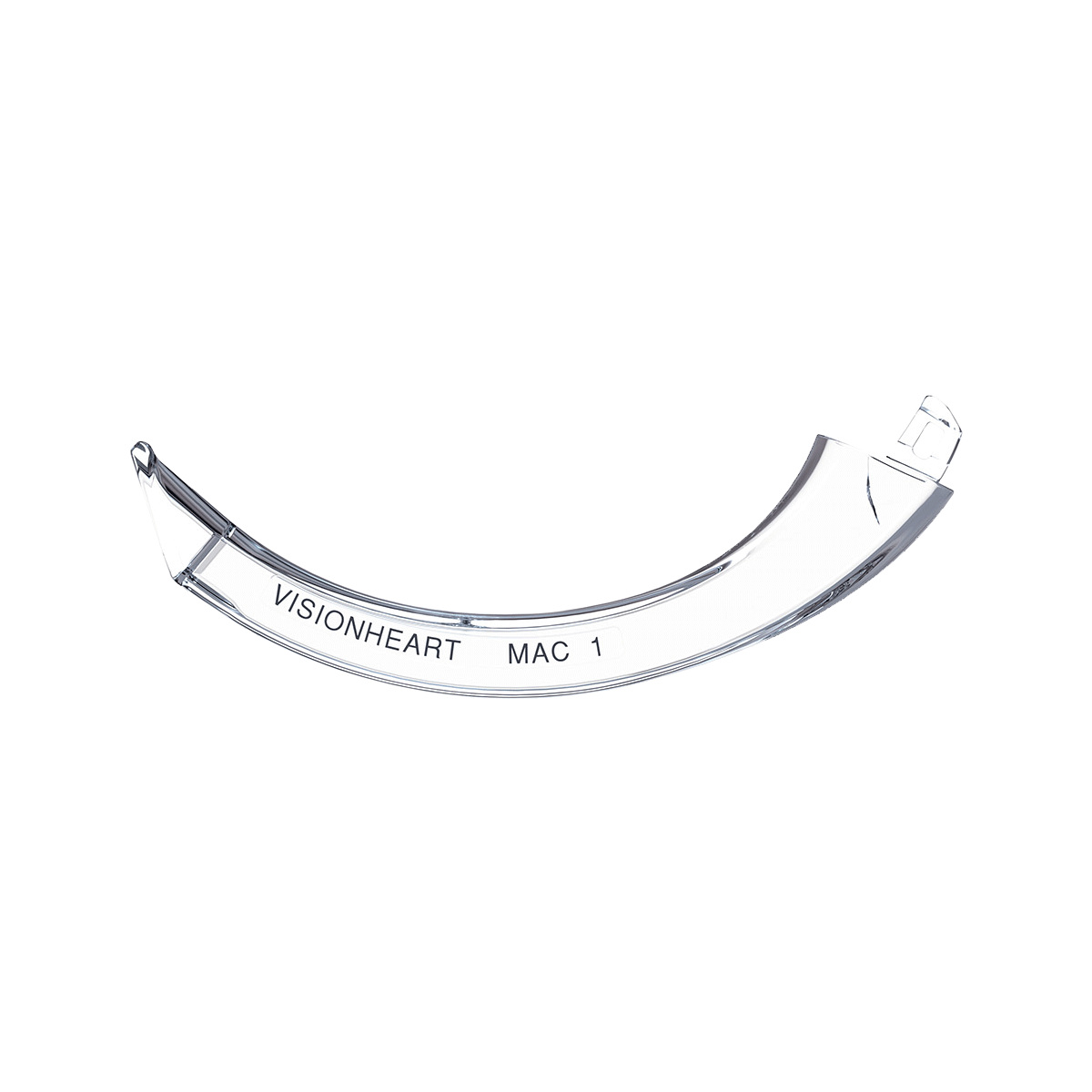

• Preformed guiding channel in the disposable blade for controlled tube guidance
• Rechargeable battery with up to 180 minutes operating time
• Rotation angle:

  • Left/right: 294–294°
  • Up/down:140–140°
• Protection class: IP67
• With USB-C connector
• Incl. carrying bag

Technical details

• Display: 3-inch LCD
• Display resolution: 640 x 480 px
• Camera resolution: 1280 x 720 px
• Storage: TF card, 32 GB
• Battery: rechargeable lithium battery
• Battery capacity: 3.7 V/2.000 mAh
• Operating time: up to 180 minutes
• Charging time: < 2 hours
• Power consumption: < 3 W
• Connector: USB-C
• Protection class: IP67

Package contents

• 1 VisionHEART VX-30 videolaryngoscope

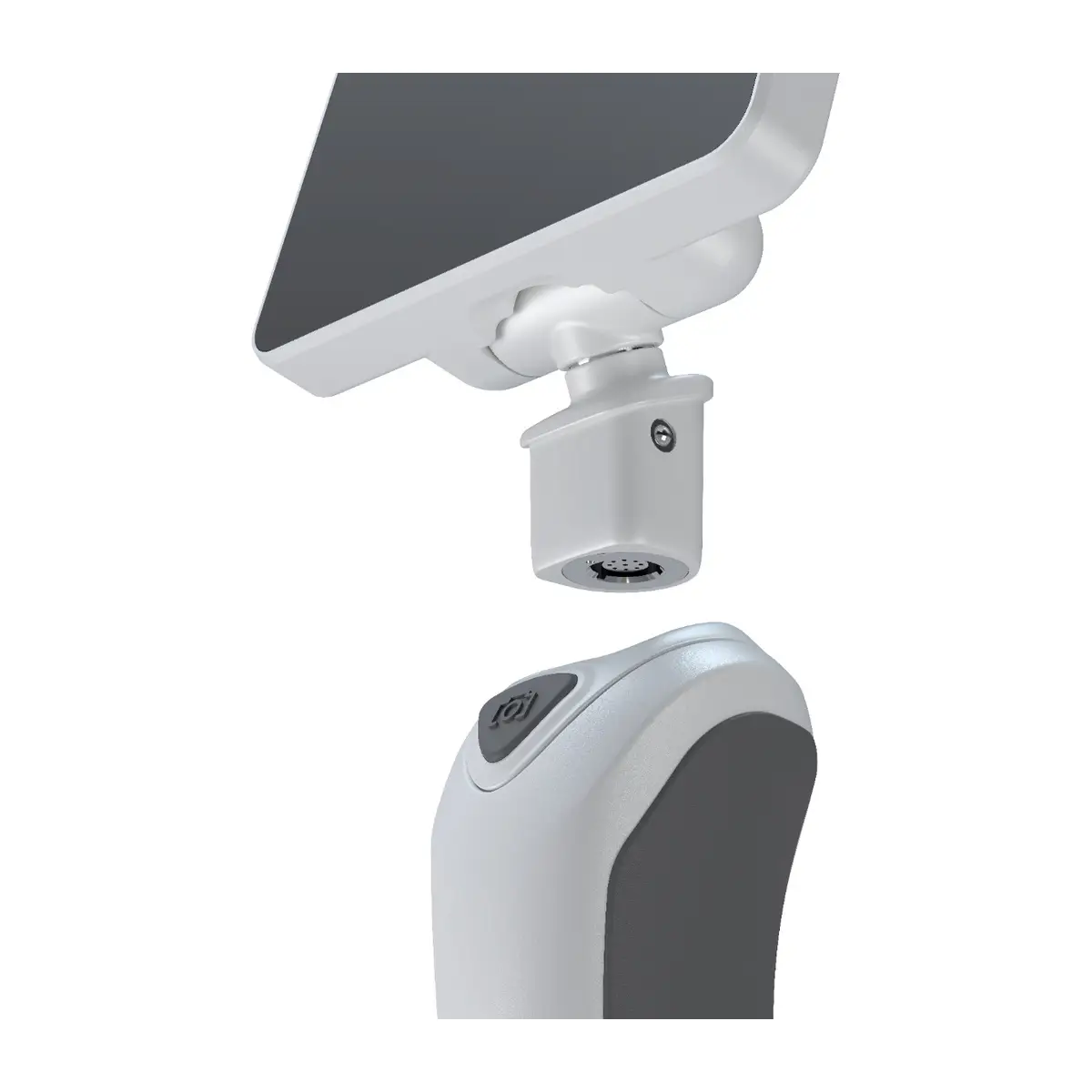

• 1 MX-30 monitor, 3 inch
• 1 HX-M handle
• 1 carrying bag
