HEINE Optotechnik HEINE BETA X ophthalmoscope
With focusCONTROL and AOS+ optical system
€1,014.75*
Content: 1 set/kit(s)
Content: 1 set/kit(s)
Available now | Delivery between 26/06/2026 – 29/06/2026
Product number: 131863
HEINE BETA X ophthalmoscope by HEINE Optotechnik
Lighter, more ergonomic, and full of innovations: The HEINE BETA X ophthalmoscope has been newly developed based on 80 years of experience.
It features the innovative aspherical optical system AOS+, which ensures maximum clarity when viewing the fundus. The focusCONTROL function allows quick and easy switching of focus at the push of a button, from the fundus to the anterior segment of the eye.
Its robust aluminum frame forms the core of the BETA X series. Combined with high-impact housing components and premium-quality parts, this results in an exceptionally lightweight instrument with precise balance.
Product details
- AOS+ aspherical optical system:
- Separation of illumination and observation beams reduces corneal reflections
- Ideal for children, small pupils, and non-dilated patients
- U-shaped mirror enables comprehensive fundus view without vignetting
- LEDHQ illumination for uniform, bright lighting with true color rendering and high contrast
- Excellent refraction compensation for precise focusing in 74 diopter steps
- Particularly suitable for red reflex testing (Brückner test)
- focusCONTROL switching function:
- Focus on anterior eye segment (C: cornea) and posterior segment (F: fundus)
- Examination with slit illumination and magnification without additional instruments
- Usable with all apertures
- Improved assessment of iris and lens
- Simplified detection of erosions and edematous areas

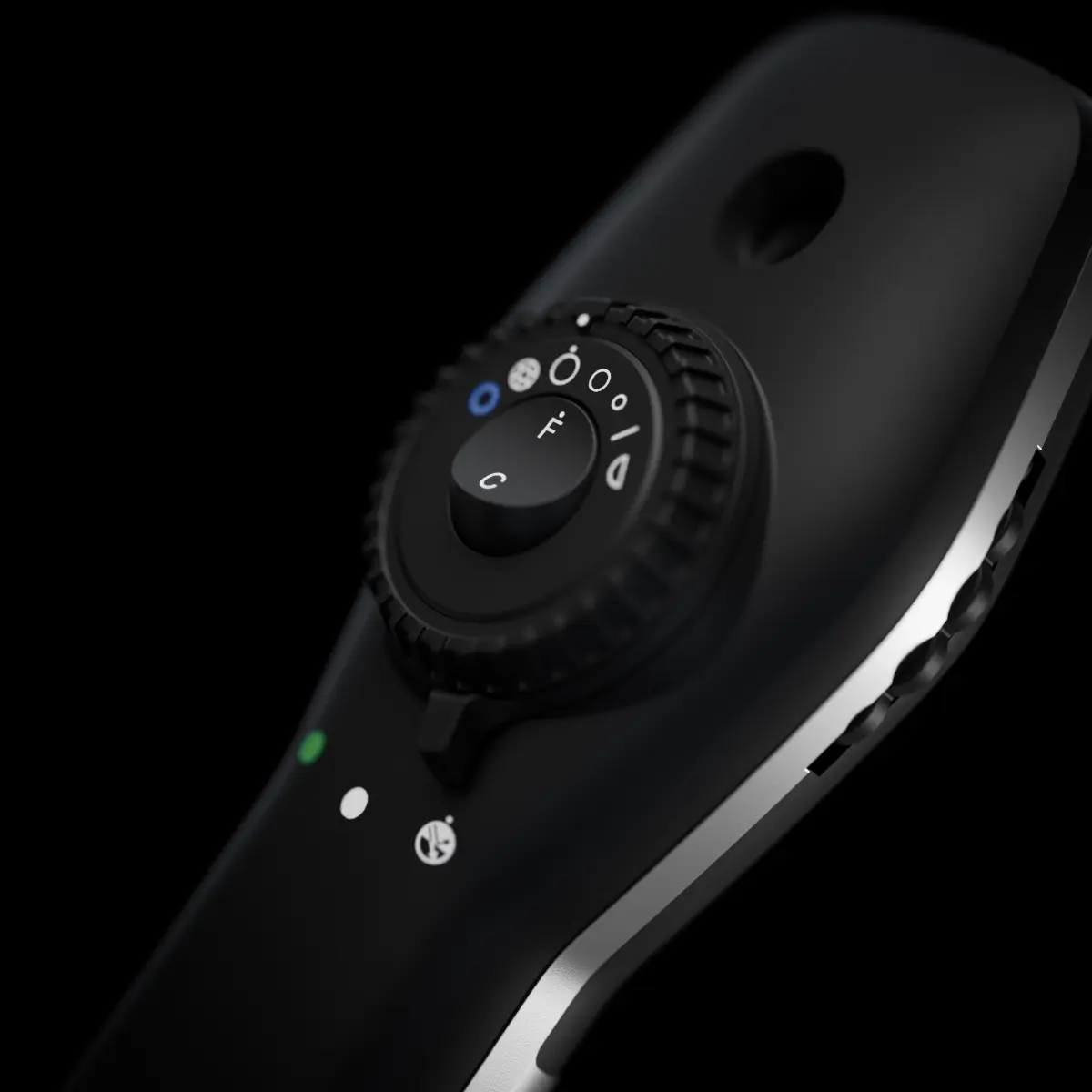

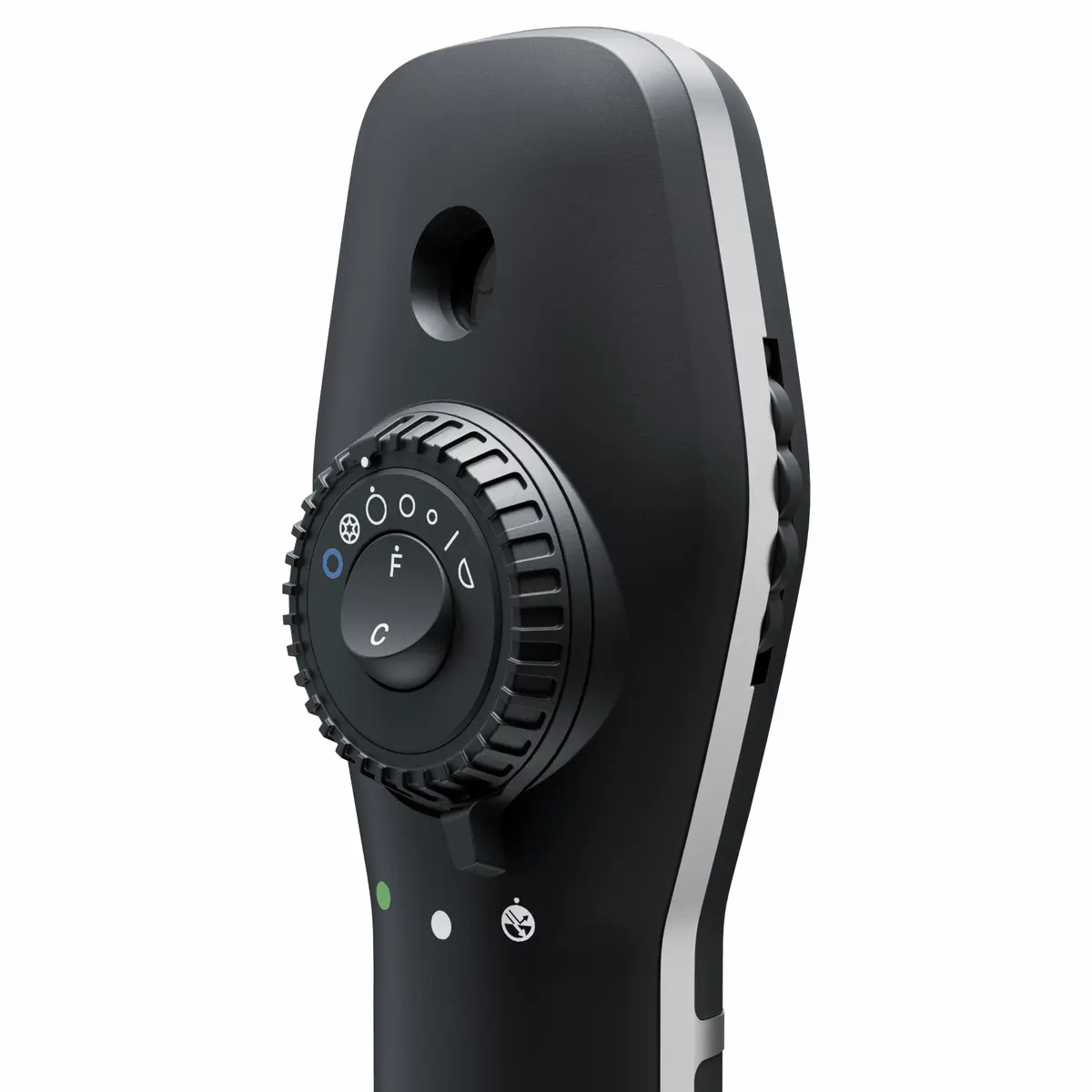

- 7 different apertures:
- Including MicroSpot and Hemispot
- Also usable with red-free and polarization filters
- Swiveling polarization filter:
- With polarization: reduces corneal reflections and stray light
- Without polarization: macular reflex and arteriolar light reflex clearly visible
- Smart brightness control with microprocessor:
- Easy thumb operation
- Continuously dimmable from 1 to 100%
- Always starts at the last used brightness level
- Smart power supply:
- For USB-C cable or optional HEINE CS1 charging station
- With charge indicator and automatic shut-off
- Durable and suitable for daily use:
- Solid integrated aluminum frame embedding the optical components
- Robust housing made of thermoformed material
- Scratch-resistant viewing window made of hardened glass
- Dustproof optical system design
- smoothSURFACE:
- Smooth surface and recessed USB-C port for hygienic wipe disinfection
- Extended battery runtime and virtually unlimited LEDHQ service life

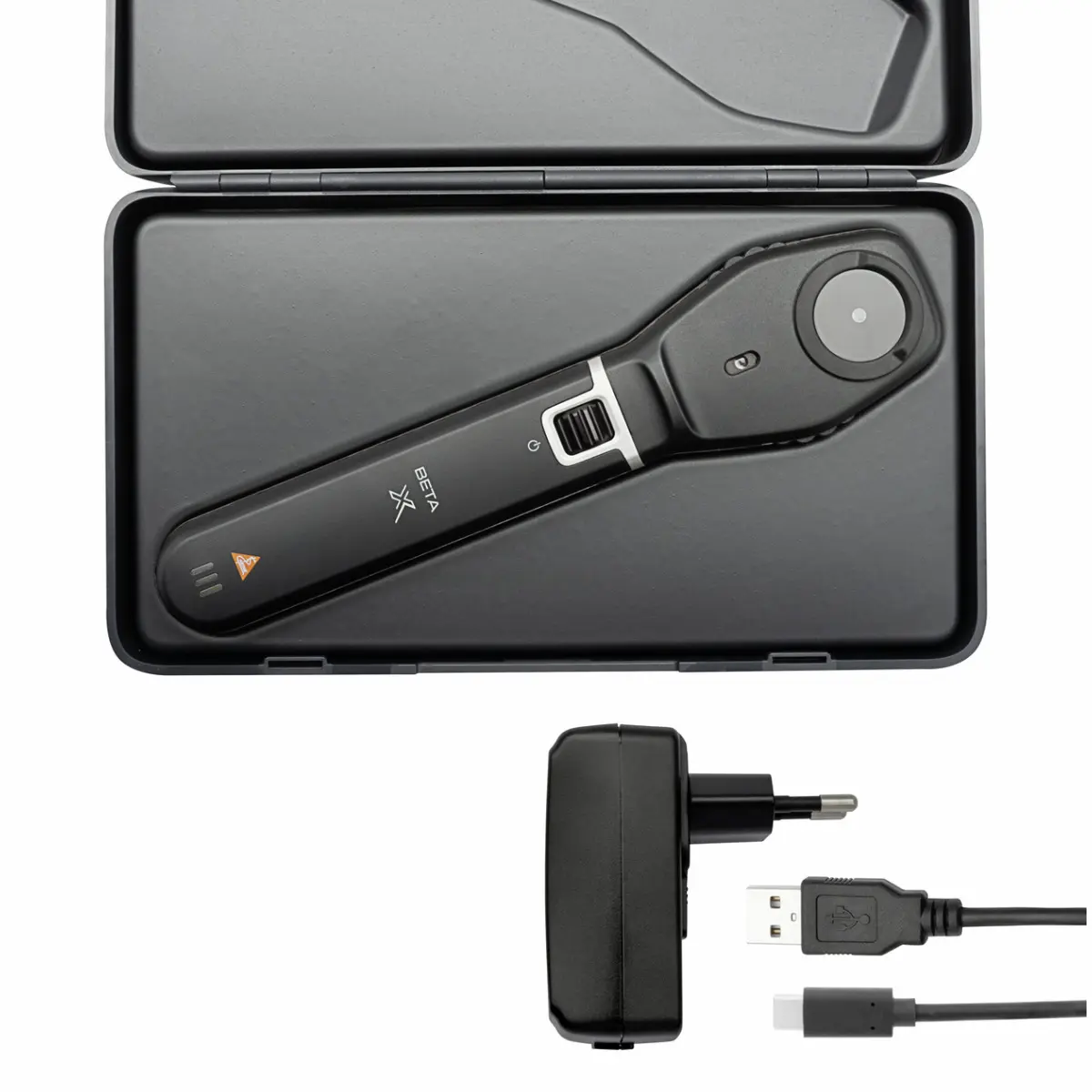

Package contents
- 1 HEINE BETA X ophthalmoscope
- 1 HEINE E4-USB-C plug-in power supply
- 1 hard-shell case
Specifications
| Automatic off function | after 5 min. |
|---|---|
| Battery charging time | 160 min. |
| Battery life during operation | 240 min. at 100 % brightness |
| Casing color | Black, Silver |
| Casing material | anodized aluminum, plastic, coated silicone, free from phtalate plasticizers, free from natural rubber |
| Color temperature | 3,500 K |
| Dimensions (L x W x H) | 200 x 48 x 31 mm |
| Dimmability | 1–100 % |
| Diopter range | 38 D to -36 D |
| Light source | LED |
| Number of shutters | 7 |
| Power source | Li-ion battery, USB-C charging cable |
| Weight | 150 g |
| Working distance | fundus: ≈20 mm, cornea: ≈50 mm |
| Zoom | approx. 15x (standard eyesight) |
| Medical device (EU 2017/745) | Class I |
| Norms and certificates | ISO 13485, ISO 15004-1, ISO 15004-2 |
| Made in | Germany |
| Manufacturer warranty | 5 years |
Product identification
| Product number | 131863 |
|---|---|
| Manufacturer name | HEINE Optotechnik |
| Manufacturer item no. | C-130.28.330 |
| EAN | 4053755203031 |
