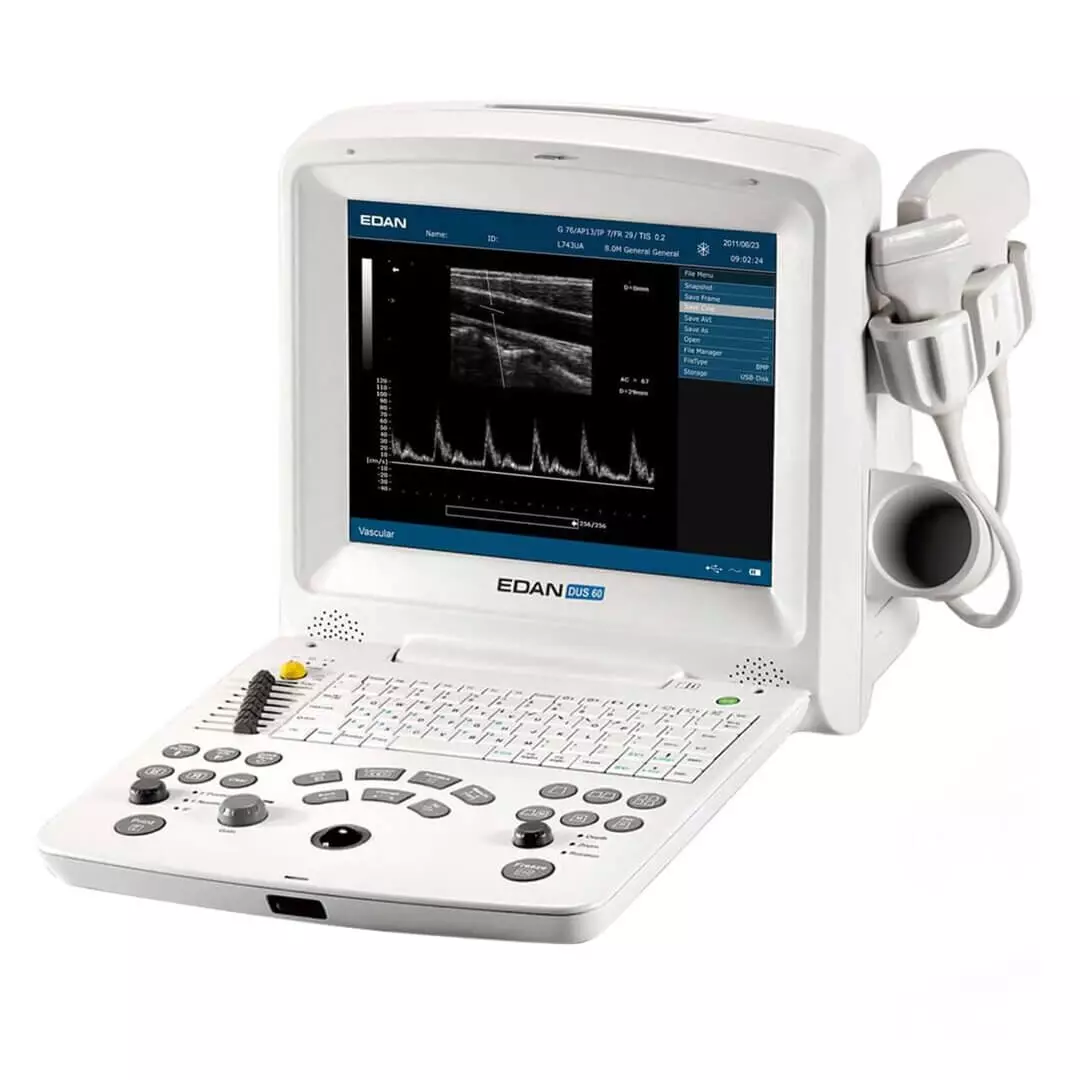

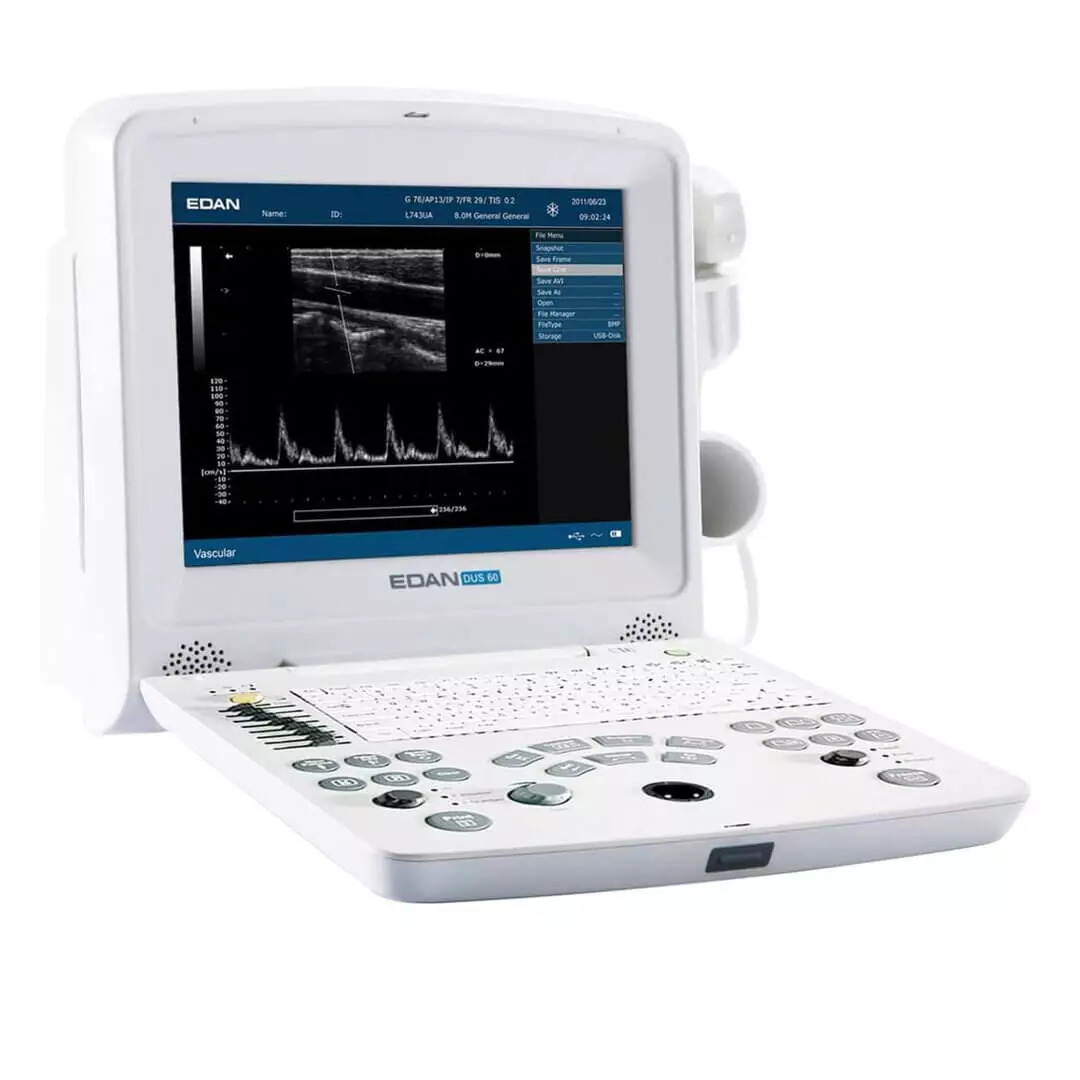

EDAN DUS 60 ultrasound scanner
Transportable Sonography System
€3,677.70*
Available now | Delivery between 26/06/2026 – 29/06/2026
Others also liked
DUS 60 ultrasound scanner by EDAN
The EDAN’s DUS 60 ultrasound machine features an optimized image quality while being very light and easy to transport, making it perfect for using it at different locations. The fully digital technology of this ultrasound system makes even the smallest details visible and perceptible. The DUS 60’s keypad is equipped with a backlight, which means the machine can be used in a dark examination room – very patient-friendly! There is also a doppler function. This device has a multi-pseudo-color function that makes it simple for health professionals to interpret results.
Product details
- Mobile ultrasound machine with LCD monitor and matching probes
- Ideal for gynaecologists, general practitioners, urologists and physicians from many other medical fields
- Image loop display: 256 images
- Integrated measuring software
- With illuminated keyboard
- Includes ultrasound gel
- Dimensions: L 33 x W 22 x H 32 cm
- Weight: 7100 g
- Available with different probes:
- Linear transducer L743-2
- Convex transducer C361-2
- Set including linear transducer L743-2 and convex transducer C361-2
Technical details
- 12.1" monitor with 256 grayscales and multi-pseudo-color function
- QWERTY keyboard layout
- 512 MB memory
- 2 USB ports and 2 probe slots
- With Tissue Harmonic Imaging (THI) and Spectral Doppler Imaging
- 8 segment TGC (time gain compensation)
- Max. scan angle: 155°
- Max. scan depth: 32.4 cm
- Dynamic range: 30 - 150 dB
- With output ports for video, S-video and VGA (15 pins)
- Power supply: Power cord

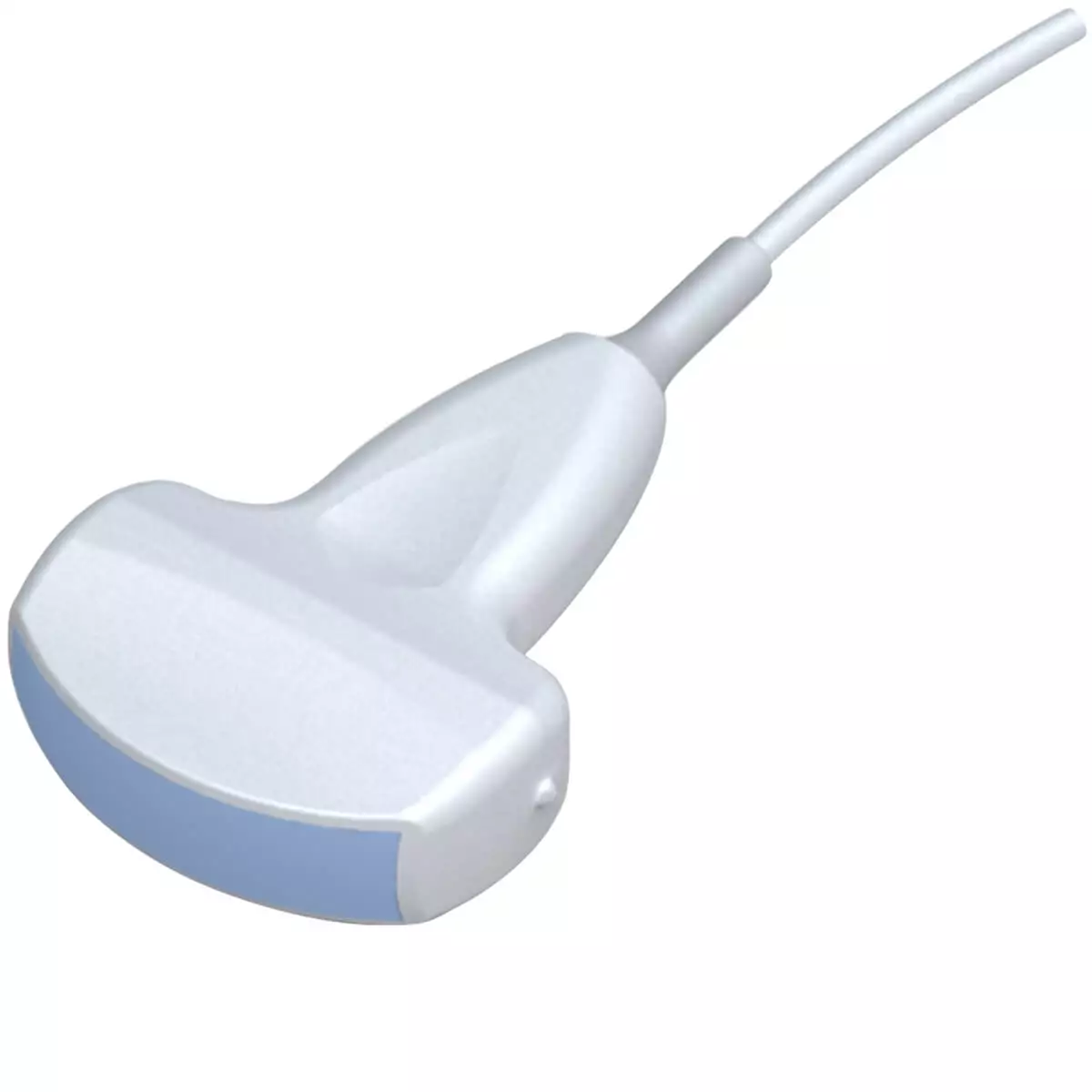

Convex transducer
- Convex transducer C361-2
- Applications: Abdomen, obstetrics, urology
- Frequencies: 2.5 MHz; 3.5 MHz; 4.5 MHz
Linear transducer
- Linear transducer L743-2
- Applications: Imaging of small structures
- Frequencies: 6.5 MHz; 7.5 MHz; 8.5 MHz; H9.0 MHz; H9.4 MHz
Package contents
- 1 Edan DUS 60 ultrasound scanner
- 1 convex transducer C361-2
- 1 ultrasound gel
- 1 power supply unit
According to MPBetriebV, a mandatory briefing is needed for this product if you're based in Germany. The briefing is not included in the purchase price. The manufacturer offers fee-based briefings on the product. Contact us for further information.
Consumers do not have a right of withdrawal for sealed goods that are not suitable for return for reasons of health protection or hygiene, if the seal has been removed after delivery.
Specifications
| Area of application | abdomen, vascular, thorax, small organs, musculoskeletal |
|---|---|
| Bandwidth | 2.5–4.5 MHz |
| Connectivity | USB |
| Data export formats | JPG, BMP, DCM |
| Device type | ultrasound system |
| Dimensions (L x W x H) | 330 x 220 x 320 mm |
| Display modes | B mode, M mode, spectral doppler, PW doppler |
| Display size | 12.1" |
| Imaging | multi-beamforming, PW Auto-Trace, Tissue Harmonic Imaging (THI, 8-segment Time Gain Compensation (TGC) |
| Incl. barcode scanner | no |
| Incl. software | no |
| Mobile use | yes |
| Obligatory training required | yes |
| PVS integration | DICOM, optional |
| Probe type | convex |
| Storage capacity | 504 MB |
| Storage location | internal |
| Weight | 7,1 kg |
| Digital upgrade | no |
| Medical device (EU 2017/745) | Class IIa |
| Norms and certificates | Regulation (EU) 2017/745 |
| Made in | China |
Product identification
| Product number | 200981.3 |
|---|---|
| Manufacturer name | EDAN |
| Manufacturer item no. | 83.63.560002_0780+C361-2 probe |
| EAN | 2000000134840 |
4 reviews
Meike
22 September 2022
Die Bildqualität ist top. Bilder sind gut interpretierbar. Das Gerät wird bei uns für verschiedene Untersuchungen genutzt, ohne Bedenken.
Nick
10 October 2021
Super Gerät!
Rainer
21 August 2021
Der Versand ging schnell und der Aufbau sehr leicht, die Verarbeitung ist super und tut was es soll.
Heiner
3 April 2020
Die Bilder sind glasklar und deutlich besser, als bei meinen vorherigen
