Ambu Mark IV Baby bag mask

The Ambu Mark IV Baby bag mask is specifically designed for the manual ventilation of newborns and infants up to a body weight of 20 kg. This reusable bag mask combines reliability with advanced features for emergency use, ensuring both patient and caregiver safety through its innovative design. Equipped with an oxygen reservoir bag, this system allows for precise and controlled ventilation thanks to its dual-chamber structure and integrated pressure limiter. The durable materials enable autoclaving up to 134 °C.

Product details

• All patient-contacting components are latex-free and provide high biocompatibility
• Single-use oxygen reservoir and one-way patient valve: The transparent patient valve allows for continuous function monitoring during ventilation
• 360° swivel connector enables the user to change position without interrupting ventilation
• Autoclavable up to 30 times (max. 134 °C)
• Available in different versions:

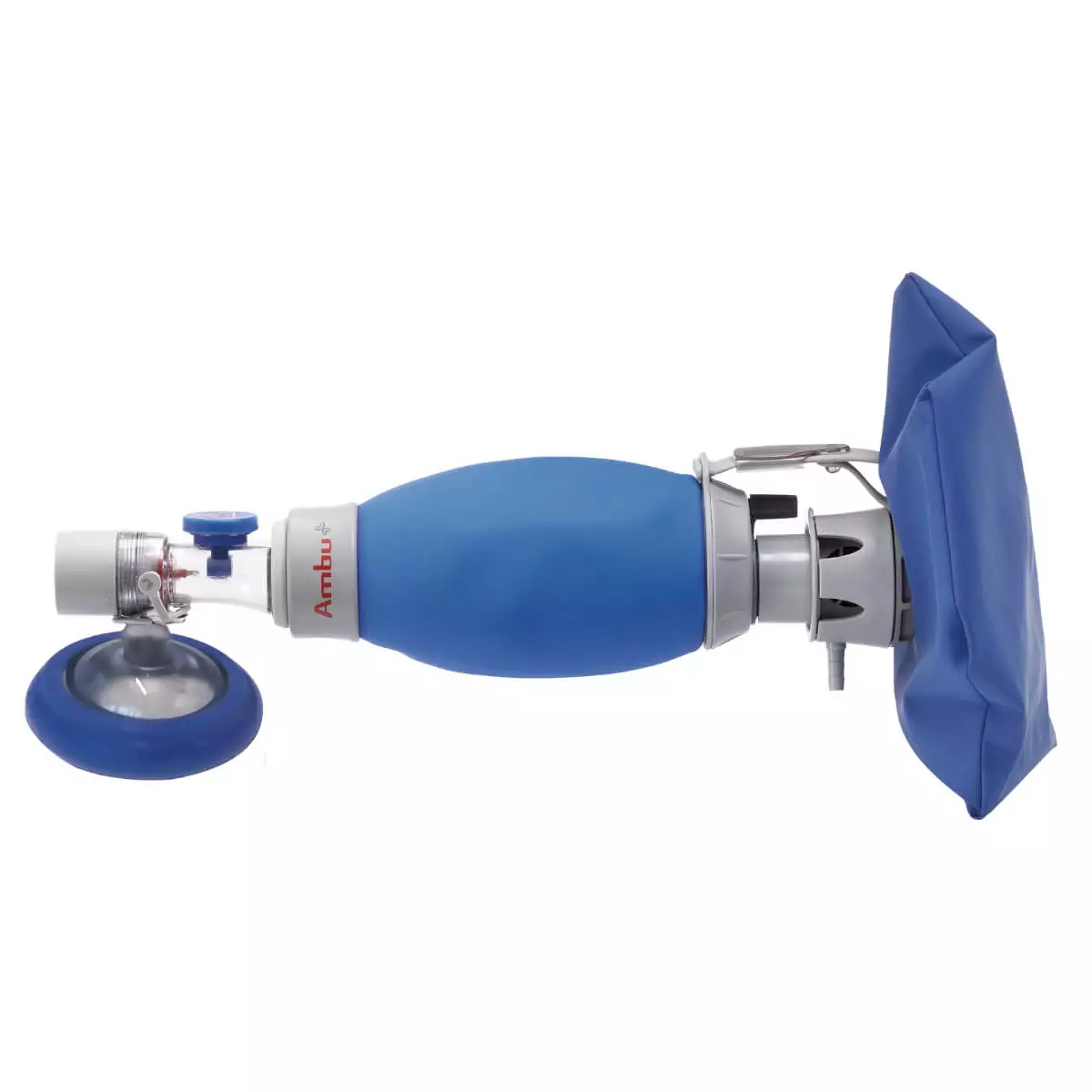

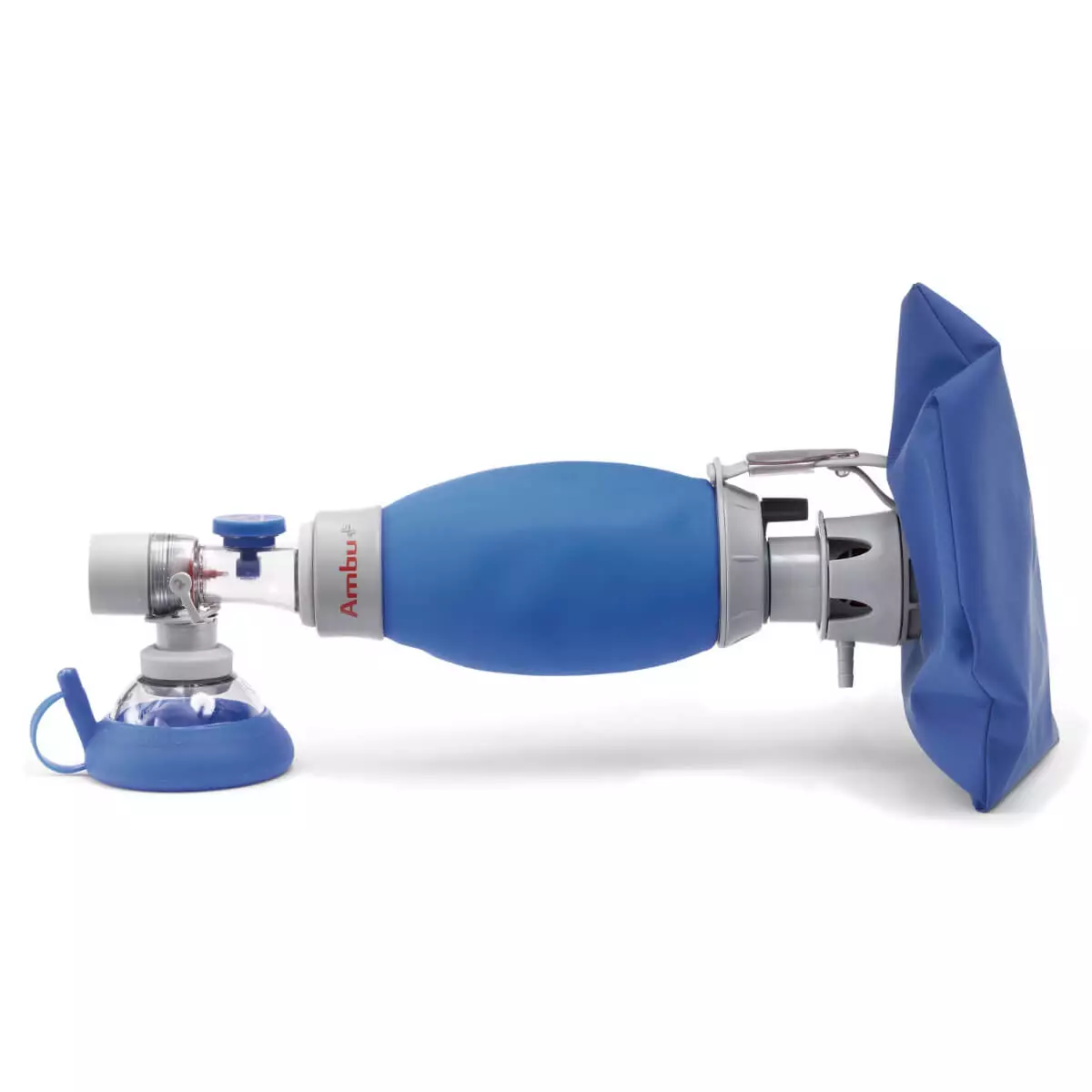

• Ambu Mark IV Baby with mask: Includes a soft, anatomically shaped face mask, ideal for immediate use in emergencies where rapid oxygen supply is critical.

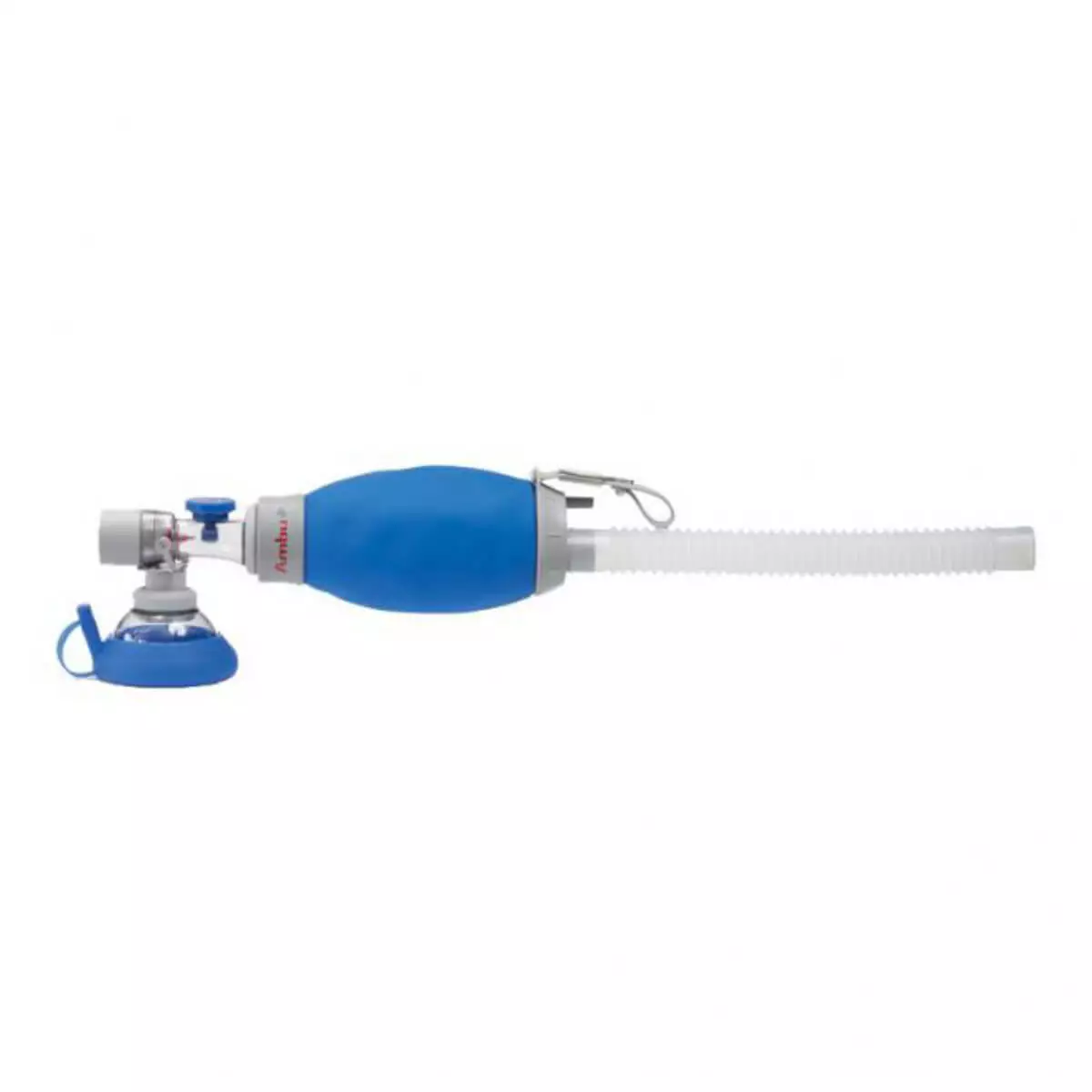

• Ambu Mark IV Baby without mask: Designed for experienced users who can select and adjust a mask as needed, allowing flexibility in situations requiring different mask sizes.

Bag mask for emergency medicine

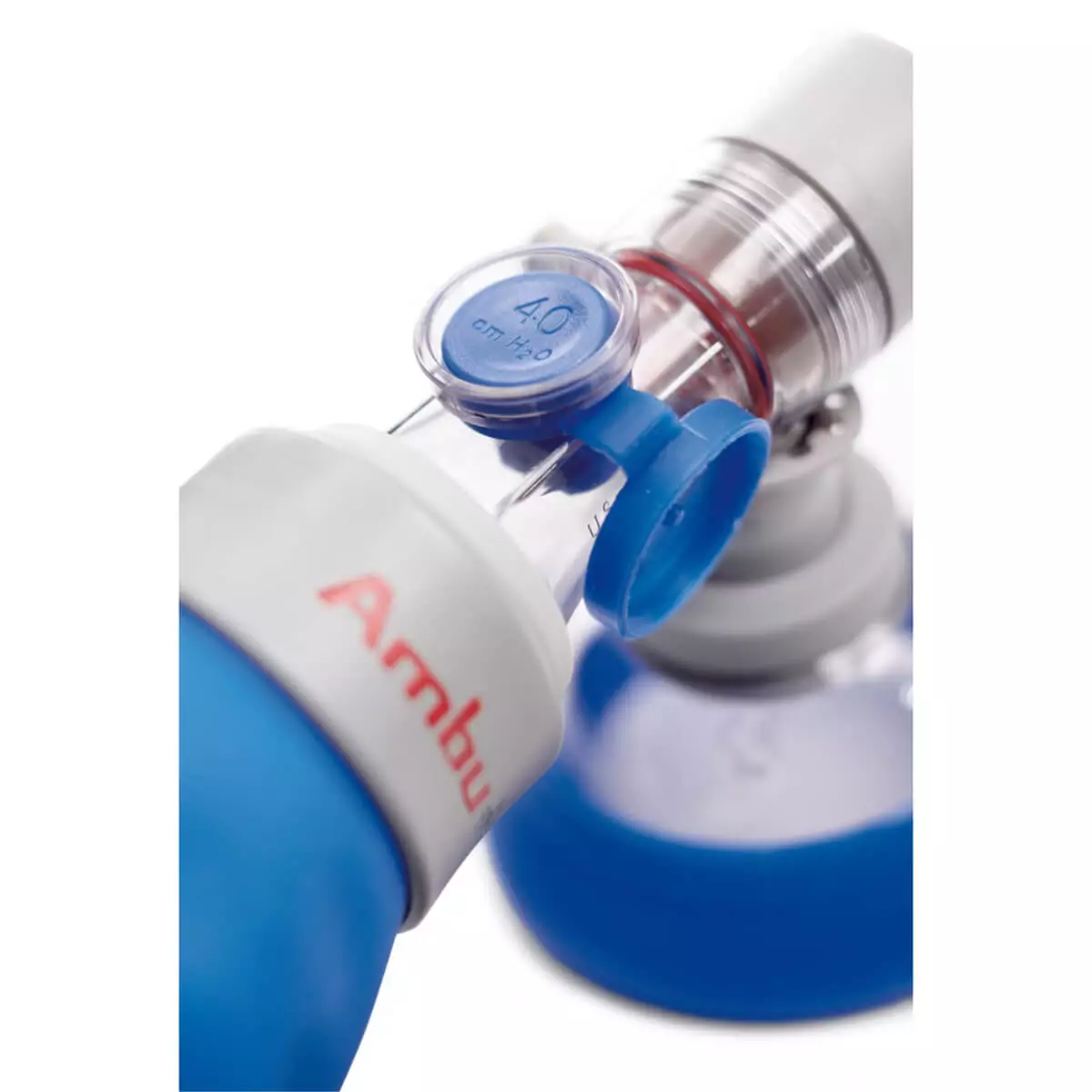

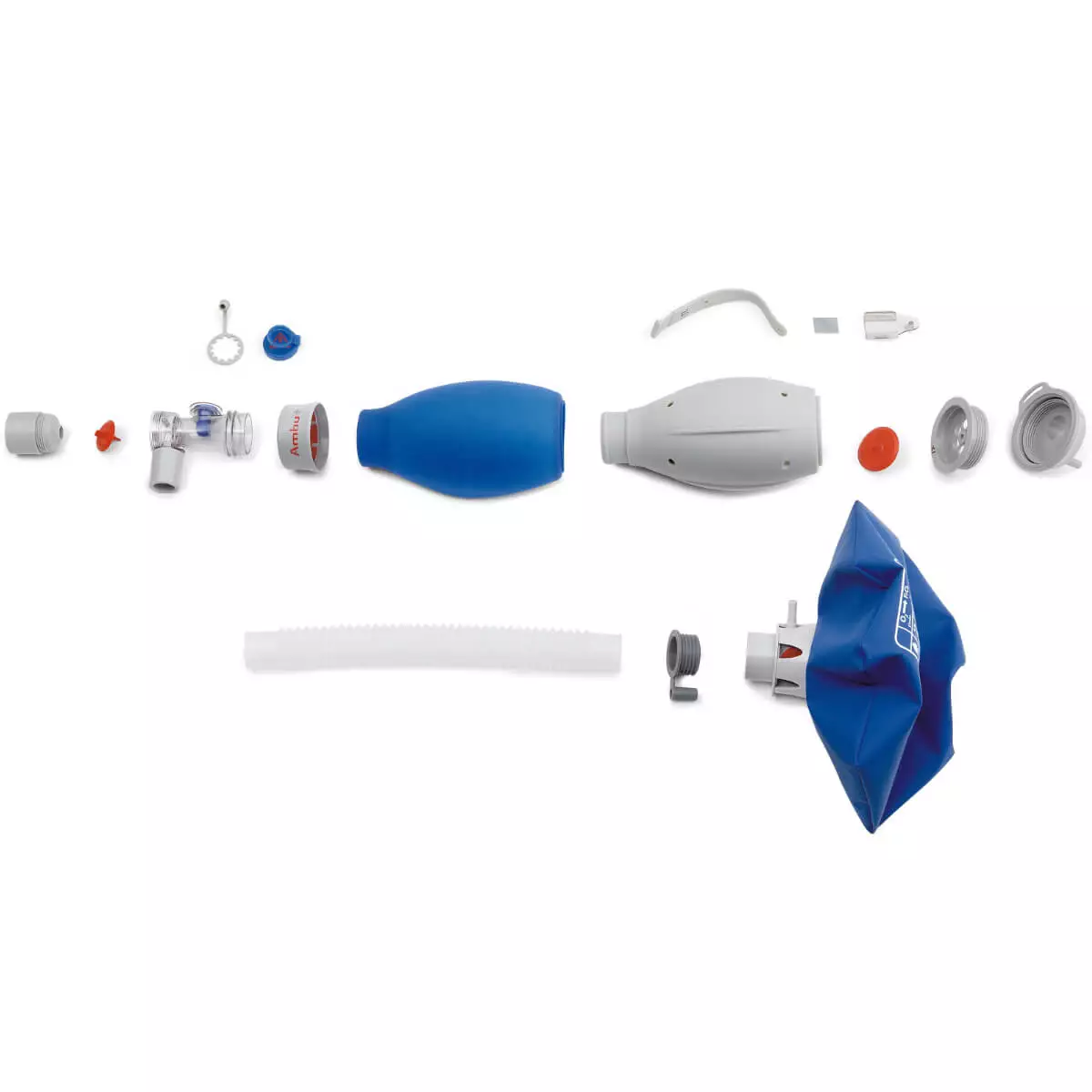

In emergency situations, the Ambu Mark IV Baby ensures fast and effective ventilation. It is ready for immediate use and can be assembled and disassembled quickly, which is crucial in critical situations. The integrated pressure-limiting function prevents barotrauma, while the unique design guarantees an even oxygen supply. The Ambu Mark IV Baby bag mask is a reliable solution for use by emergency medical services, physicians, or hospital emergency departments. Its intuitive assembly allows for a rapid response in emergencies, and its easy disassembly ensures efficient post-use processing. The bag mask is designed to accommodate all age groups, from newborns to adults.

Package contents

• 1 Ambu Mark IV Baby bag mask
• 1 integrated oxygen reservoir
• 1 transparent patient valve with splash guard
• 1 rotatable connection
• 1 face mask
