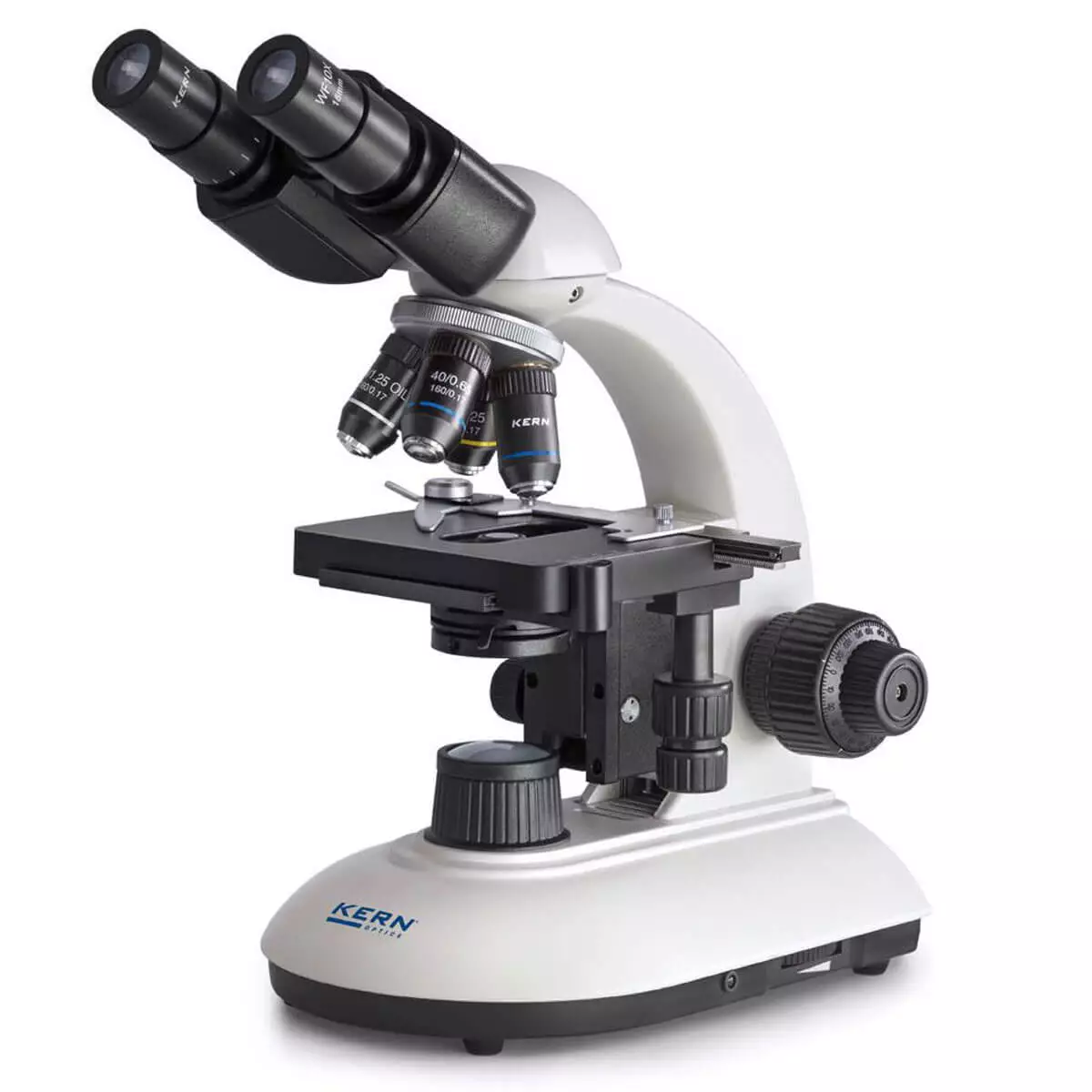

KERN OBE 112 Transmitted light microscope
OBE 112 Transmitted light microscope from KERN
The fully equipped KERN OBE 112 transmitted light microscope is an ergonomically operated microscope for a wide range of applications. All applications in laboratory and practice as well as in schools and universities with high-contrast preparations can be visualized very well. For example, plant tissue and stained cells in hematology can be optimally imaged thanks to the dimmable LED illumination and the height-adjustable ABBE condenser.
Product details
- Binocular microscope for laboratory and education
- For translucent, high-contrast specimens
- Area of application also in hematology, sediments, medical practices
- Easy to use, robust and stable
- Mechanical stage for 1 slide
- Coaxial coarse and fine drive
- 4-fold revolving nosepiece
- Dimensions: W 320 x D 180 x H 365 mm
- Weight: 4,988 kg
Technical details
- Objective lenses:
- 4 x / 0.10 / working distance 18.6 mm
- 10 x / 0.25 / working distance 6.5 mm
- 40 x / 0.65 (spring loaded) / working distance 0.47 mm
- 100 x / 1.25 (oil) (spring loaded) / working distance 0.07 mm - Objective lenses: DIN achromatic (Finity optics)
- Optical system: Abbe 1.25 with aperture diaphragm (Numerical)
- Illumination: 3 W LED (dimmable)
- Settling pot: 30° inclined, 360° rotatable
- Eyepieces: High wide field, 10x magnification, Ø 18 mm
- Dioptric compensation: one-sided
Scope of delivery
- 1 KERN OBE 112 transmitted light microscope
- 1 power supply unit
