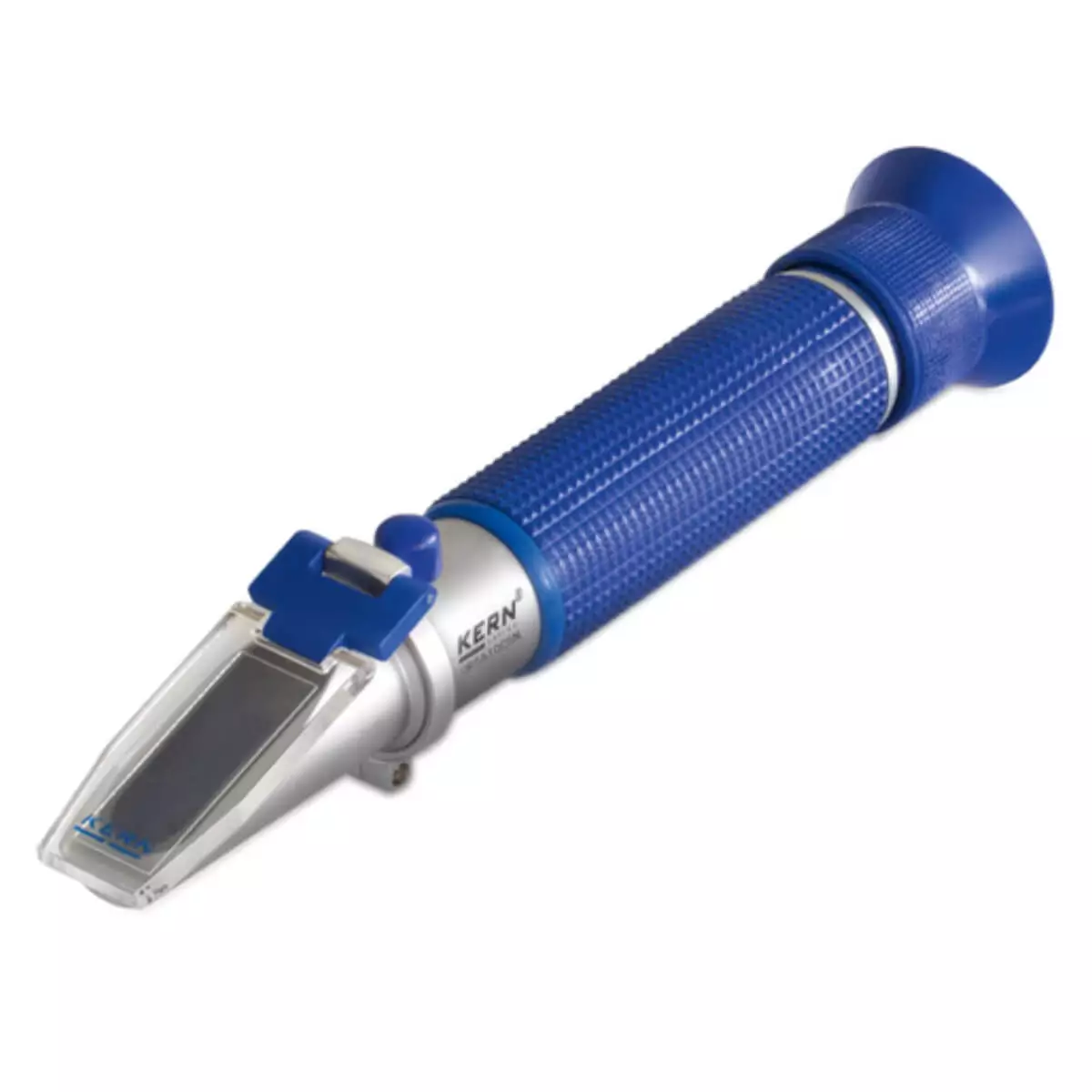

KERN ORA-P (ATC) refractometer
analog hand refractometer for urine
€93.36*
Available now | Delivery between 26/06/2026 – 29/06/2026
ORA-P (ATC) refractometer by KERN
The ORA-P (ATC) refractometer from Kern is used for urine analysis and is optimal for simple, handy everyday use. User errors can be avoided through selectable scales that are specially calculated. Automatic temperature compensation allows accurate measurements even when the ambient temperature varies. Thanks to its simple and fast handling, the handheld refractometer is ideally suited for use in clinics and medical practices.
Product details
- Analog and compact handheld refractometer
- Measurement of specific urine weight (density), serum content (serum protein) in urine and refractive index
- Optimal for easy and efficient use in everyday life
- The optical system and the prism cover allow a low tolerance measurement
- No user errors due to selectable scales and no conversion effort

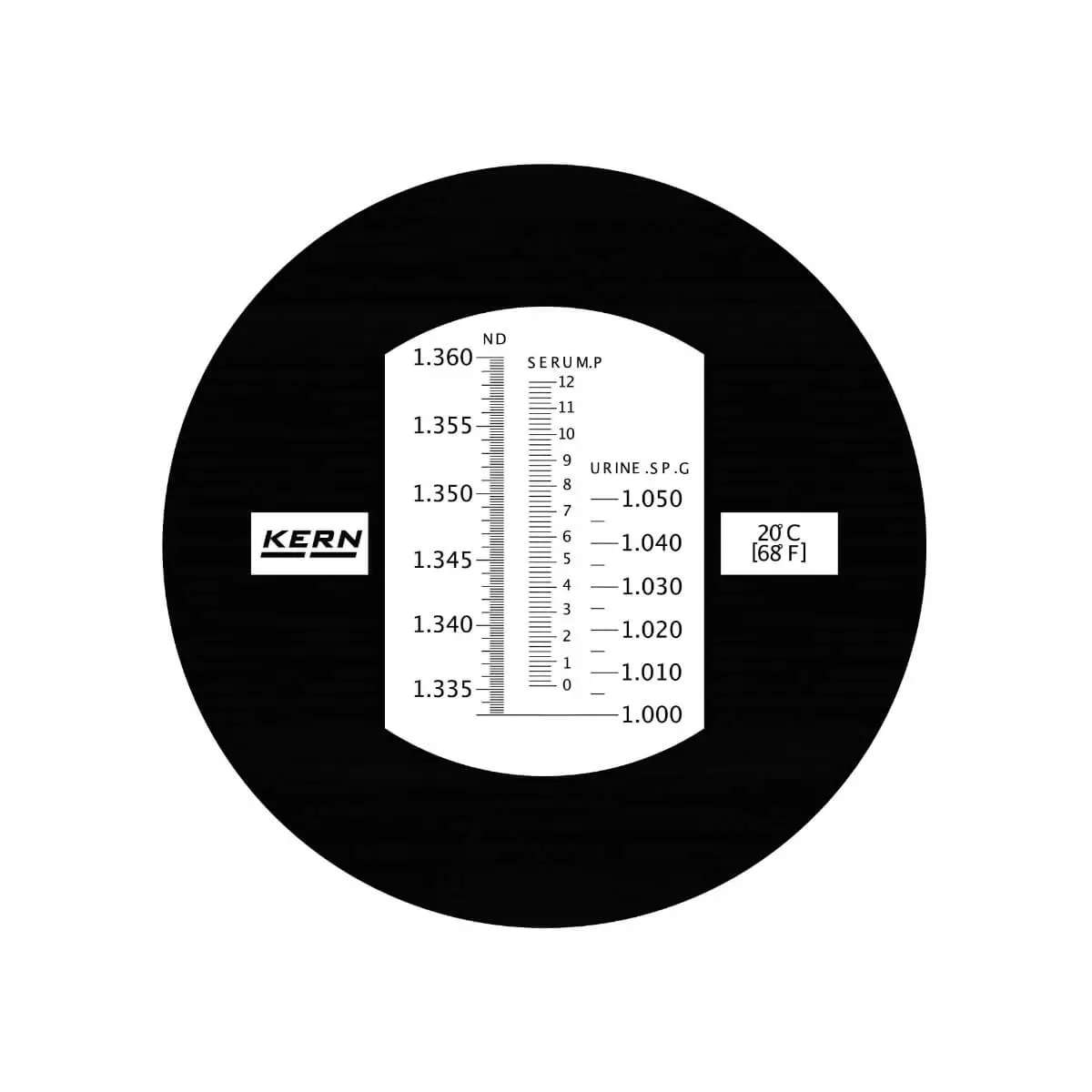

- Integrated scales are precisely calculated and feature clear, thin lines
- Automatic temperature compensation enables accurate measurement in different ambient temperatures (10 - 30 °C)
- Robust and maintenance-free
- Optimal for use in doctors' offices, clinics and medical facilities
- Sample material: Urine
- Material: Die-cast copper-aluminum alloy, chrome-plated
- Dimensions: L 17.8 x W 4 x H 4 cm
- Weight: 145 g
- Incl. eyepiece with a simple and smooth adjustment possibility at different visual acuities
Technical data:
- Measuring range:
- Refractive index: 1.3330 nD - 1.3600 nD
- Specific urine weight: 1.000 sgU - 1.050 sgU
- Serum protein: 0 g/dl - 12 g/dl
- Division:
- Refractive index: 0.0005 nD
- Specific urine weight: 0.002 sgU
- Serum protein: 0.2 g/dl
Scope of delivery
- 1 KERN ORA-P (ATC) refractometer
- 1 storage box
- 1 calibration solution
- 1 pipette
- 1 screwdriver for adjustment
- 1 cleaning cloth
Consumers do not have a right of withdrawal for sealed goods that are not suitable for return for reasons of health protection or hygiene, if the seal has been removed after delivery.
Product identification
| Product number | 100695.2 |
|---|---|
| Manufacturer name | KERN |
| Manufacturer item no. | ORA 2PA |
| EAN | 2000000090887 |
