HEINE Optotechnik HEINE Gamma G7 blood pressure monitor
Blood pressure monitor with one or more velcro cuffs
€141.33*
Available now | Delivery between 08/08/2026 – 12/08/2026
HEINE Gamma G7 blood pressure monitor by HEINE Optotechnik
The HEINE GAMMA G7 blood pressure monitor uses the Riva-Rocci-Korotkoff auscultatory method. The air valve’s optimized flow resistance dampens air shocks during inflation. This guarantees a steady, shock-free air intake into the measuring mechanism, which means that the measurement result can be read without the indicator overshooting - an advantage that used to be exclusive to dual-tube blood pressure monitors. The large pump bulb makes inflation of the cuff particularly user-friendly, and thanks to the adjustable high-precision rotary valve, the readings of the GAMMA G7 are accurate to ± 3 mmHg. The housing is made of shatterproof polyamide in a double-wall construction with three-point fixation of the measuring mechanism, making the GAMMA G7 well-protected against shocks.
Product details
- Single-tube blood pressure monitor
- Sensitive rotary release valve
- "Shock-proof" shock-absorbing light-metal housing
- Anti-slip coating
- Overpressure-proof, corrosion-free manometer
- Built-in microfilter
- Ergonomic pump bulb
- Washable cuffs
- Suitable for left and right-handed use
- Either 1 or 3 velcro cuffs included (please select under “Size”)
- Material (housing top): aluminum alloy
- Material (housing bottom): impact-resistant plastic
- Material (spoon): zinc alloy
- Latex-free
- Circumference (child cuff): 13 - 20 cm
- Circumference (adult cuff / small): 20 - 29 cm
- Circumference (adult cuff / standard size): 29 - 41 cm
- Diameter (dial): 56 mm
- Available with different cuff sizes
- 10 years of warranty provided for the device and 5 years for the cuffs: For more information, visit HEINE Optotechnik's guarantee conditions.
Technical details
- Measuring method: auscultatory method
- Measuring range: 0 - 300 mmHg
- Measuring accuracy: ± 3 mmHg
Package contents

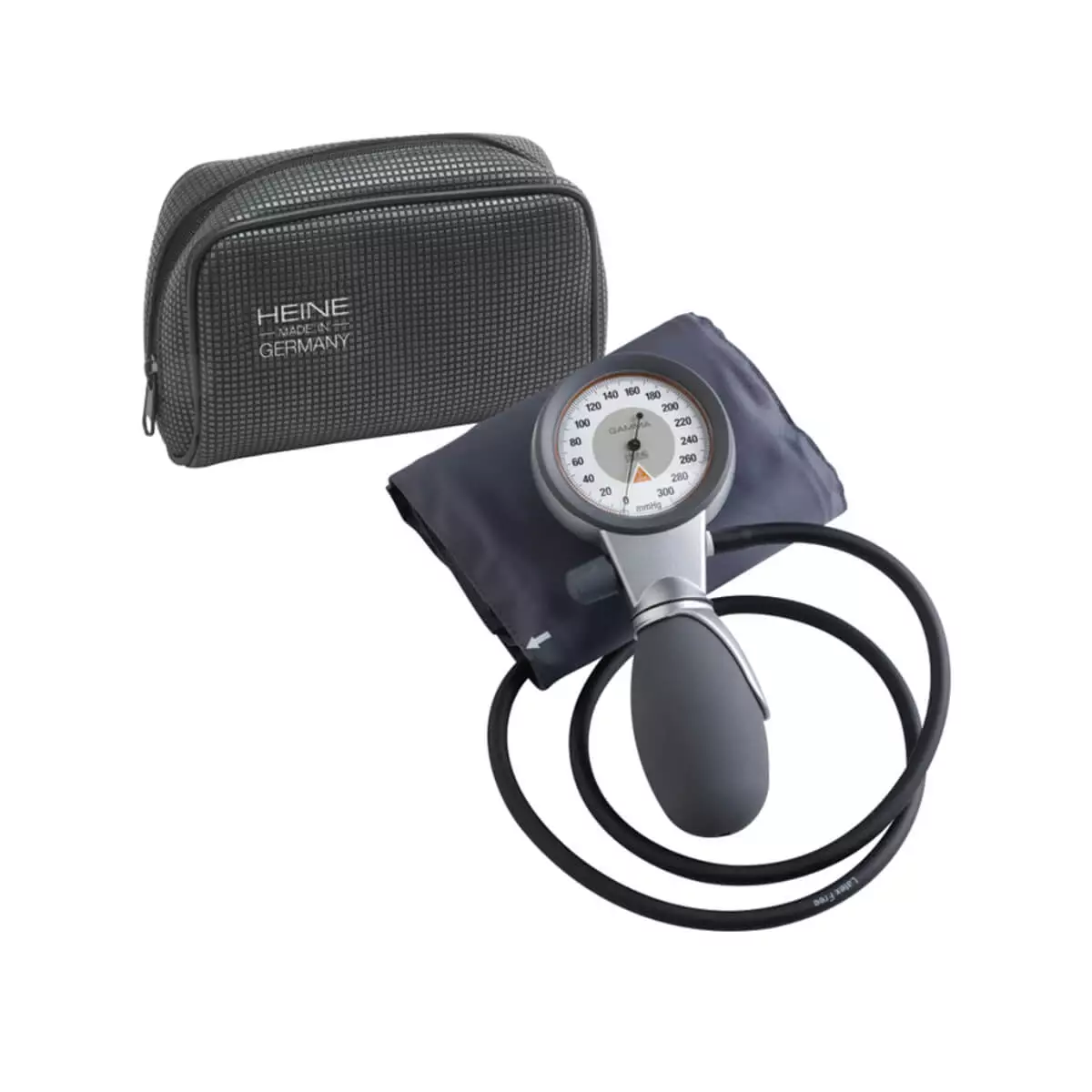

HEINE Gamma G7 blood pressure monitor with standard cuff
- 1 HEINE Gamma G7 blood pressure monitor
- 1 velcro cuff for adults (standard size)
- 1 case
HEINE Gamma G7 blood pressure monitor with multiple cuffs
- 1 HEINE Gamma G7 blood pressure monitor
- 1 velcro cuff for children
- 1 velcro cuff for adults (small)
- 1 velcro cuff for adults (standard size)
- 1 case
Specifications
| Casing color | Gray |
|---|---|
| Casing material | plastic, metal |
| Cuff circumference | 29–41 cm |
| Cuff type | hook-and-loop cuff |
| Device type | Analog |
| Display color | white |
| Manometer diameter | 56 mm |
| Measurement accuracy (blood pressure) | ± 3 mmHg |
| Measuring range (diastole) | 0–300 mmHg |
| Measuring range (systole) | 0–300 mmHg |
| Obligatory training required | yes |
| Placement | upper arm |
| Tube construction | single lumen |
| Medical device (EU 2017/745) | Class I |
| Norms and certificates | DIN EN 1060-1-2 |
| Made in | Germany |
| Manufacturer warranty | 10 years |
Product identification
| Product number | 101015.0 |
|---|---|
| Manufacturer name | HEINE Optotechnik |
| Manufacturer item no. | M-000.09.232 |
| EAN | 4053755136346 |
