Philips AED Trainer FR3 Training Defibrillator

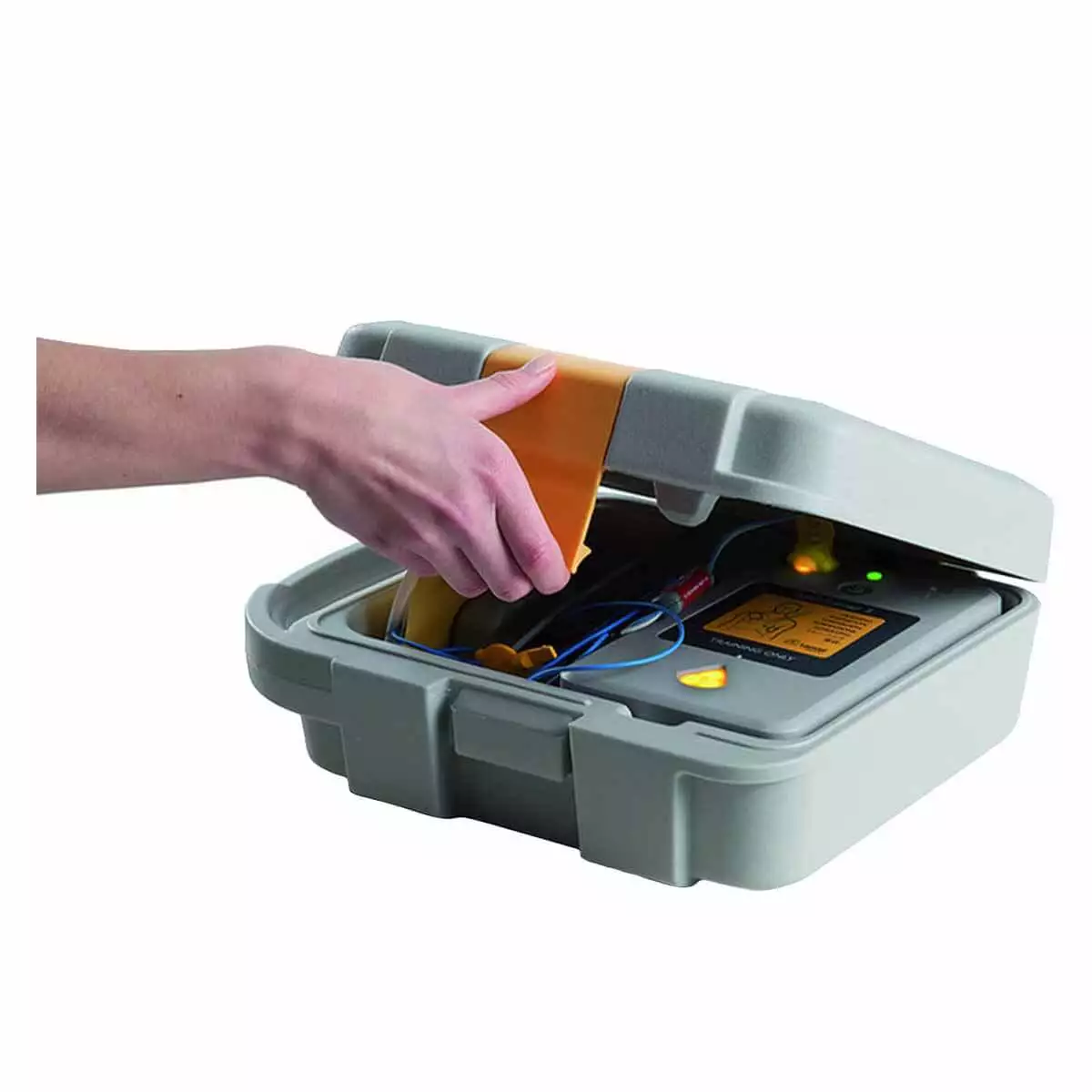

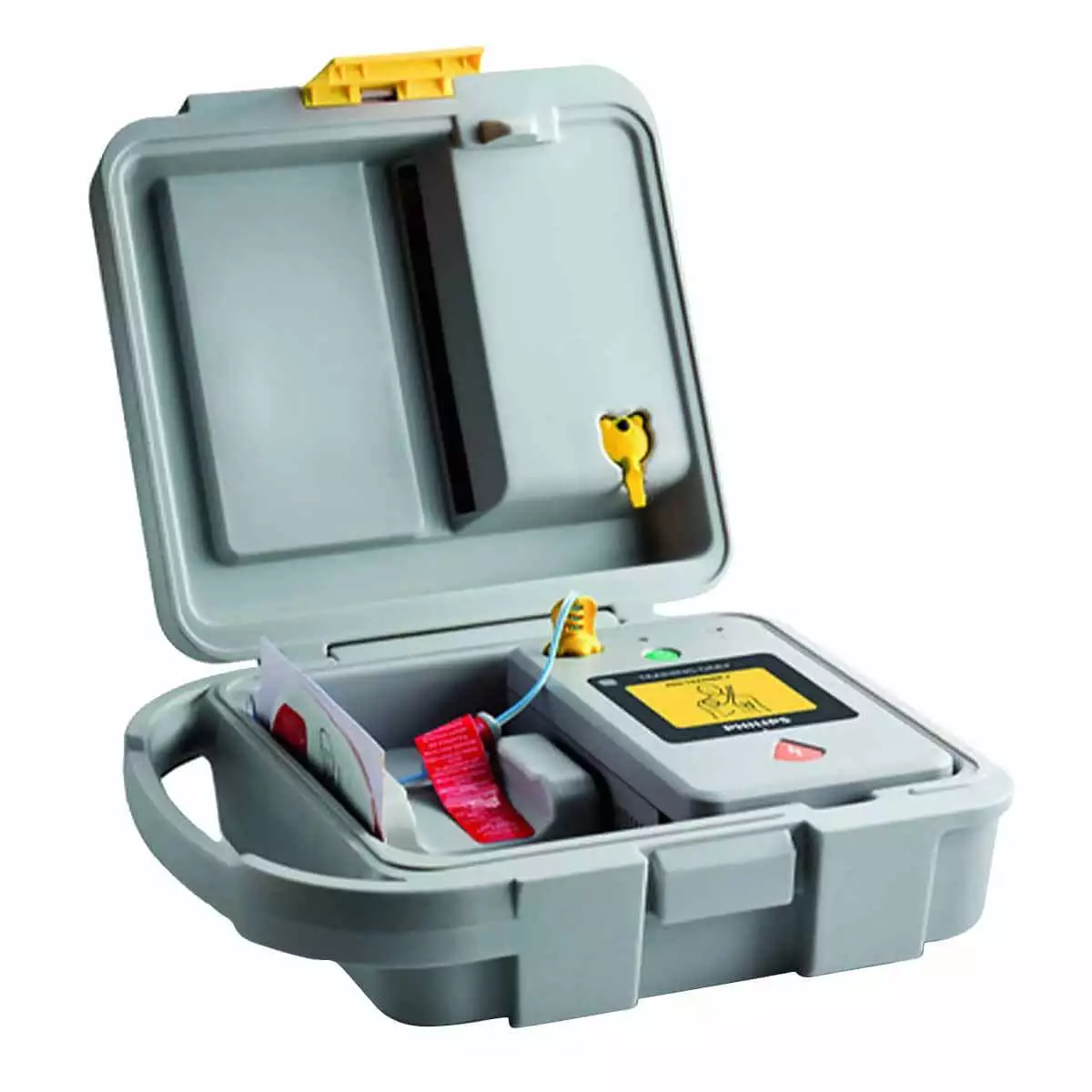

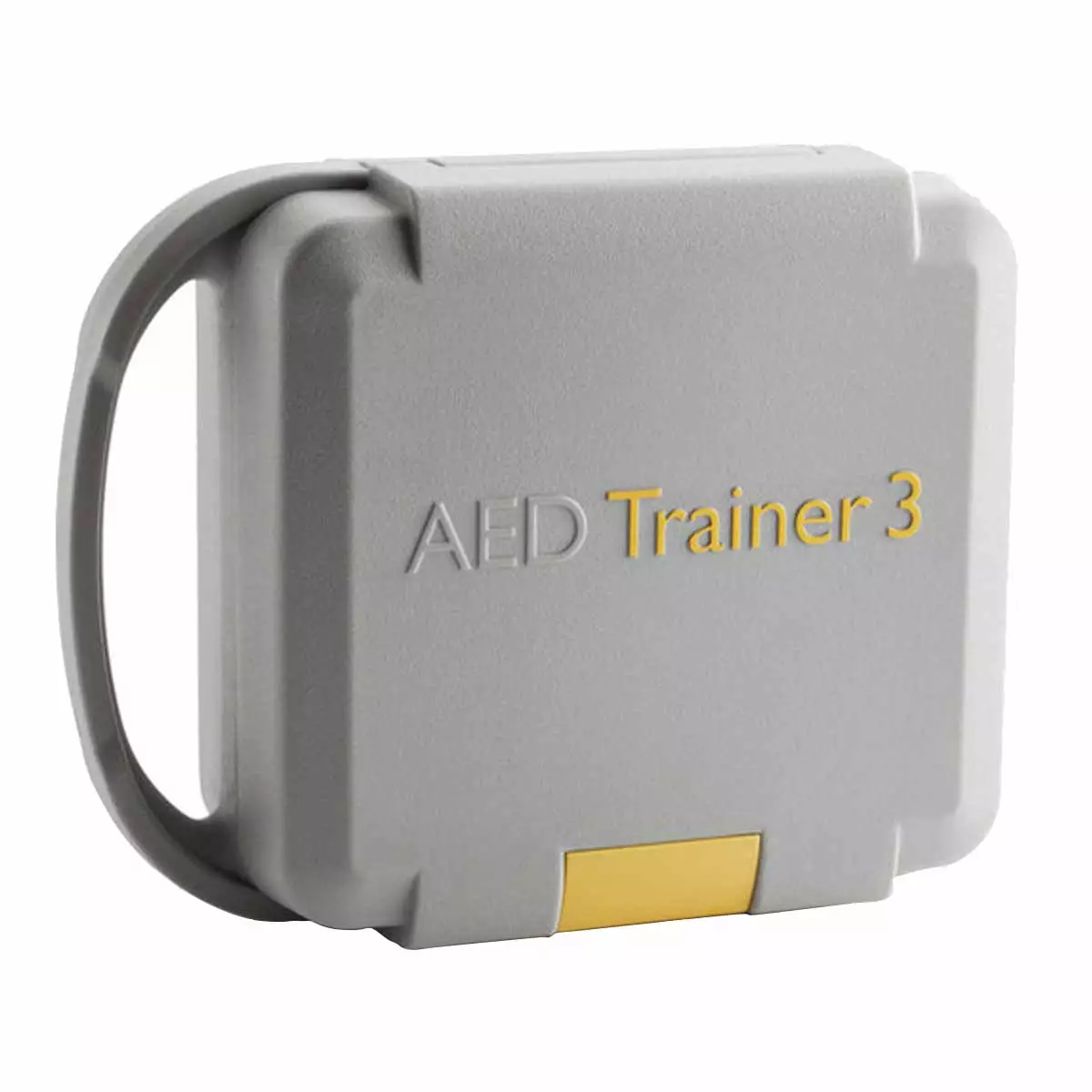

The AED Trainer FR3 training defibrillator simulates the use of the Philips HeartStart FR3. First responders can practice using the defibrillator using the programmed training scenarios. Regular training with a defibrillator, including the delivery of shocks, can help first responders overcome their reluctance to use it, saving vital minutes in resuscitation. The AED Trainer FR3training defibrillator and the included accessories are easy to transport in the sturdy case and quickly ready for use.

Product details

• System case for training first responders in the use of AED models
• With voice instructions and device configuration of the Philips HeartStart FR3
• Loudspeaker for voice announcements
• Shock button with visual signal
• With 8 training scenarios
• Multiple languages (English, French, German, Dutch, Spanish, Italian, Portuguese, Swedish, Norwegian, Finnish and Chinese)
• Incl. pre-installed operating system card, one pair of training pads, training child key, reusable connection cable for HeartStart training pads III
• Case material: Nylon
• Dimensions device: L 21.8 x W 13.3 x H 5.7 cm
• Case dimensions: L 29.0 x W 36.2 x H 13.2 cm
• Device weight (with batteries): 600 g

Training scenarios

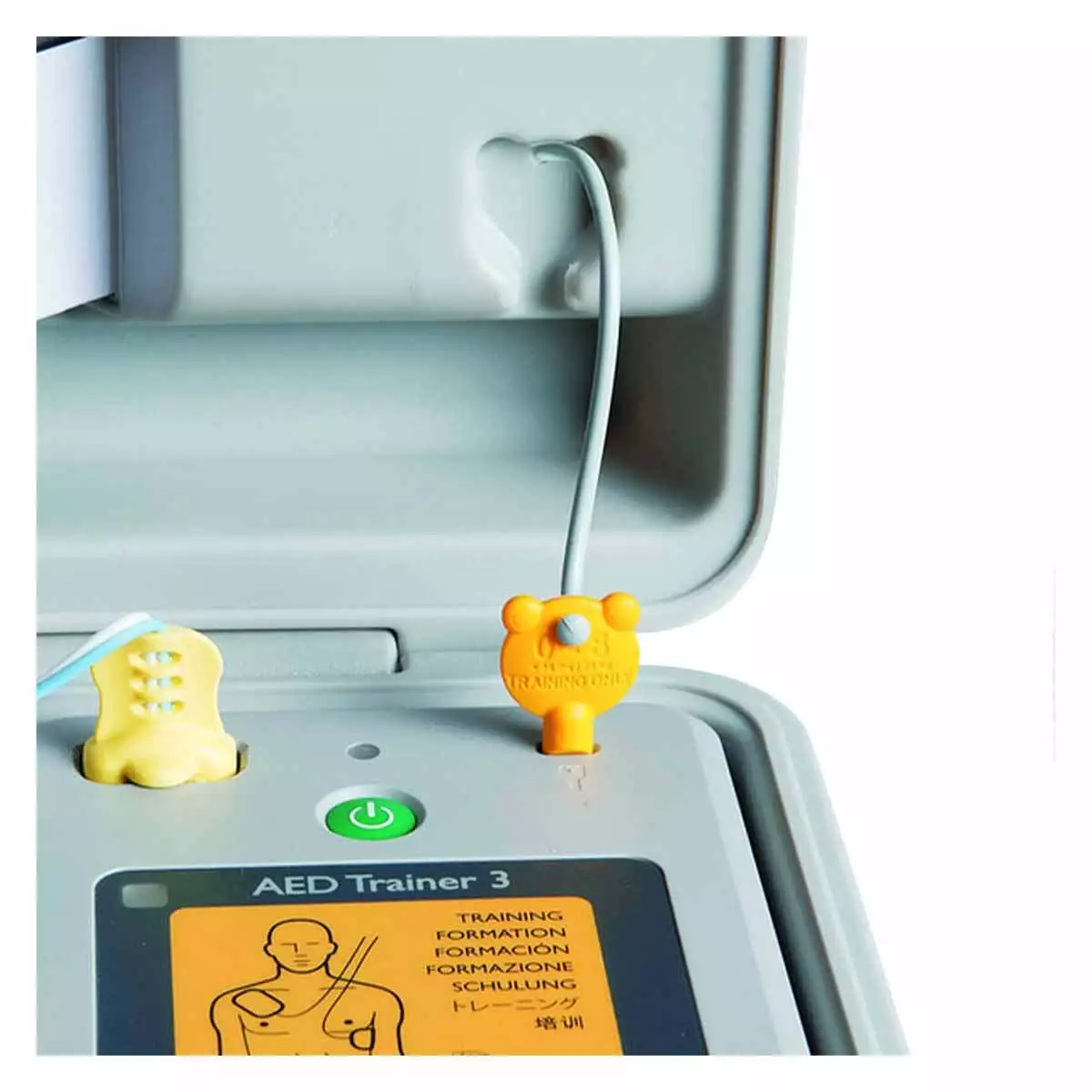

Various training scenarios can be selected in the AED Trainer menu, which guide the first-aider through the use of the defibrillator with voice instructions. Cardiopulmonary resuscitation (CPR) can be trained as well as the delivery of the simulated shock at the right moment. For this purpose, the orange shock button flashes when the delivery of a shock is recommended. To train defibrillation of children under 8 years of age, the training child key is used, which simulates the operating mode for children on the FR3. Other possible test scenarios:

• Shock required for conversion
• Non-shockable rhythm
• CPR, shock to convert
• Resumption of ventricular fibrillation after conversion
• Troubleshooting Pads

Technical Details

• Automatic power off function
• Battery capacity: > 10 hours
• Operating temperature: 10–35 °C

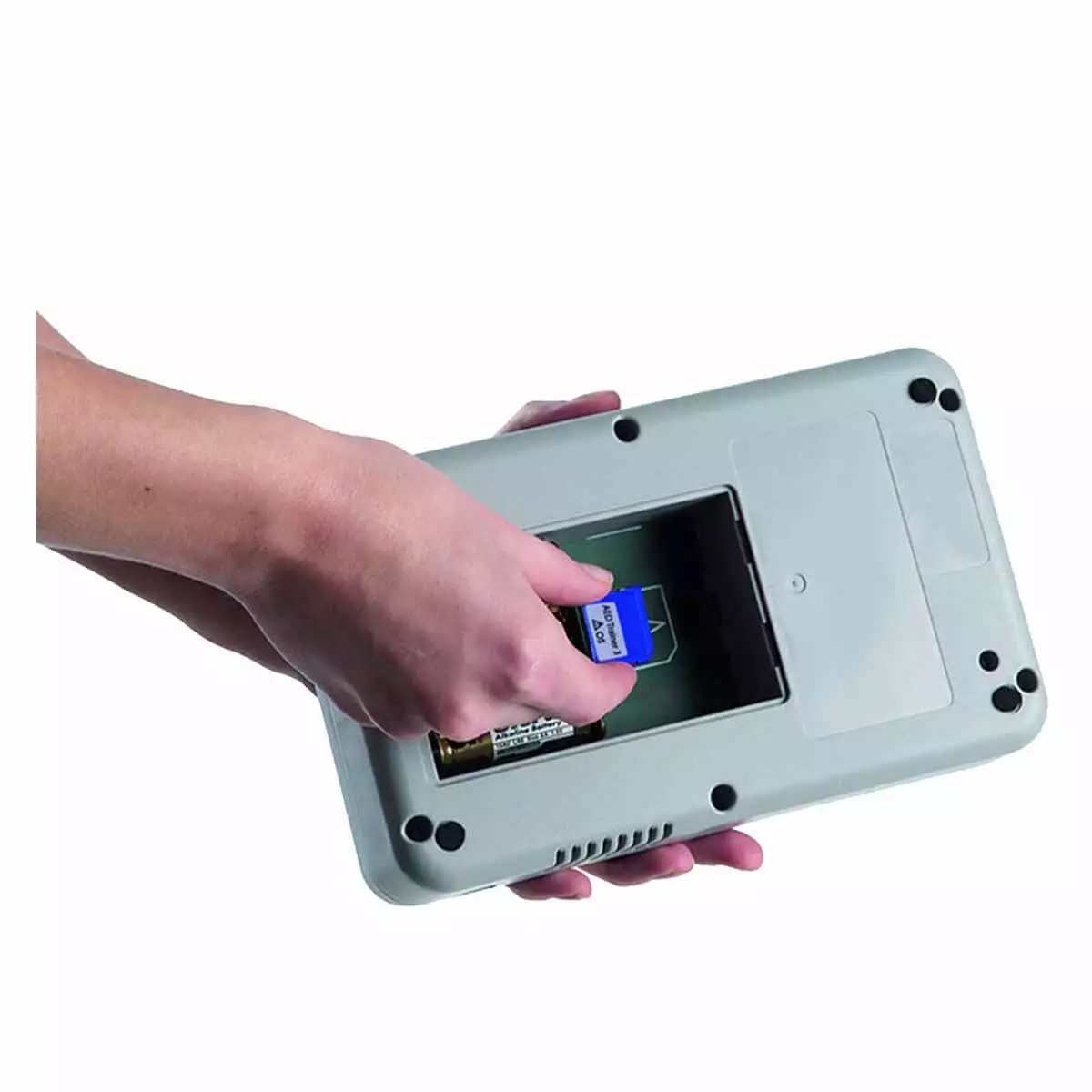

• Power supply: 4 AA alkaline batteries LR6 (not included)

Package contents

• 1 Philips AED Trainer FR3 training defibrillator
• 1 system case
• 1 operating system card
• 1 connection cable for training pads
• 1 set of HeartStart training pads III
• 1 training child key
• 1 contact strip for the training manikin
• 1 instruction manual

A remote control and batteries are not included.
