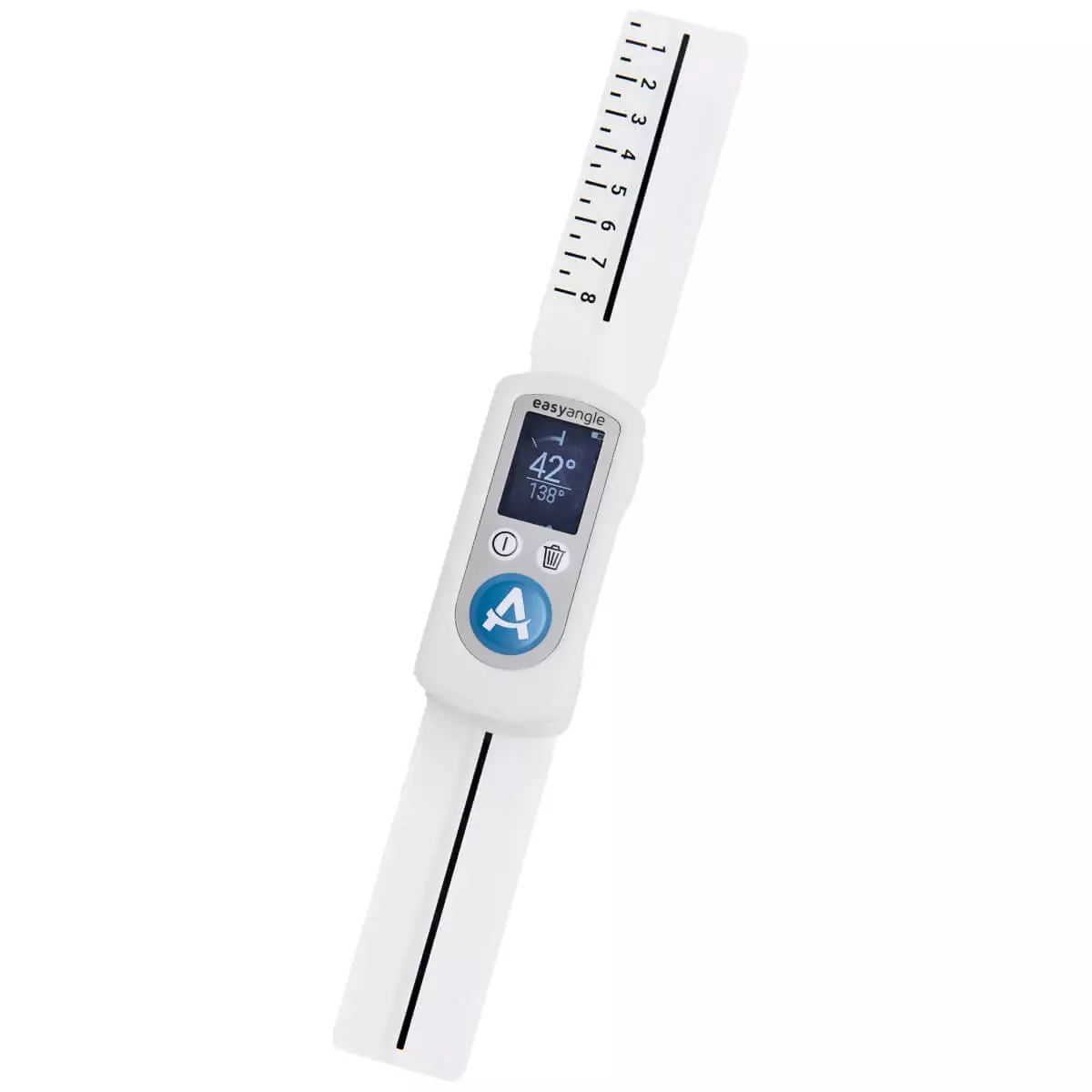

Meloq EasyAngle - Digital goniometer

Motion measurement made simple and accurate - Meloq’s EasyAngle has been developed to optimise the measurement of the mobility of all relevant joints in the body. The digital EasyAngle combines five devices: goniometer, inclinometer, CROM device (mobility measurement of the cervical spine), BROM device (lumbar spine mobility measurement) and scoliometer. Its high-precision sensor with an accuracy of approx. 1° allows the inclinometer to reliably perform physiotherapy and rehabilitation therapies.

Product details

• Goniometer with digital angle display
• Sensor measurement of joint position and mobility
• Facilitates the analysis of anatomical joint angles
• Sensory detection of rotational movements around the handle
• Includes long alignment aid with center line and scale
• Includes charging cable
• Simple one-hand operation
• Display of the actual and complementary angle
• Audio warnings for invalid rotation and vibration
• Workflow display in three steps
• Automatic switch-off function
• Alignment aid length: 28 cm

Joint measuring device with sensor

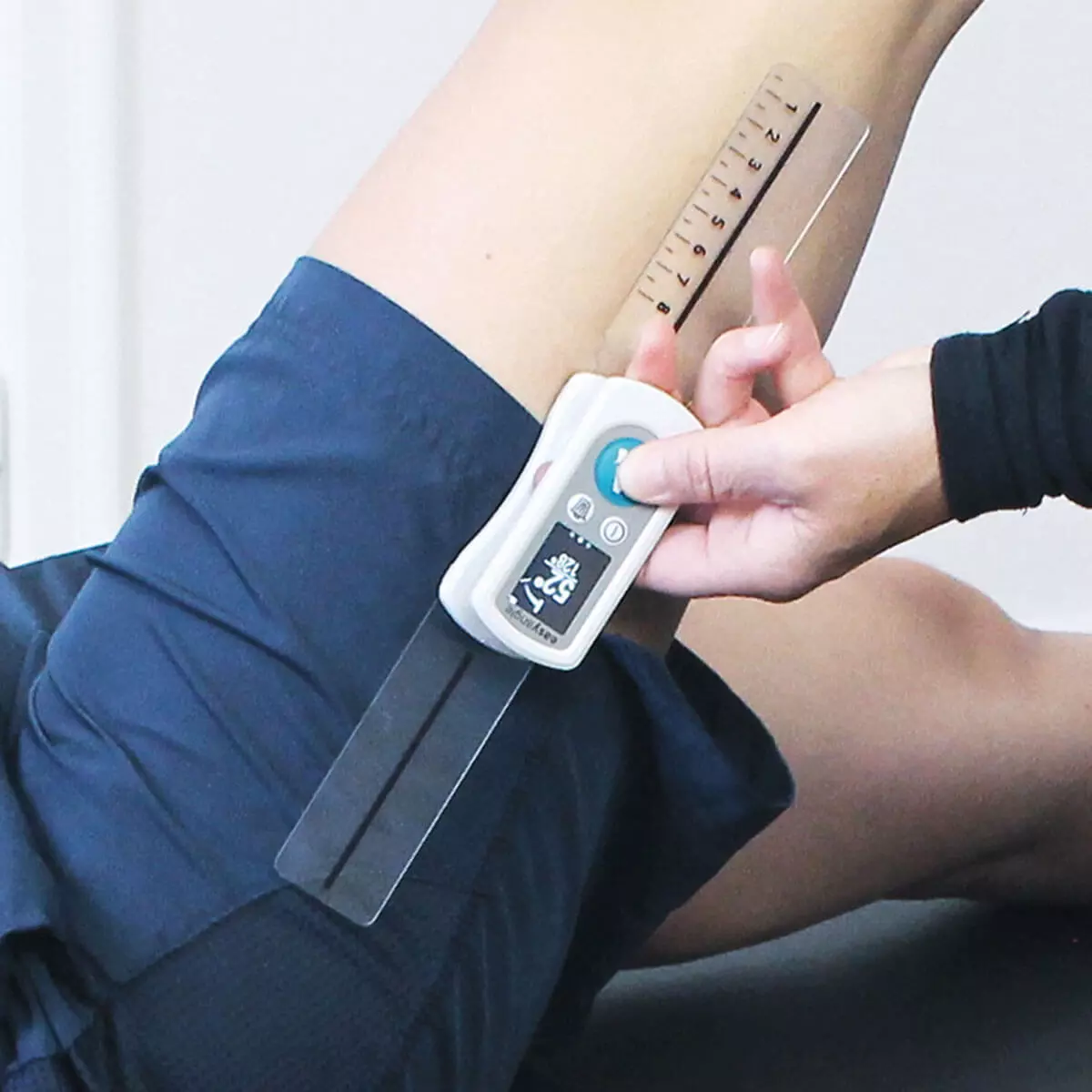

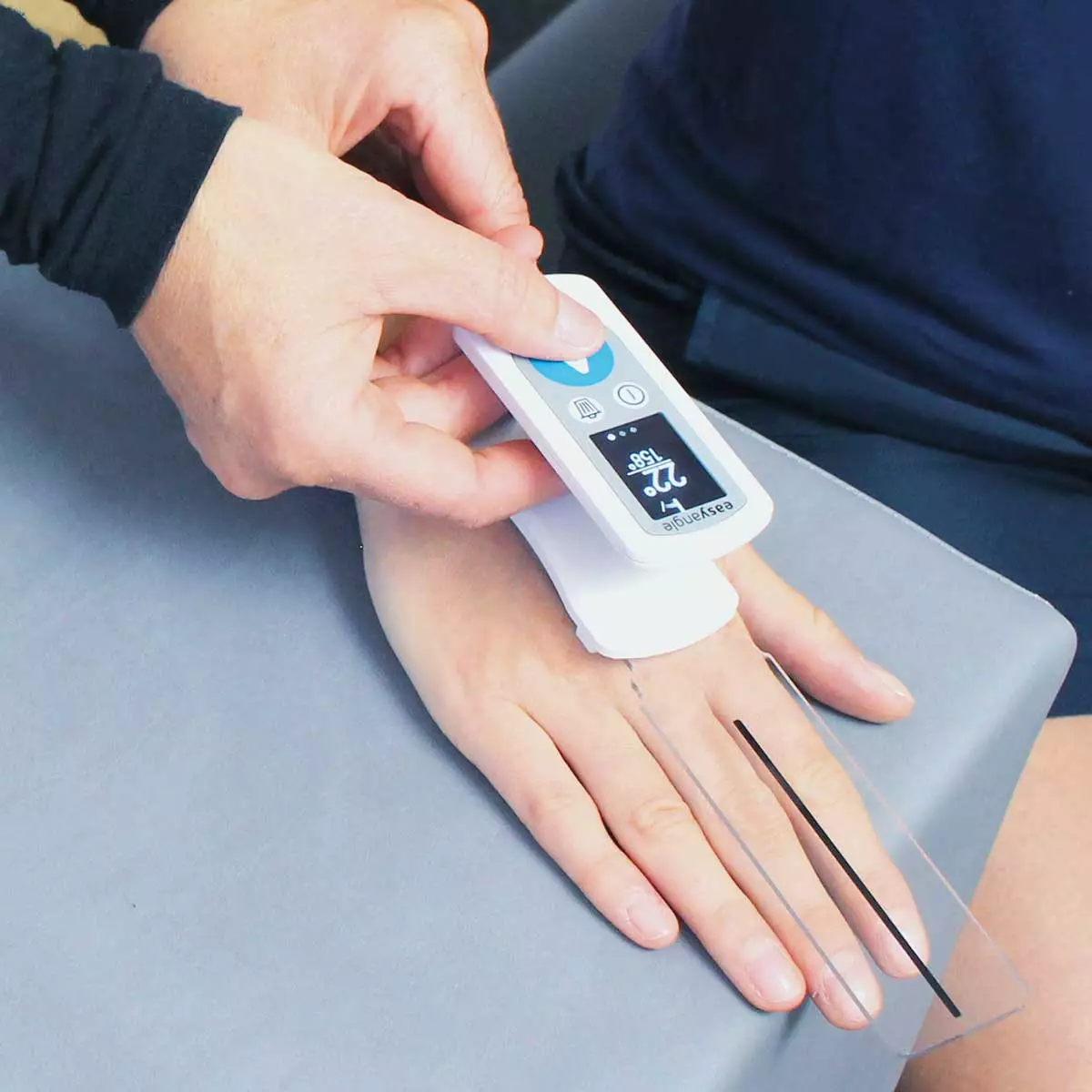

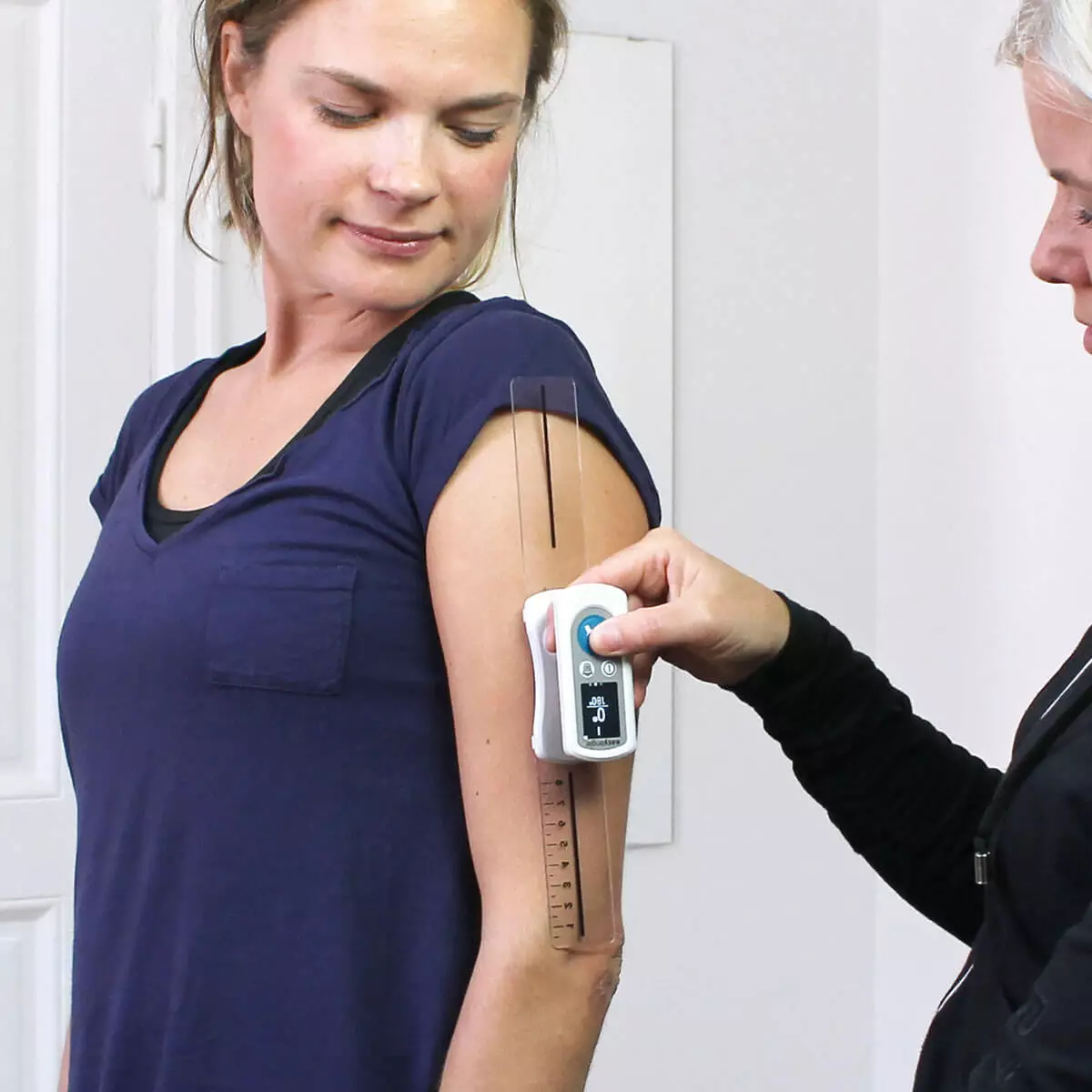

Physiotherapists have finally found the all-in-one measuring device: EasyAngle has been specially designed to measure mobility and analyse anatomical joint angles. The integrated sensor automatically calculates the position change and then provides precise values for the joint position.

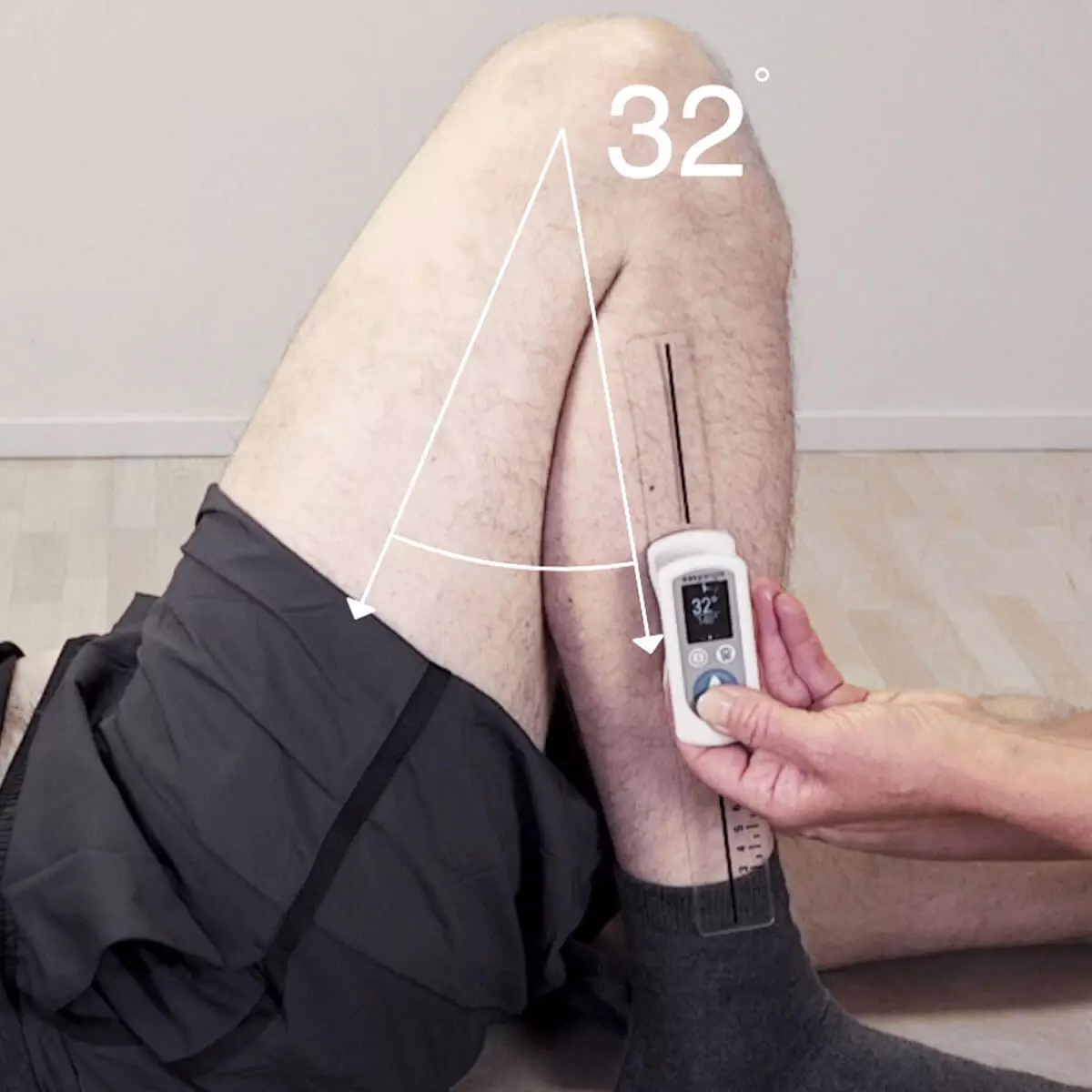

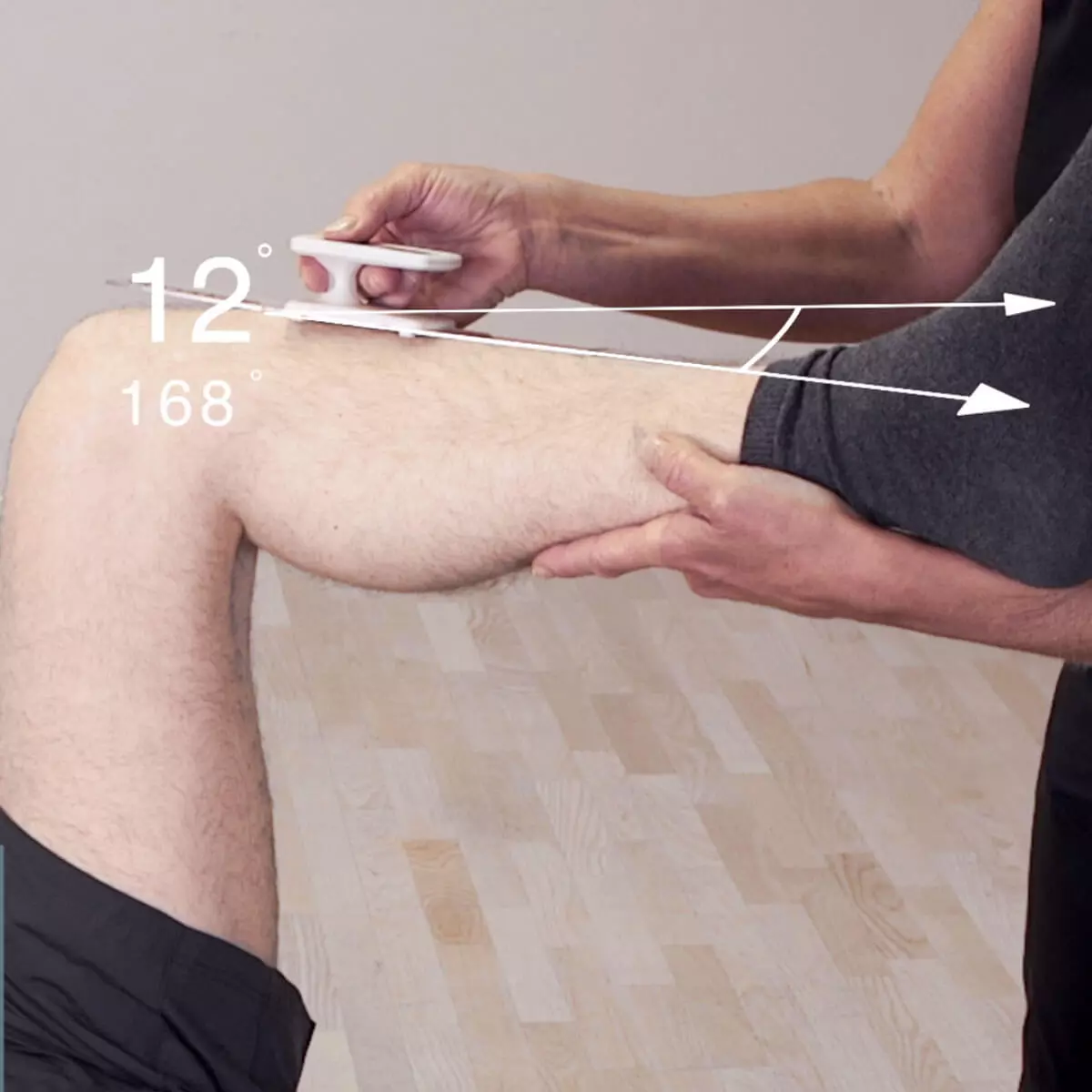

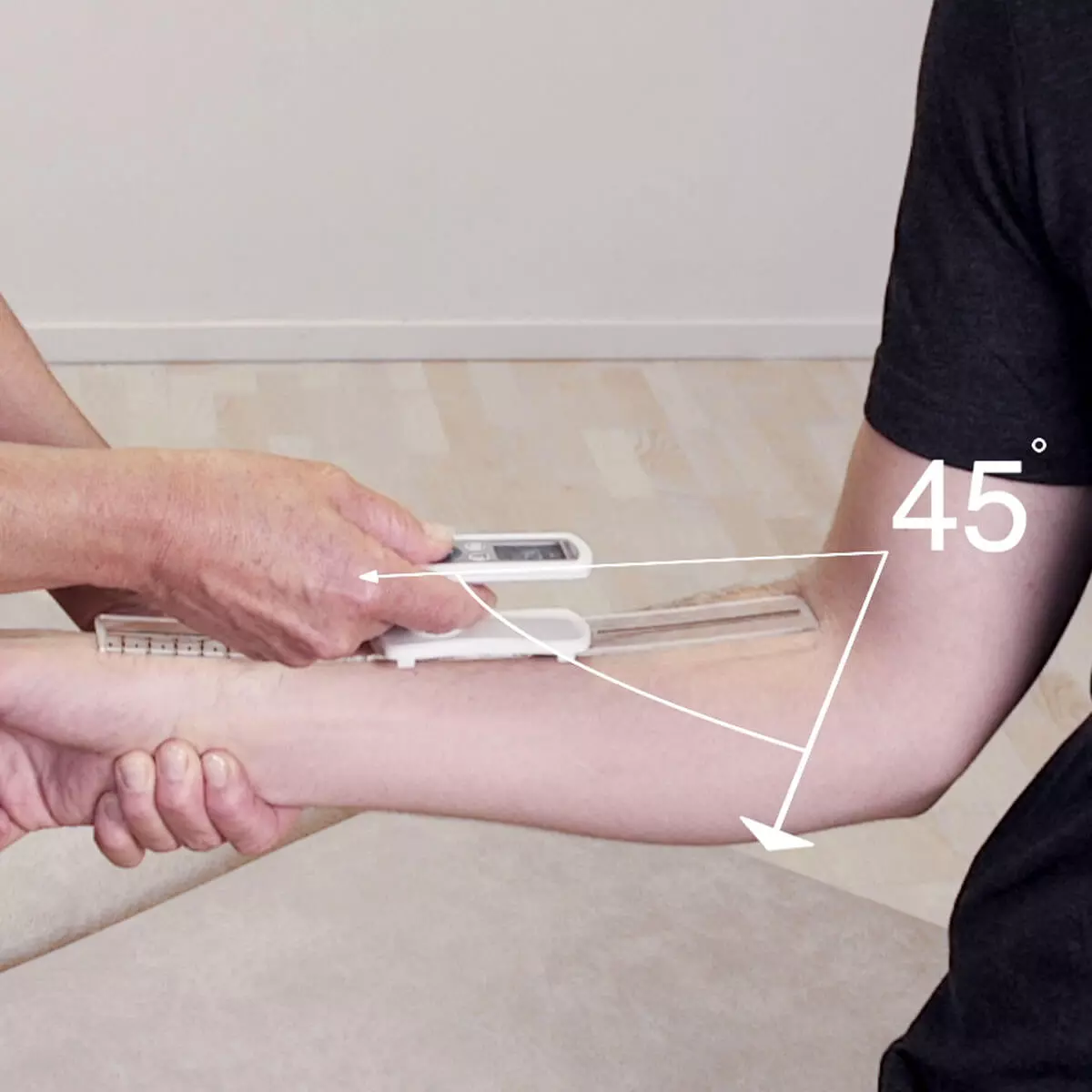

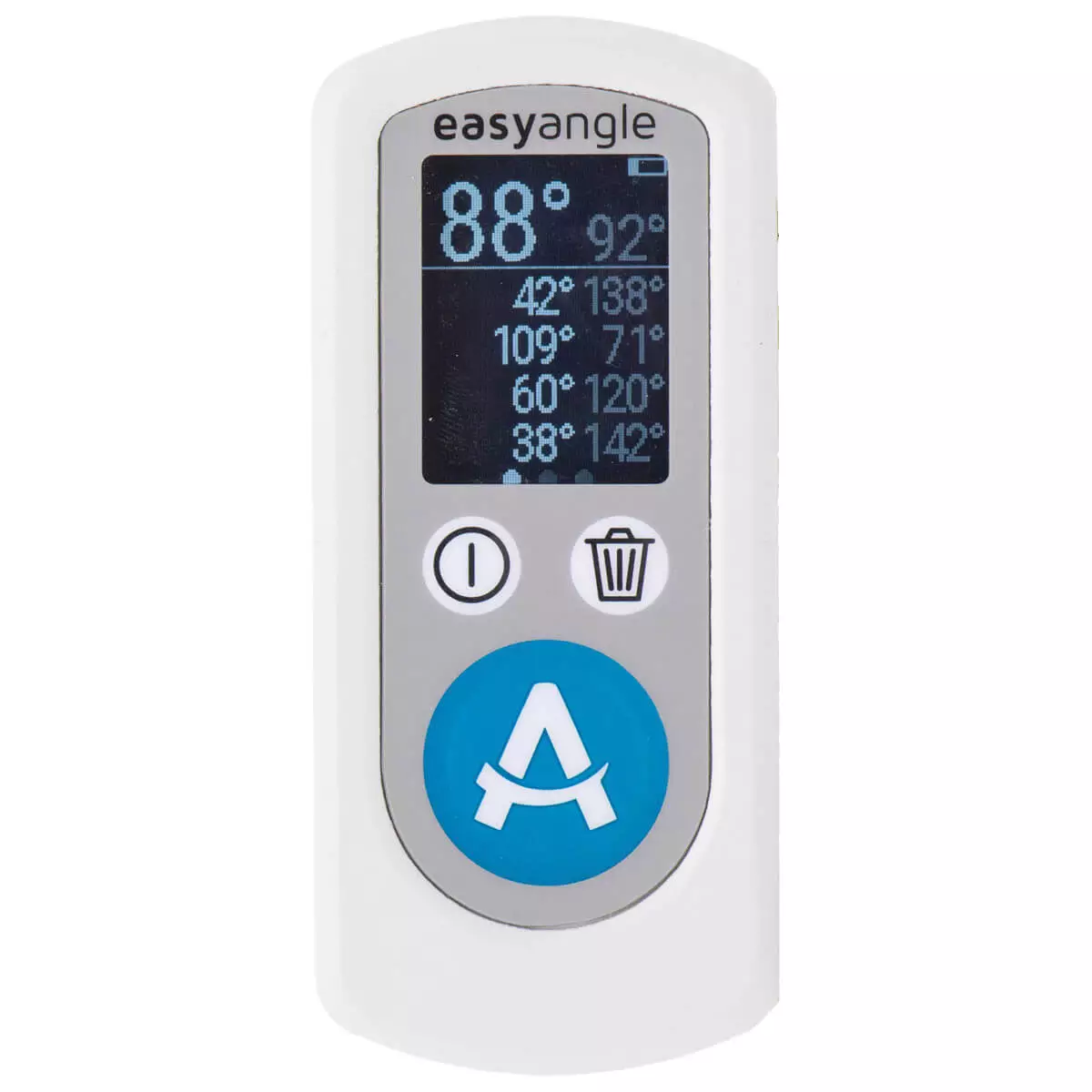

The digital goniometer’s single-hand operation will impress you! It measures the angle with just one alignment and one button press, displaying then the directional arc and the complementary angle. The large digital display shows the last five measurements.

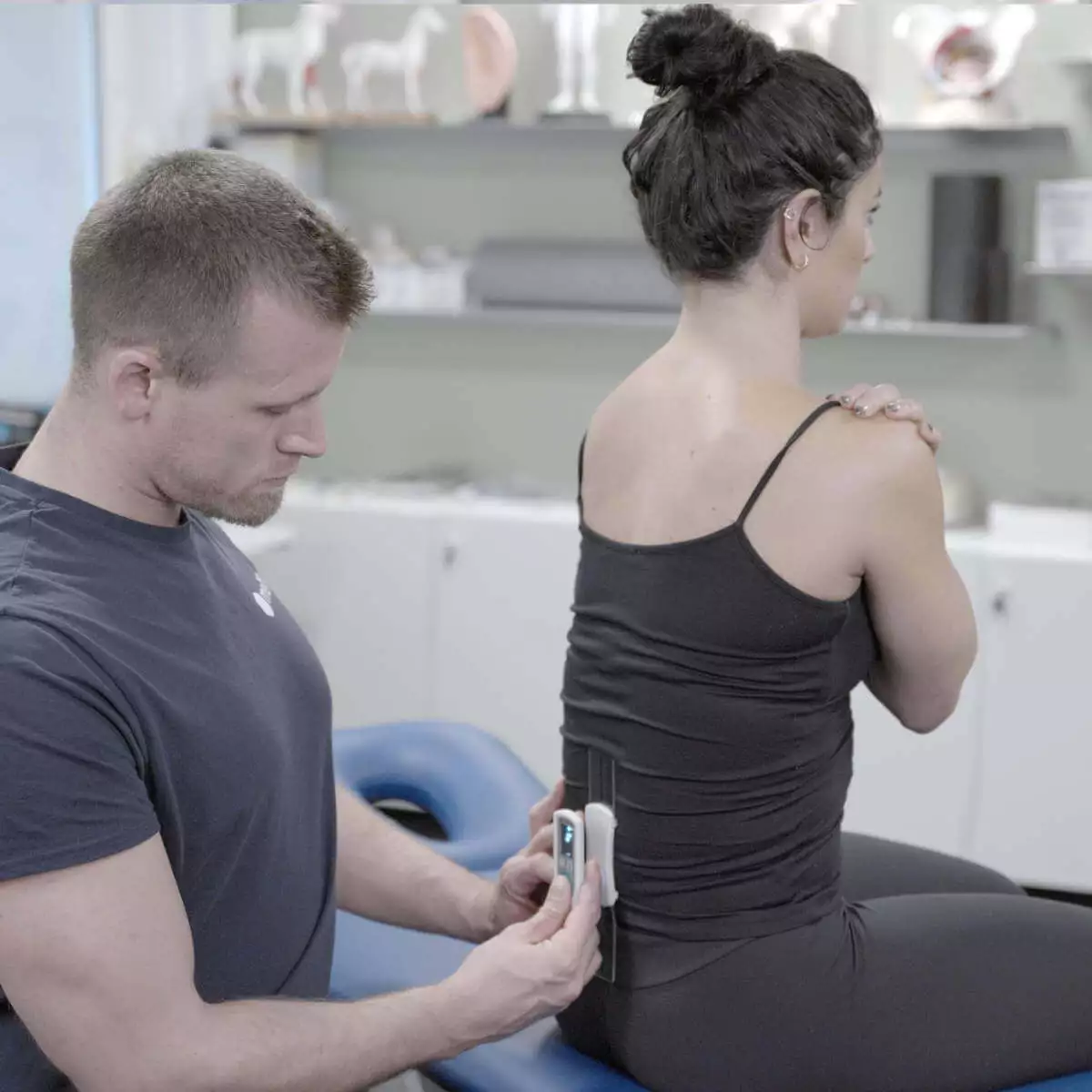

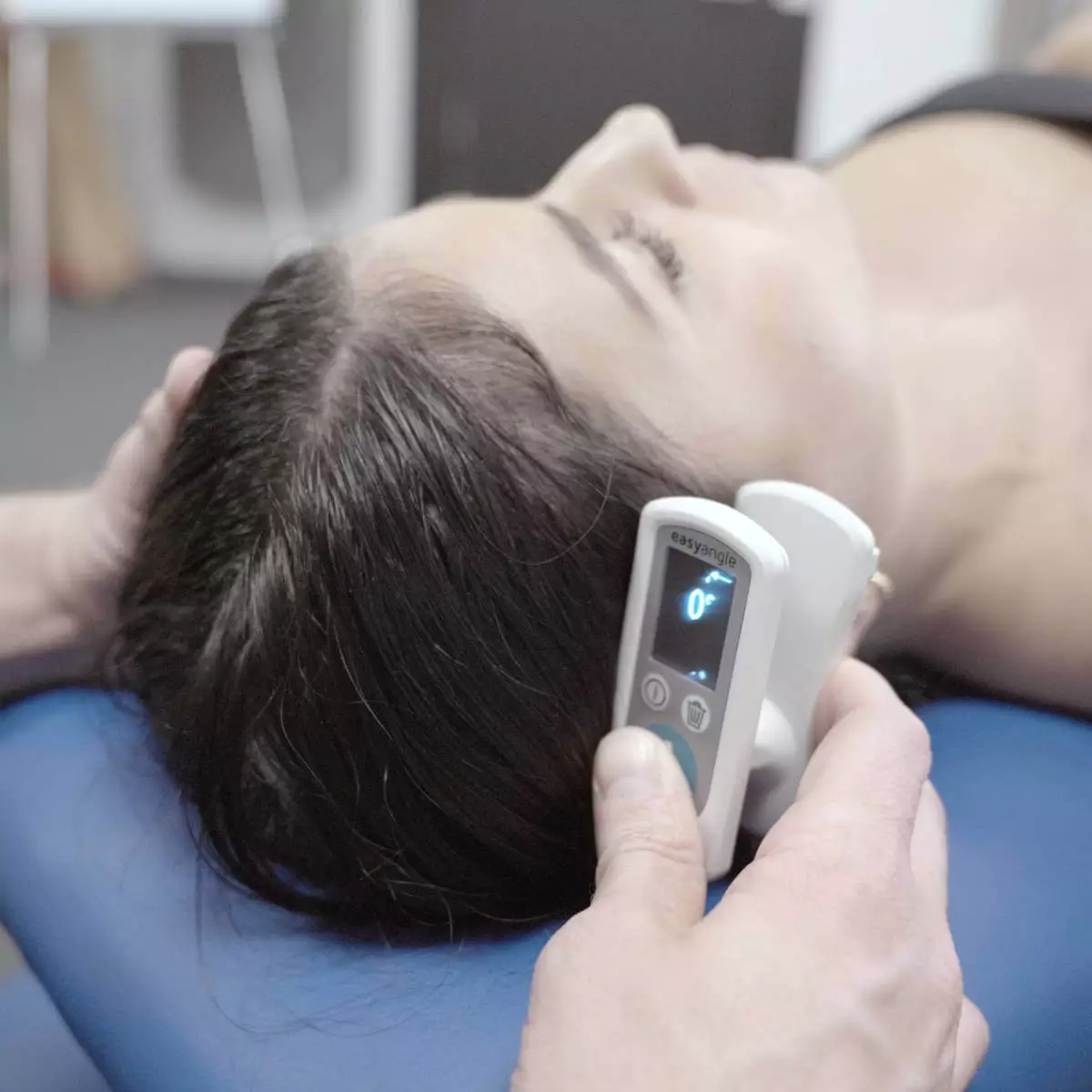

The certified medical device can be used to determine the motion range and angles. The values provide information on maximum extension, flexion, adduction, abduction and rotation of any anatomical joints. The digital inclinometer makes it possible to visualise cervical, thoracic and lumbar flexion as well as extension, rotation and lateral flexion. If the patient has scoliosis, you can also measure the Cobb angle.

EasyAngle has an inertial measuring function that can be used to measure all three orthogonal planes of the scapula, even the transverse plane.

The EasyAngle is a real all-rounder and is suitable for diagnosing and documenting illnesses in clinics, physiotherapy and rehabilitation. Meloq’s goniometer can document even the smallest progress, something that may motivate the patient to keep going.

Technical details

• Sensor accuracy: ± 1° (to 180°)
• Operating temperature: 10–45 °C
• Power supply: Battery
• Operating time: 2 weeks (12 min / day)
• Standby time: 11 weeks
• Charging time: 2 hours

Package contents

• 1 Meloq EasyAngle - Digital goniometer
• 1 USB cable
• Multilingual operating instructions
