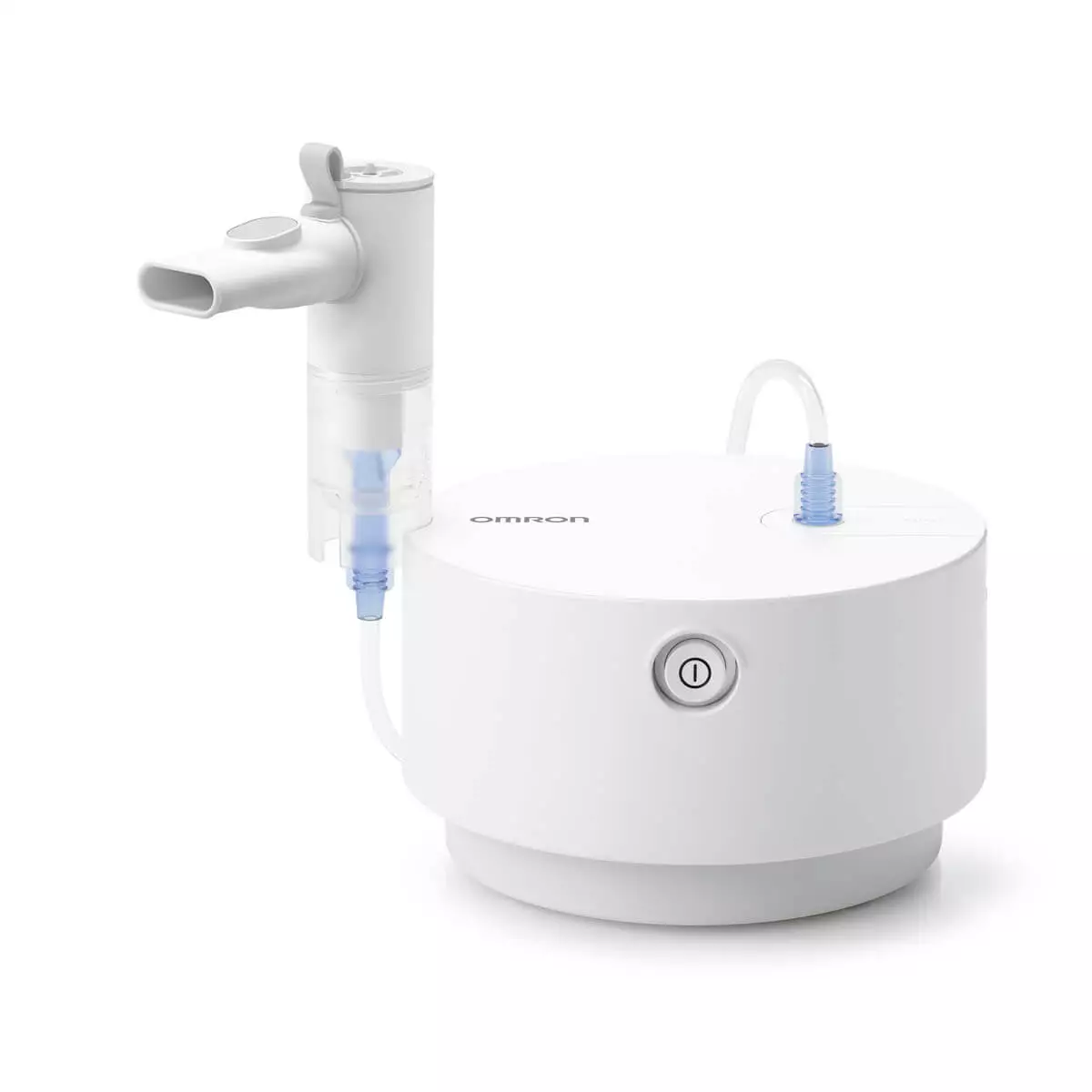

OMRON CompAIR C28P inhalation device

The OMRON CompAIR C28P inhalation device is a compressor nebulizer for the treatment of upper and lower respiratory tract diseases. It was developed in collaboration with respiratory therapists and convinces with a stable design for intensive use. The nebulizer combines a short inhalation time with efficient medication delivery thanks to the powerful compressor and Virtual Valve Technology (V.V.T). For this, the CompAIR C28P inhalation device allows adaptation to the breathing rhythm and reduces drug loss during exhalation.

Product details

• Compressor inhaler with Virtual Valve Technology
• For the treatment of asthma, COPD, chronic bronchitis, allergies, cystic fibrosis, emphysema and other respiratory diseases
• Compressor inhaler for adults, children and babies
• Powerful compressor for high efficiency
• Short inhalation time
• Stable with frequent use
• Easy and quick cleaning
• Compatible with a wide range of medications
• Nebulizer set made of easy-to-clean polypropylene
• Nebulizer does not require silicone valves
• Dimensions: L 18 x W 18 x H 10.4 cm
• Weight: 1,87 kg

Treatment of respiratory diseases in adults, children and babies

The OMRON CompAIR C28P inhalation device is suitable for the treatment of patients from infancy to adulthood. It can be used for inhalation of saline solutions for upper respiratory tract infections as well as for nebulization of medications to treat the lower respiratory tract. The nebulizer is particularly easy to use due to its simple one-button operation and is therefore also suitable for use by children.

Technical details

• Operating temperature: 10 to 40 °C
• Operating humidity: 30 - 85 % RH
• Humidity (without condensation): 700 to 1060 hPa
• Drug capacity (tank): Max. 7 ml
• Aerosol output: 0.4 ml (2 ml, 1 % NaF)
• Aerosol output rate: 0.09 ml/min (2 ml, 1 % NaF)
• Nebulization rate: 0.5 ml/min
• Particle size (MMAD): 3.0 μm
• Drug dosage: 2-7 ml
• Protection class II, type BF
• Operating noise level: 60 dB
• Mains voltage: 260 VA

Scope of delivery

• 1 OMRON CompAIR C28P inhalation device
• 1 nebulizer set
• 1 mouthpiece
• 1 nose piece
• 1 air tube (PVC) size 150 cm
• 5 air filters
• 1 adult mask (PVC)
• 1 child mask (PVC)
• 1 carrying bag
• 1 instruction manual
