HEINE Optotechnik HEINE BETA 200 LED skiascope

For easy observation of the fundus reflex, HEINE has developed the BETA 200 skiascope with bright LED illumination and parastop function. The homogeneous and bright illumination produces a precise band of light that is 1.1 mm wide. Focussing and rotation of the image are adjusted with a thumb movement via the adjustment ring on the instrument. The parastop can be used to limit the stroke of the focusing ring, so that the beam path is parallel in the upper position. This function makes it easier to find the cylinder axis and adjust the parallel beam precisely. The brightness of the LED illumination can be dimmed smoothly on the handle of the BETA 200 to set an individual comfortable light for each patient.

Product details

• Hand-held instrument for skiascopy
• Precise LED light band for a very bright, clearly visible fundus reflex
• Single control for vergence and line rotation
• Comfortable thumb operation
• ParaStop for quick adjustment of the parallel beam path
• Good coverage of the orbital cavity, stray light is largely eliminated
• Proven LEDHQ illumination with high colour rendering index
• Integrated polarisation filter against stray light and internal reflections
• Dimmable between 3-100%
• With state-of-the-art, multi-coated optics
• Maintenance-free and dustproof
• BETA rechargeable battery (3.5 V) with Li-ion technology
• Line width: approx. 1.1 mm (ISO 12865 standard < 1.5 mm)
• Line length: 35 mm
• Including forehead rest for spectacle wearers
• Available in different handle versions:
• BETA4 USB charging handle (3.5 V) including USB cable and plug-in power supply unit
• BETA4 NT charging handle (3.5 V) including NT4 table charger
• 5 years of warranty: For more information, visit HEINE Optotechnik's guarantee conditions.

Package contents

• 1 HEINE BETA 200 LED skiascope
• 1 BETA4 NT charging handle (3.5 V) including Li-ion rechargeable battery

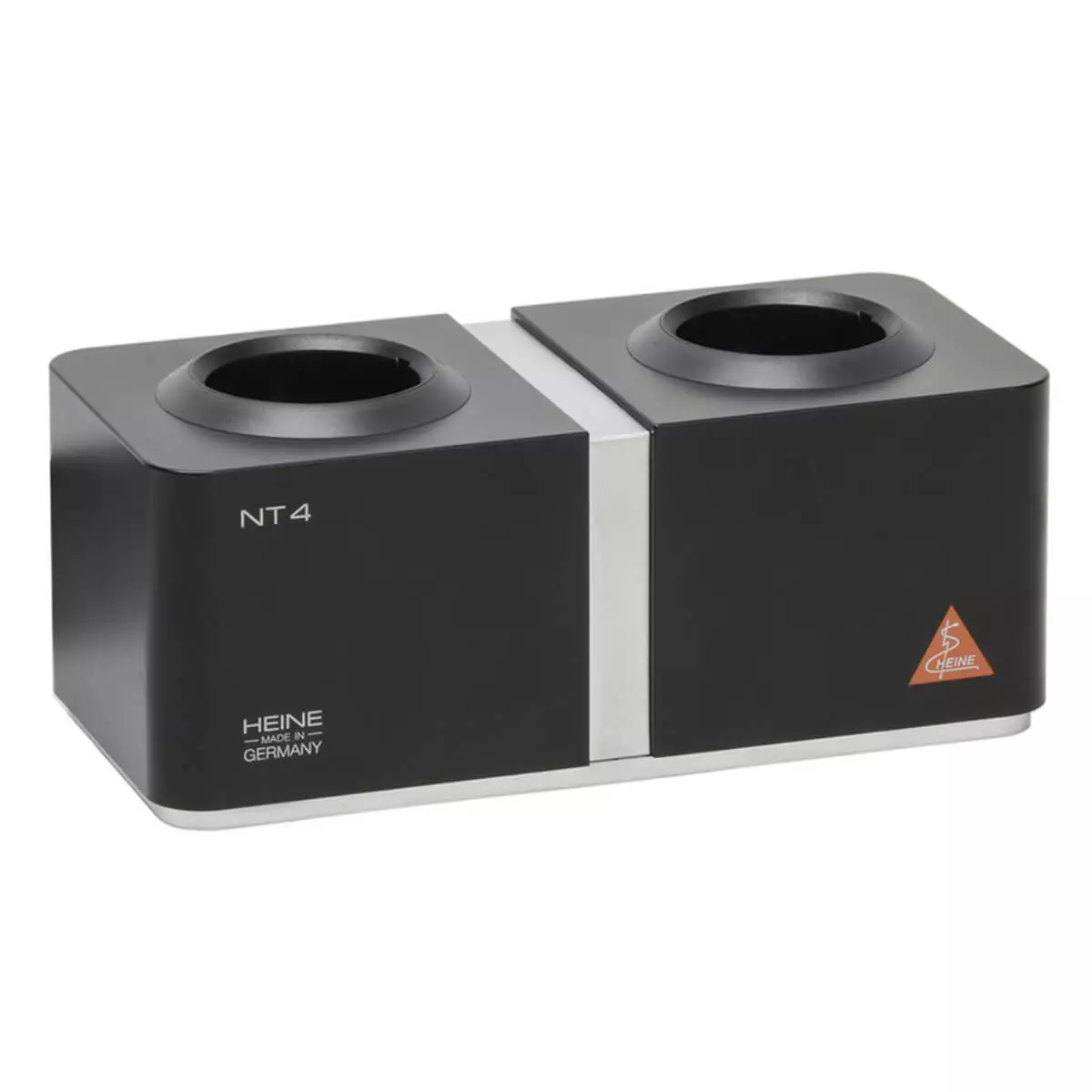

• 1 NT4 table charger
• 1 forehead rest
• 1 hard case
