Welch Allyn PanOptic Plus ophthalmoscope head with iExaminer

The Welch Allyn PanOptic Plus ophthalmoscope head is a direct wide-angle ophthalmoscope featuring a long-lasting SureColor LED light source. On the patient side, the PanOptic Plus ophthalmoscope is equipped with two colored LEDs that guide the patient’s gaze and enable improved alignment with the optic disc.

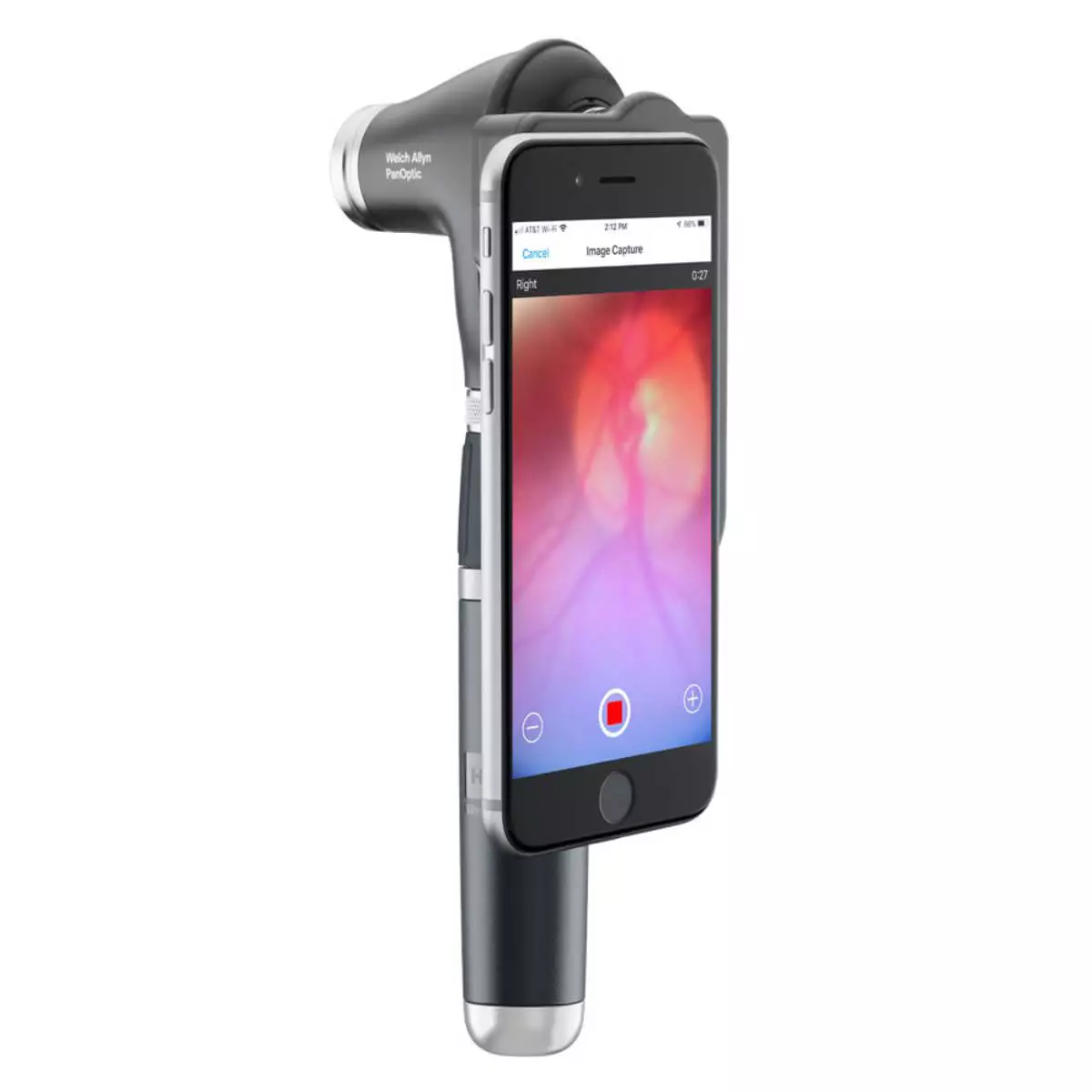

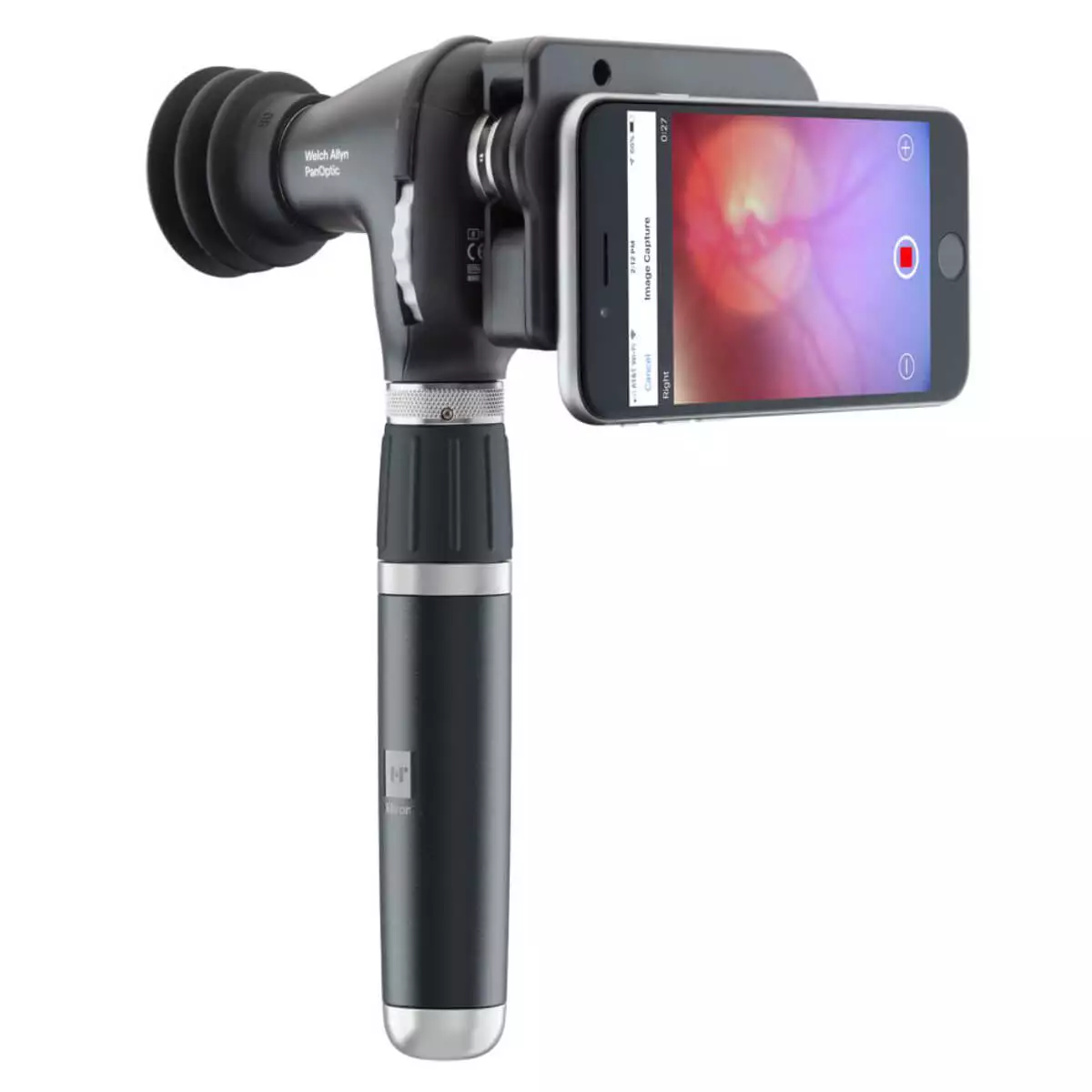

With the iExaminer system, it becomes a digital ophthalmoscope. The SmartBracket attaches to the camera of a compatible smartphone and is secured to the instrument head. The free iExaminer Pro app is available for iOS and Android and supports, among other functions, the selection of the best images from a 30-second examination recording.

Product details

• Ophthalmoscope head with direct LED illumination
• PanOptic technology for a field of view 20 times larger than a standard ophthalmoscope
• With Quick Eye Alignment for guided alignment of the patient’s gaze
• iExaminer kit for digital imaging with mobile devices and free iExaminer Pro app:
• Store and share examination images in the iExaminer Pro app
• Facilitates patient communication through meaningful images
• Clip-on holder for mobile devices with a rigid case
• Usable in vertical or horizontal orientation
• 7 different apertures, incl. red-free and cobalt filters
• Easy operation via focusing wheels
• Robust design with DuraShock technology
• Compatible with lithium-ion diagnostic instrument handle (719-3)
• Incl. patient eyecup, SmartBracket shell, and SmartClip for attachment to a mobile device

Use of the iExaminer Pro system

The iExaminer Pro system can be combined with the latest Welch Allyn devices MacroView Plus and PanOptic Plus. Using the free iExaminer Pro app on a personal smartphone makes transitioning from optical examination to digital image capture particularly easy. The SmartBracket is attached to the camera of a compatible smartphone and mounted on the instrument head.

Technical details

• Illumination: LED, cross-linear polarization
• Diopter range: -20 to +25 D
• Voltage: 3.5 V
• iExaminer Pro app file size: 18.1 MB
• iExaminer Pro app languages: German, English, French, Dutch, Spanish, Turkish, and more
• iExaminer Pro app compatibility:
• Software version 4.0.x for iOS versions 11 or later
• Software version 3.1.x for Android 7.0 or later
• Requirements for using the iExaminer system:
• Size (smartphone + case): <165 mm long, <85 mm (3.3 in) wide, <13 mm (0.5 in) thick
• Weight (smartphone + case): <280 g
• Camera resolution: at least 8 MP
• Display: ≥101 mm (4 in)
• Hardware: ≥500 MB internal memory
• Software: support for JPEG images

Package contents

• 1 Welch Allyn PanOptic Plus ophthalmoscope head with iExaminer
• 1 iExaminer SmartBracket adapter
• 2 SmartBracket clips
