Welch Allyn Diagnostic kit with MacroView Basic otoscope

The Welch Allyn diagnostic kit includes a MacroView Basic otoscope and an ergonomic rechargeable handle, all in a handy case. The MacroView Basic otoscope features bright LED lighting, 5× magnification, and wide-angle optics for an expanded field of view. Thanks to the increased depth of field, manual focusing is no longer required. During otoscopic examinations, the instrument can therefore be used comfortably even while wearing prescription glasses. The DuraShock technology protects the robust otoscope from damage in demanding clinical and practice environments, making it impact-resistant and durable.

Product details

• MacroView wide-angle optics with a field of view up to 3× larger than a standard otoscope
• Focus-free design thanks to extended depth of field
• Long-lasting SureColor LED light source for uniform illumination
• Integrated dimming function via the rubberized handle grip
• Rechargeable lithium-ion battery with approx. 120 minutes of operating time
• With insufflation port for pneumatic testing
• Easy instrument change via bayonet mount with 90° rotation
• Compatible with the Welch Allyn universal charger and PanOptic ophthalmoscope head
• Up to 8× brighter views when used with the light-transmitting LumiView ear specula (accessory) compared to black ear tips
• Incl. USB charging cable and zippered case

Technical details

• Otoscope head dimensions: H 7 × W 4.5 × D 5.5 cm
• Handle dimensions: 19.1 × 12.5 × 8.1 cm
• Handle material: PC/ABS plastic (polycarbonate/acrylonitrile butadiene styrene)
• Magnification: approx. 5×
• Illuminance: 5,200 lx
• Color rendering index (CRI): 95
• Color temperature: 3,400–4,500 K
• Field of view: approx. 7 mm (at 15 mm)
• Voltage: 3.5 V

Package contents

• 1 Welch Allyn diagnostic set with MacroView Basic otoscope, containing:

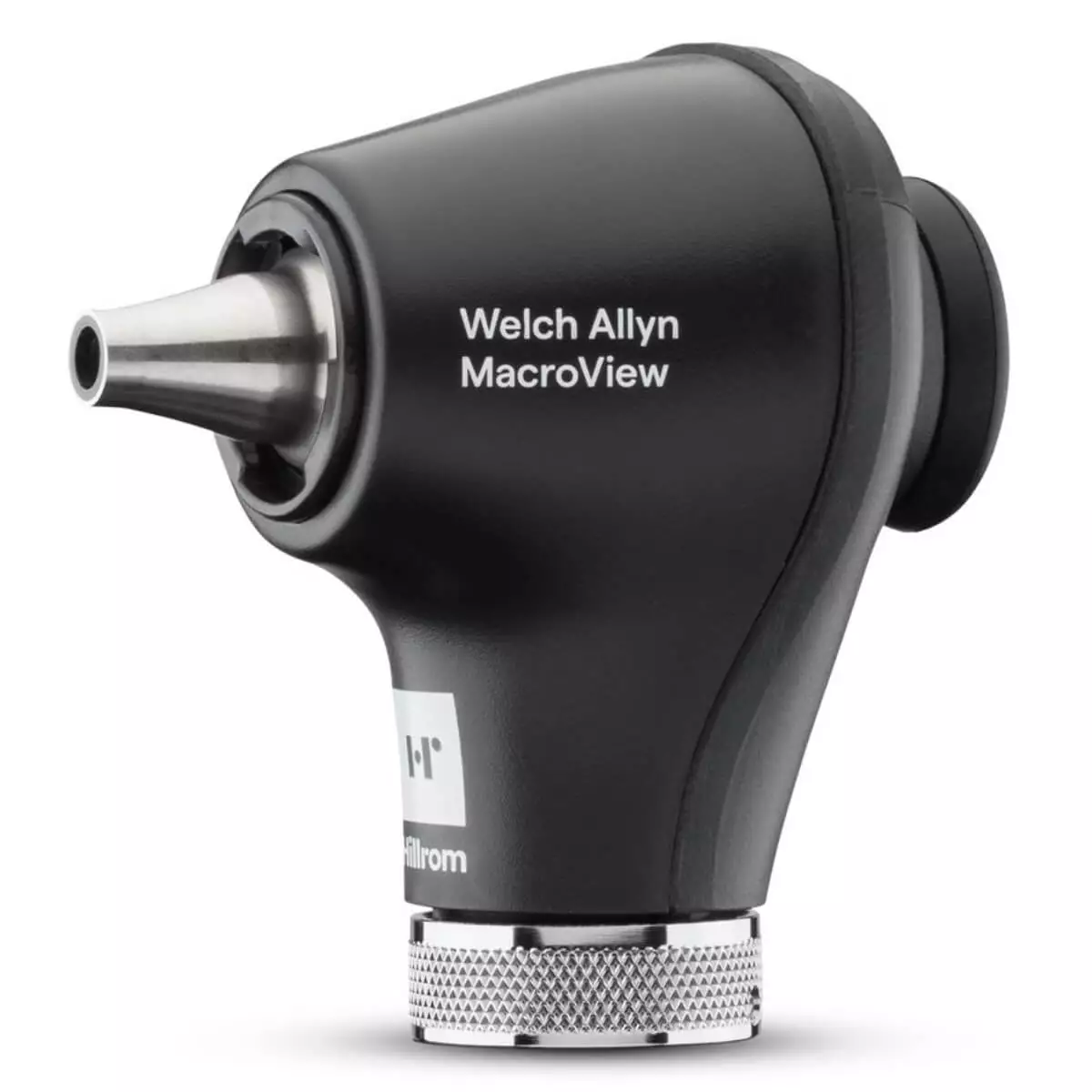

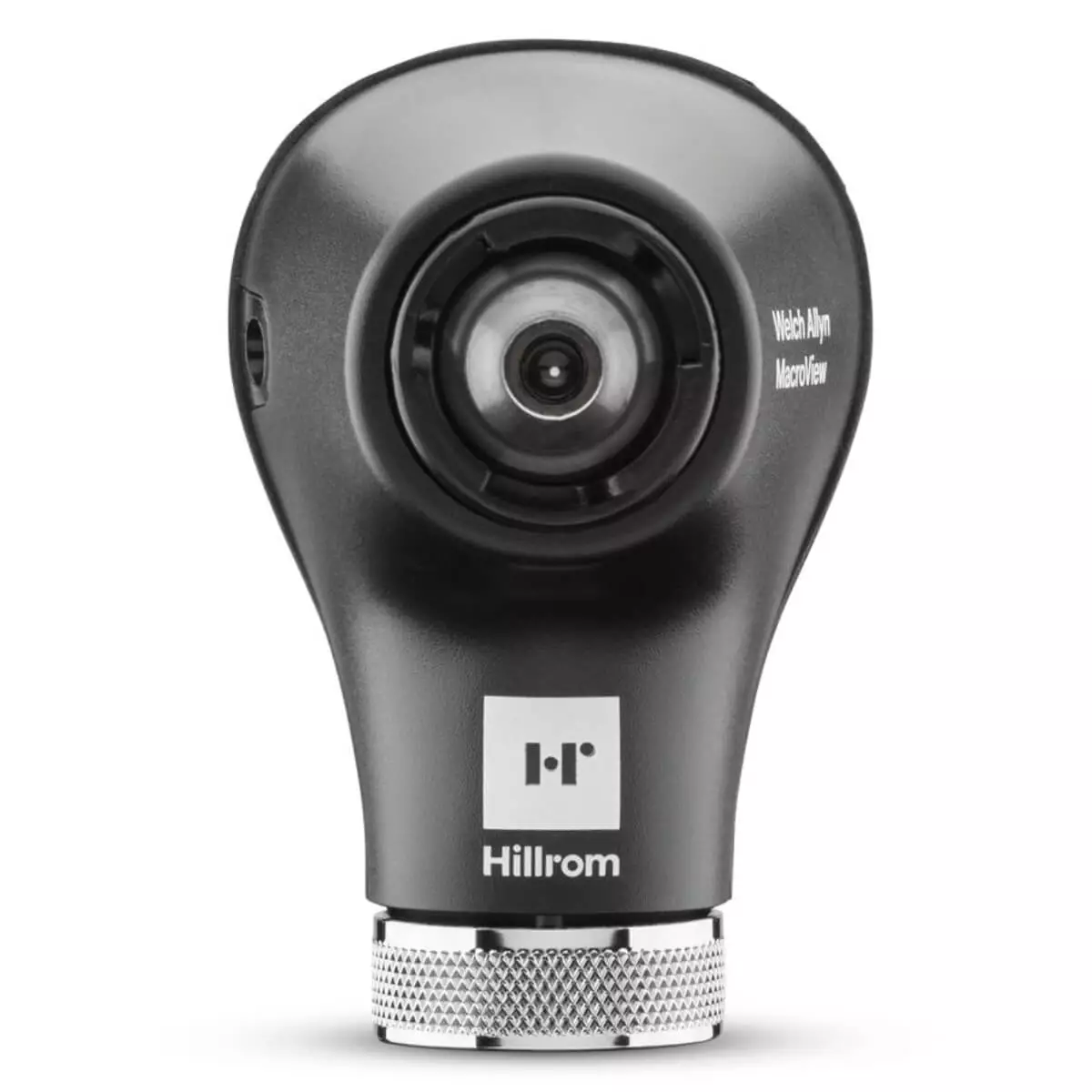

• 1 Welch Allyn MacroView Basic otoscope head
• 1 Welch Allyn lithium-ion handle
• 1 USB-C charging cable (50 cm)
• 1 case
• Instructions for use
