MICROMED Surgical instrument kit for MDV touch 200 electrosurgical unit

The MDV touch 200 surgical instrument kit is suitable for the MICROMED MDV touch 200 electrosurgical unit. It includes a broad selection of eletcrodes for electrosurgical procedures and enables both monopolar and bipolar applications. The ergonomic MicroPen handpiece with dual button allows precise control of monopolar functions. Various HF electrode shapes, including needle, knife, and wire loop electrodes, provide flexibility for different surgical indications. For safe use in monopolar mode, single-use neutral electrodes for adults and children over 5 kg are included. For bipolar procedures, a suitable pair of forceps with connection cable is provided. The dual-pedal foot switch allows separate control of functions directly at the operating table. Thanks to its pre-configured composition, the kit is ideal for immediate use in everyday clinical settings.

Product details

• Compatible with the MICROMED MDV touch 200 electrosurgical unit
• Suitable for monopolar and bipolar applications
• Red handpiece with dual button for 4 mm electrodes for precise operation
• Various HF electrodes for surgical indications
• Incl. single-use neutral electrodes
• Incl. dual-pedal foot switch for separate control
• MD class IIb
• Made in Germany

Technical specifications

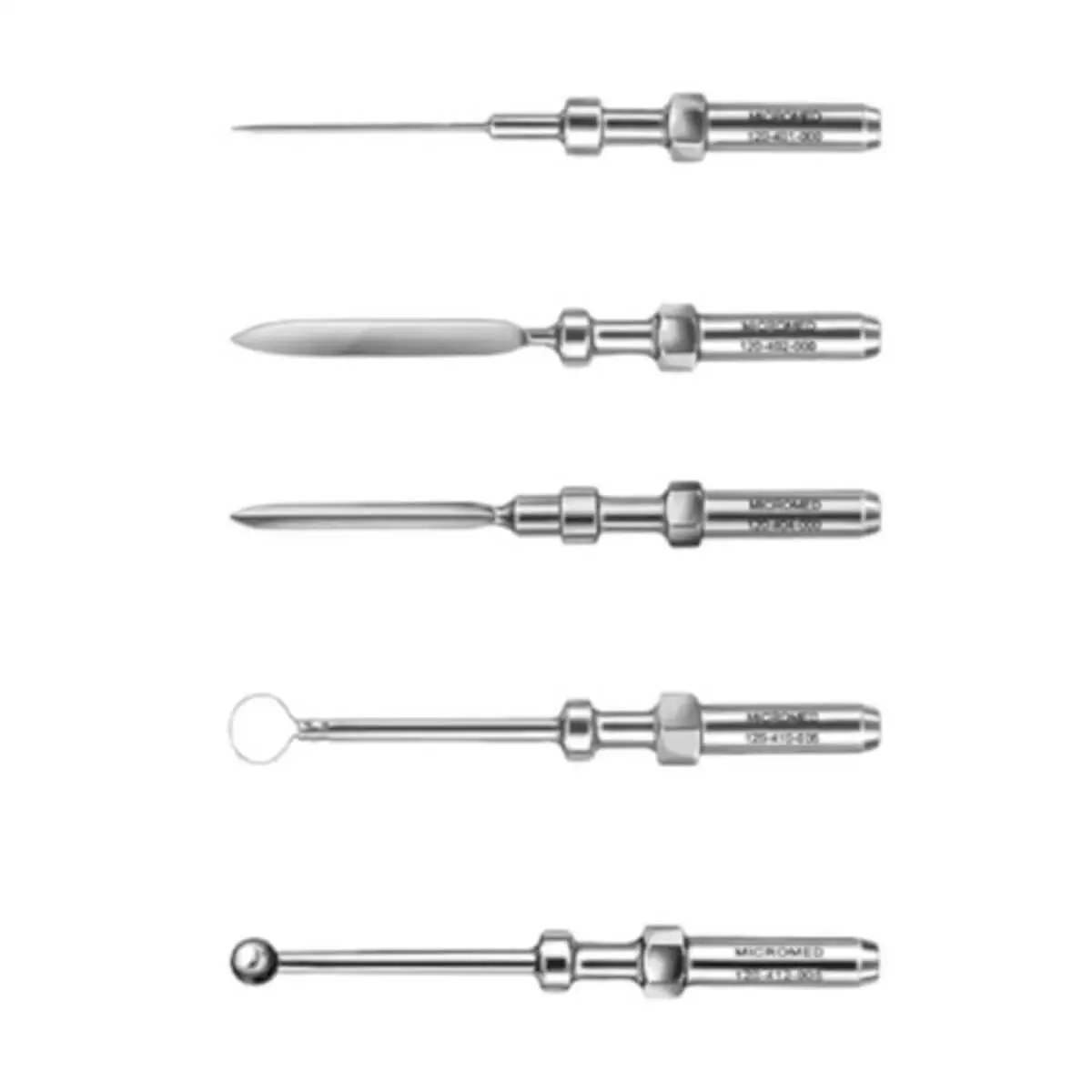

• HF electrode shapes:
• Needle: straight, 22 x 0.8 mm, length 40 mm, shaft Ø 4.0 mm
• Knife: straight, shaft Ø 4.0 mm
• Wire loop: Ø 5 mm, shaft Ø 4.0 mm
• Ball: Ø 5 mm, shaft Ø 4.0 mm
• Lancet: straight, shaft Ø 4.0 mm
• Bipolar forceps: straight, blunt, 1.0 mm tip, length 160 mm
• Bipolar clamp: curved, 9 mm serrated jaws, black insulated, length 230 mm
• Single-use neutral electrode: adult/child, two pads, >5 kg, contact area 108 cm², box of 100
• Connection cable for MicroPen handpiece compatible with HF devices from MICROMED, Aesculap, KLS Martin, and Siemens
• Cable for single-use neutral electrodes compatible with HF devices from MICROMED, Aesculap, Berchtold, Integra, and KLS Martin

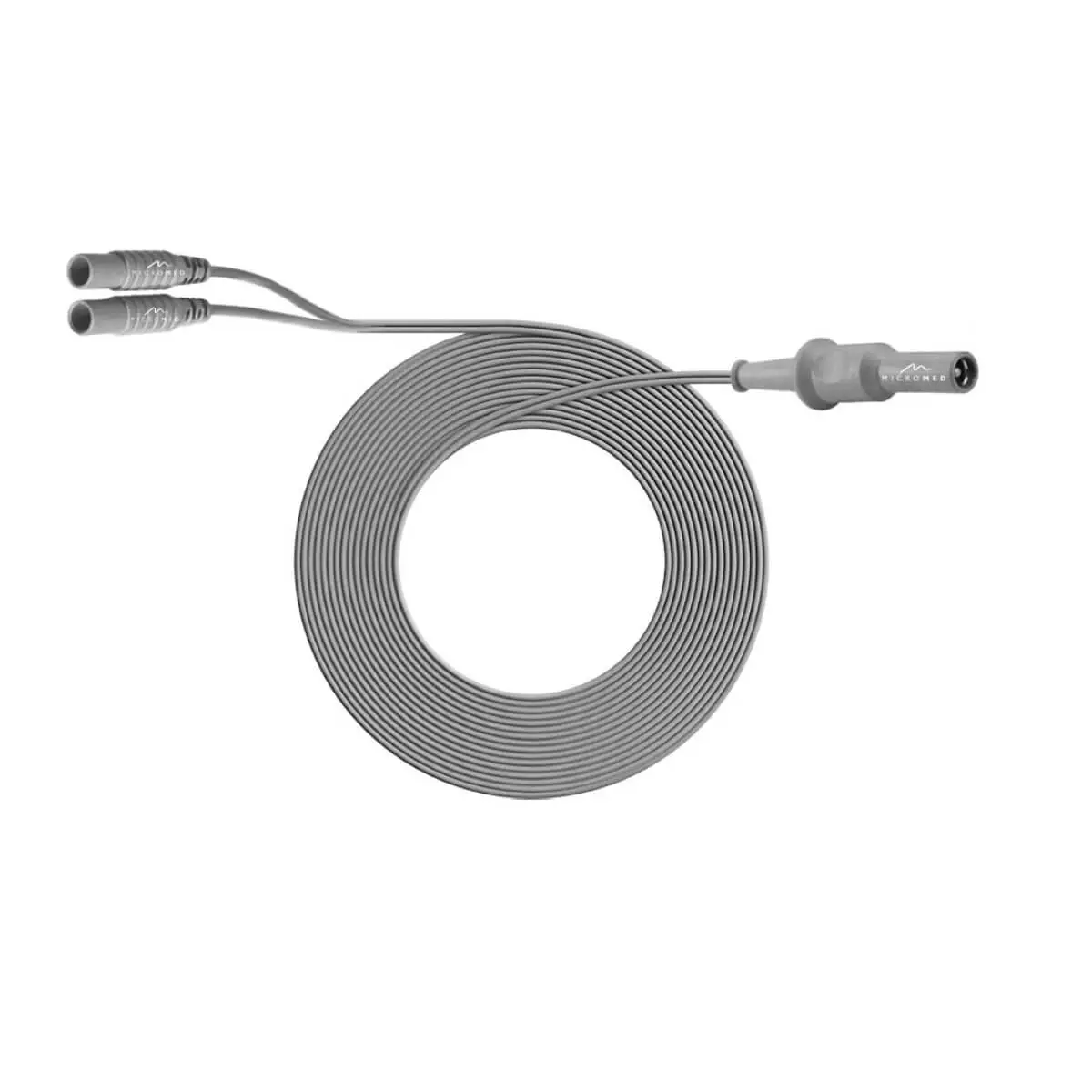

• Bipolar cable compatible with HF devices from MICROMED, Aesculap, Berchtold, KLS Martin, Meyer Haake, Sutter, and Hüttinger
• All cable lengths: 5 m
• Foot switch: dual-pedal, 4-pin plug, compatible with MD 100 and MDV touch 200

Package contents

• 1 MICROMED surgical instrument kit for the MDV touch 200 electrosurgical unit, consisting of:
• 1 MicroPen
• 1 connection cable for MicroPen
• 1 needle electrode
• 1 knife electrode
• 1 lancet electrode
• 1 wire loop electrode
• 1 ball electrode
• 100 single-use neutral electrodes
• 1 cable for single-use neutral electrodes
• 1 bipolar forceps
• 1 bipolar connection cable
• 1 bipolar clamp
• 1 connection cable for bipolar clamps and Ethicon scissors
• 1 dual-pedal foot switch
