Weinmann OXYWAY Fine I pressure reducer
€202.83*
Not available

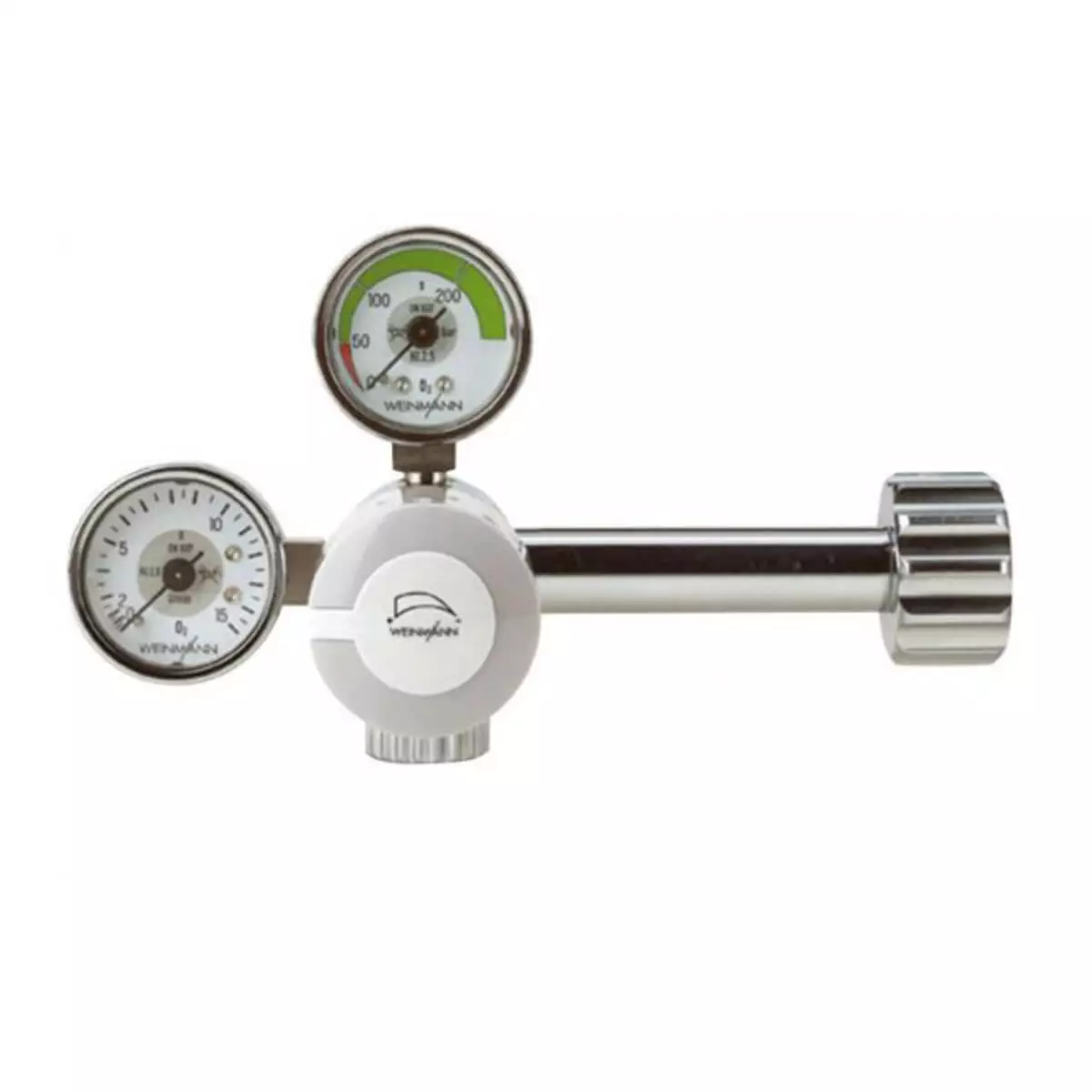

OXYWAY Fine I pressure reducer by Weinmann
The Weinmann OXYWAY Fine I pressure reducer is the safe, accurate and flexible way to regulate oxygen. An ultrasonically tested high-pressure housing guarantees the safe use of oxygen cylinders. In addition, the pressure reducer features a double sintered filter and an explosion-proof pressure gauge.
Product details
- Pressure reducer for oxygen cylinders
- Oxygen continuously adjustable from 0,5-15 l
- Flow stages: 0.5-3 l / 1.5-8 l / 3-15 l
- Clear displays
- For the use of a nasal cannula, an additional connection nozzle for inhalation is required
The Weinmann OXYWAY Fine I pressure reducer revolutionizes oxygen medicine. It is the particularly reliable, repeatedly tested alternative to conventional pressure reducers. The OXYWAY Fine I is a system that guarantees safety and explosion protection when used in the proper handling of oxygen and oxygen cylinders.
Technical details of the OXYWAY Fine I pressure reducer
- Dimensions: 119 x 239 x 94 x 100 mm
- Weight: 730 g
- High pressure connection: G 3/4
- Connection bolt: 80 mm right
- Oxygen flow: 3-15 l / min.
- Nominal inlet pressure: 200 bar
- Nominal outlet pressure: 0,5-6,0 bar
- Outlet: UNF 9/16
- Product class: II b
- Met standard: DIN EN ISO 10524-1 : 2006
Scope of delivery
- 1 Weinmann pressure reducer OXYWAY Fine I
Product identification
| Product number | 281580 |
|---|---|
| Manufacturer name | Weinmann |
| Manufacturer item no. | WM30531 |
| EAN | 2000000029641 |
Accessories
The replacement seals from Weinmann are required to ensure a safe oxygen line . After each cylinder change or disassembly of an OXYGEN pressure reducer, the corresponding line should be subjected to a functional check. In addition to the visual inspection for mechanical damage, a leak test is also necessary. Weinmann's O-rings are made of pressure-resistant plastic and ensure that no leaks occur after a cylinder change. Product details Durable O-rings for secure mounting of a pressure reducer Suitable for OXYWAY models Fix (I - III), Fine I, Fast (I - III) and Click Establishes a connection between oxygen cylinder or wall connection and pressure reducer For a tight oxygen line without leakage One set corresponds to 4 O-rings in 2 sizes each Color: Black Material: Plastic Scope of delivery 1 Weinmann set of replacement seals for OXYWAY pressure reducer The pictured pressure reducer is not included.
