Ambu Mark IV Artificial Respiration Bag
For adults
€196.68*
Not available

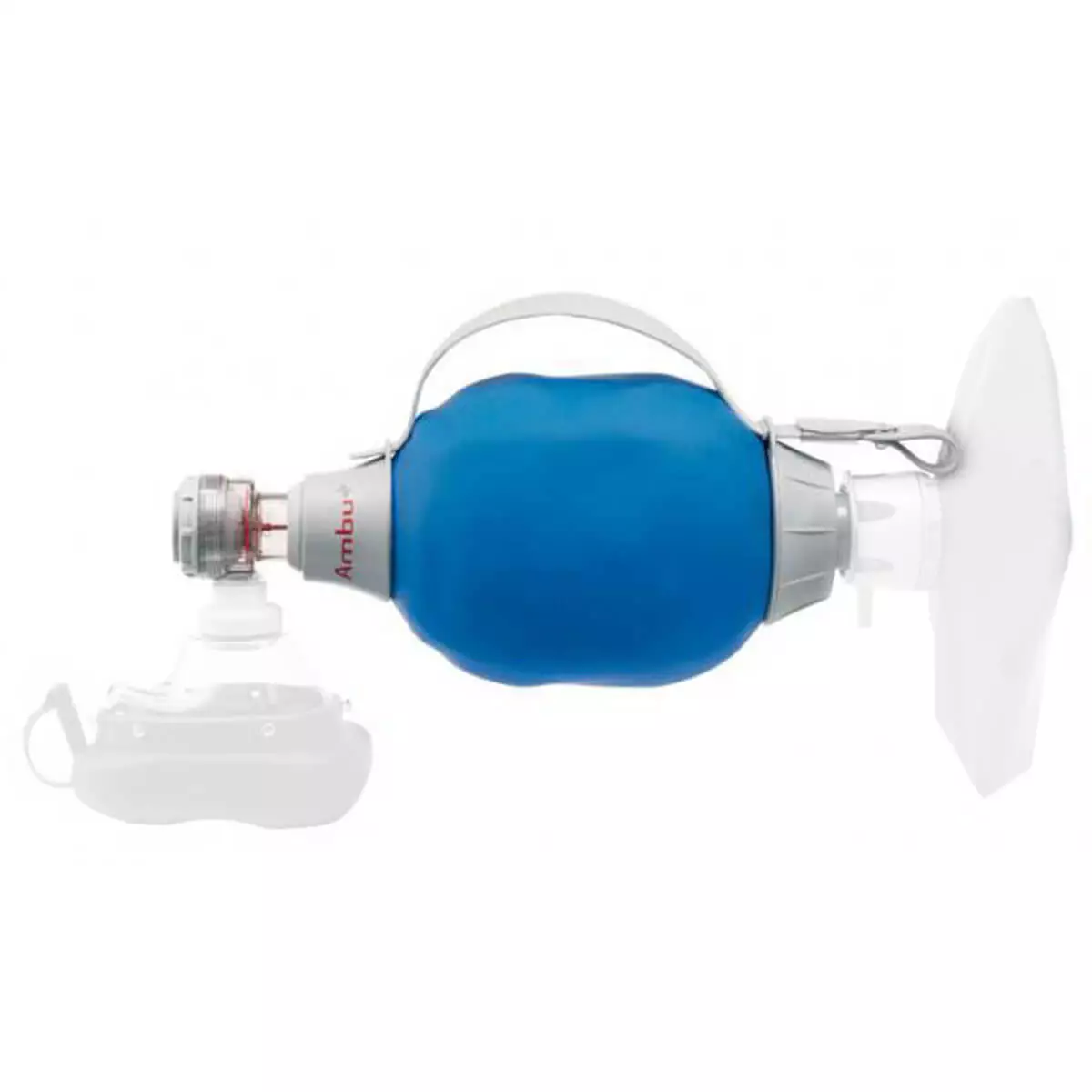

Mark IV Artificial Respiration Bag by Ambu
The Ambu Mark IV is available in an adult version and a baby version.
Both respiration bags are easy to use and completely autoclavable, including the reservoir bag.
Specially designed with close attention to the proven double-chamber principle. This enables the users to feel the respiratory pressure, which makes artificial respiration safer. Because of the integrated pressure limiter, the user can tell easily and safely, whether the airways are free. With the Mark IV generation, you only need two respiration bags to treat children and adults, as well as babies.
- with double chamber and pressure limiter
- autoclavable to 134°C
- latex-free
- O²-reservoir optionally available
| Interior bag | Silicone |
| Outside cover | Silicone |
| Patient valve housing | PSU |
| Patient valve connection | PSU/Silicone |
| Pressure-limiting valve | PSU/stainless steel |
| Deactivation cap | Silicone |
| Expiration connector | reinforced PP |
| Covering for manometer connectivity | PP/EPDM |
| Inlet valve housing | POM |
| Reservoir hose | PE |
| Valve membrane | Silicone |
| Hand loop | Silicone |
| Engraving plate | Aluminum |
| Window with clip | PSU |
| Connector | POM |
| Oxygen reservioir bag | PES/TPU |
| Adapter for oxygen reservoir bag | Silicone |
| Reservoir housing incl. flange and flange nut | POM/reinforced PP |
| Oxygen connector hose | EPDM |
| Adapter for hose connector | POM |
| Extension hose (Gooseneck) | EPDM |
Consumers do not have a right of withdrawal for sealed goods that are not suitable for return for reasons of health protection or hygiene, if the seal has been removed after delivery.
Product identification
| Product number | 293227 |
|---|---|
| Manufacturer name | Ambu |
| Manufacturer item no. | 304003000 |
| EAN | 2000000036816 |
1 review
Berenike
24 May 2022
sehr guter Ambubeutel, prima handling
Accessories
The oxygen reservoir is suitable for connection to the Ambu Mark IV and Ambu Silicone resuscitator. For manual ventilation of patients with insufficient respiration, the oxygen content should be as high as possible. Therefore, this reusable bag can be connected to the Ambu Mark IV and Ambu Silikon and enables ventilation with an oxygen percentage of up to 100%. The aid for increasing the oxygen concentration is supplied complete with housing and flange nut and can be connected to the inlet valve of the resuscitation bag. Product details Reusable oxygen reservoir Fits Ambu Mark IV and Ambu Silicone breathing bags For adults and children with a body weight of more than 15 kg Autoclavable up to 134°C Material: PES/TPU (bag); Silicone (adapter); POM/Reinforced PP (reservoir housing incl. flange and flange nut) Latex-free Inspriratory resistance of oxygen reservoir (without connection of oxygen):- at 50 l/min -0.1 kPa (-1.0 cm H2O) - at 5 l/min -0.01 kPa (-0.1 cm H2O) Adult oxygen concentration:- 13 l/min O2: FiO2 85-100 % - 4 l/min O2: FiO2 > 40 % Volume O2 reservoir: 1500 ml Scope of delivery 1 Ambu oxygen reservoir
