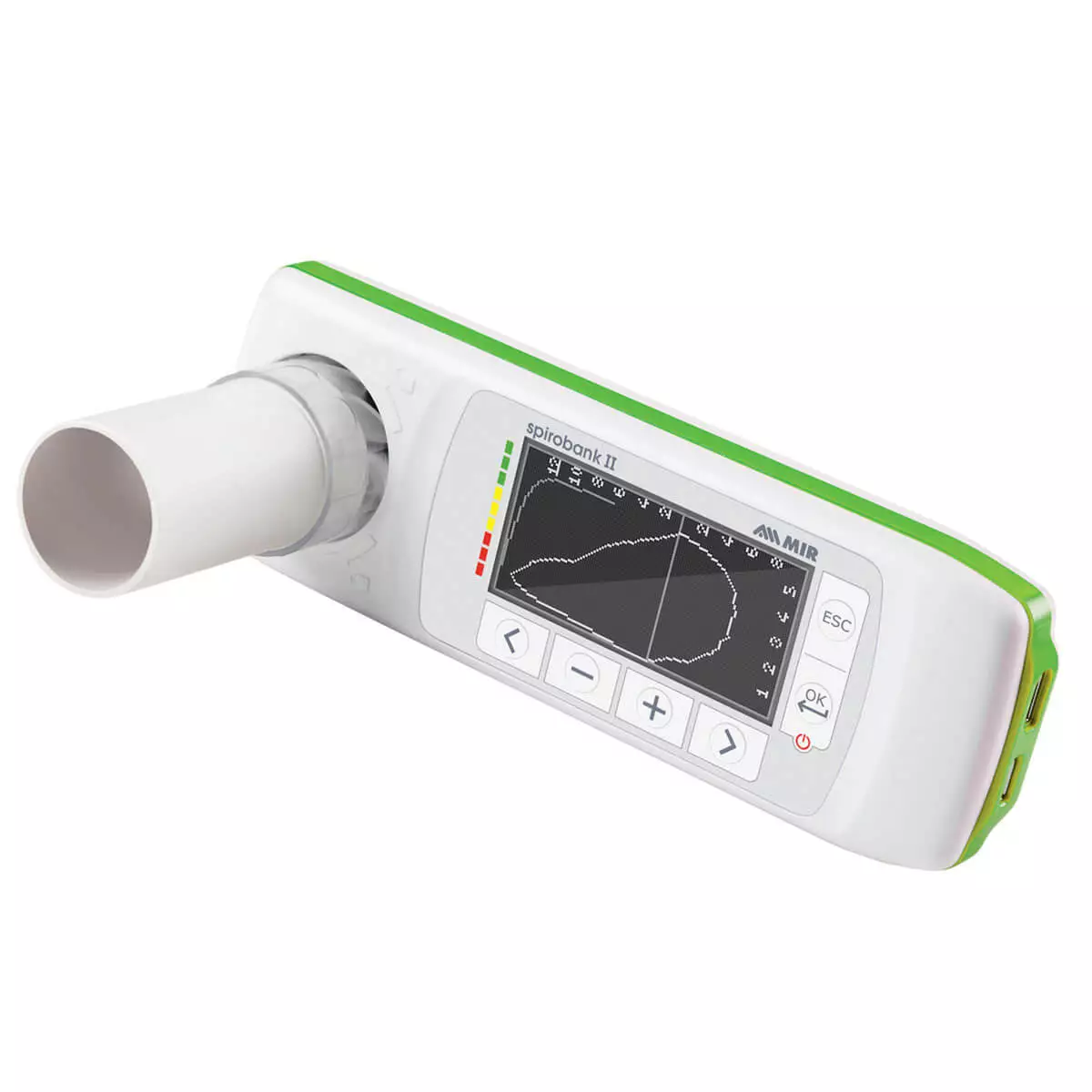

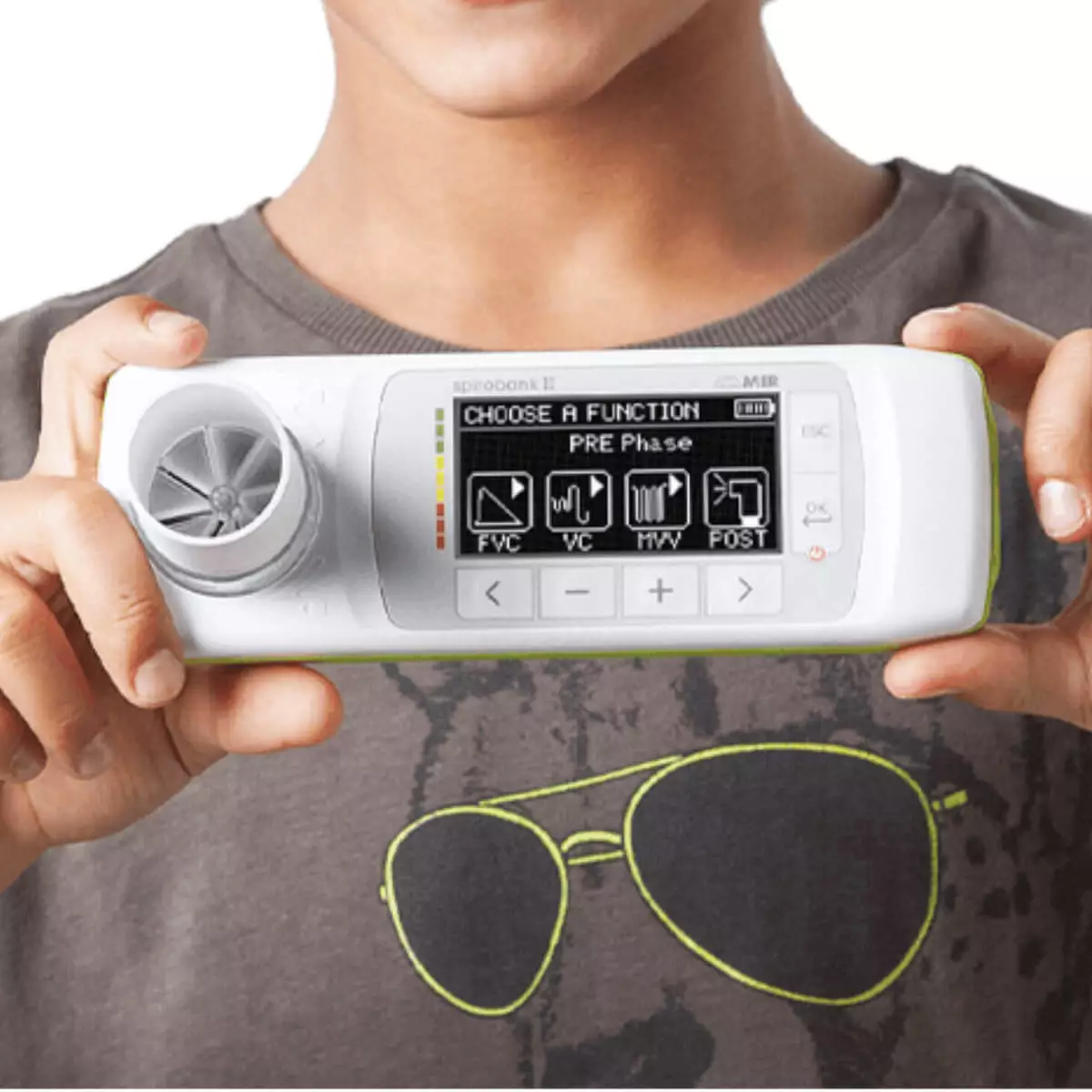

MIR MIR Spirobank II BASIC Spirometer

The Spirobank II BASIC from MIR is the ideal spirometry companion in pneumology and general medicine fields. It fits into any coat pockets thanks to its compact format, and its long battery life will ensure you can use it any time. The Spirobank II can be easily connected to the computer via USB cable: even more functions and parameter selection! The supplied Spiro 2.0 PC software allows you to perform examinations that follow either predefined settings or specific real-time tests. You can operate and set the device with the large membrane keypad or a standard computer keyboard. The GTD interface in HL7 standard can quickly and easily transfer all examination data to the electronic health and patient file.

Product details

• Mobile handheld spirometer for flexible use
• Ideal for the pneumology, general and sports medicine fields
• Use with FlowMIR disposable or reusable turbines.
• Optional PC connection via USB cable
• Smart functionality with Spiro 2.0 PC software
• Real-time display of the spirometry curve on the PC monitor
• Integration with GDT and HL7 interfaces
• Connection to electronic health and patient records (eGA/EHR, ePA/EMR)
• Incl. Spiro 2.0 software for Windows and MacOS
• Incl. an additional activatable premium subscription for 12 months (with exclusive Platinum features of the Spiro 2.0 software)
• Dimensions: L 160 x W 55 x H 25 mm
• Weight: 140 g
• Different versions available

Technical details

• Display: 160 x 80 pixel
• Input: Membrane keyboard (6 keys)
• Connectivity: USB 2.0
• Integration: GDT interface, HL7 standard interface (eGA/EHR, ePA/EMR)
• Internal memory: 10,000 tests
• Power supply: Rechargeable battery
• Battery type: Lithium-ion
• Battery capacity: 1,100 mAh
• Operating temperature: + 10 °C to + 40 °C

Spirometry

• Flow sensor: Bidirectional digital turbine
• Temperature sensor: Semiconductor (0 - 45 °C)
• Maximum volume: 10 L
• Flow rate range: ± 16 l/s
• Volume accuracy: ± 2.5% or 50 ml
• Flow accuracy: ± 5% or 200 ml/s
• Dynamic resistance:
• Parameters: FVC, FEV, DTPEF, PEF, FEF, FET, Vext, ELA, EVOL, FIVC, FIV, PIF, FIF, IRV, VC, IVC, IC, ERV, TV, VE, RR, MVV
• Real-time test: FVC-Pre, FVC-Post, VC-Pre, MVV, Bronchodilator comparison, extrapolated volume, lung age

Spirometry and Oximetry with the Spiro 2.0 Software

The latest MIR spirometry software, Spiro 2.0, is a powerful and easy-to-use desktop solution for spirometry and oximetry. It is ready for current and future Microsoft and MacOS operating systems.
Each MIR Spiro user has their own MyMIR account and benefits from enhanced features for detailed examinations and reliable data evaluation.
It meets the latest data protection and security standards and offers special functions to protect your privacy, such as anonymized printing and data export, as well as a quick setting to hide the patient list.

Free for 1 year – Platinum benefits of the MIR subscription:
When purchasing this device, a 12-month premium subscription is included. Activating the subscription license code unlocks additional features and benefits.

• Platinum support: One remote maintenance session per year and free access to online tutorials on spirometry, software, and device usage.
• Platinum experience: Unlimited updates and upgrades
• Platinum interoperability: Includes the data delivery service for the device, making data easily interchangeable with any customer platform or electronic patient record (EMR)
• Future Platinum features: Customizable user interface/user experience, bronchial challenge test, platinum spirometry trend, MIR SPIRO network version, bidirectional worklist, diagnostic support services (based on human or artificial intelligence)

Features of the Spiro 2.0 software (usable without a subscription):

• Wide range of main measurements, prediction sets, and predicted values
• Complies with the latest ATS/ERS guidelines
• Acceptance measurements, test evaluation, and quality control according to the latest standards
• Spirometry tests and advanced analysis:
• FVC (Forced Vital Capacity), SVC (Slow Vital Capacity), MVV (Maximum Voluntary Ventilation) both PRE and POST bronchodilator with a wide range of selectable parameters
• Summary with FVC, SVC, MVV; FVC history
• Display of FVC progress to compare FVC maneuvers from different measurements
• Primary and secondary reference equations (GLI, NHANES, ERS, KNUDSON, etc.)
• Pediatric display program: Real-time animation to improve patient cooperation
• Many editing tools: e.g., setting the best procedure, deactivating, activating, deleting, restoring measurements, configuring the parameters to be displayed and their order
• Oximetry with specific analysis application:
• Six-minute walk test (6MWT), sleep oximetry, 24-hour Holter saturation with adjustable titration
• Manually add artifacts, such as oxygen administration, status (awake, sleeping, walking), and apply various specific analyses
• Anonymization function: With one click, hide patient lists or remove personal data for data export
• Data import: Import tests from professional MIR devices
• EMR/EHR Integration: Highly interoperability-oriented architecture to optimize workflows and data exchange with EMR/EHR, supporting numerous standards such as HL7, FHIR (Json), GDT, DICOM, exchange protocol, etc.
• Customizable printout: Various templates (ATS2019 standard, winspiro classic, and NioshOsha), selectable report parameters and their order, FVC history, oximetry monitor, 6MWT, sleep oximetry, report with FVC and SVC
• Supports up to 22 languages: Chinese (China), Chinese (Taiwan), Czech (Czech Republic), Dutch (Netherlands), English (UK), English (USA), French (France), French (Belgium), Georgian (Georgia), German (Germany), Hungarian (Hungary), Italian (Italy), Japanese (Japan), Latvian (Latvia), Polish (Poland), Portuguese (Portugal), Romanian (Romania), Russian (Russia), Spanish (Spain), Swedish (Sweden), Turkish (Turkey), Ukrainian (Ukraine)
• Customizable user interface: Configurable according to personal preferences: "MirSpiroLight" (corresponds to the user interface of winspiroLight), "MirSpiroConnect" (corresponds to the user interface of spiroConnect), "MirSpiroXpress" (replicates the usability of winspiroXpress)
• System requirements:
• For MacOS: Operating system 10.13 / 2 GB RAM (4 GB recommended) / 1 GB free hard disk space
• For Windows: 7, 8, 10, 11 / RAM: 1 GB/32 bit or 2 GB/64 bit / Processor: 1 gigahertz (GHz) or higher, with two or more cores in a 64-bit processor / 1 GB free hard disk space
• Administrator rights for the operating system
• USB port, possibly support for Bluetooth Low Energy (Smart Bluetooth)

Package contents

• 1 MIR Spirobank II BASIC Spirometer
• 1 nose clip
• 1 carrying bag
• 1 USB connection cable
• 1 WinspiroPRO software license

You may need an internet connection to use the PC software.

The depicted MIR FlowMIR single-use turbine is not included in the package contents.
