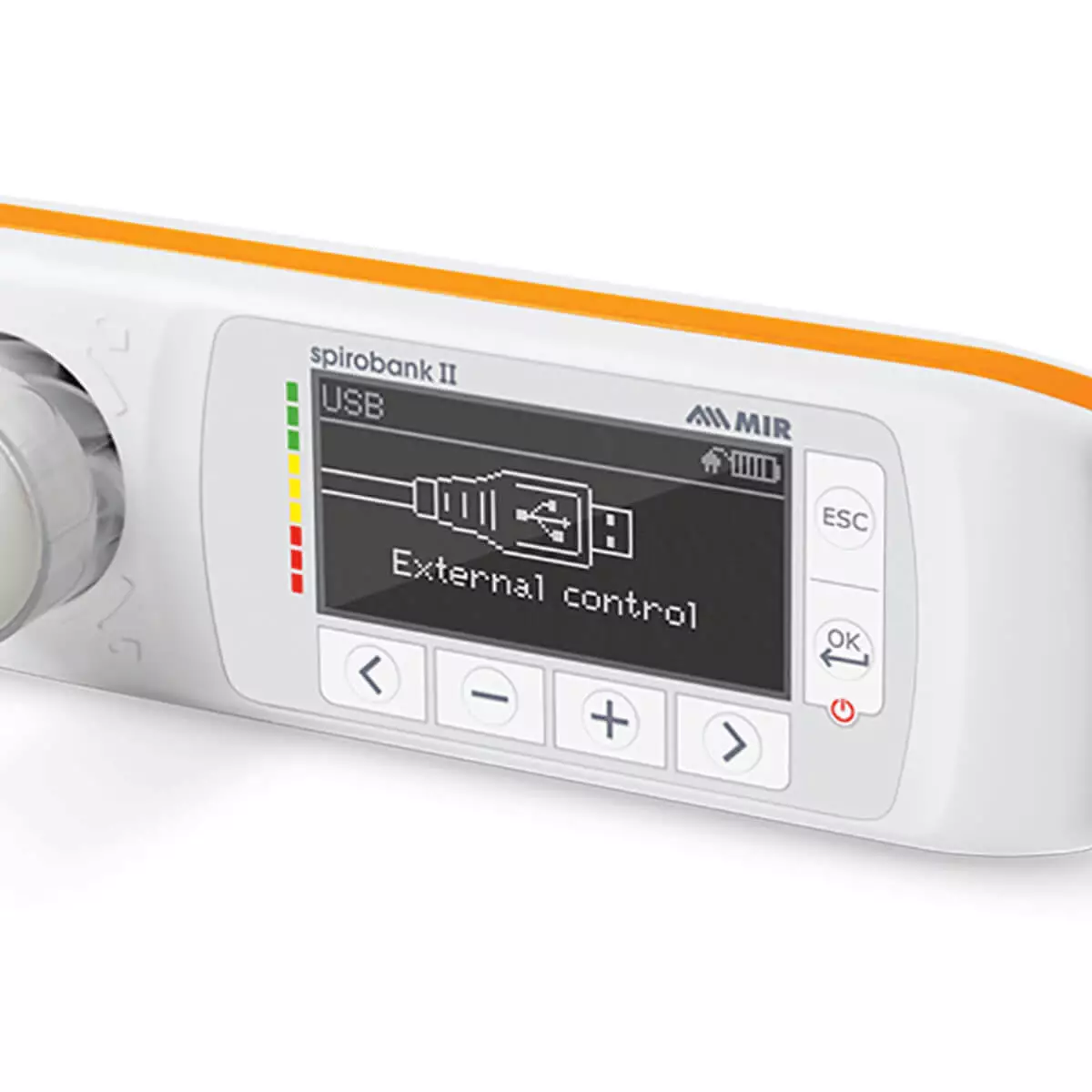

MIR Spirobank II Smart spirometer

MIR’s versatile Spirobank II Smart is a reliable companion for spirometry examinations in the health facilities. The compact stand-alone device is compatible with tablets (iPad and Android) and PCs via Bluetooth and USB. Spirobank II Smart is perfect for mobile and stationary lung function measuring. It is also available with an additional oximetry function which includes a finger sensor. The high-resolution display can display the SpO2rate, pulse rate, and plethysmographic curve. Combined with the supplied Spiro 2.0 PC software, the modern spirometer gets even more smart additional functions, like patient-specific trend charts or an entertainment mode which motivates children during paediatric examinations. The predefined sets and extensive parameters support a detailed check-up of the patient’s lung health.

Product details

• Professional handheld spirometer as a stand-alone device
• Connectivity with PC and tablet (iPad and Android) via Bluetooth and USB
• Optionally with oximetry measurement incl. finger sensor:
• Use with FlowMIR disposable or reusable turbines.
• With traffic light display and test analysis on the display
• Optional PC connection with supplied Spiro 2.0 PC software
• Integrated Virtual Assistant for support during and after the examination
• Connection to electronic health and patient records (eGA/EHR, ePA/EMR)
• Real-time display of the spirometry curve and test results
• Incl. Spiro 2.0 software for Windows and MacOS
• Incl. an additional activatable premium subscription for 12 months (with exclusive Platinum features of the Spiro 2.0 software)
• Dimensions: L 160 x W 55 x H 25 mm
• Weight: 140 g
• Different versions available:
• Without additional function, with standard accessories
• With reusable turbine for use with cardboard and plastic mouthpieces
• With oximetry function (retrofitting not possible) incl. soft finger sensor for adults
• With oximetry function (retrofitting not possible) incl. soft finger sensor for adults and reusable turbine

Technical details

• Internal memory: 10,000 spirometry tests
• Display: 160 x 80 pixel
• Input: Membrane keyboard (6 keys)
• Connectivity: Micro-USB (USB 2.0, PC), Bluetooth Low Energy 4.0 (App)
• Integration: GDT interface, HL7 standard interface (eGA/EHR, ePA/EMR)
• Power supply: Rechargeable battery
• Battery type: Lithium-ion
• Battery capacity: 1,100 mAh

Spirometry

• Flow sensor: Bidirectional digital turbine
• Temperature sensor: Semiconductor (0 - 45 °C)
• Maximum volume: 10 L
• Flow rate range: ± 16 l/s
• Volume accuracy: ± 2.5% or 50 ml
• Flow accuracy: ± 5% or 200 ml/s
• Dynamic resistance:
• Real-time test: FVC-Pre, FVC-Post, VC-Pre, MVV, Bronchodilator comparison, extrapolated volume, lung age
• Parameters: FVC, FEV, DTPEF, PEF, FEF, FET, Vext, ELA, EVOL, FIVC, FIV, PIF, FIF, IRV, VC, IVC, IC, ERV, TV, VE, RR, MVV
• Internal memory: around 10,000 tests

Oximetry

• Measuring method: Absorption of red and infrared light
• SpO₂ range: 0-99 %
• SpO₂ accuracy: ± 2 % (70-99 %)
• Pulse range: 30-300 bpm
• Pulse accuracy: ± 2 bpm or 2 %
• Real-time test: Spot (SpO₂, bpm)
• Parameters: SpO₂% (min/max, average), bpm (min/max, average), test duration, % duration of bradycardia (< 40 bpm), % duration of tachycardia (> 120 bpm), time with SpO₂ ≤ 90 % (T90 %, T89 %)
• Internal memory: ≈ 300 hrs.

Spirometry and Oximetry with the Spiro 2.0 Software

The latest MIR spirometry software, Spiro 2.0, is a powerful and easy-to-use desktop solution for spirometry and oximetry. It is ready for current and future Microsoft and MacOS operating systems.
Each MIR Spiro user has their own MyMIR account and benefits from enhanced features for detailed examinations and reliable data evaluation.
It meets the latest data protection and security standards and offers special functions to protect your privacy, such as anonymized printing and data export, as well as a quick setting to hide the patient list.

Free for 1 year – Platinum benefits of the MIR subscription:
When purchasing this device, a 12-month premium subscription is included. Activating the subscription license code unlocks additional features and benefits.

• Platinum support: One remote maintenance session per year and free access to online tutorials on spirometry, software, and device usage.
• Platinum experience: Unlimited updates and upgrades
• Platinum interoperability: Includes the data delivery service for the device, making data easily interchangeable with any customer platform or electronic patient record (EMR)
• Future Platinum features: Customizable user interface/user experience, bronchial challenge test, platinum spirometry trend, MIR SPIRO network version, bidirectional worklist, diagnostic support services (based on human or artificial intelligence)

Features of the Spiro 2.0 software (usable without a subscription):

• Wide range of main measurements, prediction sets, and predicted values
• Complies with the latest ATS/ERS guidelines
• Acceptance measurements, test evaluation, and quality control according to the latest standards
• Spirometry tests and advanced analysis:
• FVC (Forced Vital Capacity), SVC (Slow Vital Capacity), MVV (Maximum Voluntary Ventilation) both PRE and POST bronchodilator with a wide range of selectable parameters
• Summary with FVC, SVC, MVV; FVC history
• Display of FVC progress to compare FVC maneuvers from different measurements
• Primary and secondary reference equations (GLI, NHANES, ERS, KNUDSON, etc.)
• Pediatric display program: Real-time animation to improve patient cooperation
• Many editing tools: e.g., setting the best procedure, deactivating, activating, deleting, restoring measurements, configuring the parameters to be displayed and their order
• Oximetry with specific analysis application:
• Six-minute walk test (6MWT), sleep oximetry, 24-hour Holter saturation with adjustable titration
• Manually add artifacts, such as oxygen administration, status (awake, sleeping, walking), and apply various specific analyses
• Anonymization function: With one click, hide patient lists or remove personal data for data export
• Data import: Import tests from professional MIR devices
• EMR/EHR Integration: Highly interoperability-oriented architecture to optimize workflows and data exchange with EMR/EHR, supporting numerous standards such as HL7, FHIR (Json), GDT, DICOM, exchange protocol, etc.
• Customizable printout: Various templates (ATS2019 standard, winspiro classic, and NioshOsha), selectable report parameters and their order, FVC history, oximetry monitor, 6MWT, sleep oximetry, report with FVC and SVC
• Supports up to 22 languages: Chinese (China), Chinese (Taiwan), Czech (Czech Republic), Dutch (Netherlands), English (UK), English (USA), French (France), French (Belgium), Georgian (Georgia), German (Germany), Hungarian (Hungary), Italian (Italy), Japanese (Japan), Latvian (Latvia), Polish (Poland), Portuguese (Portugal), Romanian (Romania), Russian (Russia), Spanish (Spain), Swedish (Sweden), Turkish (Turkey), Ukrainian (Ukraine)
• Customizable user interface: Configurable according to personal preferences: "MirSpiroLight" (corresponds to the user interface of winspiroLight), "MirSpiroConnect" (corresponds to the user interface of spiroConnect), "MirSpiroXpress" (replicates the usability of winspiroXpress)
• System requirements:
• For MacOS: Operating system 10.13 / 2 GB RAM (4 GB recommended) / 1 GB free hard disk space
• For Windows: 7, 8, 10, 11 / RAM: 1 GB/32 bit or 2 GB/64 bit / Processor: 1 gigahertz (GHz) or higher, with two or more cores in a 64-bit processor / 1 GB free hard disk space
• Administrator rights for the operating system
• USB port, possibly support for Bluetooth Low Energy (Smart Bluetooth)

Package contents

• 1 MIR Spirobank II SMART spirometer without accessories
• 1 nose clip
• 1 USB charging cable (1.8m)
• 1 carrying case
• 1 WinspiroPRO PC software licence

You may need an Internet connection to use the PC software.

The shown MIR FlowMIR disposable turbine is not included in the package contents
