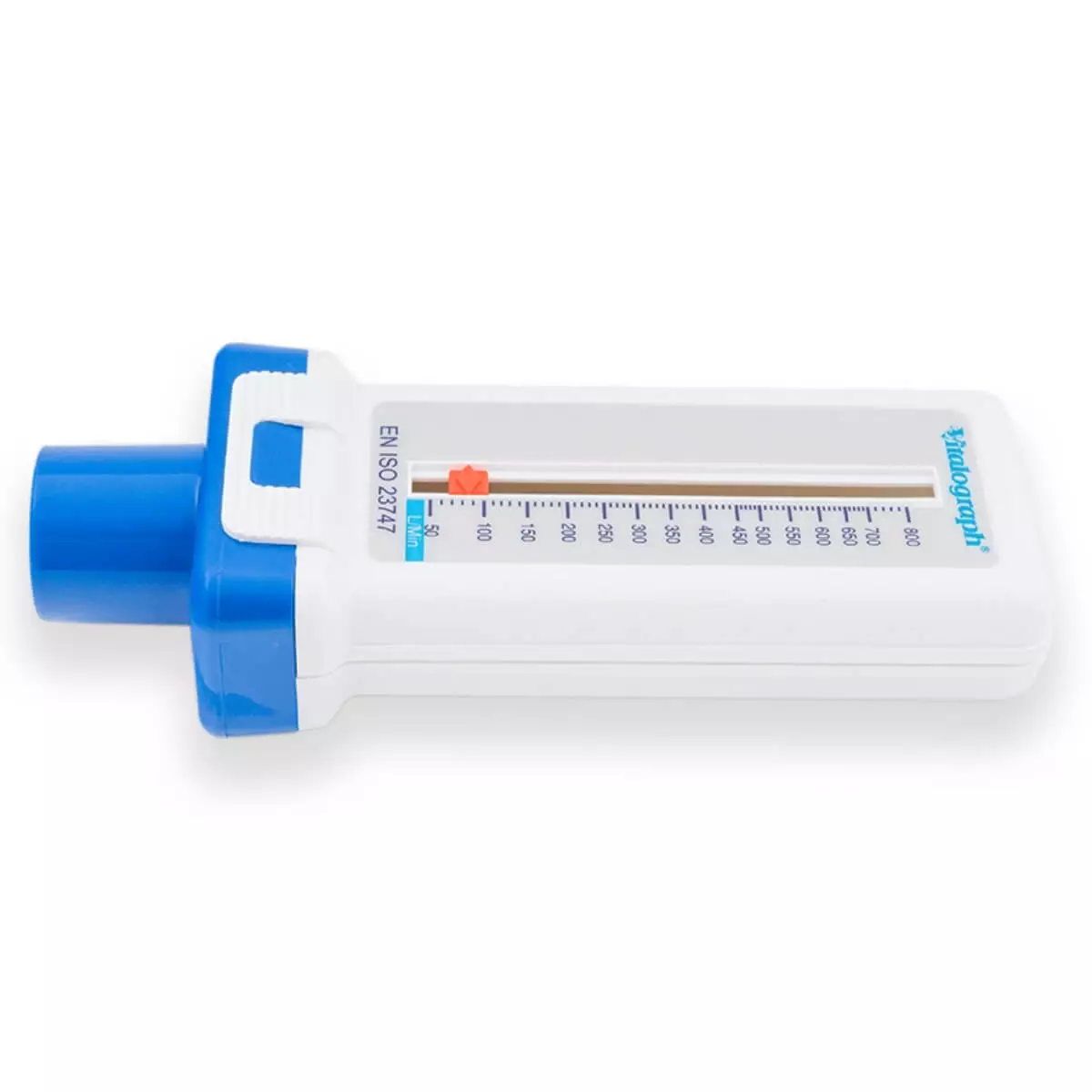

Vitalograph Peak flow meter standard

The Peak Flow Meter Standard from Vitalograph is suitable for monitoring lung function in adults and children. The compact device supports patients and physicians in the treatment of asthma and COPD. The Peak Flow Meter accurately determines peak expiratory flow. The application can be easily learned under specialist guidance in clinic and practice and can be performed at home by the patient himself. A chart is included as an asthma diary for daily monitoring.

Product details

• Pulmonary function test for asthma and COPD management
• For regular measurements of peak flow
• Suitable for children from 5 years and adults
• For use in clinic, practice and home
• Billable as a medical device
• Integrated mouthpiece, no filter is required for private use
• Suitable BVF mouthpieces for clinical use available as accessories
• Incl. documentation sheet
• Material: ABS plastic
• Dimensions: L 150 x W 60 x H 34 mm
• Weight: 74 g

Technical details

• Measuring principle: piston pressure spring
• Measuring range: 50-800 L/min BTBS
• Accuracy: ± 10 l/min or ± 10 % of the measured value
• Maximum flow resistance: 0.00377 kPa/l/min at 720 l/min
• Temperature range: 17-37 °C

Package contents

• 1 Vitalograph Peak Flow Meter Standard
• 1 documentation sheet
