EDAN SE-2003A ECG recorder
Long-term ECG recorder with Holter analysis software
€2,939.70*
Available now | Delivery between 26/06/2026 – 29/06/2026

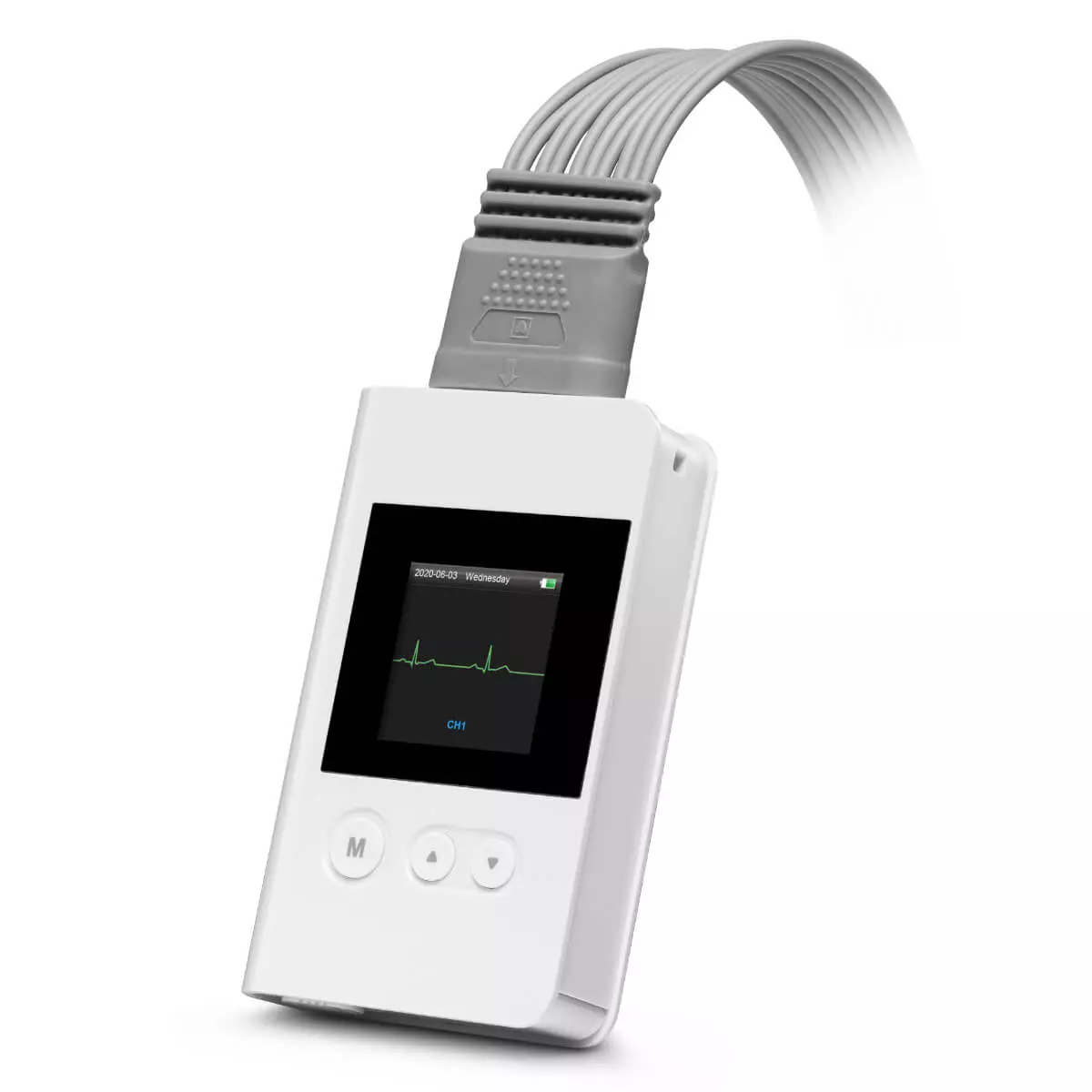

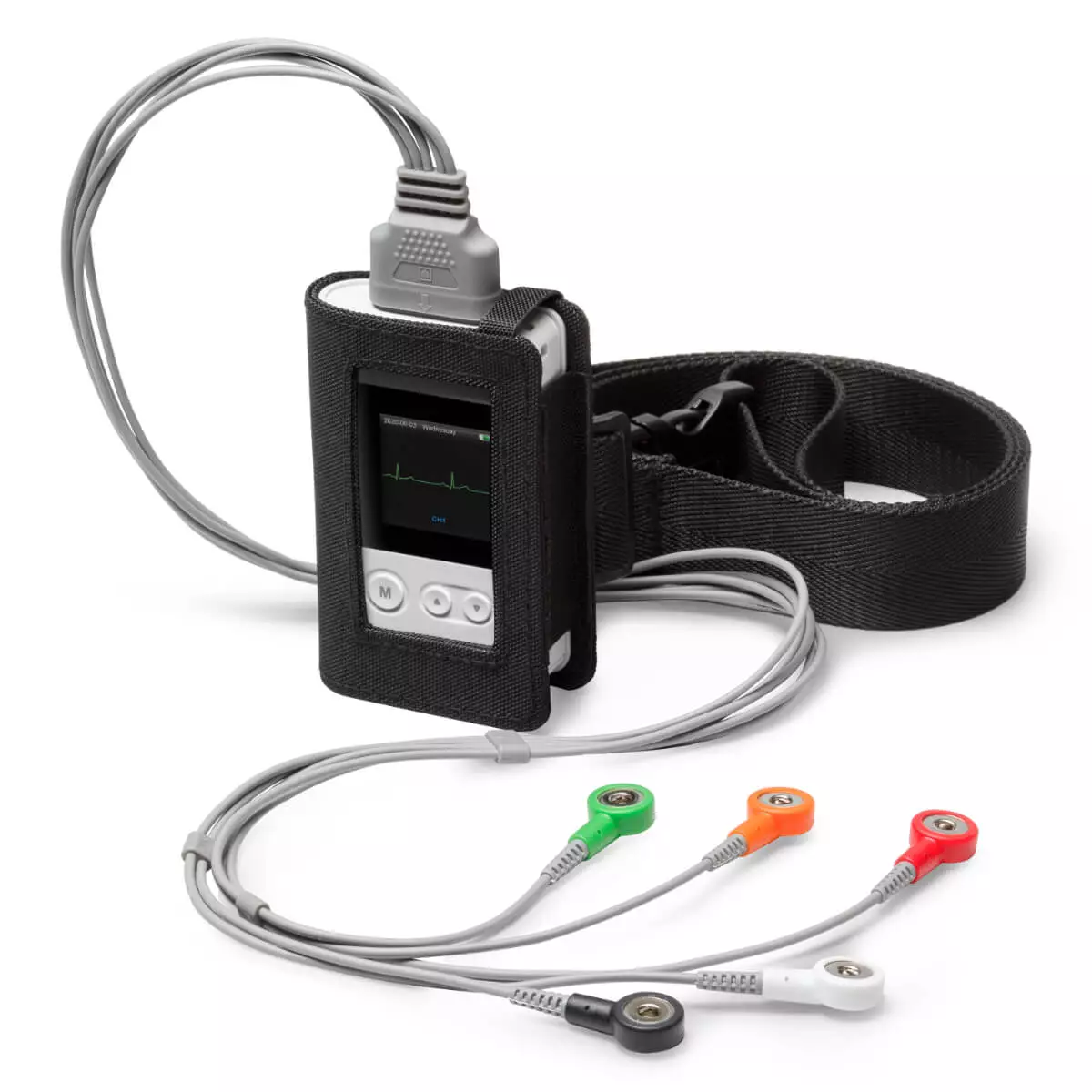

SE-2003A ECG recorder by EDAN
The SE-2003A ECG recorder by EDAN measures and monitors the heart rate for up to 8 days with just one battery. It combines a reliable 3-channel ECG with an innovative analysis software. The compact ECG with a 7-electrodes cable has a modern noise reduction method and real-time waveform display. After measuring, the device is very easy to clean as it is water and dust resistant. Acquired data can then be evaluated in the Holter analysis software.
Product details
- Reliable 3-channel long-term ECG
- Water and dust resistant
- Modern noise reduction method
- Customizable and adjustable analysis software
- Event marker for recording particular events
- Real-time waveform display
- Compact and easy to clean
- Recordings of up to 8 days with one battery
- Incl. Holter analysis software
- Incl. 30 single-use electrodes
- Weight: 75 g
Customizable workflow with Holter analysis software
The analysis software allows for a personalized and comfortable work process through adjustable parameters. The customizable workflow offers an automatic auricular fibrillation analysis, automatic ST elevation analysis, and further function modules. This innovative software allows for a more precise, fast, and user-friendly application of long-term ECG measurements.
Technical details
- Measuring method: 3 leads
- Data transmission: USB
- Power supply: AAA battery
Package contents
- 1 EDAN SE-2003A ECG recorder
- 1 Holter analysis software
- 1 7-electrodes ECG cable
- 30 ECG single-use electrodes
- 1 SD card
- 1 USB cable
- 1 quick reference card
- 1 strap
- 1 bag
An obligatory instruction is needed for this product in Germany according to MPBetriebV. The instruction is not included in the price.
A fee-based instruction by the manufacturer is possible after agreement. Please contact us for more information.
Consumers do not have a right of withdrawal for sealed goods that are not suitable for return for reasons of health protection or hygiene, if the seal has been removed after delivery.
Specifications
| Automatic ECG interpretation | no |
|---|---|
| Automatic electrode check | no |
| Available languages | English, German |
| Bandwidth | 0.05–60 Hz |
| Defibrillation protection | no |
| Device type | holter ECG |
| Dimensions (L x W x H) | 68 x 53 x 16 mm |
| Display | yes |
| Electrode type | snap electrode, adhesive electrode |
| Incl. barcode scanner | no |
| Incl. printer | no |
| Incl. software | yes |
| Lead configuration | 12 leads |
| Leads | I, II, III, V1, V2, V3, V4, V5, V6, aVF, aVL, aVR |
| Mains connection/voltage | 230 V, 50/60 Hz |
| Mobile use | yes |
| Number of electrodes | 5 |
| Obligatory training required | yes |
| Recording duration | 24–96 h |
| Storage location | SD card |
| User interface | display, internal |
| Weight | 75 g |
| Digital upgrade | no |
| Medical device (EU 2017/745) | IIa |
| Made in | China |
| Manufacturer warranty | 1 year |
Product identification
| Product number | 102216.0 |
|---|---|
| Manufacturer name | EDAN |
| Manufacturer item no. | 83.61.360248_0513 |
| EAN | 6944413807679 |
1 review
Wir haben das Gerät seit wenigen Monaten im Einsatz. Es ist leicht zu bedienen und kostengünstig. Die Software entdeckt Artefakte ganz gut (ich bin da viel Schlimmeres gewohnt). An dem Gerät ist recht fragil wirkender Kunststoff - vor allem der Batterieverschluss - und die Bedienungsanleitung ist leider nicht sonderlich ergibig. Der telefonische Kontakt zu Edan war jedoch sehr nett und die MitarbeiterInnen dort waren sehr hilfsbereit - mir wurden einige Lehrvideos zugesendet, mit denen ich mich schnell reinfuchsen konnte. Die mitgelieferte Tasche mit Gürtel ist leider nicht gut geeignet - ich habe mir eine Umhängetasche genäht (gibt es auch als Einwegumhängetaschen für diesen Zweck zu kaufen). An das Anbinden an die GDT-Schnittstelle habe ich mich noch nicht herangewagt, die Befunde können aber sehr leicht als PDF exportiert und dann schnell in die Praxissoftware importiert werden. Eine GDT-Schnittstelle ist aber im Programm vorhanden!
