EDAN SE-301 ECG
Compact 3-channel resting ECG with touchscreen
€1,291.50*
Available now | Delivery between 08/08/2026 – 12/08/2026

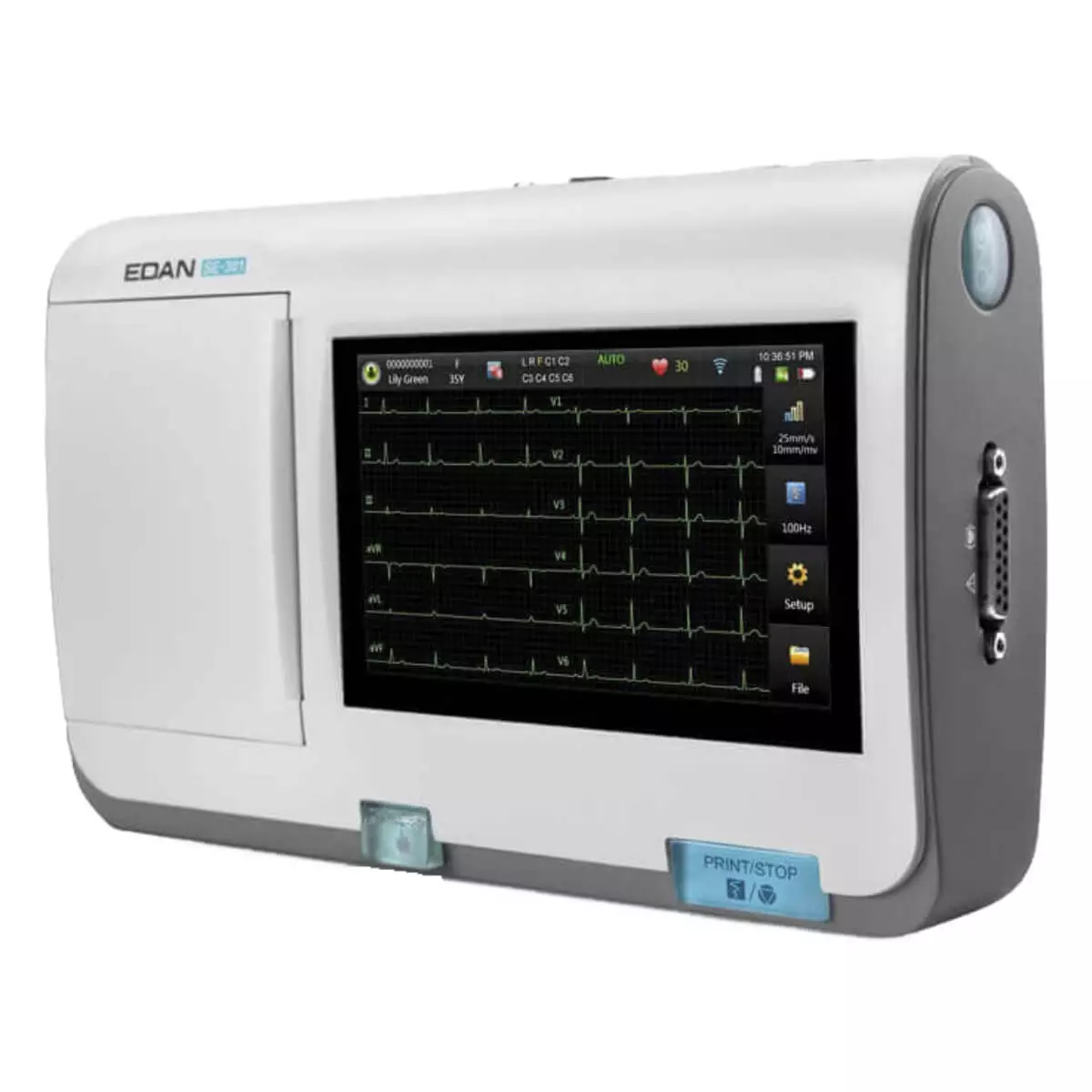

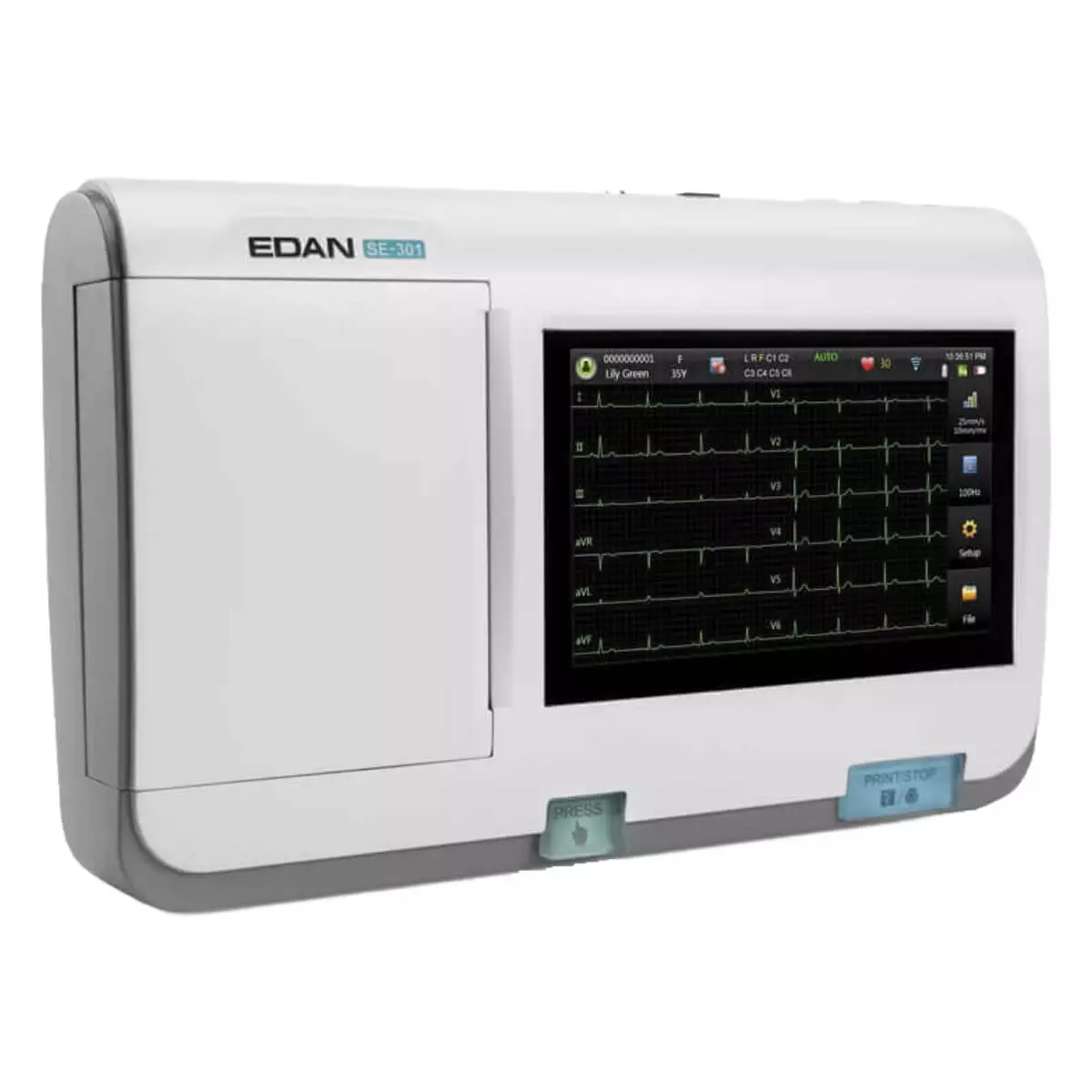

SE-301 ECG by EDAN
The Edan SE-301 is a reliable 3-channel resting ECG with a compact design and integrated thermal printer, making it ideal for mobile use. Its big multicolor touchscreen allows for a particularly user-friendly operation. SE-301 ECG supports 12 simultaneous leads, while color-coding on the display offers information about signal quality, enabling safe and precise diagnoses. External devices such as a barcode reader or an additional printer can be connected via the ECG’s USB ports.
Product details
- Compact 3-channel resting ECG
- Integrated thermal printer
- 5" multicolor touchscreen
- Color-coded display visualizing signal quality
- One-button operation
- Complies with metrological control
- 12 simultaneous leads
- Automatic support for interpretation and evaluation
- Easy handling during mobile use
- Measurements: L 143 x W 224 x H 54 mm
- Weight: approx. 1 kg
Technical details
- Internal storage: approx. 500 ECG measurements
- Ports: 2 USB, 1 microSD
- CMRR (Common Mode Rejection Ratio): ≤ 140 dB
- Bandwidth: 0.01 - 300 Hz
- Sampling rate: 16,000 Hz
- Power supply: mains or battery power
- Battery type: lithium-ion
- Battery capacity: approx. 8.5 hours in operation
Delivery contents
- 1 Edan SE-301 ECG
- 1 patient cable
- 6 suction electrodes
- 4 clip electrodes
- 1 roll of recording paper
- 1 power supply unit
- 1 li-ion battery
An obligatory instruction is needed for this product in Germany according to MPBetriebV. The instruction is not included in the price.
A fee-based instruction by the manufacturer is possible after agreement. Please contact us for more information.
Consumers do not have a right of withdrawal for sealed goods that are not suitable for return for reasons of health protection or hygiene, if the seal has been removed after delivery.
Specifications
| Automatic ECG interpretation | yes |
|---|---|
| Bandwidth | 0.01–300 Hz |
| Defibrillation protection | yes |
| Device type | resting ECG |
| Dimensions (L x W x H) | 143 x 224 x 54 mm |
| Display | yes |
| Display size | 5" |
| Electrode type | 4 clamp electrodes, 6 suction electrodes |
| Incl. barcode scanner | no |
| Incl. printer | yes |
| Incl. software | no |
| Lead configuration | 12 leads |
| Leads | I, II, III, V1, V2, V3, V4, V5, V6, aVF, aVL, aVR |
| Mains connection/voltage | 230 V, 50/60 Hz |
| Mobile use | yes |
| Number of electrodes | 10 |
| Obligatory training required | yes |
| PVS integration | yes |
| Storage capacity | approx. 500 ECGs |
| Storage location | internal |
| Total battery life | approx. 8.5 h |
| User interface | display, internal |
| Weight | 1 kg |
| Digital upgrade | no |
| Medical device (EU 2017/745) | IIa |
| Made in | China |
| Manufacturer warranty | 1 year |
Product identification
| Product number | 200969.1 |
|---|---|
| Manufacturer name | EDAN |
| Manufacturer item no. | 83.61.360625 |
| EAN | 6944413858527 |
