EDAN SE-601 B ECG
Mobile 6-channel resting ECG
€1,573.17*
Available now | Delivery between 08/08/2026 – 12/08/2026

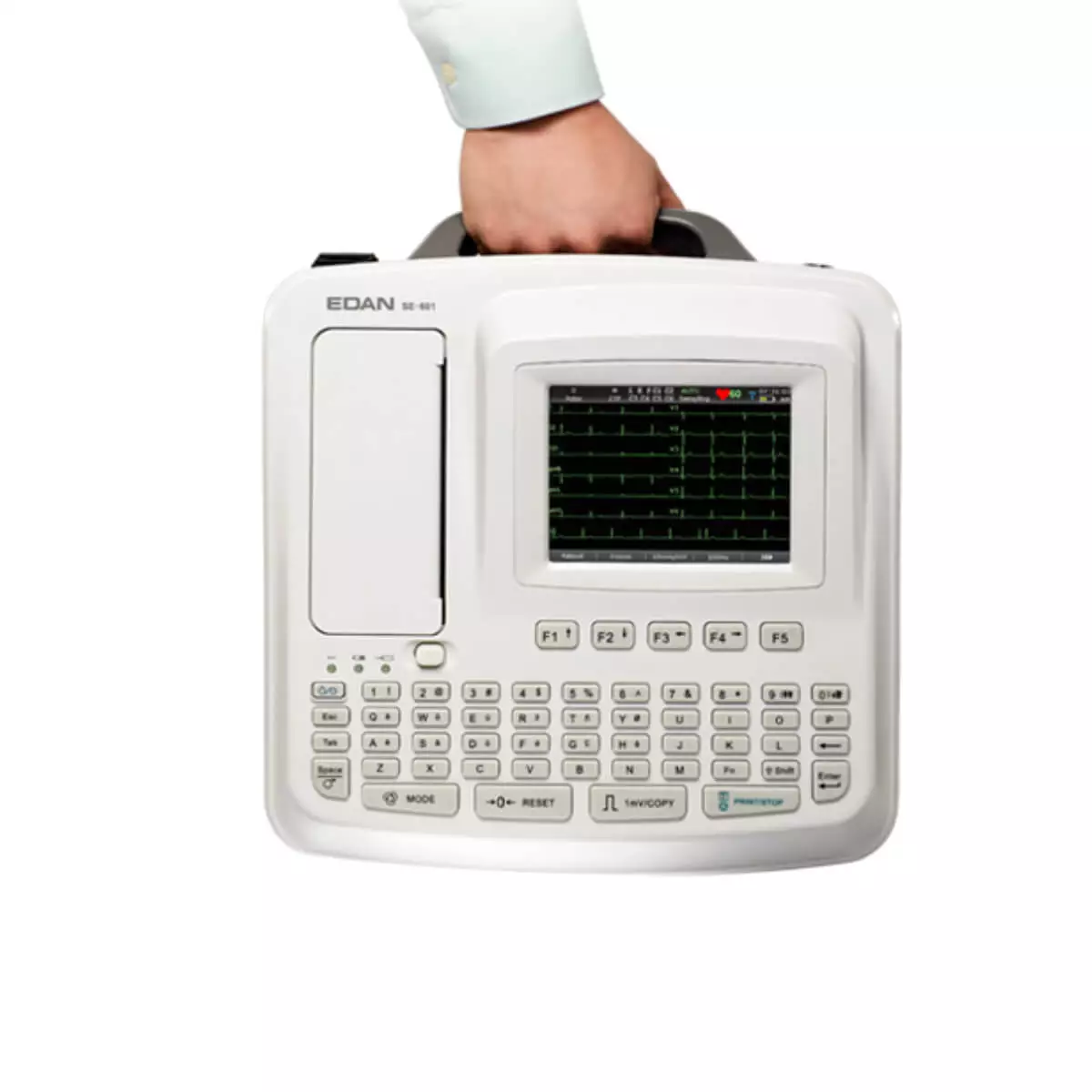

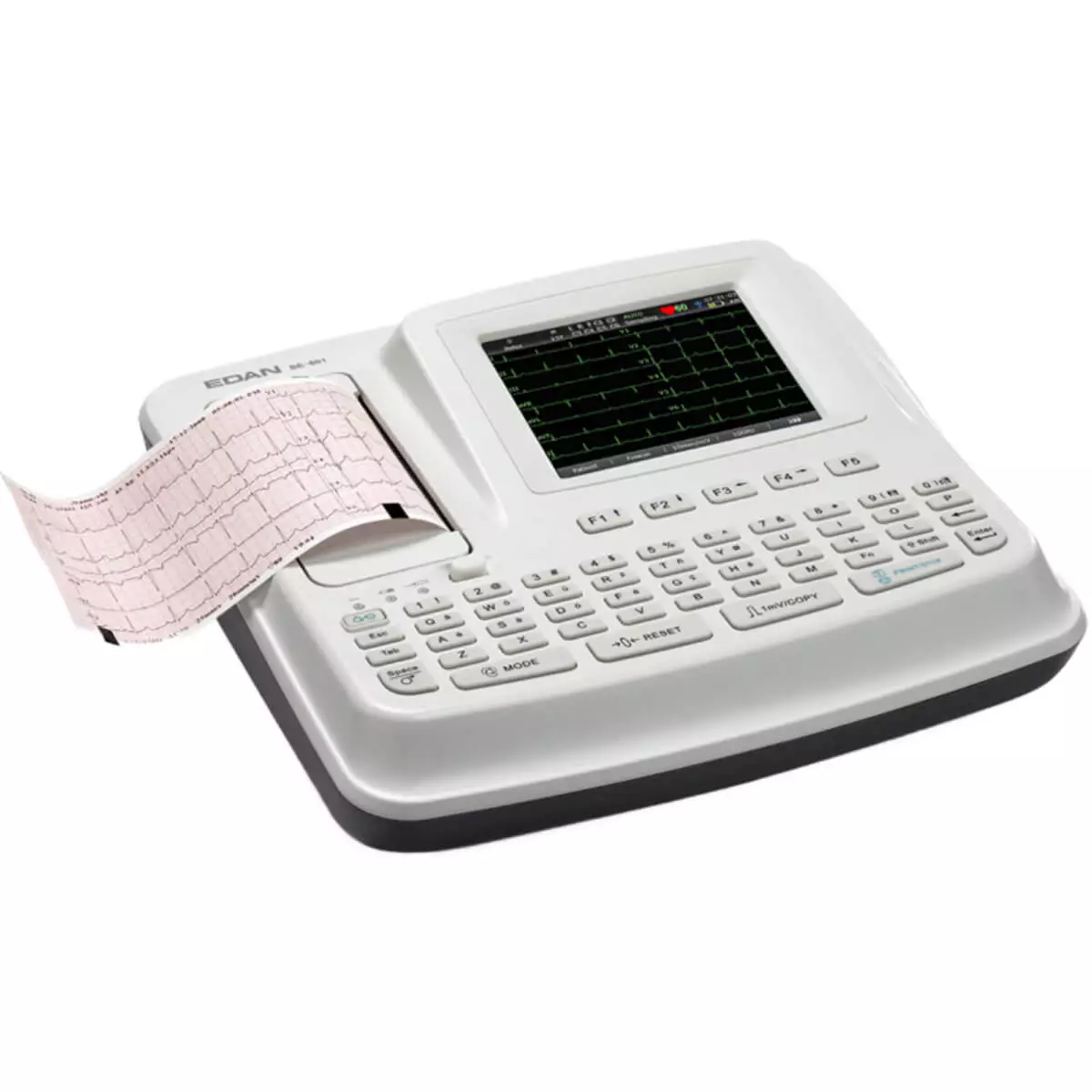

SE-601 B ECG by EDAN
The Edan SE-601 B is a 6-channel ECG that is ready for use out of the box. With its large 5.7" display, integrated printer, and alphanumeric keyboard, nothing stands in the way of a flexible and mobile usage. ECG waves can be tracked in real time on the monochrome display and the internal storage offers space for up to 100 patient records. The measured examination values can be exported in a clear test report via the RS-232 interface or thermal printer.
Product details
- Mobile 6-channel resting ECG device
- Integrated, high-resolution thermal printer
- Automatic measurement and interpretation
- Pacemaker control
- Data transfer via ethernet or RS-232
- Real-time display of the ECG
- Easy transport thanks to practical handles
- Measurements: L 322 x W 310 x H 101 mm
- Weight: approx. 6 kg
Technical details
- Internal storage: approx. 100 ECGs
- Sampling frequency: 1,000 Hz/channel, 10,000 Hz for pacemaker control
- Interfaces: ethernet, RS-232, USB
- Work mode: auto, manual, rhythm
- Power supply: mains or battery power
- Battery life: up to 6 hours
- QWERTY keyboard layout

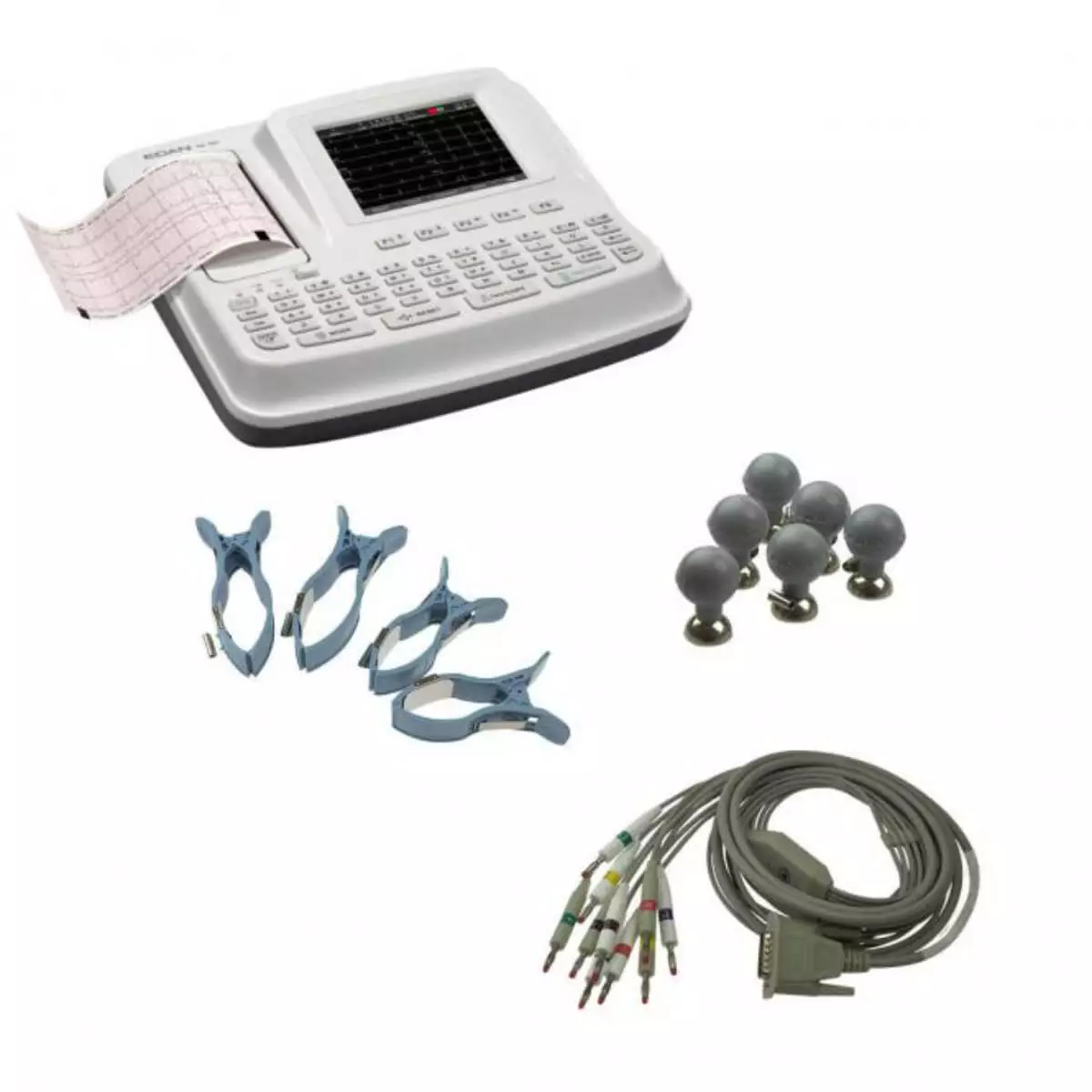

Delivery contents
- 1 Edan SE-601 B ECG
- 1 patient cable
- 4 clip electrodes
- 6 suction electrodes
- 1 battery
- 1 power cord
- ECG recording paper
An obligatory instruction is needed for this product in Germany according to MPBetriebV. The instruction is not included in the price.
A fee-based instruction by the manufacturer is possible after agreement. Please contact us for more information.
Consumers do not have a right of withdrawal for sealed goods that are not suitable for return for reasons of health protection or hygiene, if the seal has been removed after delivery.
Specifications
| Automatic ECG interpretation | yes |
|---|---|
| Defibrillation protection | yes |
| Device type | resting ECG |
| Dimensions (L x W x H) | 322 x 310 x 101 mm |
| Display | yes |
| Display size | 5.7" |
| Electrode type | 4 clamp electrodes, 6 suction electrodes |
| Incl. barcode scanner | no |
| Incl. printer | yes |
| Incl. software | no |
| Lead configuration | 12 leads |
| Leads | I, II, III, V1, V2, V3, V4, V5, V6, aVF, aVL, aVR |
| Mains connection/voltage | 230 V, 50/60 Hz |
| Mobile use | yes |
| Number of electrodes | 10 |
| Obligatory training required | yes |
| PVS integration | yes |
| Sampling rate | 1,000 Hz |
| Storage capacity | approx. 100 ECGs |
| Storage location | internal |
| User interface | display, internal |
| Weight | 6 kg |
| Digital upgrade | no |
| Medical device (EU 2017/745) | IIa |
| Made in | China |
| Manufacturer warranty | 1 year |
Product identification
| Product number | 200971.0 |
|---|---|
| Manufacturer name | EDAN |
| Manufacturer item no. | 83.61.360251 |
| EAN | 6944413800717 |
