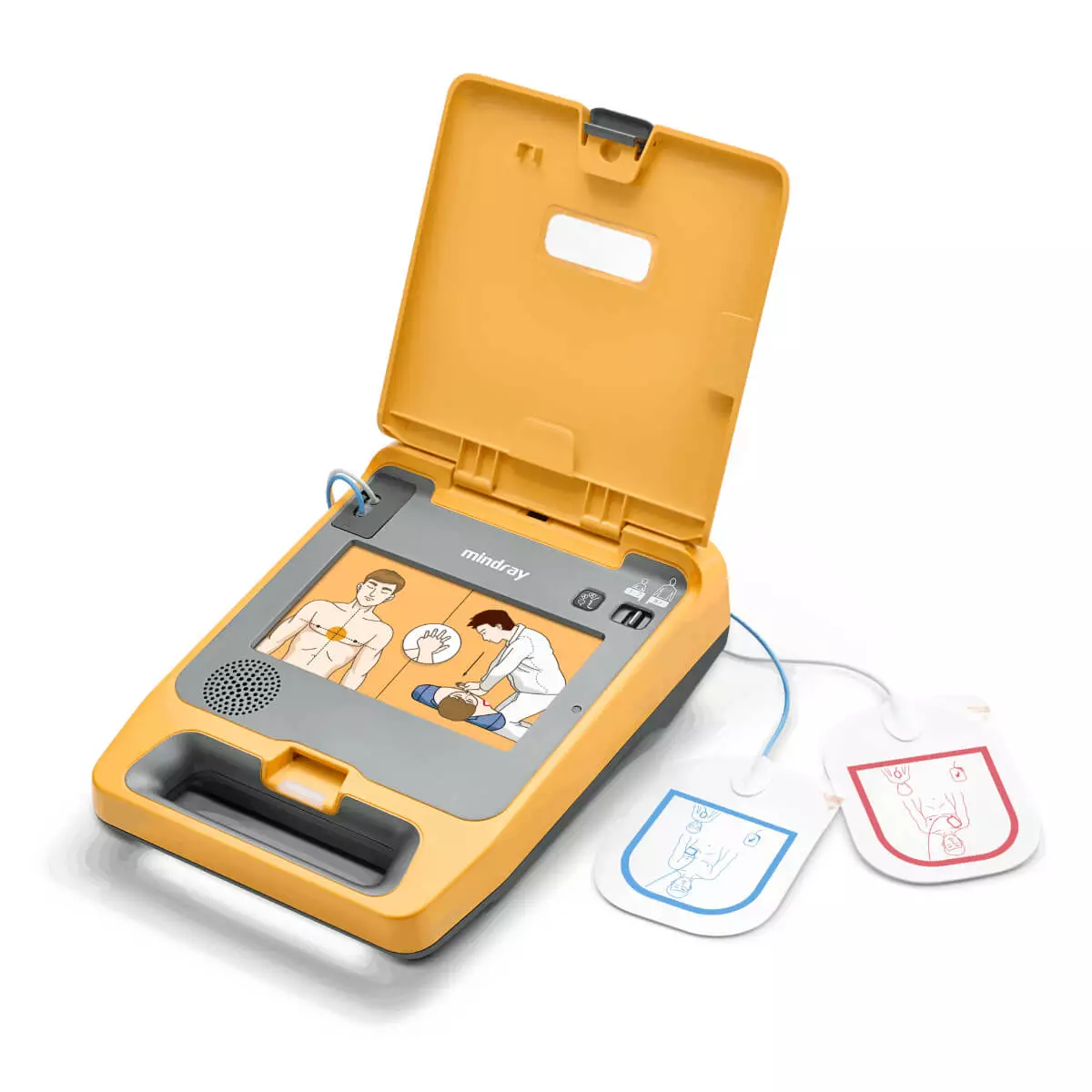

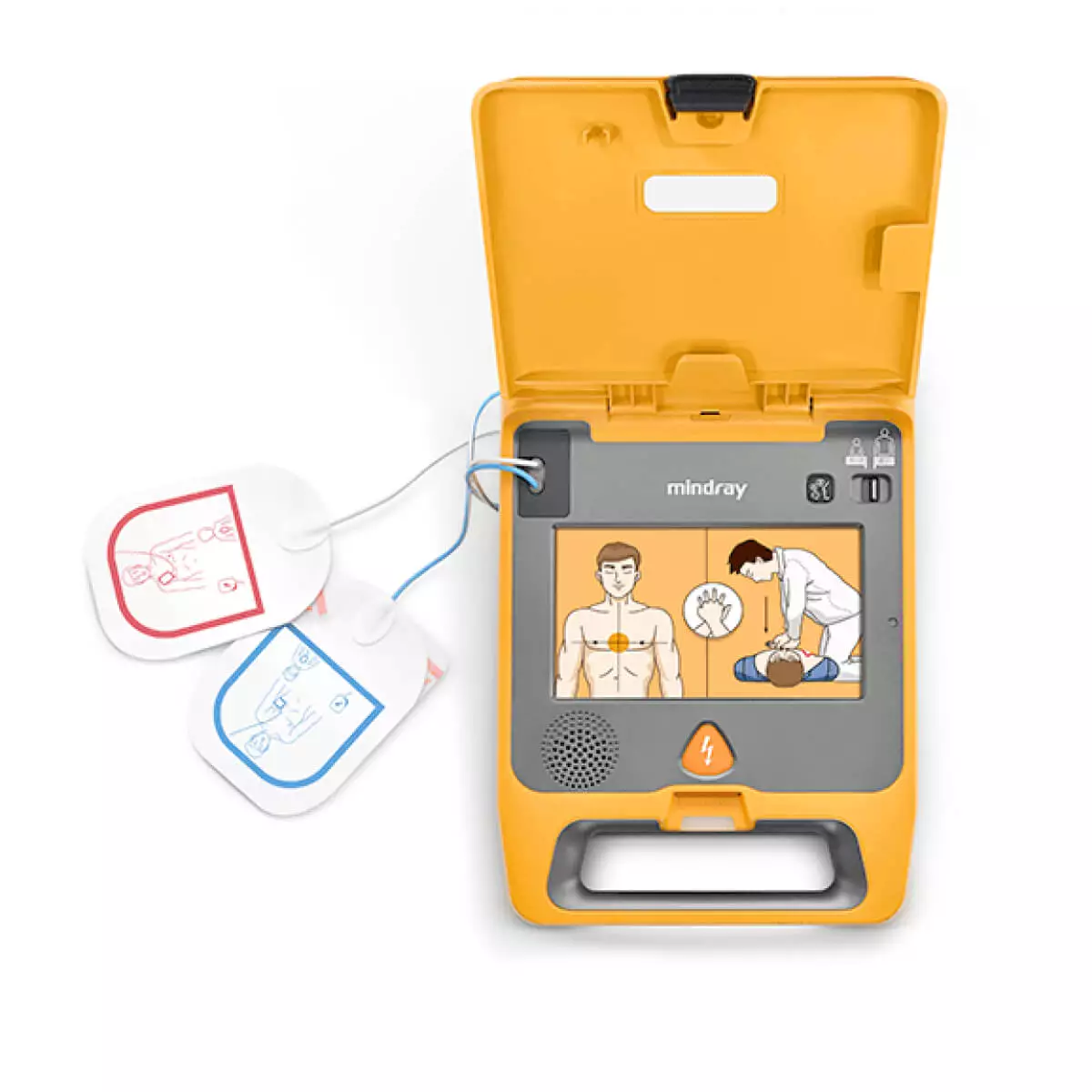

Mindray Beneheart C1A defibrillator (semi-automatic)

The BeneHeart C1A defibrillator from Mindray (semi-automatic) is a semi-automatic external defibrillator designed for use by experienced personnel as well as specifically for laypersons. The defibrillator provides special support with its ResQNavi technology: Based on user behavior and psychological research results, the status of the rescuers is determined and supports them with the help of a rescue navigation during the entire resuscitation process. The navigation uses pictograms to indicate the pressure points for cardiac massage and guides the first responder through CPR with clear voice prompts. The BeneHeart C1A defibrillator is able to determine whether the first responder is experienced or inexperienced based on how quickly the steps are implemented. Based on this knowledge, the defibrillator plays the prompts in more detail for the inexperienced than for the trained.

Product details

• Mindray BeneHeart C1A defibrillator (semi-automatic)
• With ResQNavi technology: Determines the user's level of experience and provides individualized assistance for rapid emergency care
• QShock technology: Rapid shock delivery and compensation of patient impedance
• Also for use by laypersons for cardiopulmonary resuscitation
• Clear, calm voice instructions
• Includes built-in CPR metronome to maintain proper rhythm
• Pre-installed pads for adults and children
• Ready for use with opening of the lid
• Sturdy case
• Handle for safe transport
• Water and dust resistant according to IP-55
• Drop resistant up to 1.5 m
• Meets all standards for helicopters and other transport vehicles
• Lower total cost of ownership thanks to long-life batteries and pads
• Dimensions: L 28.6 x W 21 x H 7.8 cm
• Weight: 2.3 kg
• Available as semi-automatic or fully automatic version
• For connection to the remote management AED-Alert, the device can be additionally equipped with WLAN or 4G (not included)

QShock - The solution for faster shock delivery

Because every second counts during defibrillation, the BeneHeart C1A defibrillator relies on QShock technology. The defibrillator is ready for use with the opening of the lid and enables the first shock to be delivered in under 8 seconds. While the patient's heart rhythm is being analyzed, the defibrillator is already precharging and, once the rhythm analysis is complete, it passes the current without delay so that the shock can be delivered immediately. In the semi-automated version, the shock button must be pressed on command; in the automated version, this step is omitted. If the patient is a child, a switch can be used to switch to child mode. It is not necessary to change the electrodes, as the pre-installed electrodes are suitable for both adults and children.

Technical data

• Type: semi-automatic external defibrillator
• Principle: biphasic
• Modes: adults (30:2), children (15:2) and hand-only mode
• Energy in joules: adults: 200/300/360, children: 50
• Languages: English, French, German
• CPR instruction: pictogram, language
• Electrode pads Durability: > 4 years
• Battery standby time: 5 years
• Data recording: internal 5 hours, 1 hour audio
• Data transmission: USB/WiFi

Delivery contents

• 1 BeneHeart C1A defibrillator
• 1 pair of electrode pads for adults/children
• 1 long-life battery

The product is subject to instruction in Germany according to MPBetreibV. The instruction is not included in the price.

An instruction with costs by the manufacturer is possible after arrangement. Please contact us for further information.
