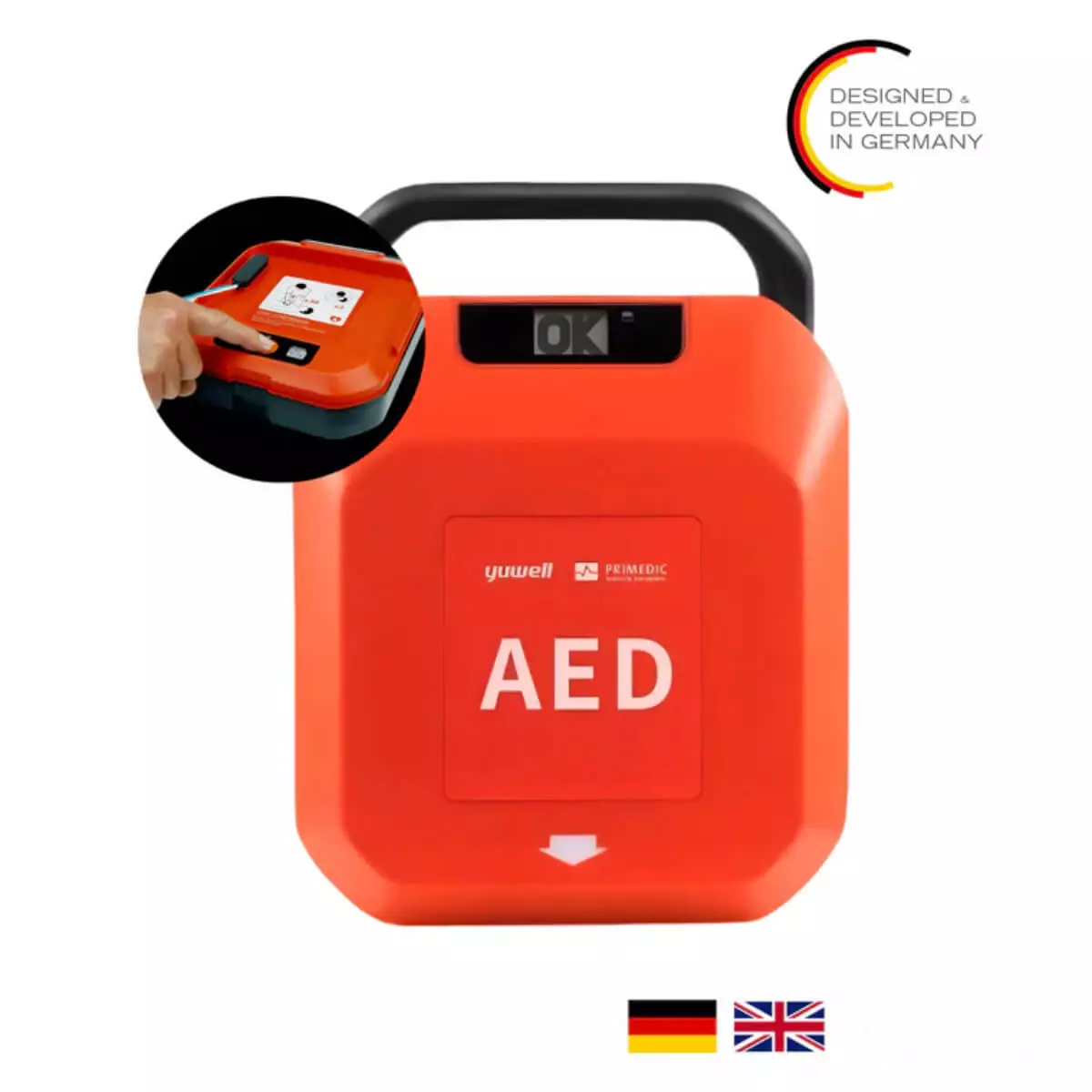

PRIMEDIC HeartSave Y half-automatic AED

The PRIMEDIC HeartSave Y semi-automatic AED is easy to use thanks it its intuitive, easy-to-follow instructions in multiple languages as well as its adaptive user guidance. The defibrillator switches on automatically when the lid is opened and is operated using three symbol buttons. The language button allows users to easily switch between up to four different languages during operation. In a cardiac emergency, any first responder is safely guided through the resuscitation process, while a metronome supports correct chest compression rhythm. The HeartSave concept has proven especially effective in environments where people of different nationalities come together, such as companies, shops, airports, and public institutions. The device is suitable for both laypersons and first responders. With the child mode button, the AED automatically adjusts to pediatric mode with reduced shock energy. The pre-connected adhesive electrodes are universally usable for both adults and children. A long-lasting lithium-ion battery ensures extended usability and low follow-up costs.

Product details

• Semi-automatic AED with voice prompts in up to 4 languages:
• German and English
• German, English, French, and Italian
• Automatic startup when the lid is opened

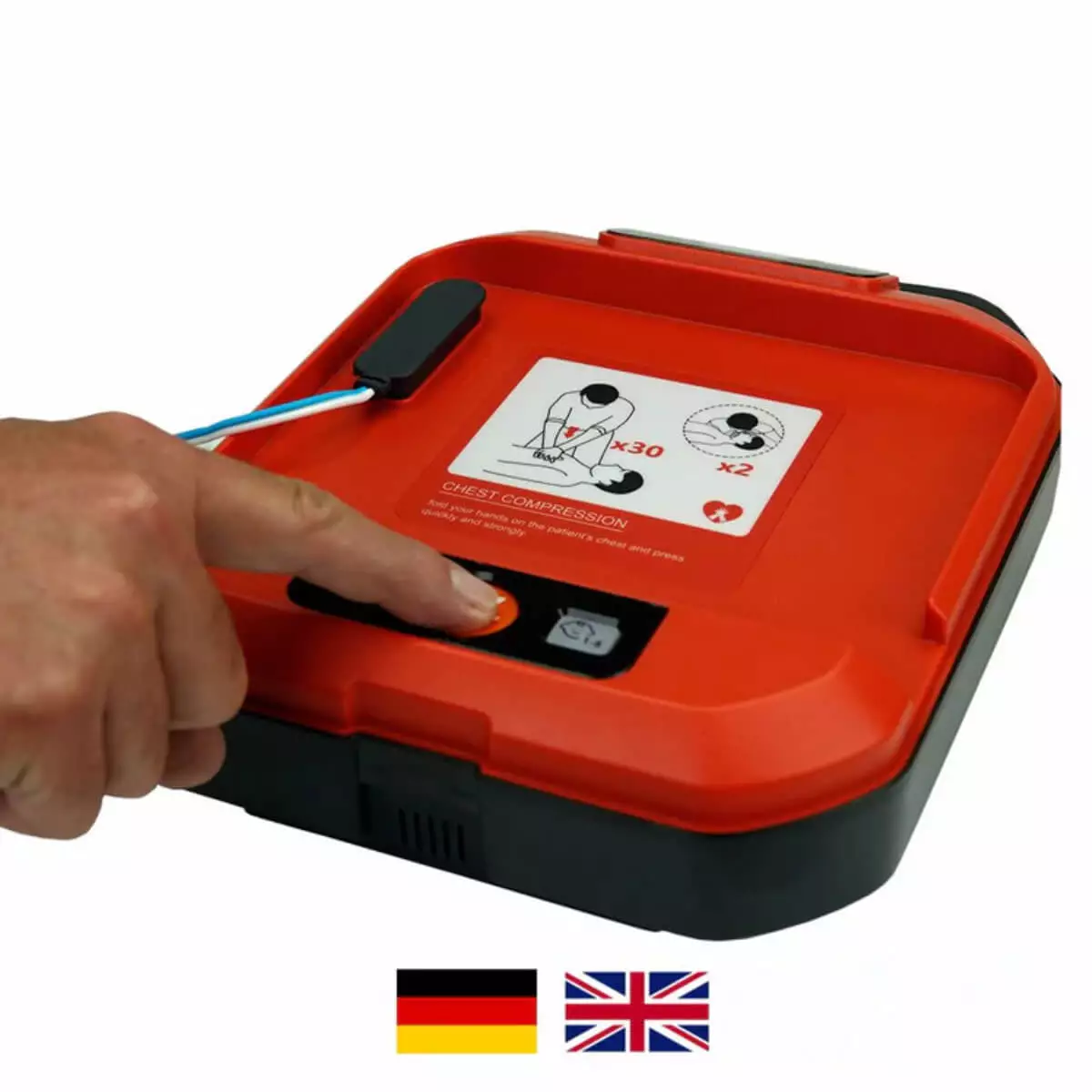

• Back-lit button for delivering shock
• Metronome for maintaining correct chest compression rhythm
• Escalating energy levels according to current ERC 2021 guidelines
• Child button for reduced shock energy

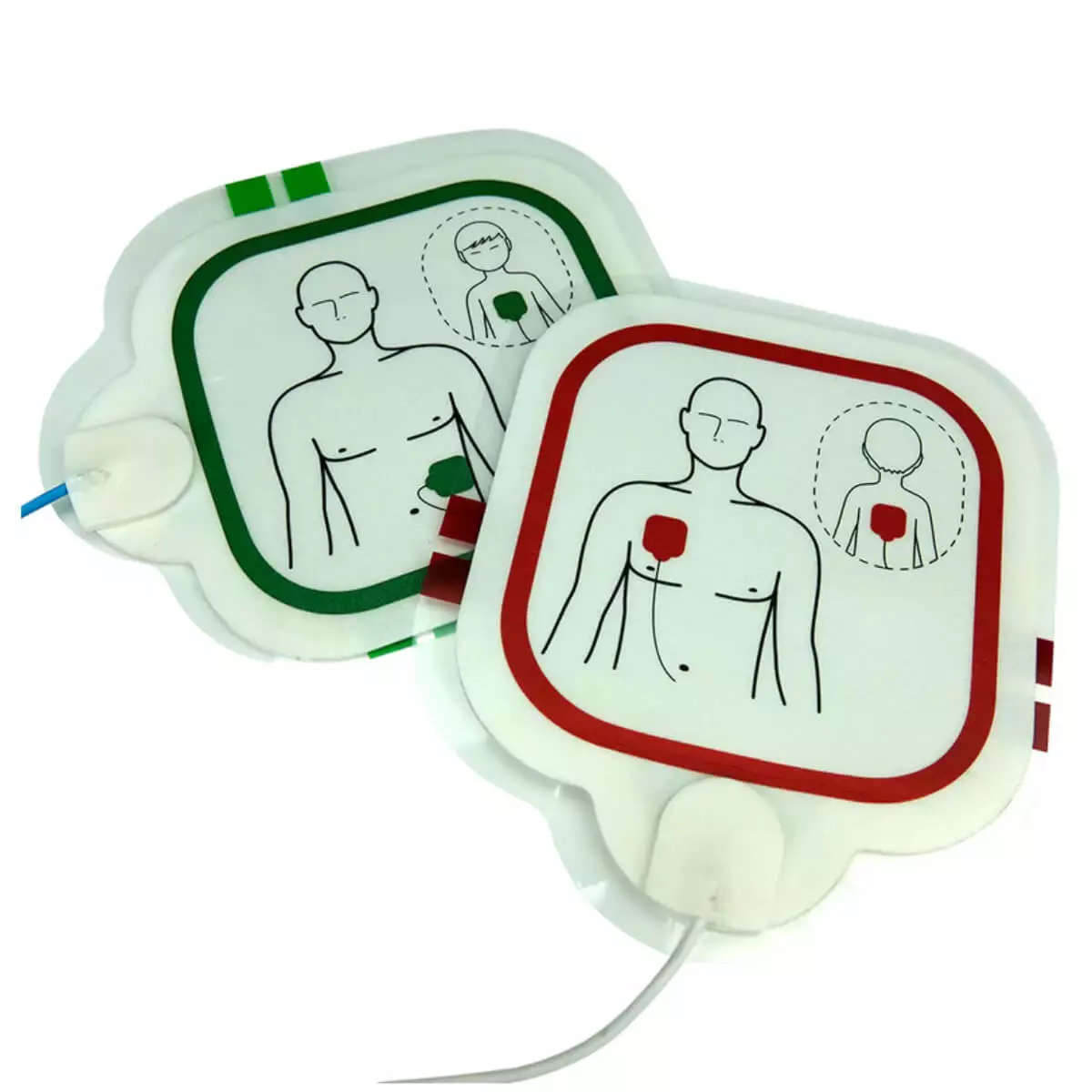

• Universal electrodes for adults and children (> 1 year)
• Automatic volume adjustment of voice prompts to the surrounding environment
• Rapid rhythm analysis and shock delivery in just seconds

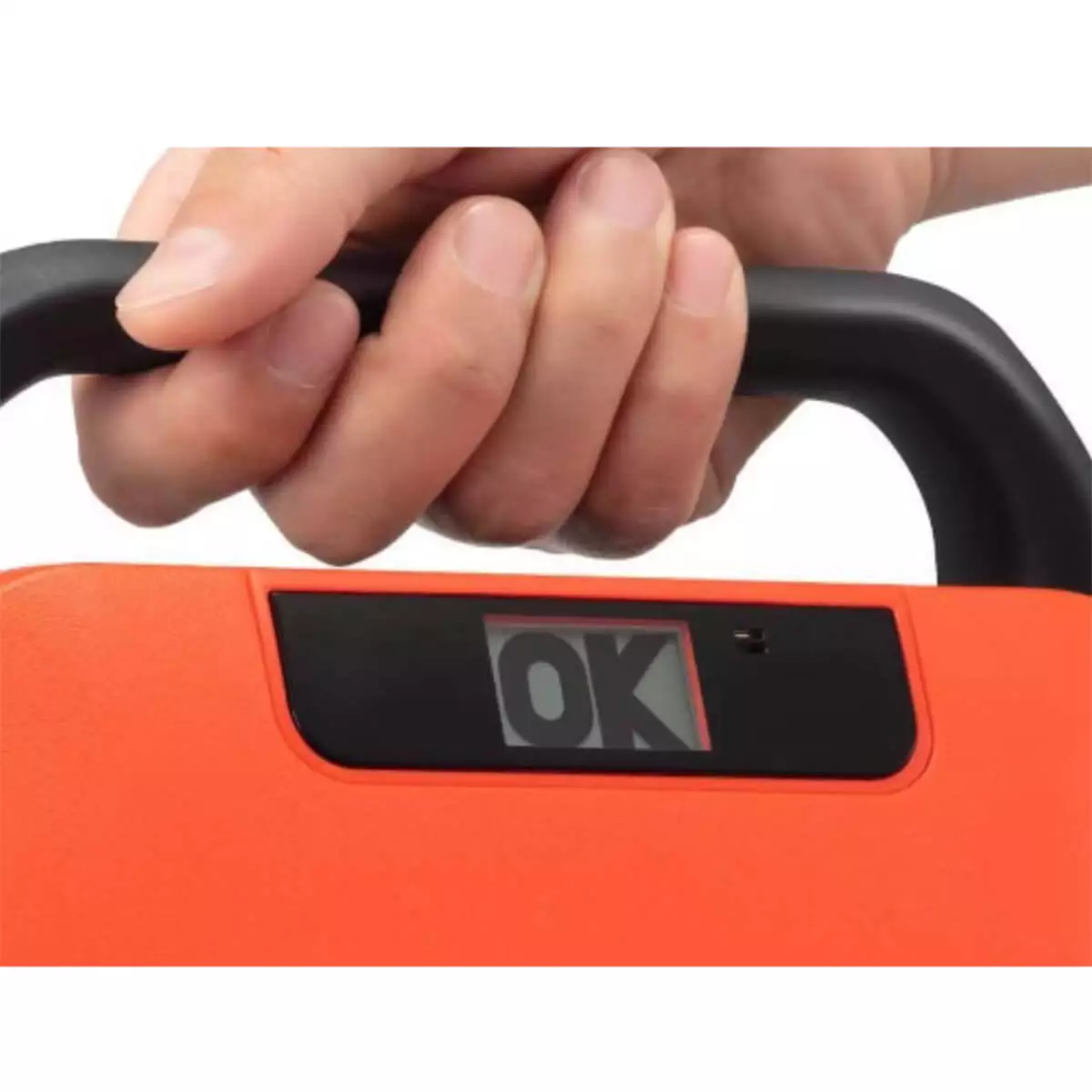

• Viewing window for easy standby status check

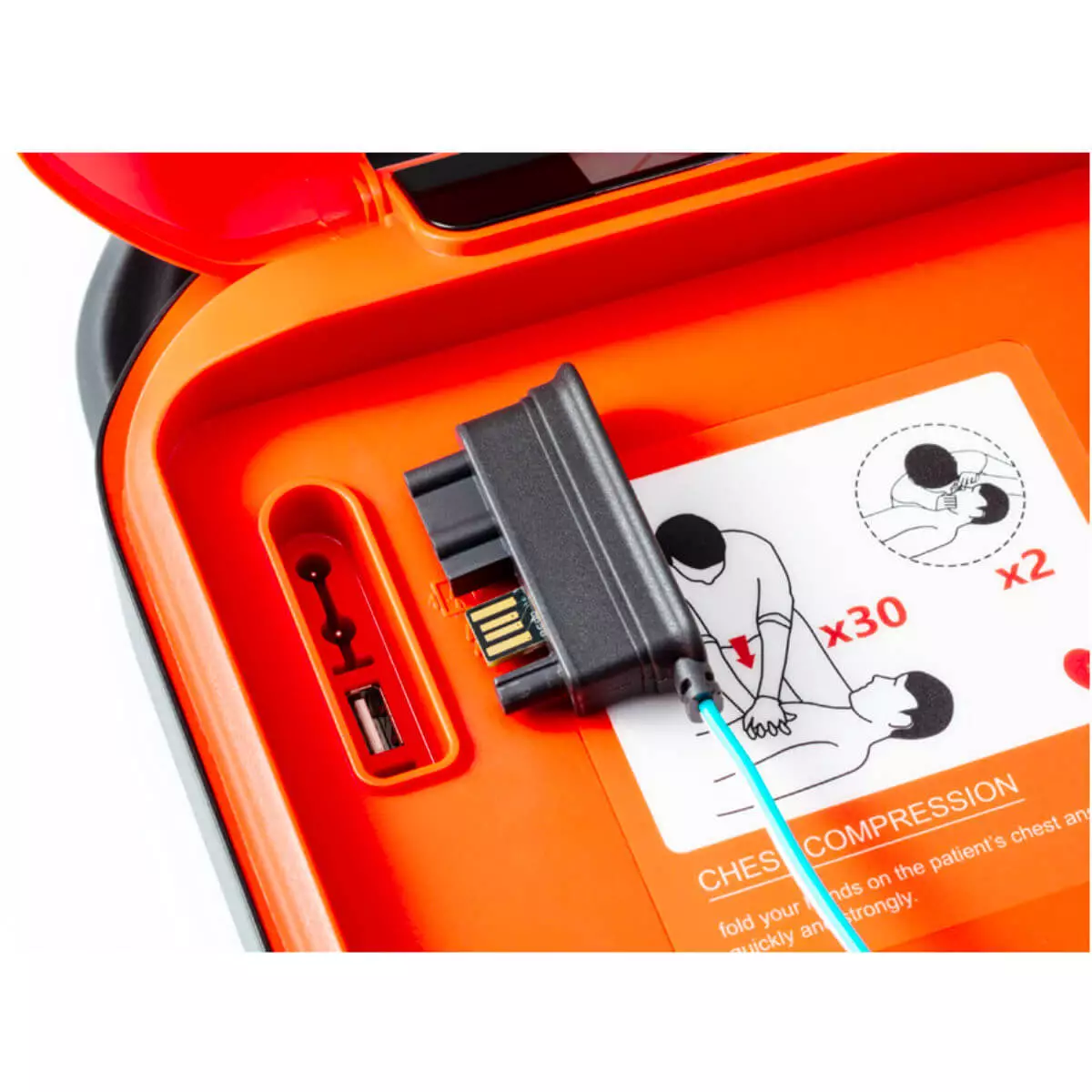

• Internal memory and USB port for data storage
• Developed in Germany
• Multifunction electrodes and battery shelf life: 4 years
• Manufacturer warranty: 8 years
• Includes non-rechargeable battery and pre-connected electrodes

Package contents

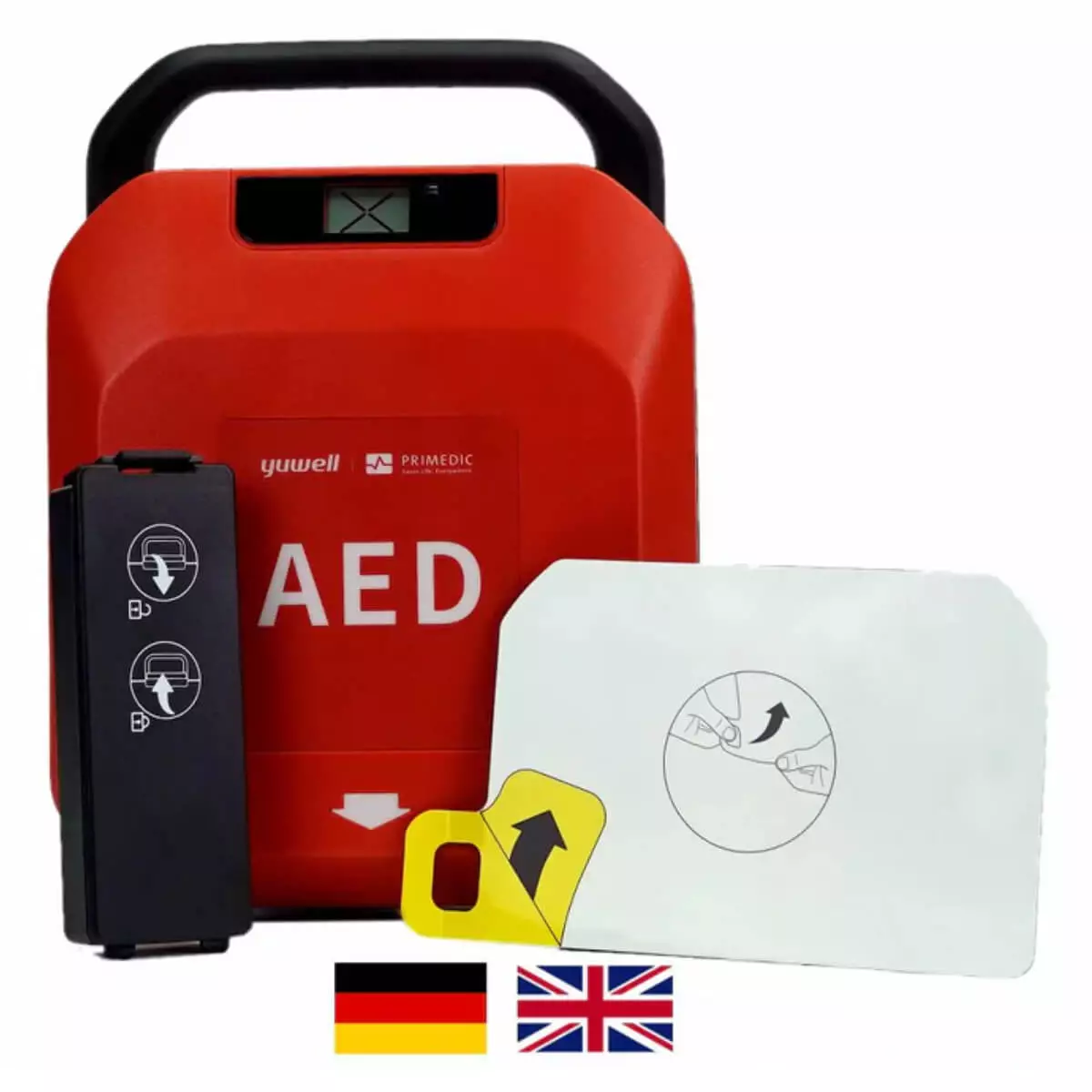

• 1 PRIMEDIC HeartSave Y semi-automatic AED
• 1 HeartSave Y/YA disposable battery

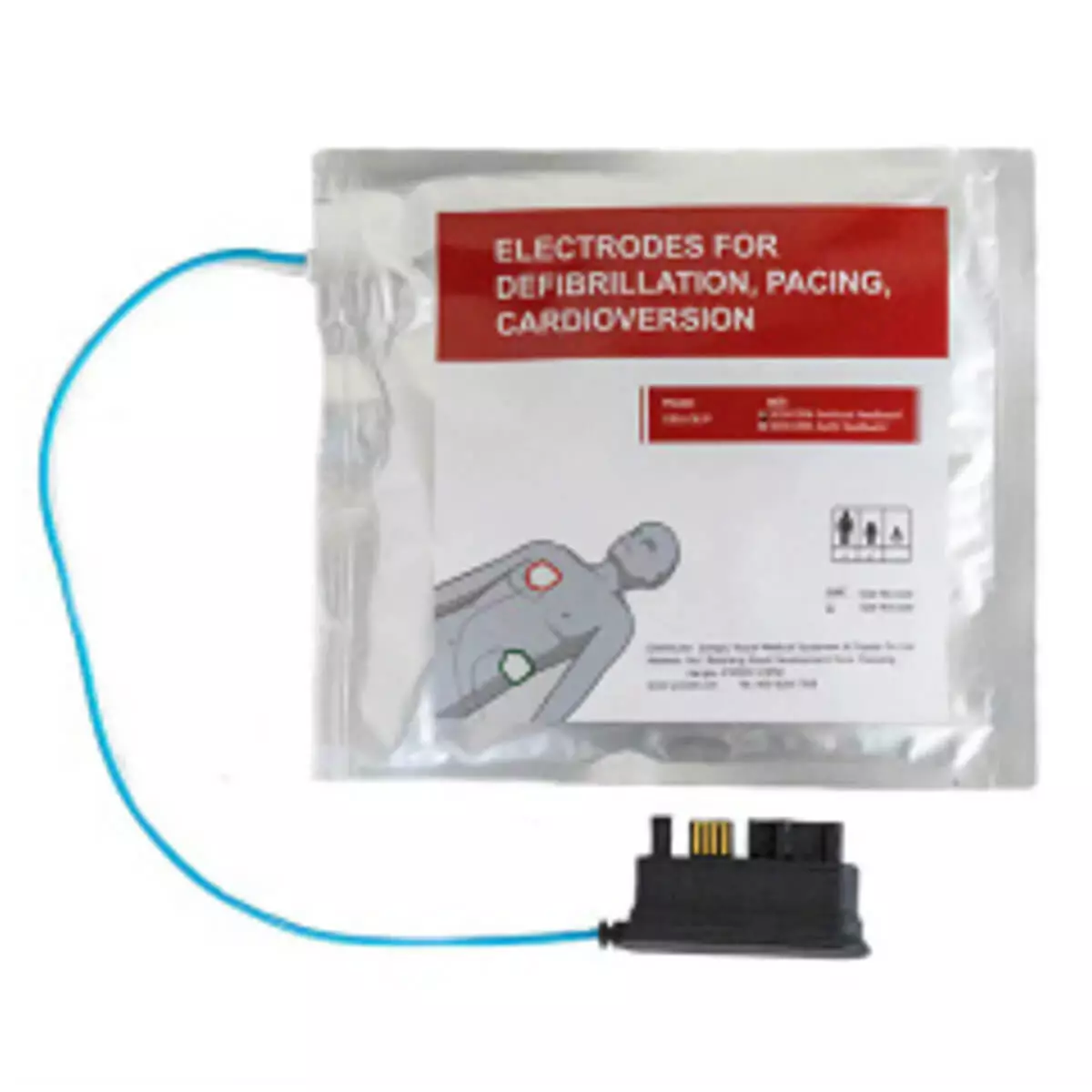

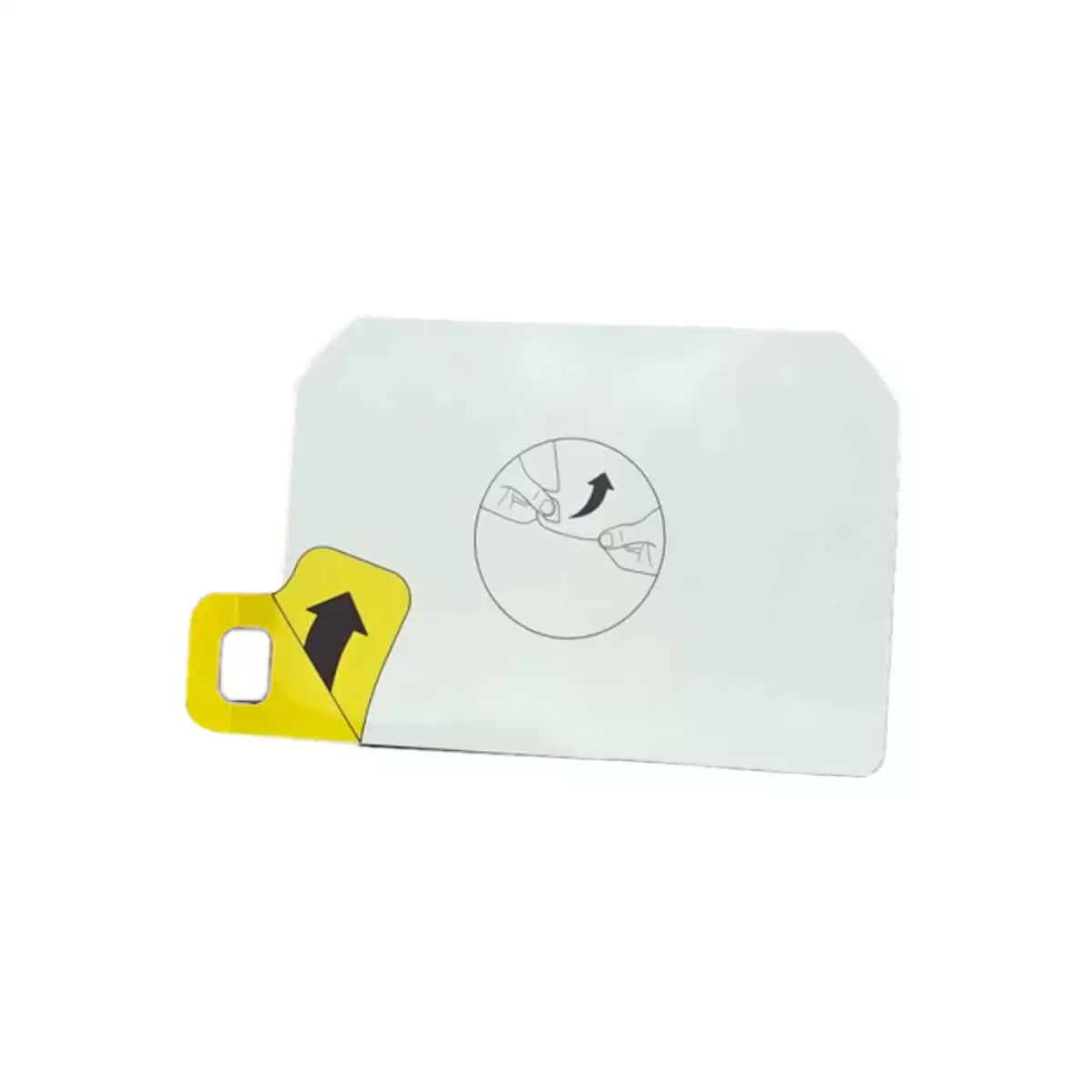

• 1 pair of HeartSave Y/YA multifunction electrodes

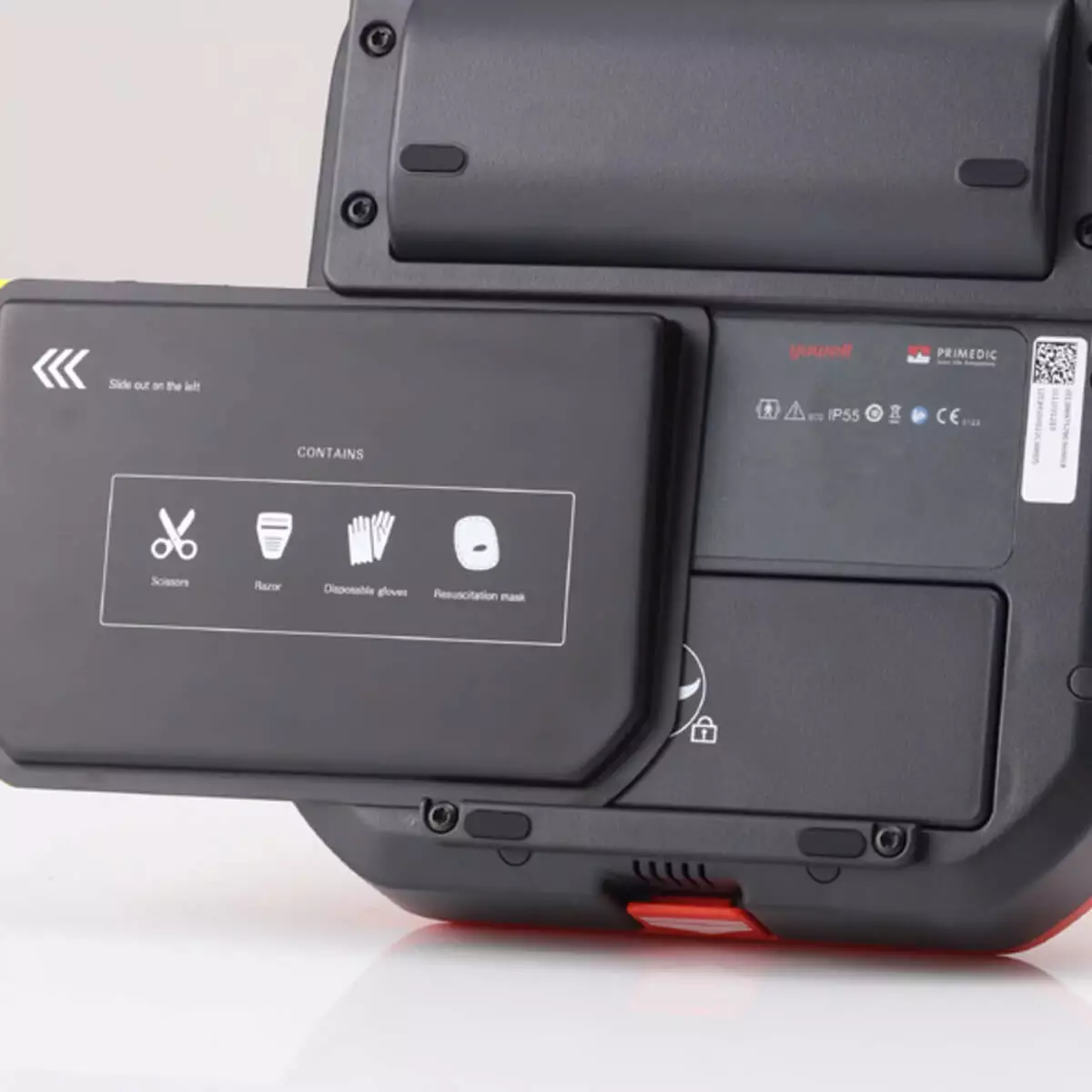

• 1 emergency kit (gloves, breathing mask, disposable razor, paramedic scissors)
• 1 user manual

Note: In Germany, AEDs and defibrillators are subject to mandatory instruction according to the MPBetreibV unless an identical model from the same manufacturer is already in use and instruction has been provided. This requirement does not apply to private individuals. Instruction is not included in the purchase price.

Technical specifications

• Shock delivery: semi-automatic
• Child mode: switchable between adult and child
• Display: no
• Metronome: yes
• Voice prompts: yes
• ECG display: no
• CPR feedback: no
• Self-test frequency: daily
• Weight: 2.5 kg
• Dimensions (L x W x H): 29.6 x 22 x 9.7 cm
• Protection class: IP 55 (dust-protected and water jet-resistant)
• Operating temperature: -5 to +50 °C
• Available languages: EN, DE, FR, IT and EN, DE
• Power supply: battery, lithium/MnO₂, 12 V, 4.2 Ah (non-rechargeable)
• Battery capacity (continuous operation): 12 h
• Battery capacity (shocks): 150
• Battery shelf life (standby): 4 years
• Shock energy (peak current): adults 200–300–360 J, children 50–70–100 J
• Heart rhythm analysis duration: <5 s
• Recharge time after shock: <7 s
• Memory capacity: 10 h, 3 GB; ECG signal: 10 h; events: 2000; audio log: 2 h; self-tests: 3,650 reports
• Connectivity: USB
