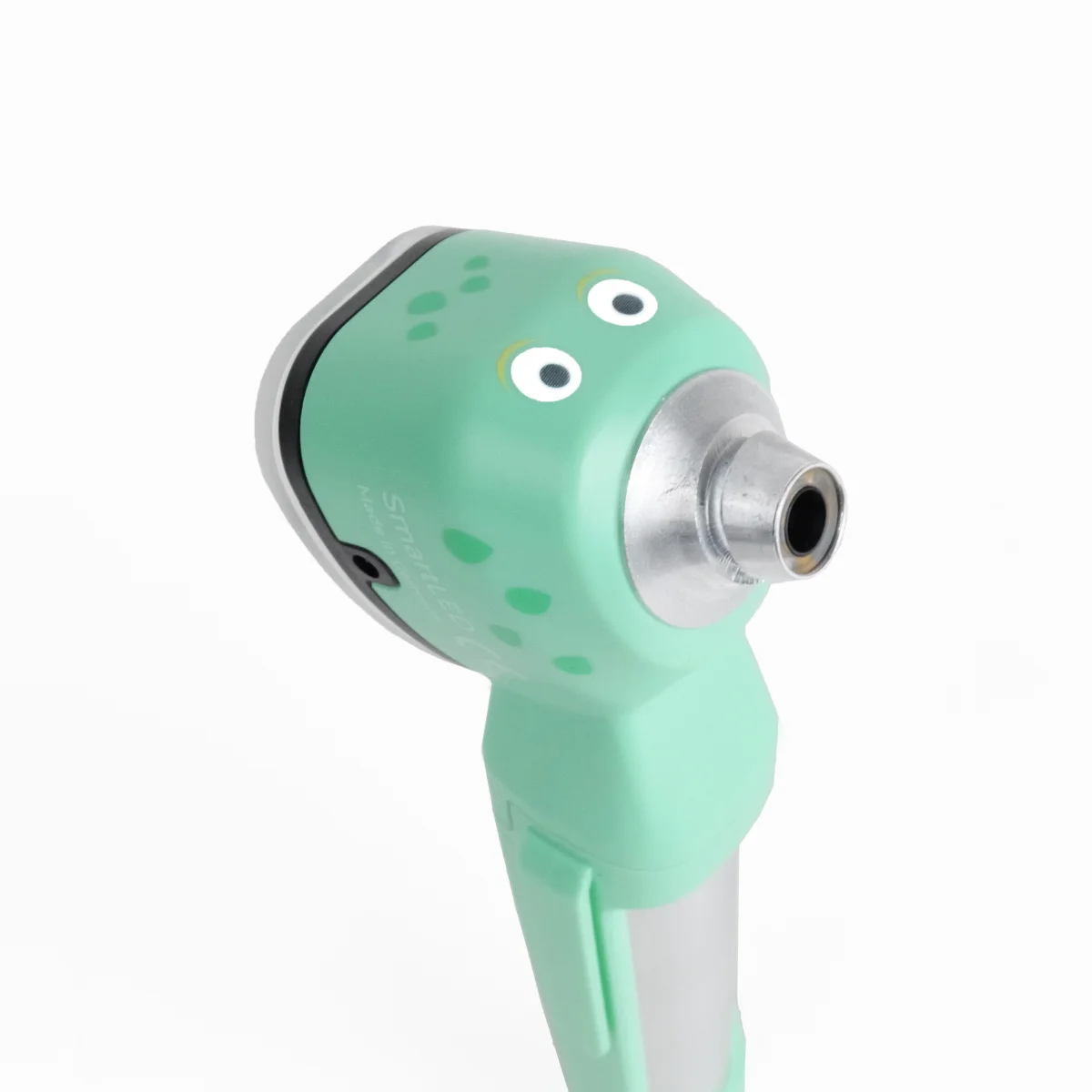

Spengler SmartLED pediatric otoscope – Spengler x LUXAMED Edition

The SmartLED pediatric otoscope in the Spengler x LUXAMED Edition combines a child-friendly design by Spengler with innovative German technology from LUXAMED. The instrument provides optimal illumination with a brightness of up to 10,000 lux and a shadow-free field of view thanks to the unique illumination ring with 6 LEDs. The illumination is dimmable via the ON/OFF button, and the high color rendering index ensures a true-to-life color representation. The lightweight yet robust otoscope is maintenance-free and designed for a service life of more than 10 years.

Product details

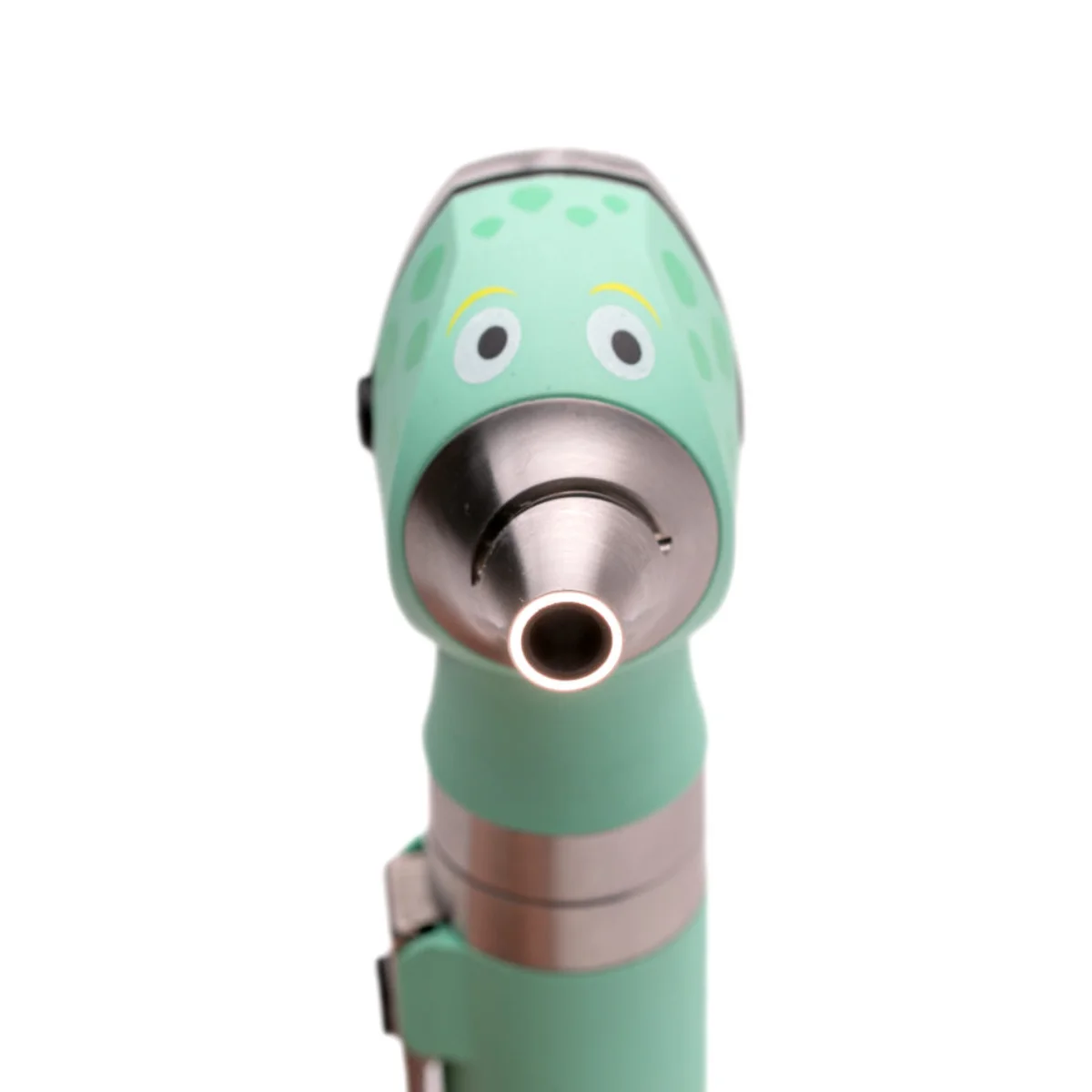

• Direct otoscope with patented LED ring illumination
• Optimal color rendering with a CRI value of over 90
• Especially lightweight (approx. 100 g) for fatigue-free use

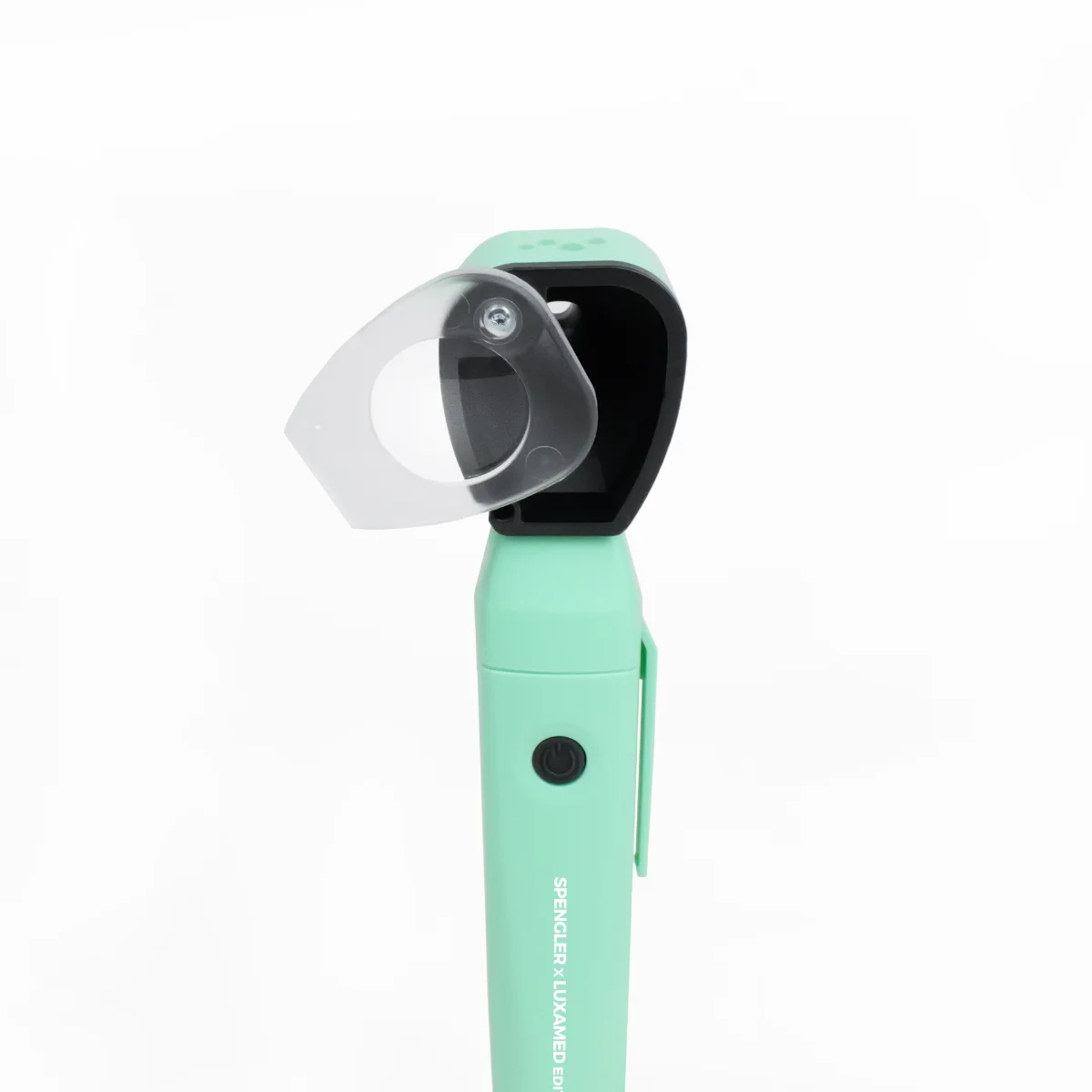

• Swiveling 3x magnifying lens with locking function
• Electronic push-button switch with automatic shut-off after 3 minutes
• Insufflation port for pneumatic test
• Suitable for adult and pediatric ear tips
• Incl. 2 AAA alkaline batteries and 20 disposable tips (10 in 2.5 mm and 10 in 4 mm)

Product features

• Magnification: 3 x
• Illumination: LED
• Optics: direct
• Dimmable: yes
• Switch between warm light / cool light possible: no
• Housing material: fiberglass-reinforced plastic, aluminum
• Viewing window material: plastic
• Insufflation port: yes
• Digital compatible: no

Technical details

• Lamp service life: 100,000 h
• Brightness/illuminance: 10,000 lx
• Handle power supply: battery
• Voltage: 2.5 V
• Color rendering index (CRI): Ra 90
• Color temperature: 4,250 K
• Weight: 100 g

Package contents

• 1 Spengler SmartLED pediatric otoscope – Spengler x LUXAMED Edition
• 2 AAA/LR03 batteries
• 10 disposable tips (2.5 mm)
• 10 disposable tips (4 mm)
