ELCAT handydop Doppler
For unidirectional Doppler sonography
€601.47*
Available now | Delivery between 18/07/2026 – 22/07/2026

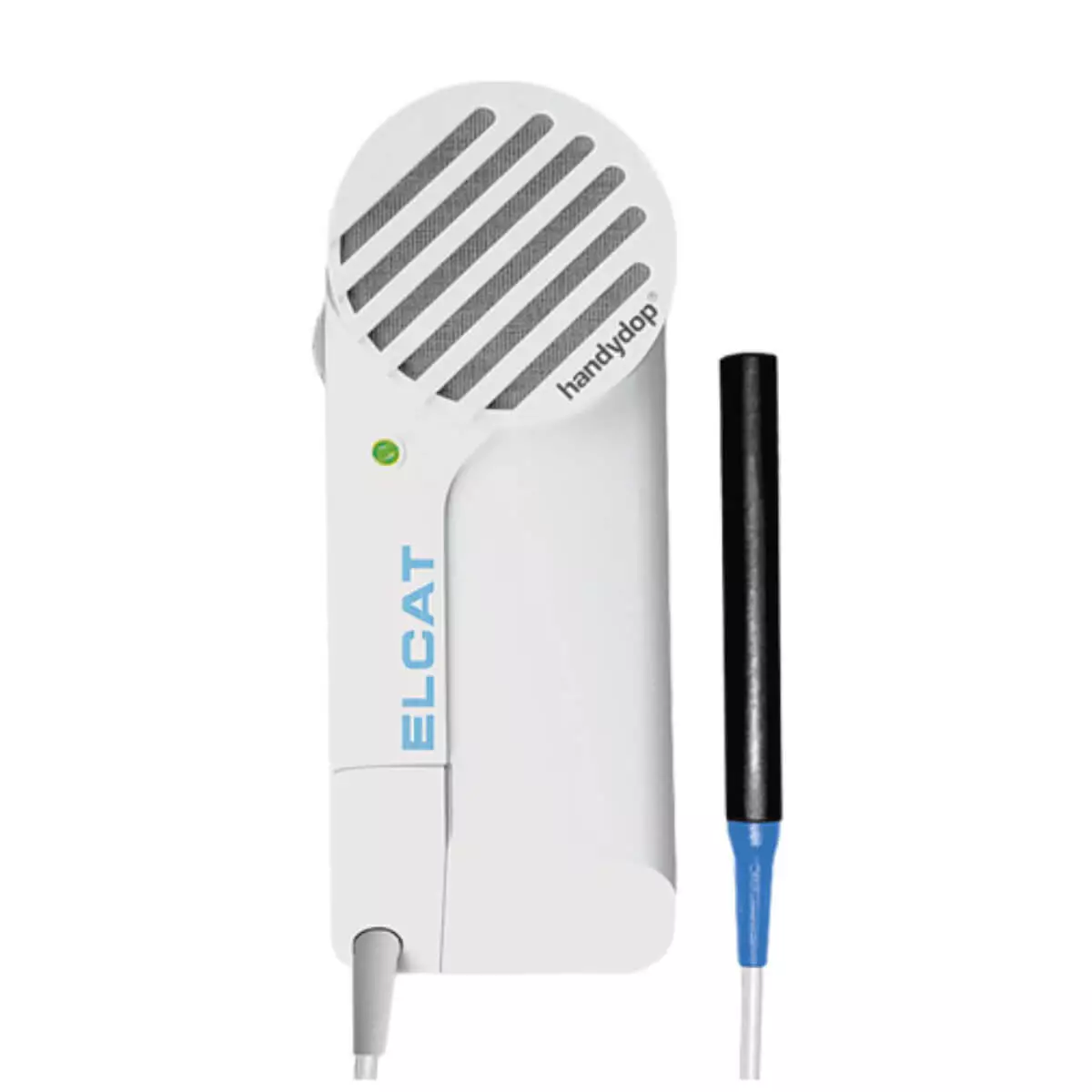

handydop Doppler by ELCAT
This ELCAT handydop Doppler is an all-rounder for unidirectional Doppler sonography examinations. It facilitates blood pressure measurement in shock patients and infants and detects venous insufficiency and thrombosis. The pocket Doppler is also used to detect fetal cardiac activity and differentiate between testicular torsion and epididymitis. The handydop works with rechargeable batteries, which saves on running costs.
Product details
- All-rounder for unidirectional Doppler sonography
- Very good sensitivity
- Post-stenotic blood pressure measurement to determine the severity of peripheral AVC
- Localisation of stenoses and occlusions
- Long operating times and low running costs thanks to battery mode energy management
- Built-in speaker
- Sleep mode prevents discharging and overcharging
- Charge status display
- Probes (sold separately) are easy to replace
- Incl. gel bottle
- Hand-held device dimensions: W 18 x H 7 x D 4 cm
- Charger dimensions: W 5 x H 5 x D 5 cm
- Weight: 450 g
Technical details
- Operating time: min. 2 hours
- Charging time: max. 3 hours
- Charger mains voltage: 230 VAC / 50 Hz
- Charger output voltage: 12 V
- Charger output current: 300 mA
- Power supply: 2 NiMH rechargeable batteries
Package contents
- 1 ELCAT handydop Doppler
- 1 charger LG20
- 1 gel bottle
The shown transducer is not included in the package contents.
Consumers do not have a right of withdrawal for sealed goods that are not suitable for return for reasons of health protection or hygiene, if the seal has been removed after delivery.
Specifications
| Area of application | vascular, fetal |
|---|---|
| Automatic off function | yes |
| Battery charging time | max. 3 h |
| Battery life during operation | min. 2 h |
| Device type | Doppler |
| Dimensions (L x W x H) | 180 x 70 x 40 mm |
| Mobile use | yes |
| Weight | 450 g |
| Digital upgrade | no |
| Norms and certificates | EN ISO 13485:2016, IEC/EN 60601-1 |
| Made in | Germany |
Product identification
| Product number | 240189 |
|---|---|
| Manufacturer name | ELCAT |
| Manufacturer item no. | A1101-1211 |
| EAN | 4250368200017 |
