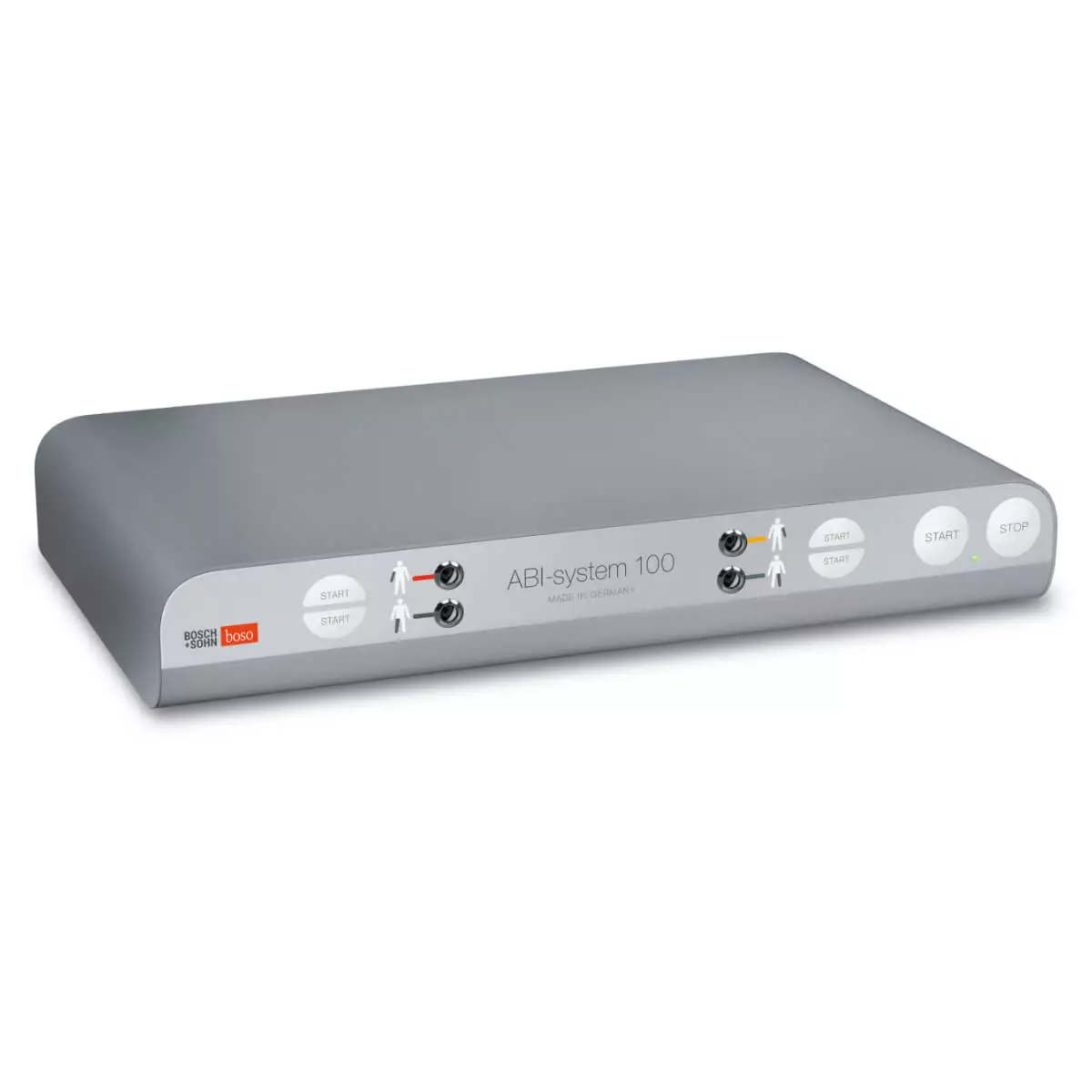

boso ABI System 100

The boso ABI system 100 is a blood pressure monitor that allows ABI measurements to be performed reliably in just 1 minute. The oscillometric blood pressure measurement at all four extremities simultaneously supports the early detection of peripheral arterial disease (PAD). The boso profil-manager XD software precisely calculates the Ankle-Brachial Index (ABI) and clearly presents the comprehensive measurement results. The ABI measurement system is the cost-effective solution for initial diagnostics of cardiovascular diseases, even in asymptomatic patients.

The ABI system 100 is also available with the pulse wave velocity (PWV) option.

Product details

• ABI system for the initial diagnosis of PAD (peripheral arterial disease)
• Clinically validated calculation of the Ankle-Brachial Index
• Also available with pulse wave velocity measurement to determine arterial stiffness
• Additional parameters:
• Individual blood pressure values for arms and legs
• Blood pressure side difference (e.g., subclavian artery stenosis)
• Pulse and pulse pressure
• Oscillation profile
• Indications of potential cardiac arrhythmias
• Easy to use – can be delegated to practice staff
• With color-coded cuffs and connectors
• Intelligent inflation automation for optimal cuff pressure and controlled deflation
• With boso profil-manager XD application software with GDT interface
• Incl. 2 upper arm cuffs, 2 ankle cuffs, power supply, and USB cable (3 m)
• Material (Velcro cuffs): nylon

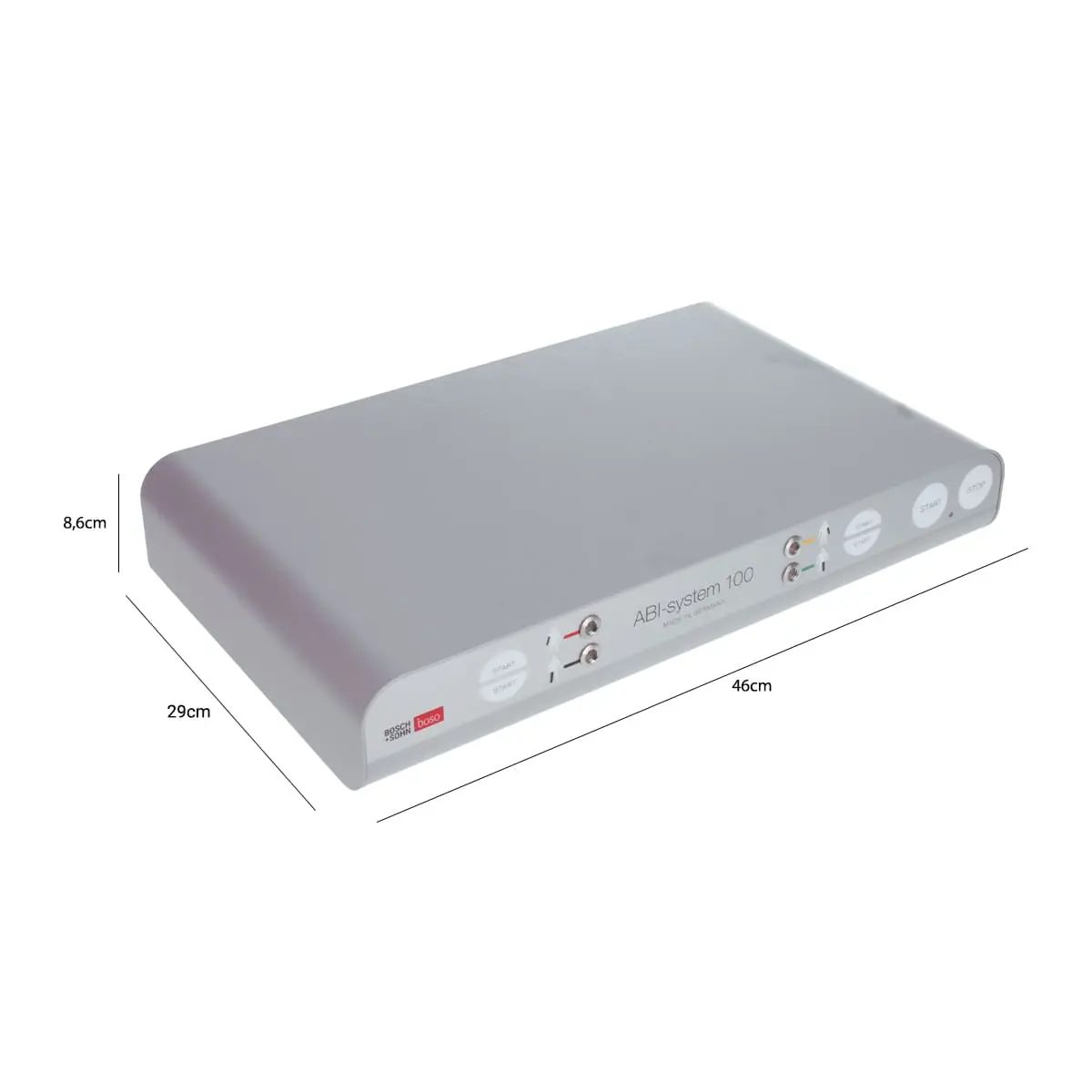

• Dimensions (device): L 29 x W 46 x H 8.3 cm
• Size (cuffs):
• Upper arm CA04: 22–42 cm
• Ankle CL04: 18–38 cm
• Weight (device): 3.34 kg (without power supply)
• Available in various colors and versions:
• ABI (without pulse wave measurement)
• ABI with pulse wave measurement

Technical specifications

• Measurement method: oscillometry
• Measurement range (blood pressure):
• Systolic: 60–240 mmHg
• Diastolic: 40–140 mmHg
• Measurement range (pulse): 30 to 190 bpm
• Cuff pressure: 0–300 mmHg
• System requirements:
• Operating system: Microsoft Windows 8 or higher
• 1 GHz processor
• 100 MB free disk space
• 1 GB RAM
• Administrator rights
• Connectivity: USB 2.0 interface
• Power supply: Power adapter DC 5 V; 3.0 A; AC 100–240 V, 50–60 Hz

Package contents

• 1 boso ABI system 100 (ABI measurement) in silver
• 1 boso profil-manager XD software for Windows PC (CD-ROM)

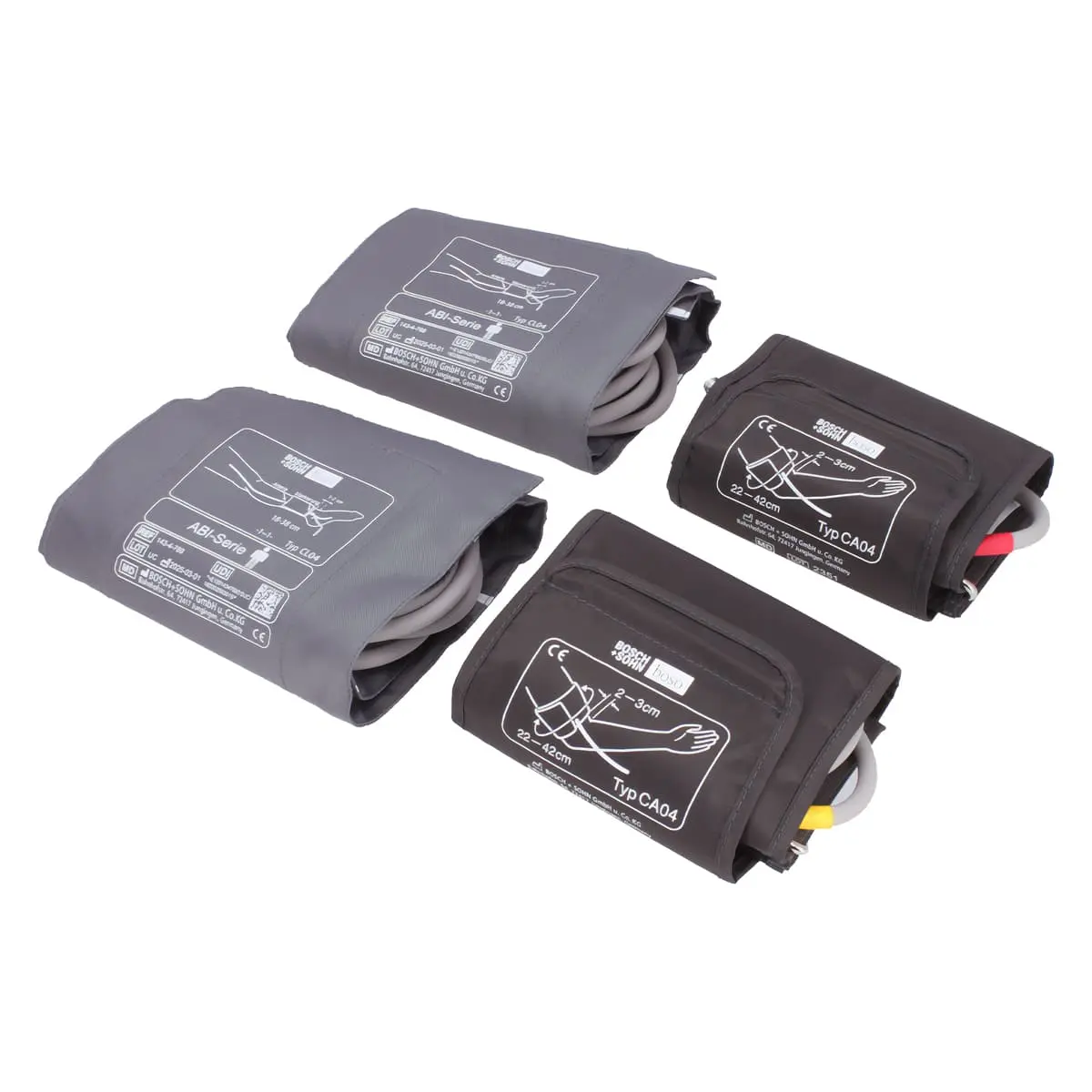

• 2 boso upper arm cuffs CA04 incl. tubing
• 2 boso ankle cuffs CL04 incl. tubing
• 1 USB cable
• 1 power supply unit
• 1 instruction manual boso ABI series
• 1 instruction manual boso profil-manager XD
• 1 carrying case
• 1 Medical device book

The product is subject to instruction in Germany according to MPBetreibV. Instruction is not included in the price.
