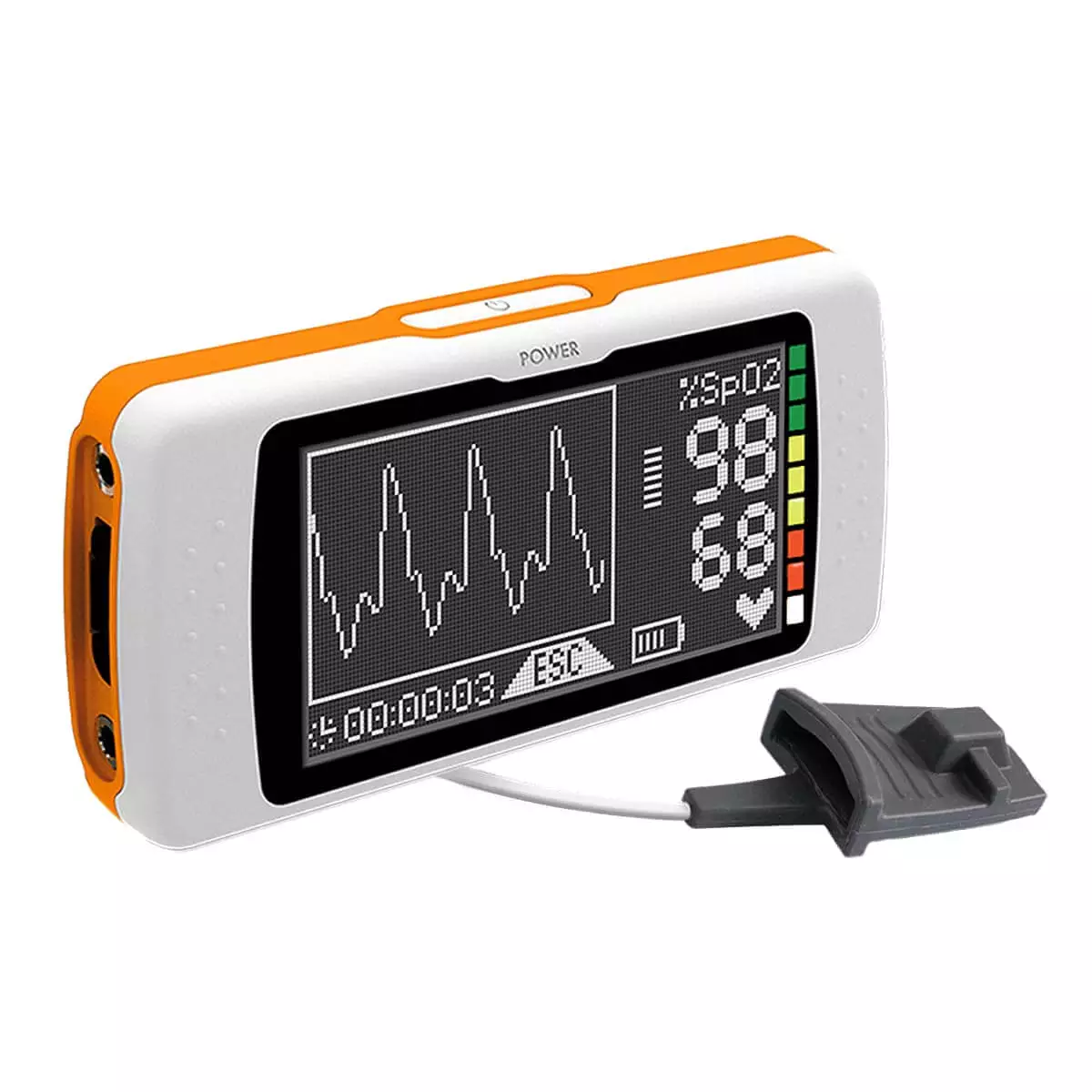

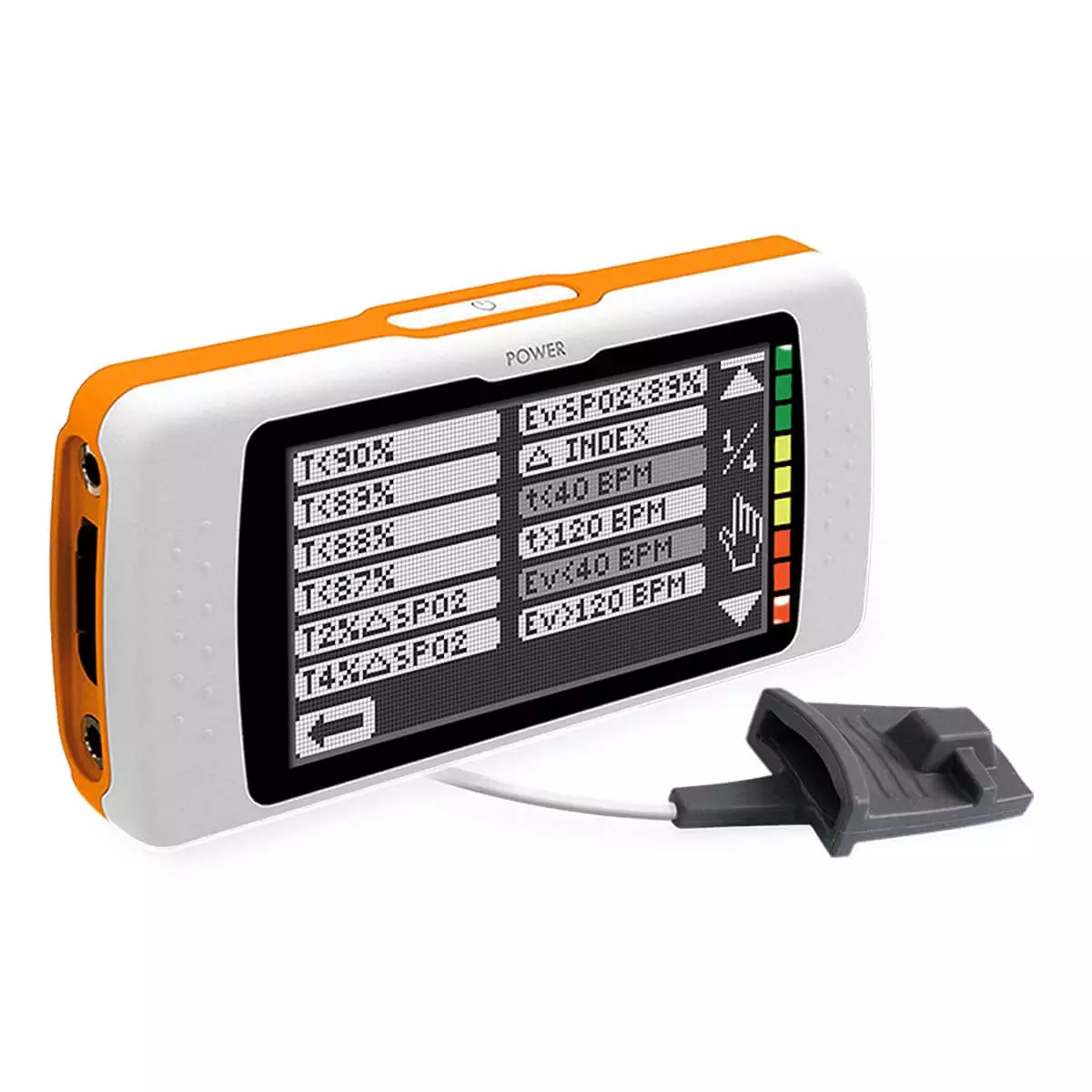

MIR Spirodoc spirometer

MIR’s innovative Spirodoc spirometeris a multifunctional stand-alone device for professional respiratory diagnostics. When purchased with the additional oximetry function, Spirodoc is both a handheld spirometer and a 3D oximeter for measuring undersaturation during exercise, sleep and everyday activities. The detachable flowmeter head facilitates mobile use of the oximetry function when performing 6-minute walk tests and sleep tests. All functions are displayed on the clear touchscreen, and the device is also PC-compatible thanks to the winspiroPRO software. A rechargeable Li-ion battery with a long service life and a large internal memory provide support for long-term tests. The Spirodoc spirometer has been developed for use in the health facilities, but it can also be configured for patient use. The spirometer is available in different versions: with an additional oximetry function (not retrofittable) incl. finger sensor and/or a sustainable reusable turbine.

Product details

• Portable spirometer with 2,8" touchsreen and optional 3D oximetry optionr
• Can be used on its own or on a PC
• Removable flowmeter head
• Optionally with oximetry measurement incl. finger sensor:
• 6-minute walk test (6MWT)
• Sleep test
• 24-hour Holter test
• Real-time tests also available on the PC via USB/Bluetooth
• Use with FlowMIR disposable or reusable turbines.
• Incl. Spiro 2.0 software for Windows and MacOS
• Incl. an additional activatable premium subscription for 12 months (with exclusive Platinum features of the Spiro 2.0 software)
• Incl. long-life Li-on battery
• Dimensions (main housing): L 101 x W 48 x H 16 mm
• Dimensions (turbine housing): L 46 x W 47 x H 24 mm
• Diameter (mouthpiece disposable turbine): 30 mm
• Weight (main housing): 99 g (incl. battery)
• Weight (turbine housing): 17 g
• Available in different versions:
• Without additional function, with standard accessories
• With reusable turbine for use with cardboard and plastic mouthpieces
• With oximetry function (retrofitting not possible) incl. soft finger sensor for adults
• With oximetry function (retrofitting not possible) incl. soft finger sensor for adults and reusable turbine

Technical details

• Display: Monochrome LCD, 160 x 80 pixels
• Measuring principle: Bi-directional digital turbine, triaxial acceleration sensor, absorption of red and infrared light (oximetry only)
• Flow range: ± 16 l/s
• Connectivity: USB 2.0, Bluetooth 2.1
• Memory capacity: up to 10,000 spirometry tests or up to 300 hours oximetry tests
• Prediction sets: Target values with LLN and Z-score, GLI in PC mode
• Power source: Rechargeable Ni-MH battery (3.7 V/ 1100 mAh)
• Operating time: approx. 50 hours
• Spirometry functions: FVC, FEV1, FEV1/FVC%, PEF, FEV3, FEV3/FVC%, FEV6, FEV1/FEV6%, FEF25, FEF50, FEF75, FEF2575, FET, EVol , ELA, FIVC, FIV1, FIV1/FIVC%, PIF, VC, EVC, IVC, IC, ERV, FEV1/VC%, TV, VE, RR, t I , t E , t I t Tot , t I , MVV
• Oximetry functions: %SpO 2MIN, %SpO 2MEAN %SpO 2MAX, BPM MIN, BPM MEAN, BPM MAX, Ttotal , Tanalysis, T<90%, T<89%, T<88%, T<87%, Ev%SpO 2 <89, ΔIndex, T<40BPM, T>120BPM, Ev <40BPM, Ev >120BPM, additional parameters for sleep test and 6MWT

Spirometry and Oximetry with the Spiro 2.0 Software

The latest MIR spirometry software, Spiro 2.0, is a powerful and easy-to-use desktop solution for spirometry and oximetry. It is ready for current and future Microsoft and MacOS operating systems.
Each MIR Spiro user has their own MyMIR account and benefits from enhanced features for detailed examinations and reliable data evaluation.
It meets the latest data protection and security standards and offers special functions to protect your privacy, such as anonymized printing and data export, as well as a quick setting to hide the patient list.

Free for 1 year – Platinum benefits of the MIR subscription:
When purchasing this device, a 12-month premium subscription is included. Activating the subscription license code unlocks additional features and benefits.

• Platinum support: One remote maintenance session per year and free access to online tutorials on spirometry, software, and device usage.
• Platinum experience: Unlimited updates and upgrades
• Platinum interoperability: Includes the data delivery service for the device, making data easily interchangeable with any customer platform or electronic patient record (EMR)
• Future Platinum features: Customizable user interface/user experience, bronchial challenge test, platinum spirometry trend, MIR SPIRO network version, bidirectional worklist, diagnostic support services (based on human or artificial intelligence)

Features of the Spiro 2.0 software (usable without a subscription):

• Wide range of main measurements, prediction sets, and predicted values
• Complies with the latest ATS/ERS guidelines
• Acceptance measurements, test evaluation, and quality control according to the latest standards
• Spirometry tests and advanced analysis:
• FVC (Forced Vital Capacity), SVC (Slow Vital Capacity), MVV (Maximum Voluntary Ventilation) both PRE and POST bronchodilator with a wide range of selectable parameters
• Summary with FVC, SVC, MVV; FVC history
• Display of FVC progress to compare FVC maneuvers from different measurements
• Primary and secondary reference equations (GLI, NHANES, ERS, KNUDSON, etc.)
• Pediatric display program: Real-time animation to improve patient cooperation
• Many editing tools: e.g., setting the best procedure, deactivating, activating, deleting, restoring measurements, configuring the parameters to be displayed and their order
• Oximetry with specific analysis application:
• Six-minute walk test (6MWT), sleep oximetry, 24-hour Holter saturation with adjustable titration
• Manually add artifacts, such as oxygen administration, status (awake, sleeping, walking), and apply various specific analyses
• Anonymization function: With one click, hide patient lists or remove personal data for data export
• Data import: Import tests from professional MIR devices
• EMR/EHR Integration: Highly interoperability-oriented architecture to optimize workflows and data exchange with EMR/EHR, supporting numerous standards such as HL7, FHIR (Json), GDT, DICOM, exchange protocol, etc.
• Customizable printout: Various templates (ATS2019 standard, winspiro classic, and NioshOsha), selectable report parameters and their order, FVC history, oximetry monitor, 6MWT, sleep oximetry, report with FVC and SVC
• Supports up to 22 languages: Chinese (China), Chinese (Taiwan), Czech (Czech Republic), Dutch (Netherlands), English (UK), English (USA), French (France), French (Belgium), Georgian (Georgia), German (Germany), Hungarian (Hungary), Italian (Italy), Japanese (Japan), Latvian (Latvia), Polish (Poland), Portuguese (Portugal), Romanian (Romania), Russian (Russia), Spanish (Spain), Swedish (Sweden), Turkish (Turkey), Ukrainian (Ukraine)
• Customizable user interface: Configurable according to personal preferences: "MirSpiroLight" (corresponds to the user interface of winspiroLight), "MirSpiroConnect" (corresponds to the user interface of spiroConnect), "MirSpiroXpress" (replicates the usability of winspiroXpress)
• System requirements:
• For MacOS: Operating system 10.13 / 2 GB RAM (4 GB recommended) / 1 GB free hard disk space
• For Windows: 7, 8, 10, 11 / RAM: 1 GB/32 bit or 2 GB/64 bit / Processor: 1 gigahertz (GHz) or higher, with two or more cores in a 64-bit processor / 1 GB free hard disk space
• Administrator rights for the operating system
• USB port, possibly support for Bluetooth Low Energy (Smart Bluetooth)

Package contents

• 1 MIR Spirodoc spirometer with oximetry option
• 1 reusable oximetry sensor for adults
• 1 FlowMIR disposable turbine
• 1 nose clip
• 1 WinspiroPRO PC software
• 1 charging cable
• 1 hard case
• 1 carrying case

You may need an Internet connection to use the PC software.
