CardioSecur CardioSecur Pro ECG

The CardioSecur Pro ECG system makes recording a comprehensive clinical-quality electrocardiogram quick and intuitive. The CardioSecur Pro technology was developed to investigate cardiological events promptly and flexibly, enabling professional monitoring in emergency situations independently of the treatment room. With only 4 electrodes and an ultra-light cable, your own iPhone/iPad becomes a mobile 12 or 22-channel ECG device. Whether complex arrhythmias or anterior, lateral, and posterior infarctions – the scope of analysis is unique worldwide and offers a 360° view of the heart.

Product details

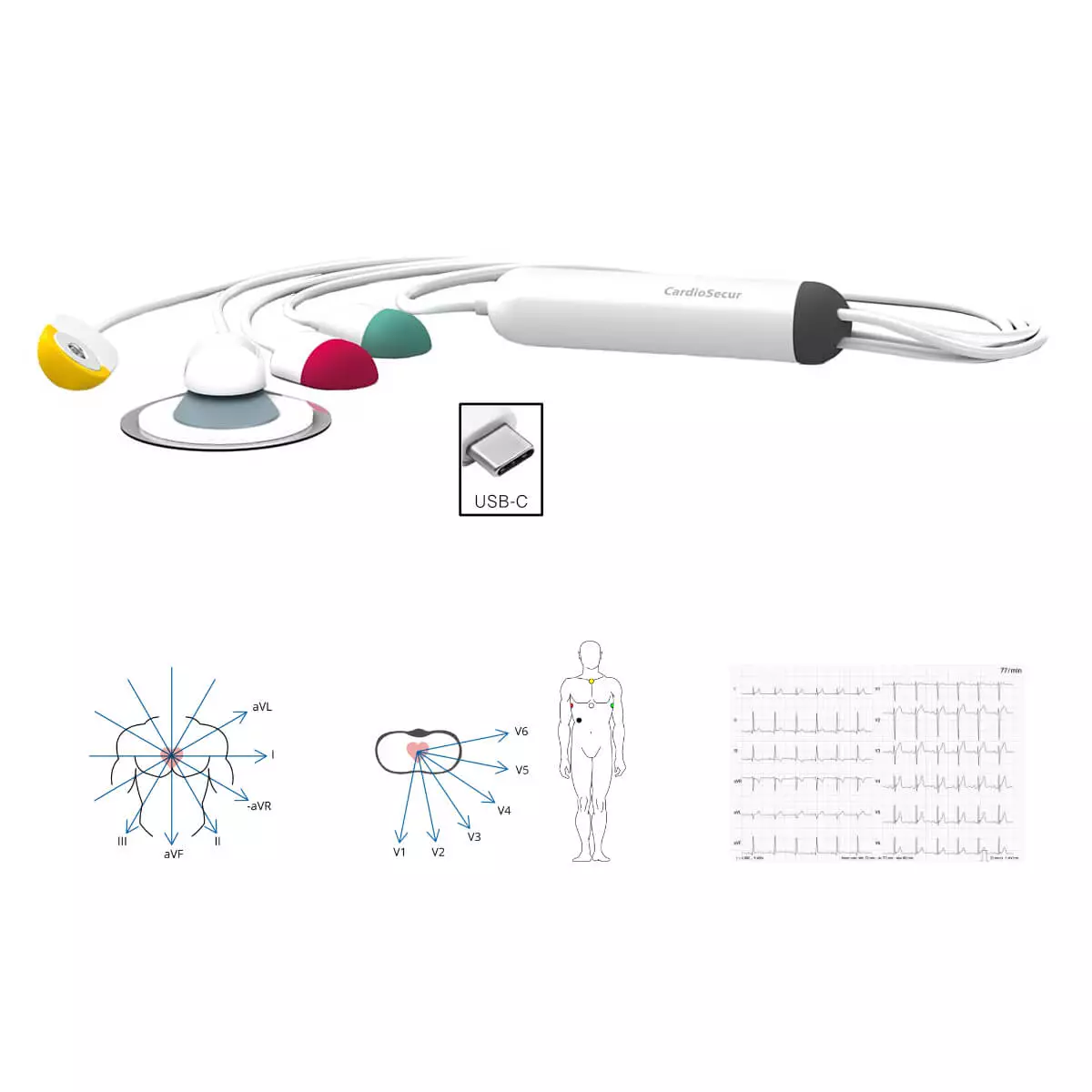

• Mobile resting ECG device with 12 or 22 channels for connecting to an existing Apple iPhone or iPad
• High-tech ECG cable for 4 electrodes in an ultra-lightweight design (50 g)
• Control via the free CardioSecur Pro app
• Quick measurement: 1-click ECG in an emergency
• Archiving of ECG recordings in the app, assign and add findings to the patient
• Send ECGs from iPhone or iPad (e.g., email, iMessage, AirDrop) and print (AirPrint)
• iF Design Award 2013
• Made in Germany
• Incl. 24 disposable adhesive electrodes (4 each for 6 measurements)
• Length (cable): 163 cm (connector to white electrode end), 78 cm (connector to tube branching point); 38 cm (tube branching point to colored electrode ends)
• Weight: 50 g
• Available in different configurations:
• With USB-C or Apple Lightning connector (please verify compatibility with your mobile device)
• With 12 or 22 channels
• Without software or with automatic ECG interpretation function and measurement with the HES algorithm

Innovative technology made in Germany

Creating an electrocardiogram can be so quick and intuitive: Connect CardioSecur Pro to the iOS device – position 4 electrodes – start measurement – receive your ECG report.
The CardioSecur Pro is available with 12 standard leads or 22-channel ECG recordings. The device creates a 12-lead derivation over 4 electrodes. All ECG functions can be conveniently controlled via the free CardioSecur Pro app. An ECG recording can last up to 30 minutes. All channels are displayed in high resolution on the mobile device. The zoom function allows for a detailed analysis of individual ECG segments.

The CardioSecur Pro with 22 channels also includes derivations over 4 electrodes. The CardioSecur Pro app is expanded with the additional channels V7–V9 and VR3–VR9 using the corresponding key code. A complete 22-channel derivation is displayed on the device. With the comprehensive 22-channel ECG, the innovative CardioSecur Pro offers a 360° view of the heart and thus provides far more than any standard 12-channel ECG. It implements the guidelines of the European Society of Cardiology in one measurement.

The mobile use of electrocardiography enables a comprehensive diagnosis of cardiological events anywhere and anytime – this can significantly speed up the start of therapy. The CardioSecur Pro app for iPad and iPhone offers comprehensive linking of doctor, doctor’s office management, and patient – simple and secure. The intuitive communication features of the CardioSecur Pro app make archiving on the device and data integration into databases as well as forwarding findings via email, iMessage, iCloud Drive, AirDrop, and AirPrint a breeze. Additional options and the software key for activating the 22-channel derivation can also be purchased later in the CardioSecur Pro app.

Technical details

• Derivation method: bipolar, 3-channel
• Measurement modes:
• 12-channel: standard leads I, II, III, aVR, aVL, aVF, and V1-V6
• 22-channel: 12 standard leads, V7 to V9 and VR3 to VR9
• Recording duration: 30 minutes/ECG (unlimited number of ECGs)
• ECG storage: 10,000 minutes of ECG recordings per 1 GB
• Sampling speed: 10; 25; 50 mm/s
• Bandwidth: 0.05 to 40 Hz
• Sampling rate: 250 Hz
• Amplitude axis: 0.5/1/2 mV/cm
• Filters: muscle tension, 50 Hz
• Viewing and recording mode
• Scrolling and zooming of ECG recordings
• Electrodes: wet gel / liquid gel electrodes (no solid gel)
• Easy ECG data export as PDF file via email, AirPrint, AirDrop, iMessage or other installed messaging services
• CardioSecur Pro app:
• Languages: German, English, French, Italian, Dutch, Spanish
• Size: 43.4 MB

• USB-C connector compatible with:
• iPad Pro 12.9-inch (3rd, 4th, 5th, 6th generation)
• iPad Pro 11-inch (1st, 2nd, 3rd, 4th generation)
• iPad Air (4th, 5th generation)
• iPad Mini (6th generation)
• iPhone 15, iPhone 15 Plus, iPhone 15 Pro, iPhone 15 Pro Max
• iPad 10
• Lightning connector compatible with:
• iPhone 14, iPhone 14 Plus, iPhone 14 Pro, iPhone 14 Pro Max
• iPhone 13, iPhone 13 Mini, iPhone 13 Pro, iPhone 13 Pro Max
• iPhone 12, iPhone 12 Mini, iPhone 12 Pro, iPhone 12 Pro Max
• iPhone SE (2020), iPhone SE (2022)
• iPhone 11, iPhone 11 Pro, iPhone 11 Pro Max
• iPhone X, iPhone XS, iPhone XR, iPhone XS Max
• iPhone 8, iPhone 8 Plus
• iPhone 7, iPhone 7 Plus
• iPhone 6s, iPhone 6s Plus
• iPhone 6, iPhone 6 Plus, iPhone SE
• iPhone 5, iPhone 5s, iPhone 5c
• iPad (4th, 5th, 6th, 7th, 8th, 9th generation)
• iPad Pro 12.9-inch (1st & 2nd generation), iPad Pro 10.5-inch, iPad Pro 9.7-inch
• iPad mini, iPad mini 2, iPad mini 3, iPad mini 4, iPad mini 5
• iPad Air, iPad Air 2, iPad Air 3
